Upper Steering Column: Assembly

Enter column from lower end of housing. Fit lower bushing to column with rubber dots on bushing facing downward. Align and engage dowels with holes in column housing. Position end cover and attach with tape. Replace turn signal clip. Install column in vehicle and replace steering wheel.

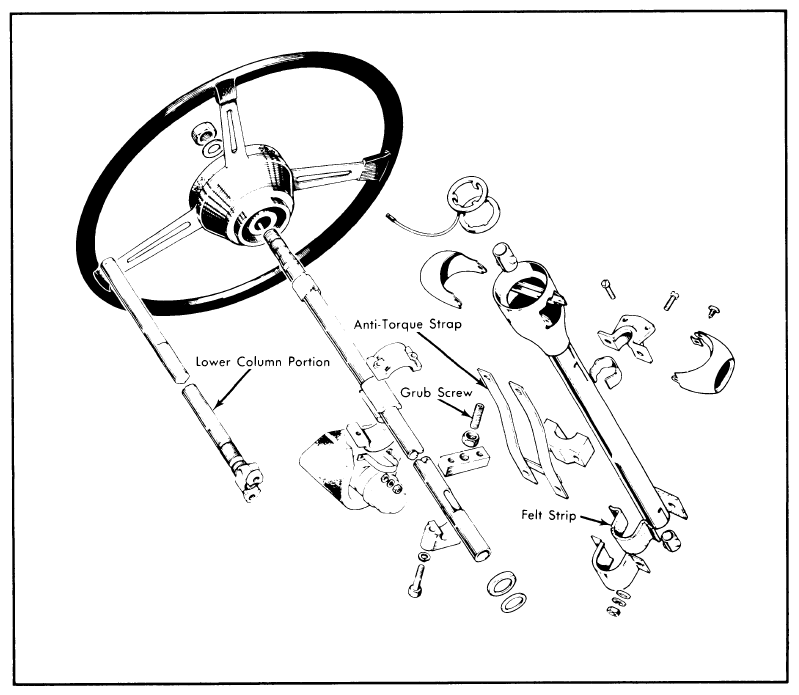

Fig 1: Disassembled View Of Tr6 Steering Column
G09356073Courtesy of NOT AVAILABLE
