Crankcase Ventilation: Maintenance

Every 12, 500 miles, check all hoses for condition and tightness. Check restrictor in rocker cover purge line and all hoses for blockage. Clean and replace components as necessary.

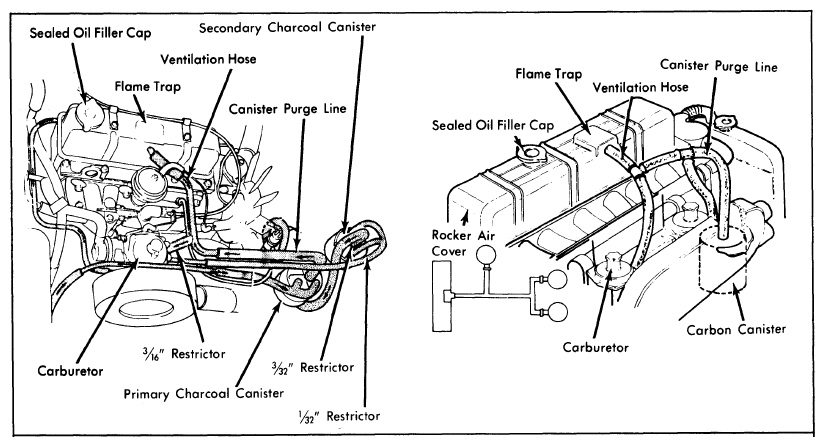

Fig 1: Crankcase Ventilation Systems (Typical)
G09350858Courtesy of NOT AVAILABLE
