Tune-Up - V8: Distributor

All models are equipped with Lucas electronic breakerless ignition systems. The only maintenance is adjusting air gap between timing rotor and pick-up module.

CAUTION: DO NOT insert feeler gauge into pick-up air gap when the ignition circuit is energized.

Air Gap

.012-.017" (.3-.4 mm)

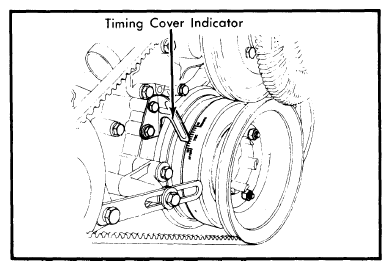

Fig 1: TR8 Ignition Timing Mark Location

Courtesy of NOT AVAILABLE
