Side Step Removal And Installation/Replacement

Mobile Repair Possible:  No

Special Tools Required:

Riveting Pliers - no part number

Drill Machine/Drills - no part number

Removal Procedure:

The procedure for the left-hand component is identical to that for the right-hand side.

1. Lift the vehicle. Refer to LIFTING AND JACKING THE VEHICLE
2. Remove front side door. Refer to FRONT SIDE DOOR REMOVAL AND INSTALLATION/REPLACEMENT
3. Remove rear side door. Refer to REAR SIDE DOOR REMOVAL AND INSTALLATION/REPLACEMENT
4. Remove front wheel opening molding. Refer to FRONT WHEEL OPENING MOLDING REMOVAL AND INSTALLATION/REPLACEMENT
5. Remove rear wheel opening molding. Refer to REAR WHEEL OPENING MOLDING REMOVAL AND INSTALLATION/REPLACEMENT
6. Remove rear tire air deflector. Refer to REAR TIRE AIR DEFLECTOR REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

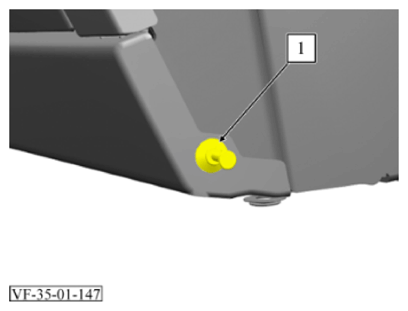

7. Remove rivet (1) from rear wheelhouse.

   Courtesy of VINFAST, LLC

8. Remove 2 rivets (1) from front wheelhouse.

   Courtesy of VINFAST, LLC

9. Remove 8 screws (2).

   Torque: 2.6 Nm

   Courtesy of VINFAST, LLC

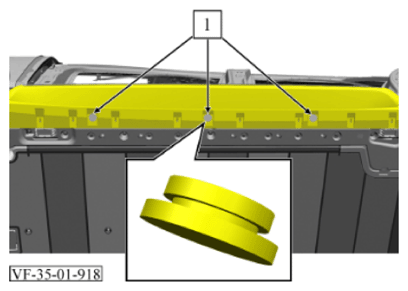

10. Unclip and remove 3 sealing plugs (1).

    Courtesy of VINFAST, LLC

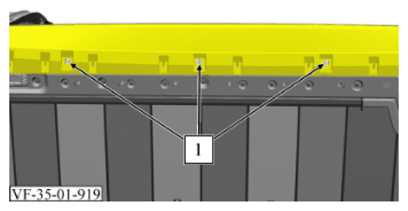

11. Remove 3 bolts (1).

    Torque: 19 Nm

    Courtesy of VINFAST, LLC

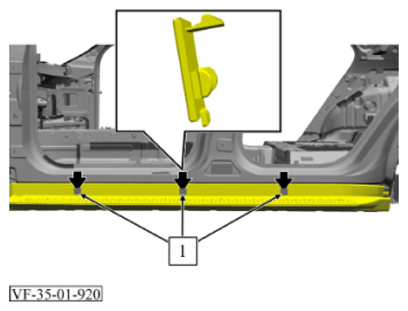

12. Unclip and remove 3 lids (1).

    Courtesy of VINFAST, LLC

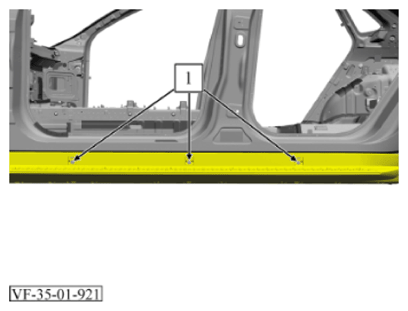

13. Remove 3 bolts (1).

    Torque: 19 Nm

    Courtesy of VINFAST, LLC

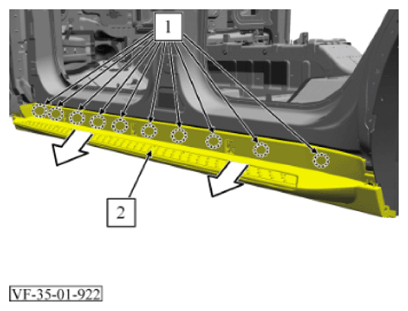

14. Disengage 10 clips (1).
15. Remove side step (2) in arrow direction.

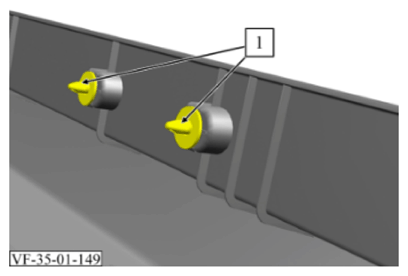

Courtesy of VINFAST, LLC

Installation note: Replace clips (1) if they are damaged.

Replacement Procedure:

Courtesy of VINFAST, LLC

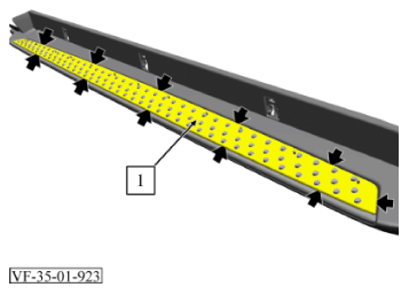

1. Unclip and remove the side step lining (1).

   Courtesy of VINFAST, LLC

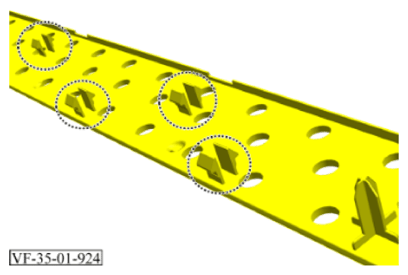

   Installation note: Check all latches for damage, and replace the lining if needed.

   Courtesy of VINFAST, LLC

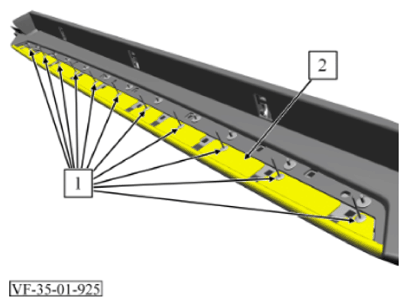

2. Remove 11 blind rivets (1) (drill 8 mm or equivalent).
3. Remove the side step guard (2).

   Courtesy of VINFAST, LLC

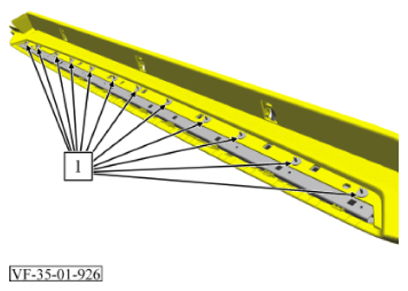

4. Remove 12 rivets (1).

   Courtesy of VINFAST, LLC

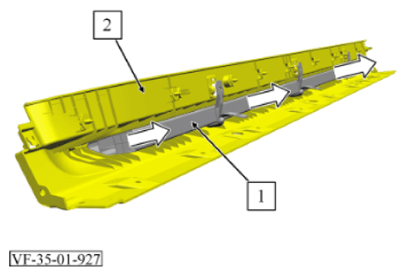

5. Remove the side step reinforcement (1) from the outer casing (2) in arrow direction.

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!

2. Install rear tire air deflector. Refer to REAR TIRE AIR DEFLECTOR REMOVAL AND INSTALLATION/REPLACEMENT
3. Install rear wheel opening molding. Refer to REAR WHEEL OPENING MOLDING REMOVAL AND INSTALLATION/REPLACEMENT
4. Install front wheel opening molding. Refer to FRONT WHEEL OPENING MOLDING REMOVAL AND INSTALLATION/REPLACEMENT
5. Install rear side door. Refer to REAR SIDE DOOR REMOVAL AND INSTALLATION/REPLACEMENT
6. Install front side door. Refer to FRONT SIDE DOOR REMOVAL AND INSTALLATION/REPLACEMENT
