Home › VinFast › 2023 › VF8 Plus › Repair and Diagnosis › Electrical › Body Electrical › Wiring Harnesses › Component Identification › IP Harness Connector And Module Locations › IP Harness Overview › IP Harness Connector and Module on left side

IP Harness Connector and Module on left side

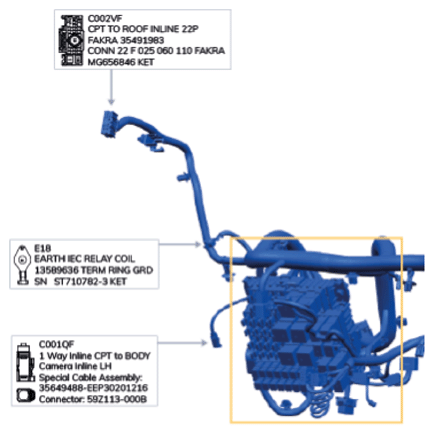

G15971505Courtesy of VINFAST, LLC

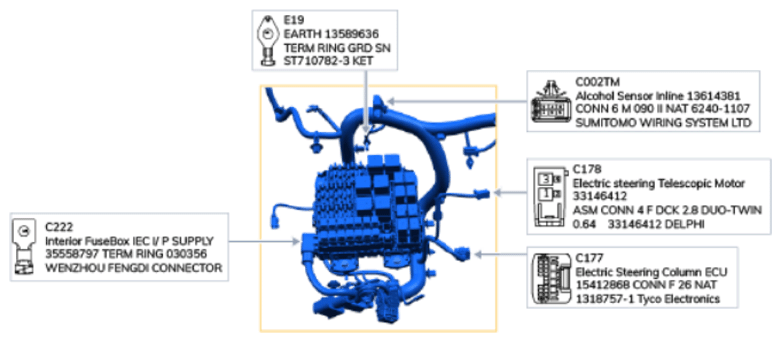

G15971506Courtesy of VINFAST, LLC

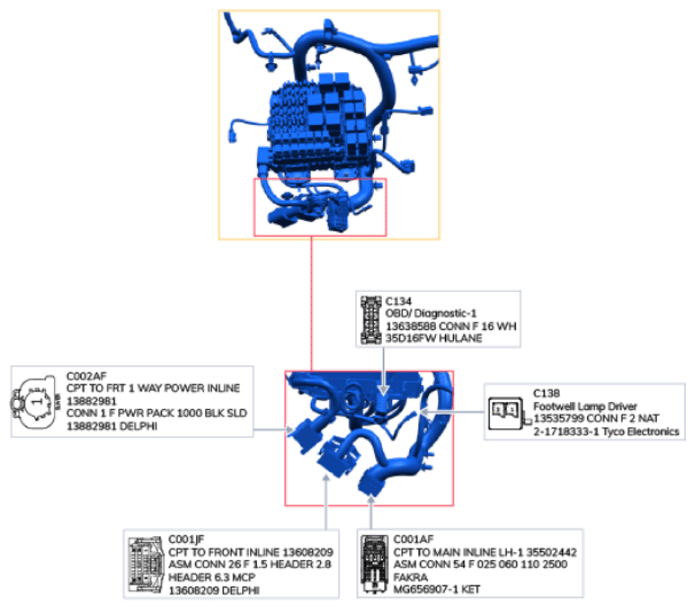

G15971507Courtesy of VINFAST, LLC
