Steering Wheel Pad Accessory Wiring Harness Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Remove steering wheel main control switch bezel. Refer to STEERING WHEEL MAIN CONTROL SWITCH BEZEL REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

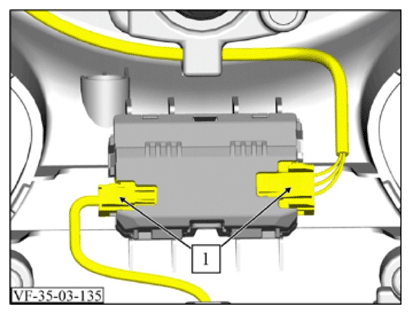

2. Unlock and disconnect 2 electrical connector (1) from the hand off detection.

   Courtesy of VINFAST, LLC

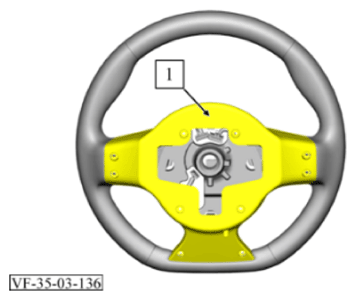

3. Remove rear steering wheel bezel plate (1).

   Courtesy of VINFAST, LLC

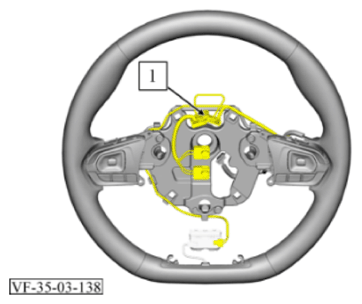

4. Unlock and disconnect electrical connector (1) from the multifunction switch.

   Courtesy of VINFAST, LLC

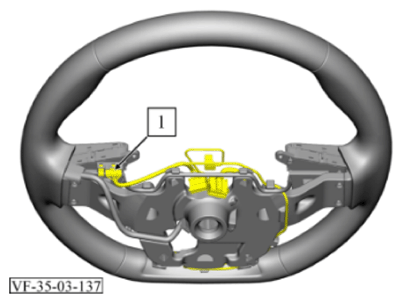

5. Remove wiring harness (1).

   Installation note: Pay attention to proper cable routing.

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.
2. Install steering wheel main control switch bezel. Refer to STEERING WHEEL MAIN CONTROL SWITCH BEZEL REMOVAL AND INSTALLATION/REPLACEMENT
