eMotor (FWD) Mount (Left Side) Removal And Installation/Replacement

Mobile Repair Possible:  No

Special Tools Required:

Transmission Jack/Hydraulic Jack - no part number

WARNING: Electricity hazard
Failure to follow specified procedures may result in death or serious injury from electric shock when working on or near high-voltage components.
  • Only authorised and appropriately trained persons may carry out work on high-voltage vehicles and components.
  • Perform High Voltage isolation procedure prior to commencing work.
  • Ensure appropriate Personal Protective Equipment is worn until the system is verified safe.
WARNING: Overhead Suspended Load and Falling Parts
Failure to follow specified procedures may result in death or serious injury when elevated load or components are incorrectly secured/supported.
  • All lifting equipment weight rating must meet or exceed the weight of the vehicle and any contents.
  • The lifting equipment must be in good condition and approved for use.
  • Only lift the vehicle from the identified lift points.
  • Ensure vehicle is stable before performing any work underneath.
  • Ensure there are no loose components which may fall.
  • Always use personal protective equipment (PPE).
  • Seek assistance when handling larger components.

Removal Procedure:

  1. Remove power distribution unit (PDU) cradle. Refer to POWER DISTRIBUTION UNIT (PDU) CRADLE REMOVAL AND INSTALLATION/REPLACEMENT
  2. Remove eMotor (FWD) mount bracket (left side). Refer to EMOTOR (FWD) MOUNT BRACKET (LEFT SIDE) REMOVAL AND INSTALLATION/REPLACEMENT
    G15972136Courtesy of VINFAST, LLC

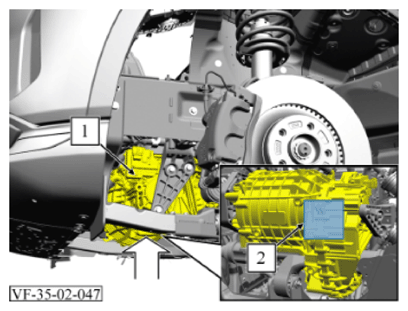

  3. Support the eMotor (FWD) (1) with a transmission jack or hydraulic jack using a rubber pad in the marked area (2) during the entire process.
    G15972137Courtesy of VINFAST, LLC

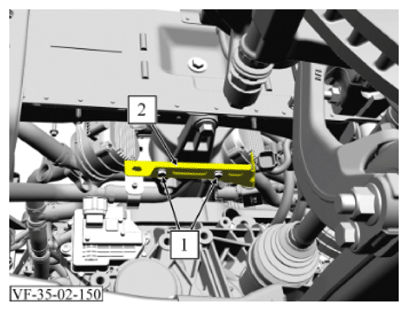

  4. Remove 2 bolts (1).

    Torque: 8 Nm

  5. Remove the bracket (2) from the eMotor mount.
    G15972138Courtesy of VINFAST, LLC

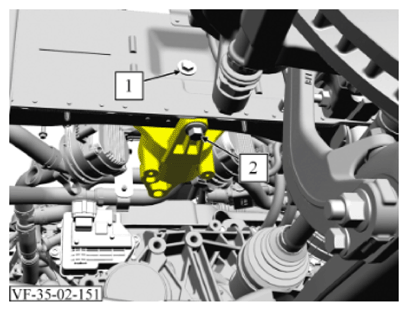

  6. Remove bolt (1).

    Torque: 30 Nm

  7. Remove bolt (2).

    Torque: 88 Nm

    G15972139Courtesy of VINFAST, LLC

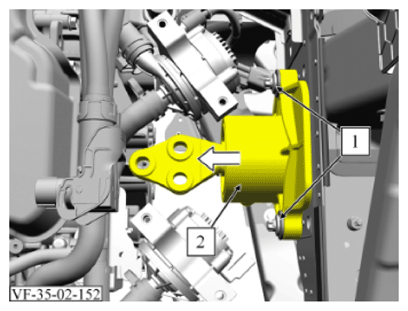

  8. Remove 2 bolts (1).

    Torque: 70 Nm

  9. Guide out and remove the eMotor (FWD) mount (2) in arrow direction.

Installation Procedure:

  1. Installation is the reverse of removal procedure, noting the following.

    All fasteners must be tightened to torque specification.

  2. Install eMotor (FWD) mount bracket (left side). Refer to EMOTOR (FWD) MOUNT BRACKET (LEFT SIDE) REMOVAL AND INSTALLATION/REPLACEMENT
  3. Install power distribution unit (PDU) cradle. Refer to POWER DISTRIBUTION UNIT (PDU) CRADLE REMOVAL AND INSTALLATION/REPLACEMENT
