Multimedia Display Rear Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Overview:

Removal Procedure:

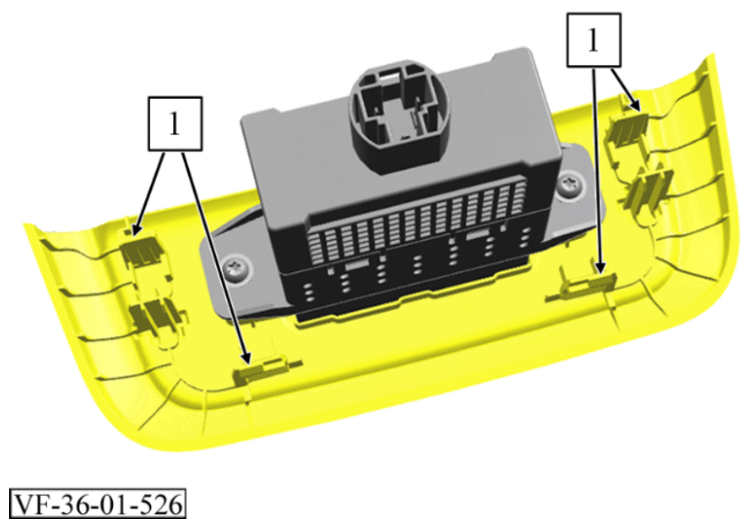

1. Carefully pry out the rear cover (1) at the marked points (black arrows) using a flat plastic trim tool and pull rearwards.

   Courtesy of VINFAST, LLC

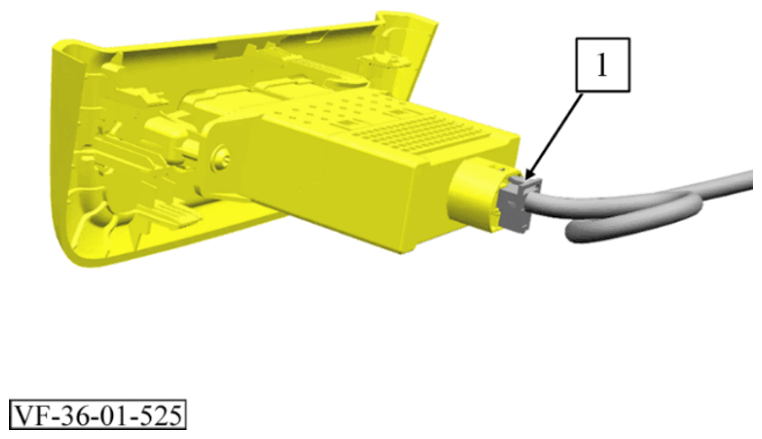

2. Unlock and disconnect the electrical connector (1).
3. Remove the rear cover.
4. Remove 2 screws (1).

   Torque: 1.2 Nm

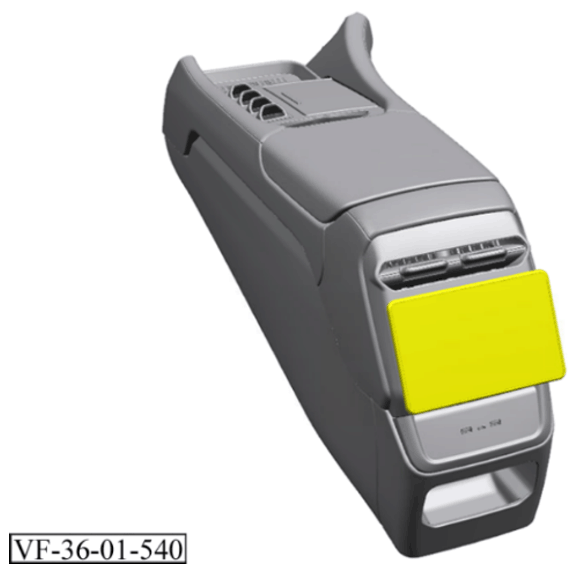

5. Unclip multimedia display (1) away from the front floor console in arrow direction.

   Courtesy of VINFAST, LLC

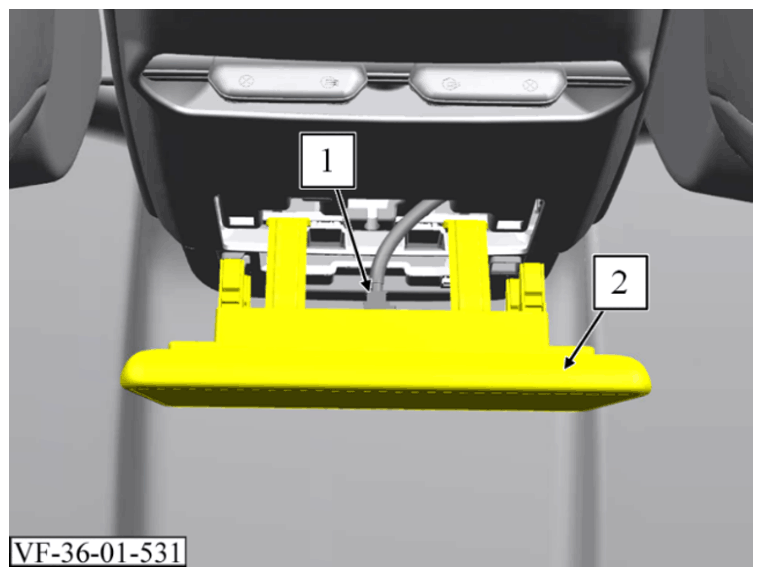

6. Unlock and disconnect electrical connector (1).
7. Guide out the multimedia display (2) and remove it.

Installation Procedure:

Courtesy of VINFAST, LLC

Installation note: Check clamps for damage, replace if necessary.

Courtesy of VINFAST, LLC

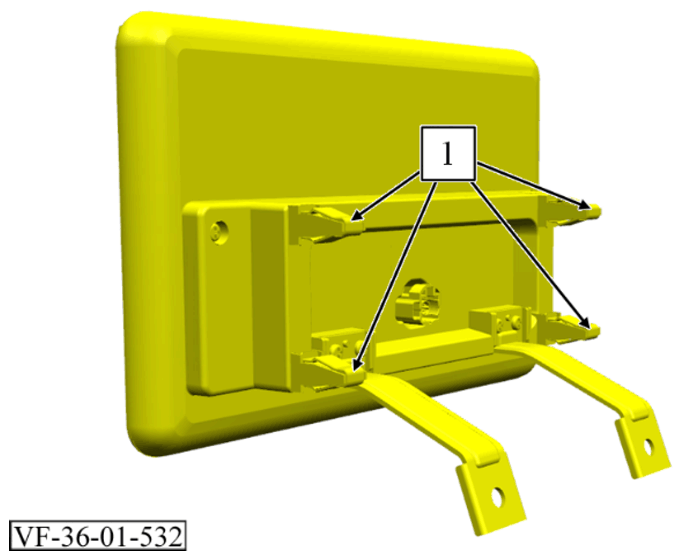

Installation note: Check latches (1) for damage, replace cover if necessary.

Installation note: Check clamps (1) for damage, replace if necessary.

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!
