Front Center Speaker Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Remove instrument panel center speaker grille. Refer to INSTRUMENT PANEL CENTER SPEAKER GRILLE REMOVAL AND INSTALLATION/REPLACEMENT
2. Remove 4 screws (1).

   Torque: 1.2 Nm

3. Guide the front center speaker (2) upwards out of the instrument panel.

   Courtesy of VINFAST, LLC

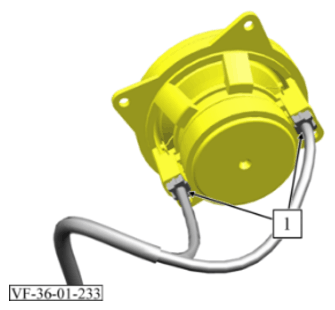

4. Unlock and disconnect 2 electrical connectors (1).
5. Remove the front center speaker (2).

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!

2. Install instrument panel center speaker grille. Refer to INSTRUMENT PANEL CENTER SPEAKER GRILLE REMOVAL AND INSTALLATION/REPLACEMENT
