Accessory Power Receptacle Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Remove right c-pillar lower trim panel. Refer to C-PILLAR LOWER TRIM PANEL REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

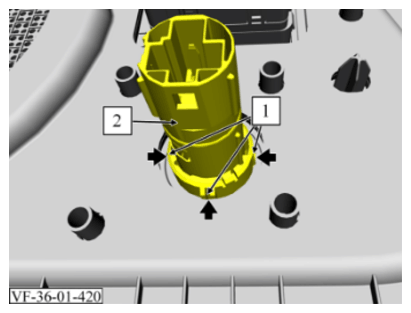

2. Press latching lugs (1) in direction of arrow and remove 12V accessory power receptacle (2).

   Courtesy of VINFAST, LLC

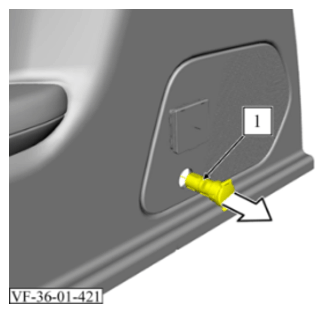

3. Remove the 12V socket (1) in the direction of the arrow.

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following
2. Install right c-pillar lower trim panel. Refer to C-PILLAR LOWER TRIM PANEL REMOVAL AND INSTALLATION/REPLACEMENT
