Battery Negative Cable Disconnection/Connection

Mobile Repair Possible: Van/Car

NOTE: Damage
Failure to follow specified procedures may result in damage to the vehicle's electrical system.

Read Warnings and Instructions before disconnecting the battery.
Refer to DANGER AND WARNINGS
Refer to General Warnings and Safety Regulations, See HIGH VOLTAGE SAFETY AND SYSTEM INFORMATION .

Removal Procedure:

G16024765

Courtesy of VINFAST, LLC

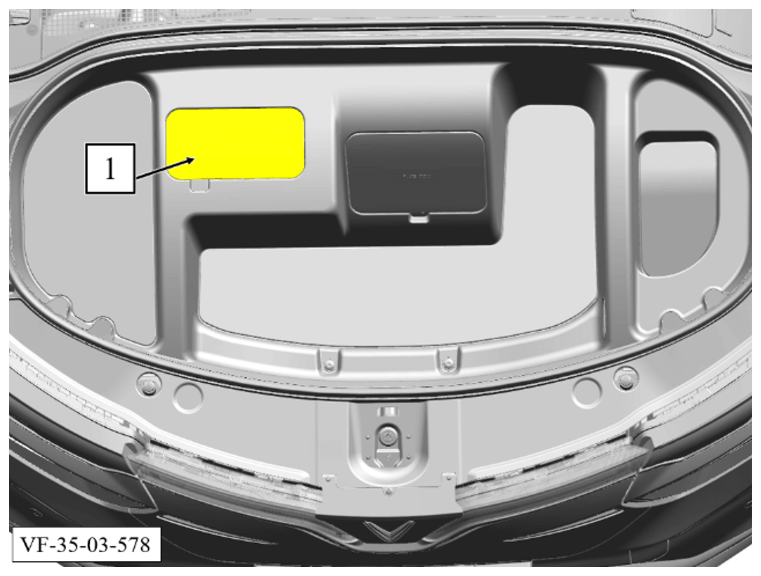

Remove maintenance cap (1).

Courtesy of VINFAST, LLC

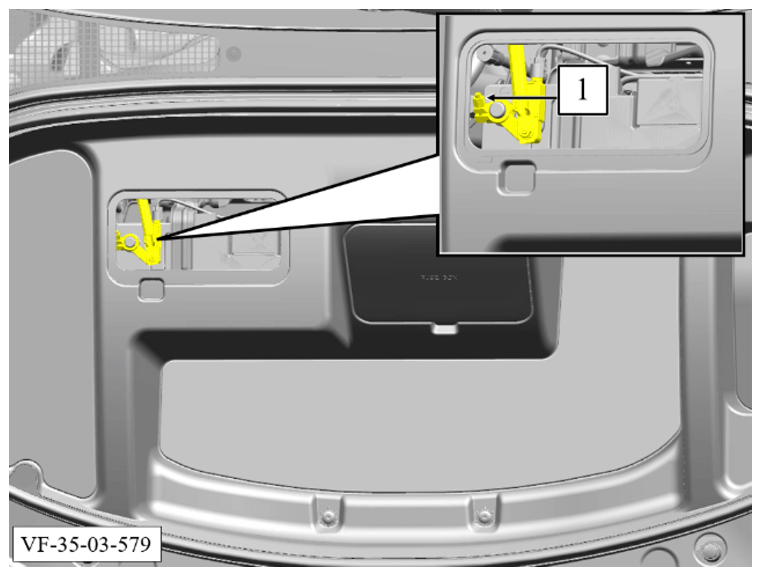

Loosen nut (1), do not remove it.
Torque: 6 Nm

Courtesy of VINFAST, LLC
Pull off the battery negative cable (1) from the battery negative terminal by carefully moving it to and fro. Do not pry using a tool.
Move the battery negative cable (1) to one side and secure.

Installation Procedure:

Installation is the reverse of removal procedure, noting the following
All fasteners must be tightened to torque specification!
