Front Fender Bracket Removal And Installation/Replacement

Mobile Repair Possible:  No

Removal Procedure:

The procedure for the left-hand component is identical to that for the right-hand side.

1. Remove front fender. Refer to FRONT FENDER REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

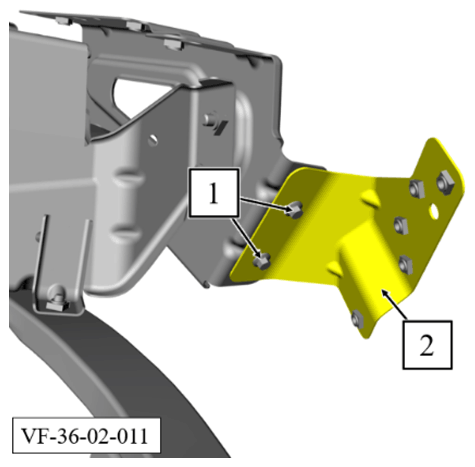

2. Remove 2 bolts (1).

   Torque: 8 Nm

3. Remove front fender bracket (2).

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!

2. Install front fender. Refer to FRONT FENDER REMOVAL AND INSTALLATION/REPLACEMENT
