Multimedia Display Rear Trim Panel Removal And Installation/Replacement

Mobile Repair Possible:  No

Removal Procedure:

1. Remove side defroster duct (left side). Refer to SIDE DEFROSTER DUCT (LEFT SIDE) REMOVAL AND INSTALLATION/REPLACEMENT
2. Remove side defroster duct (right side). Refer to SIDE DEFROSTER DUCT (RIGHT SIDE) REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

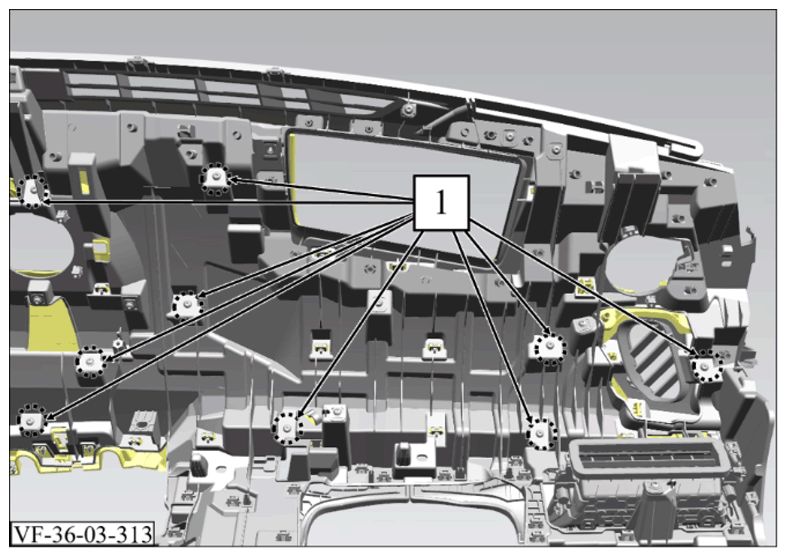

3. Remove 9 screws (1).

   Torque: 3 Nm

   Courtesy of VINFAST, LLC

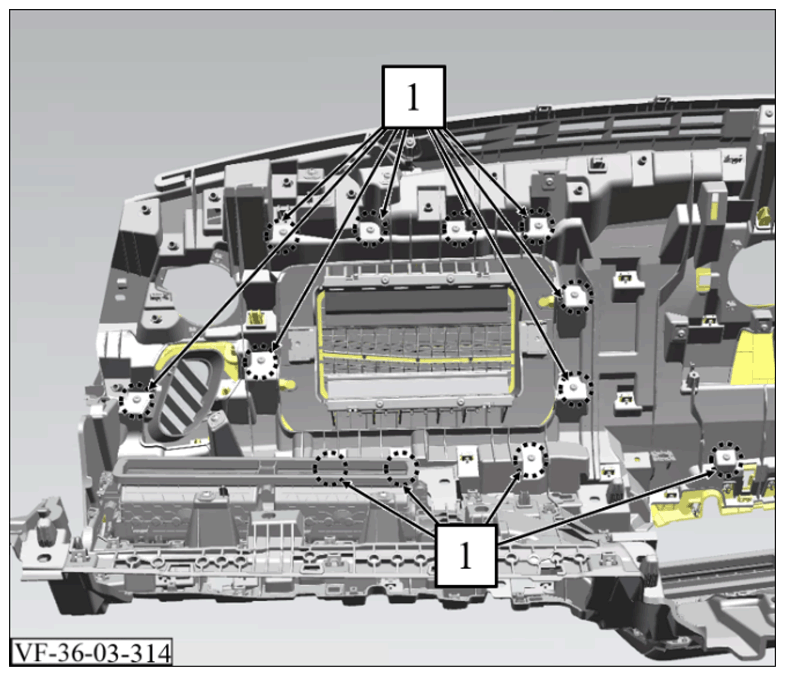

4. Remove 12 screws (1).

   Torque: 3 Nm

   Courtesy of VINFAST, LLC

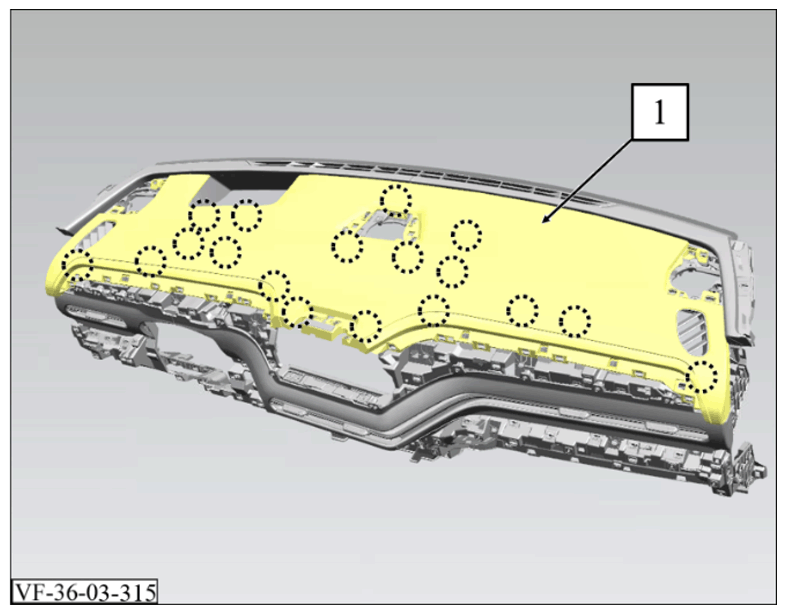

5. Unclip the rear trim panel (1) at the marked areas and remove it.

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following. All fasteners must be tightened to torque specification!

   Courtesy of VINFAST, LLC

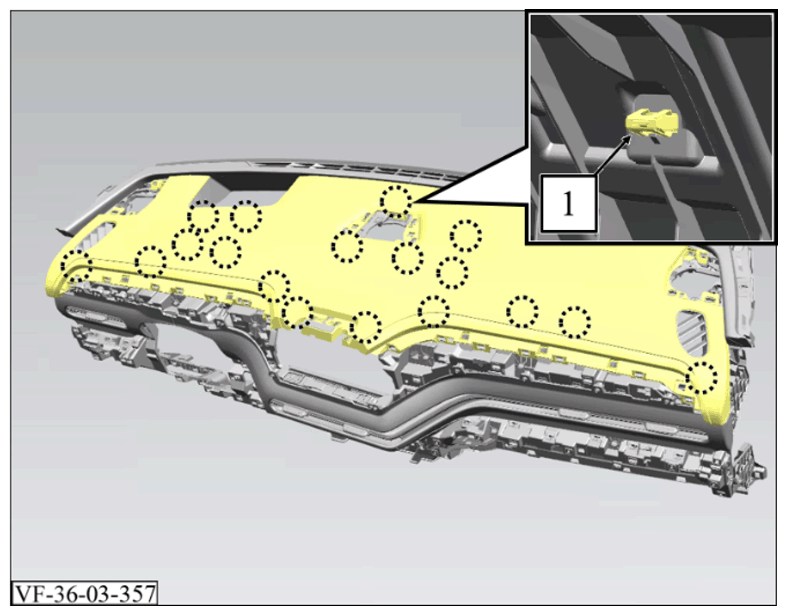

2. Check the clip towers and the metal clips (1) for damage and replace if necessary.
3. Install side defroster duct (left side). Refer to SIDE DEFROSTER DUCT (LEFT SIDE) REMOVAL AND INSTALLATION/REPLACEMENT
4. Install side defroster duct (right side). Refer to SIDE DEFROSTER DUCT (RIGHT SIDE) REMOVAL AND INSTALLATION/REPLACEMENT
