Liftgate Harness Routing And Connector Information

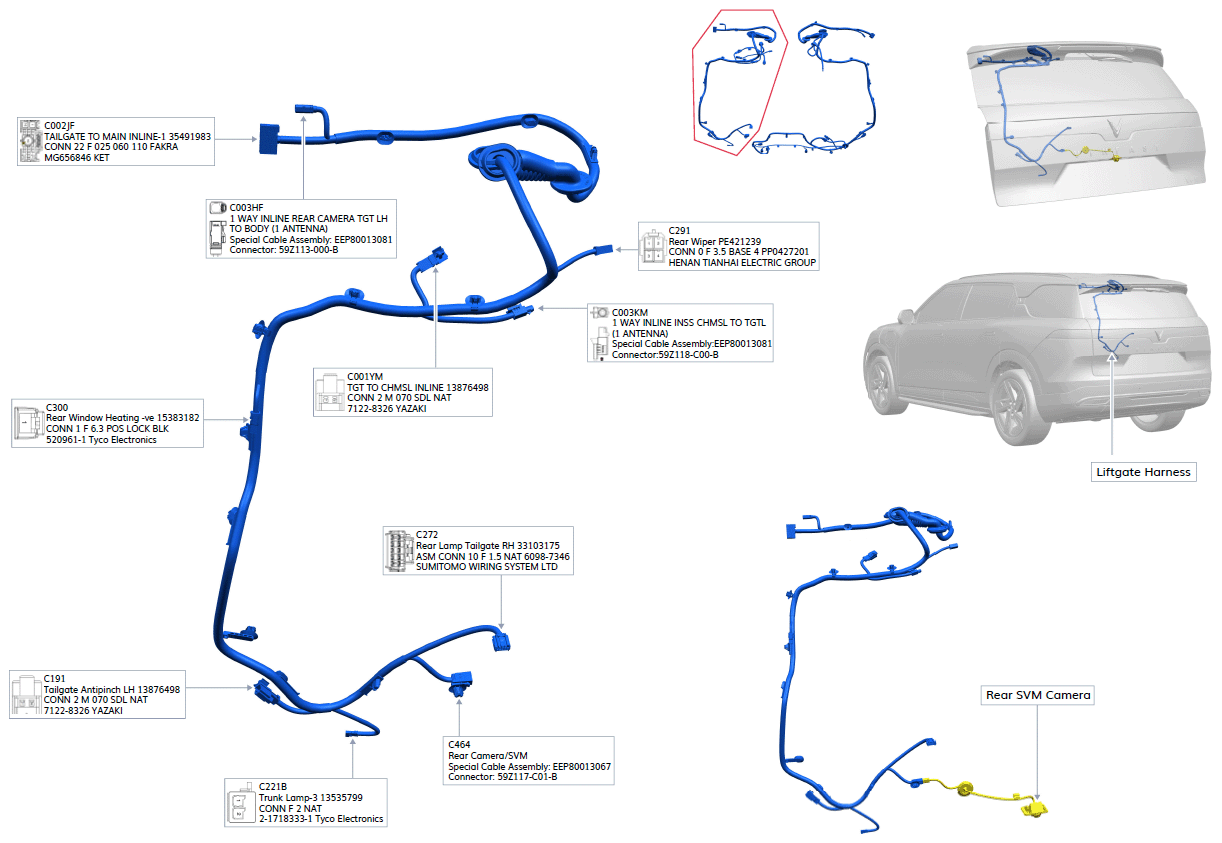

G16031353Courtesy of VINFAST, LLC

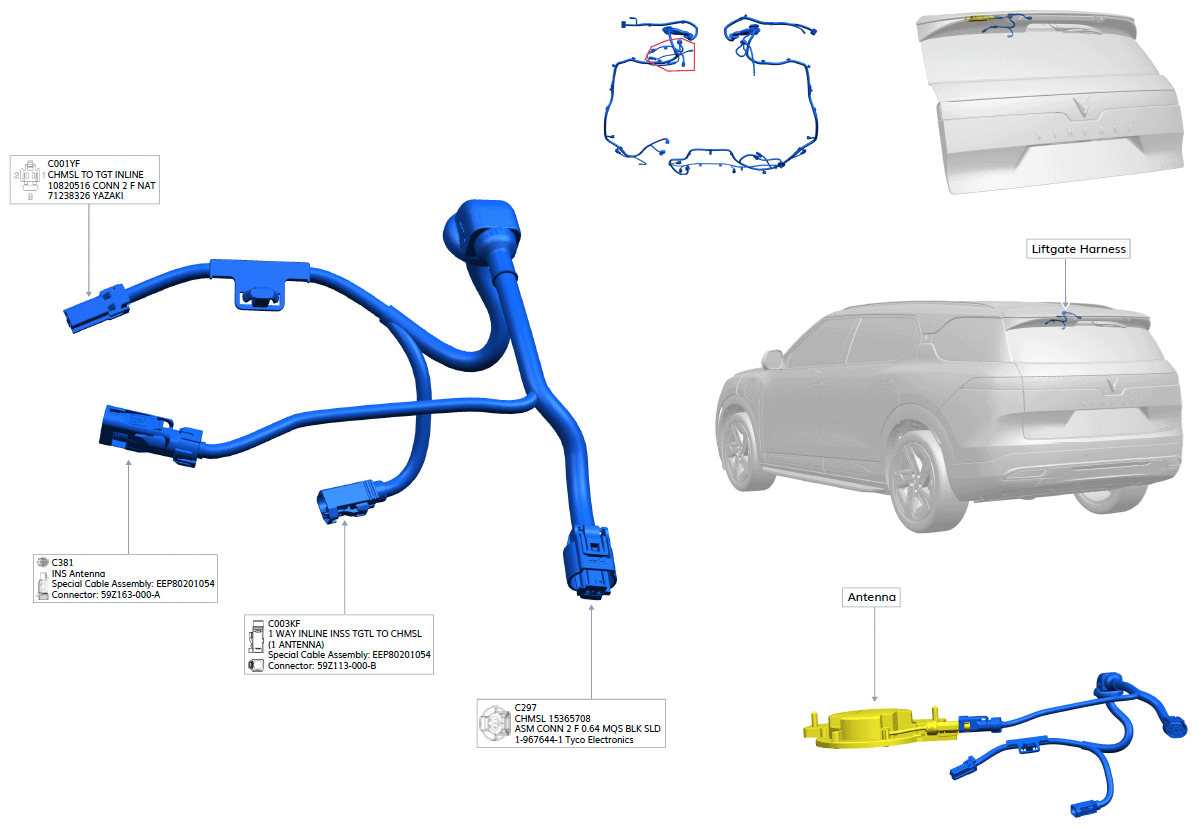

G16031354Courtesy of VINFAST, LLC

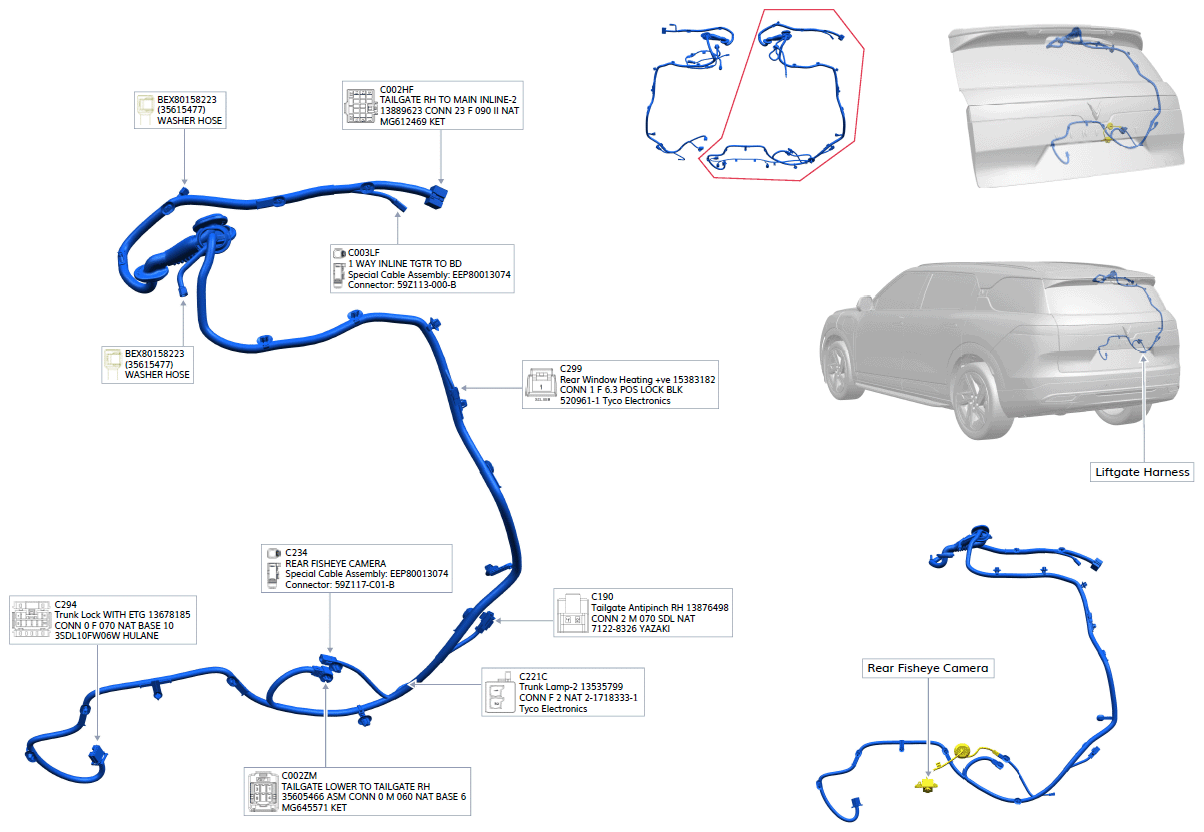

G16031355Courtesy of VINFAST, LLC

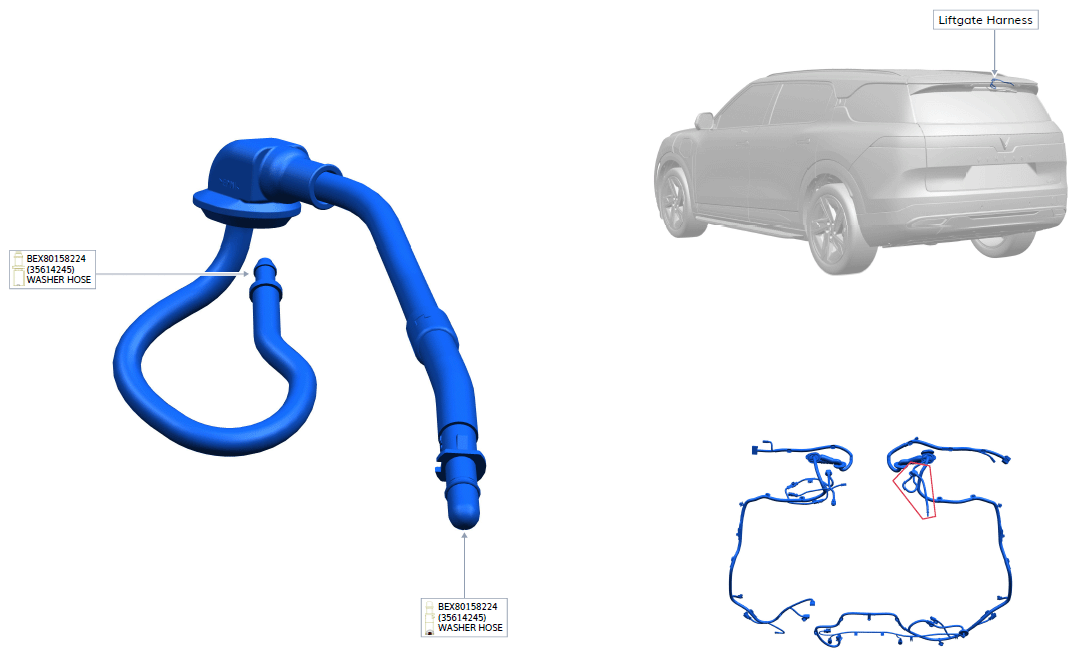

G16031356Courtesy of VINFAST, LLC

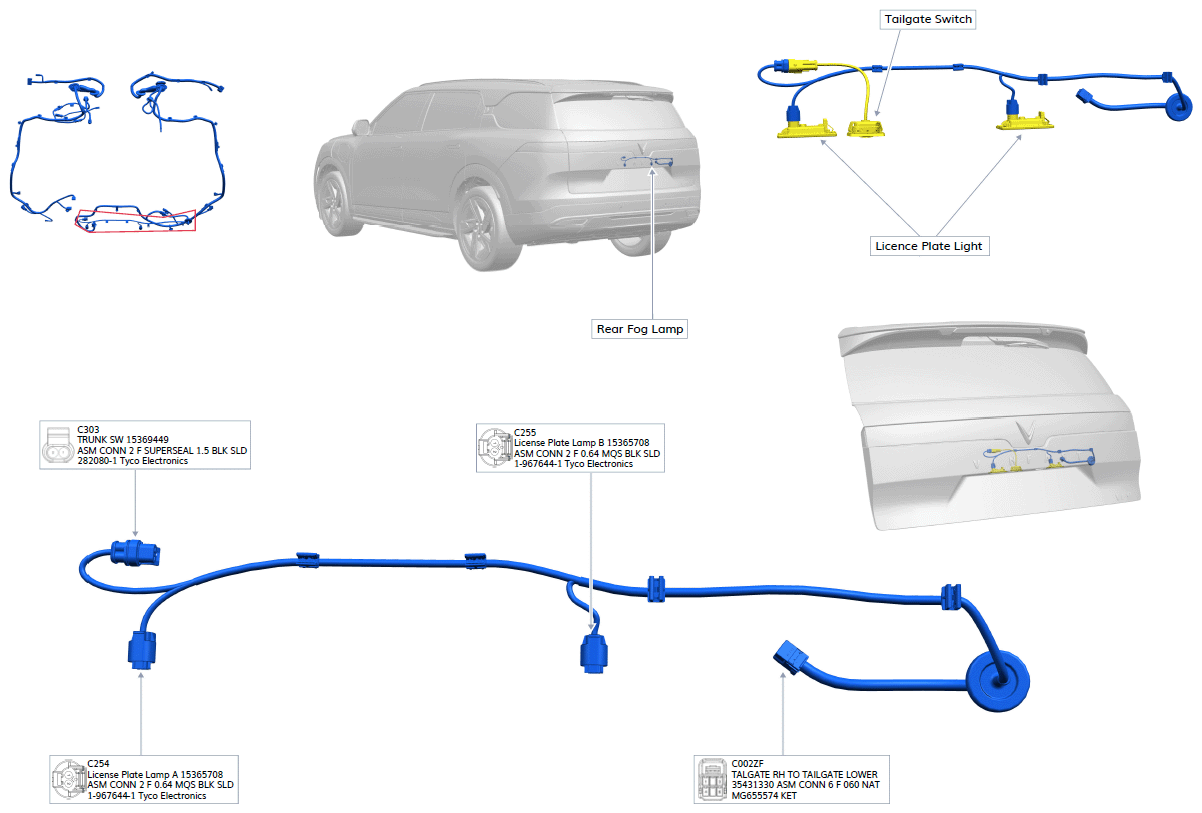

G16031357Courtesy of VINFAST, LLC
