Service Schematics

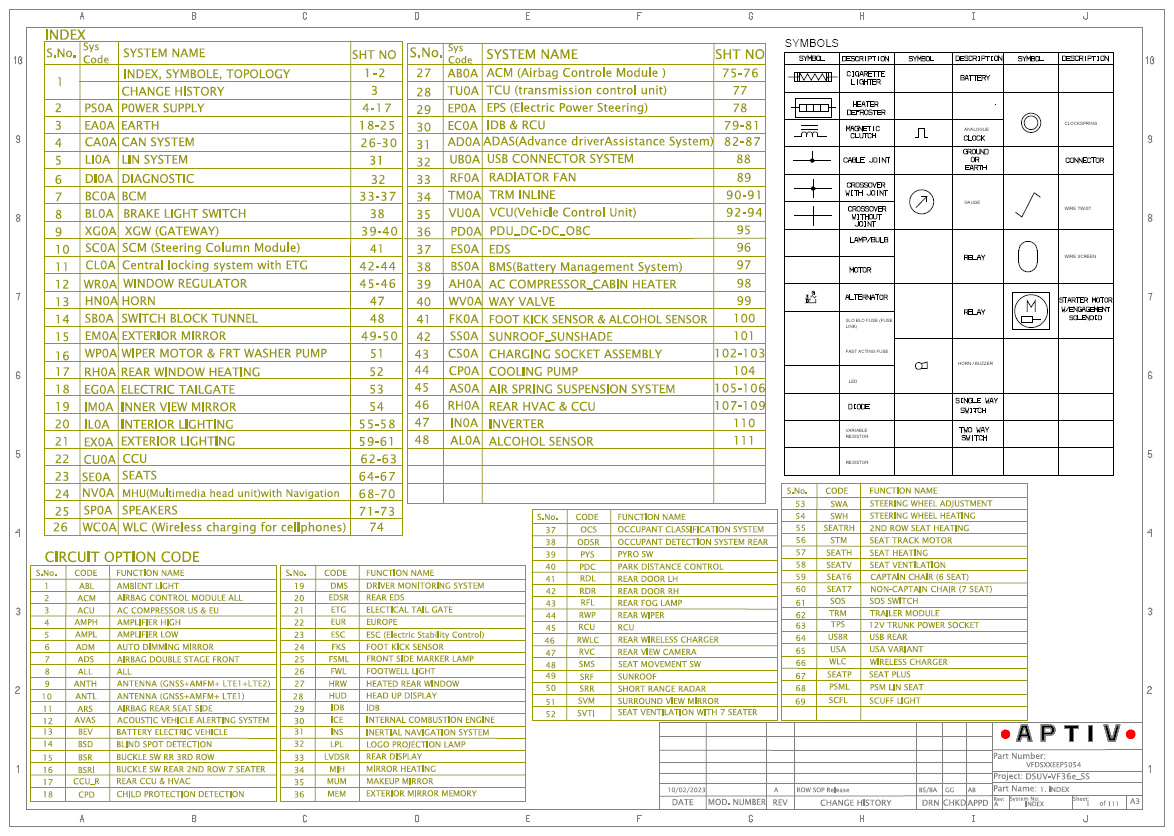

1. INDEX

Courtesy of VINFAST, LLC

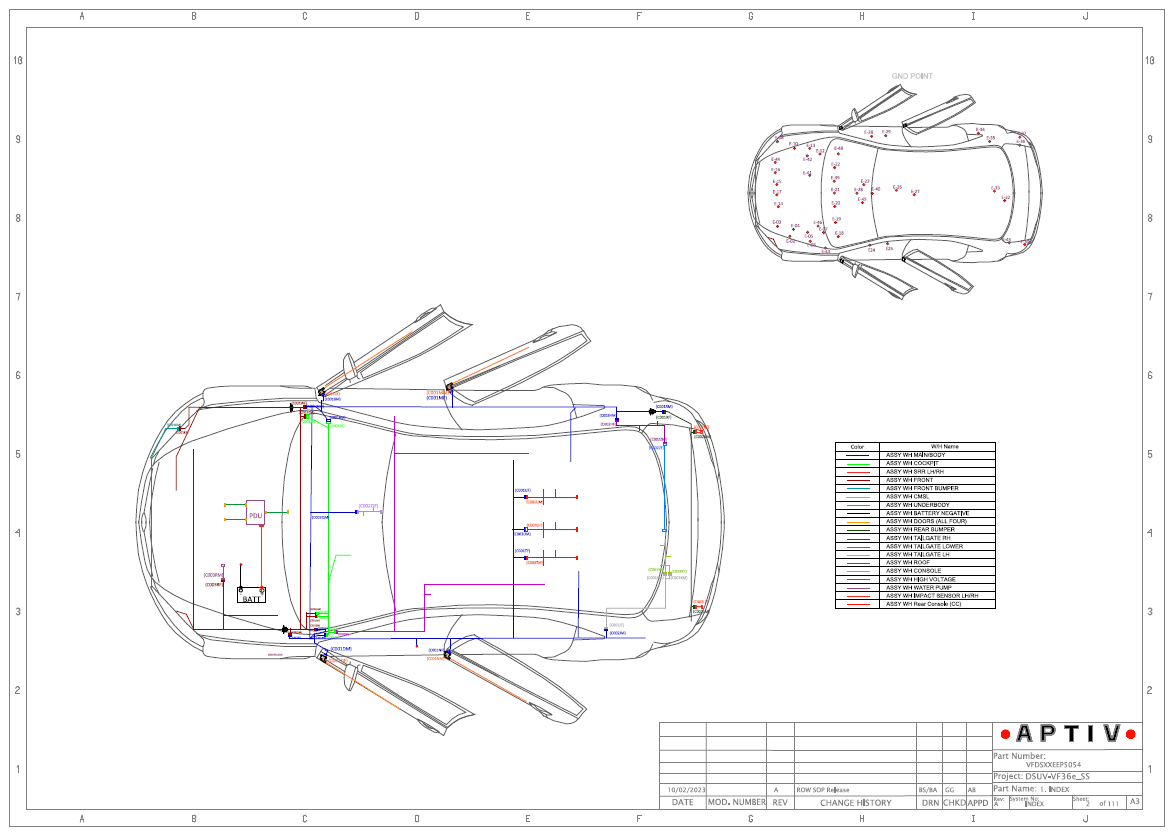

2. TOPOLOGY

Courtesy of VINFAST, LLC

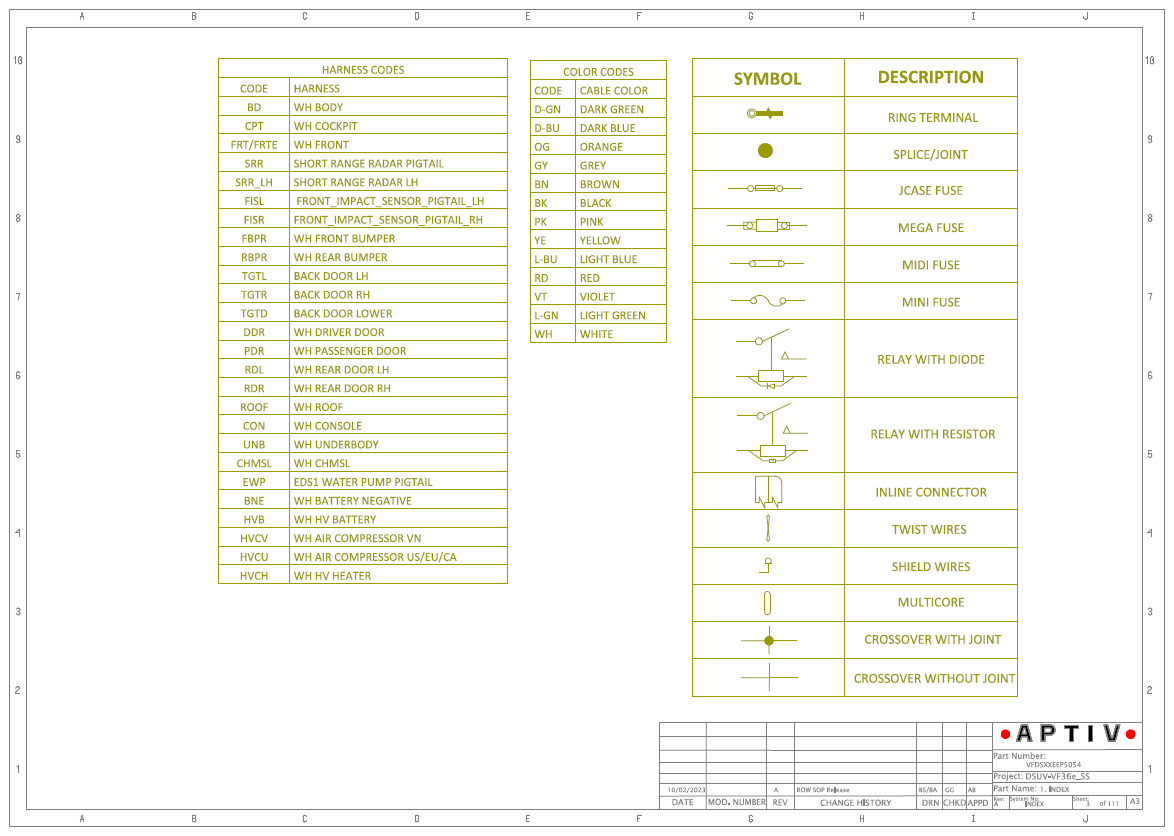

3. LEGEND

Courtesy of VINFAST, LLC

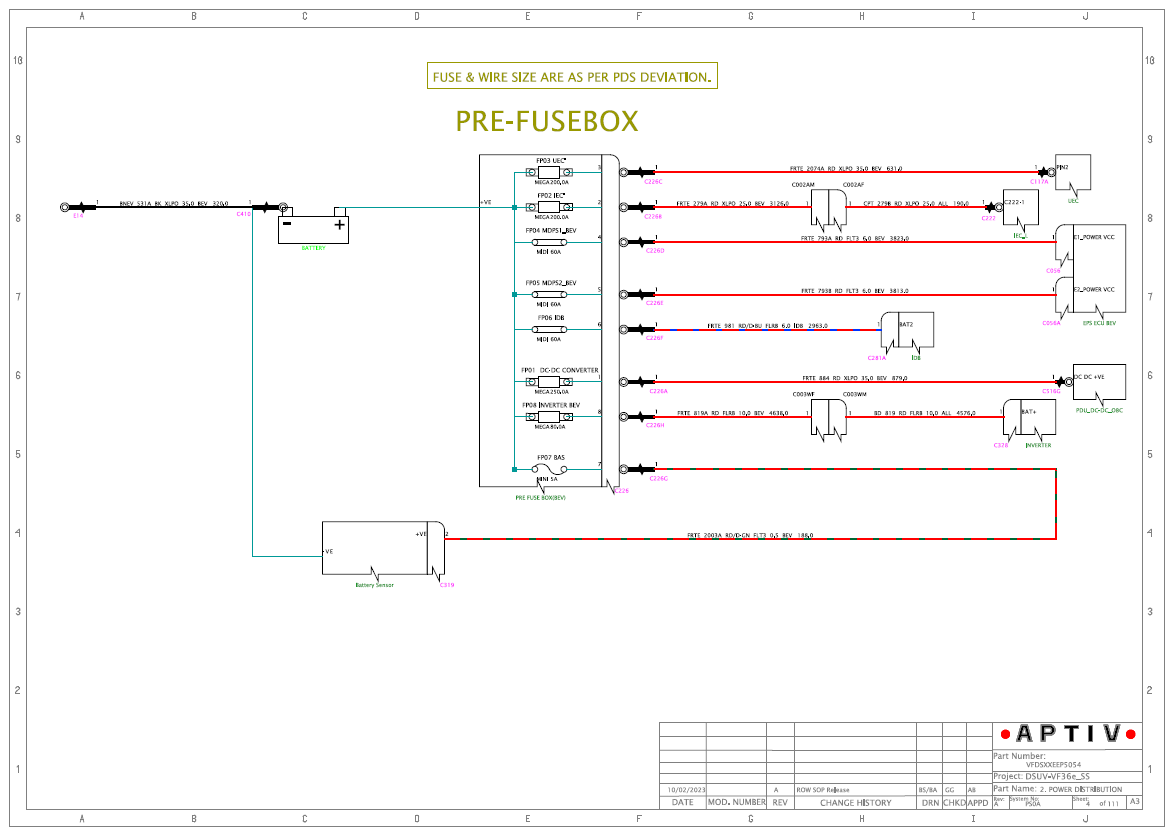

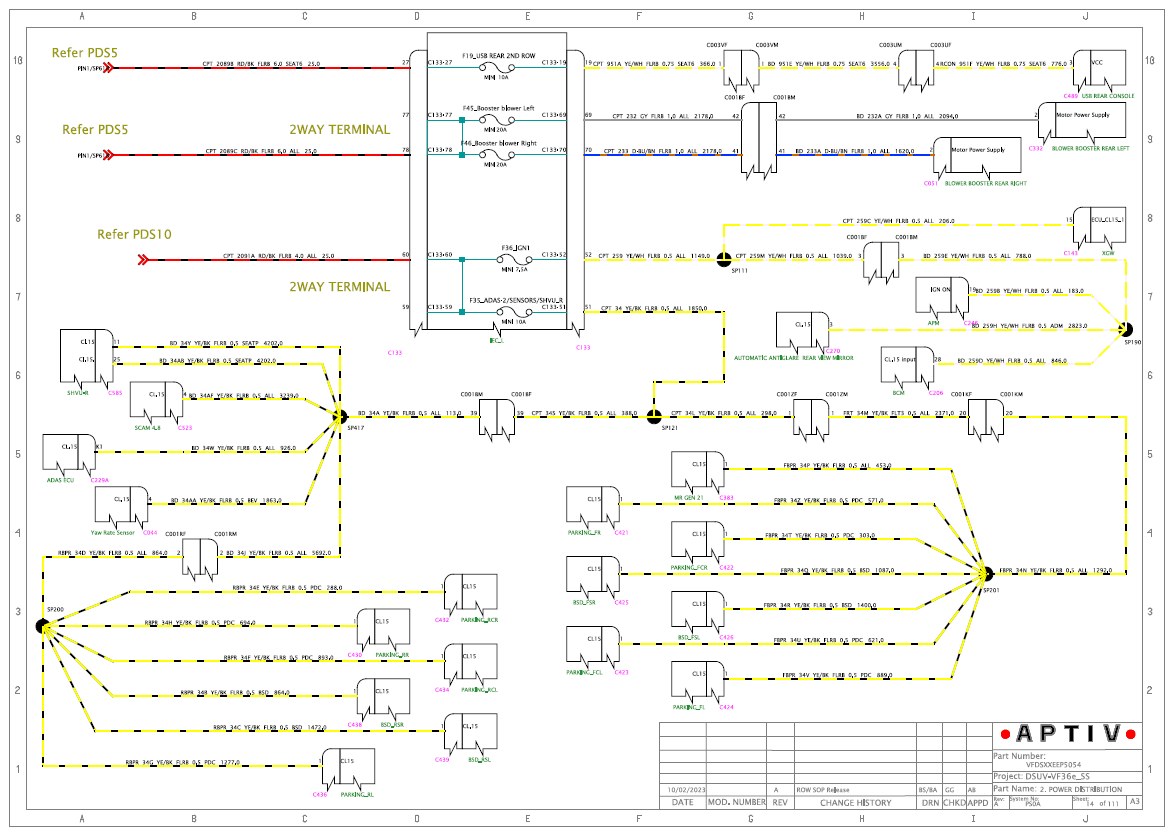

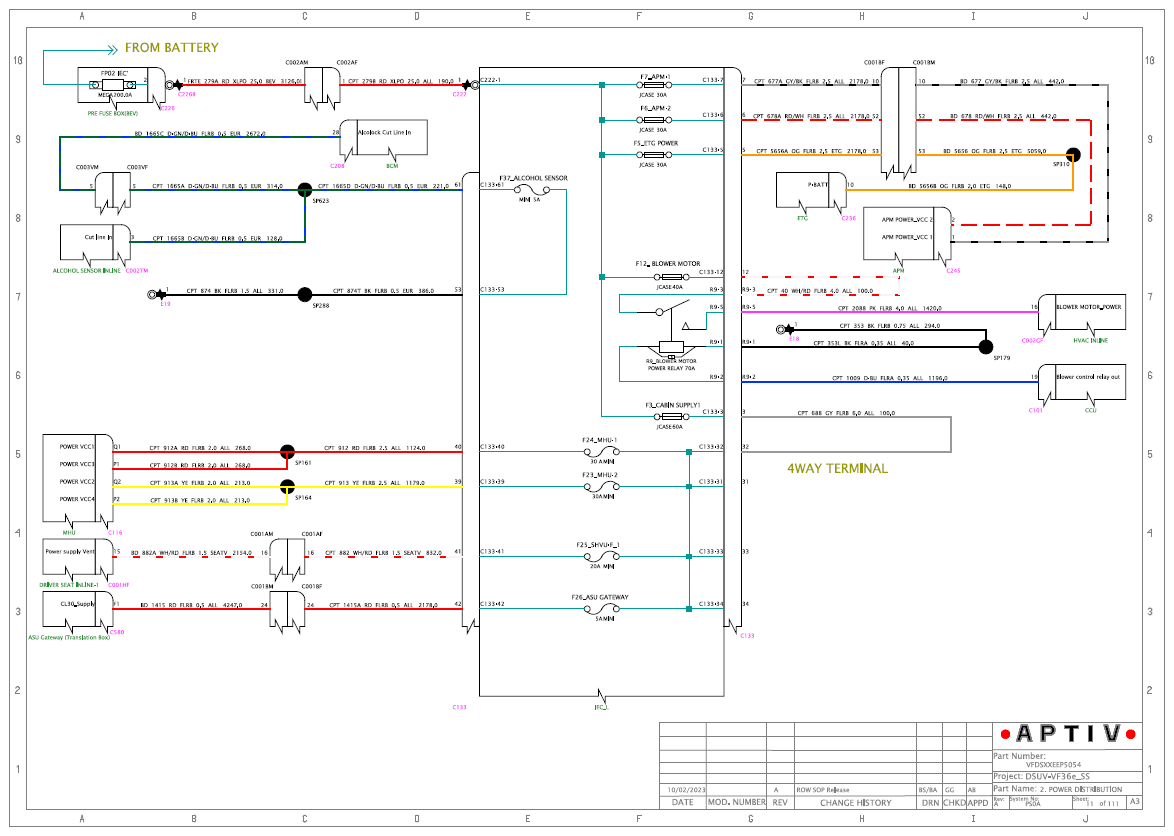

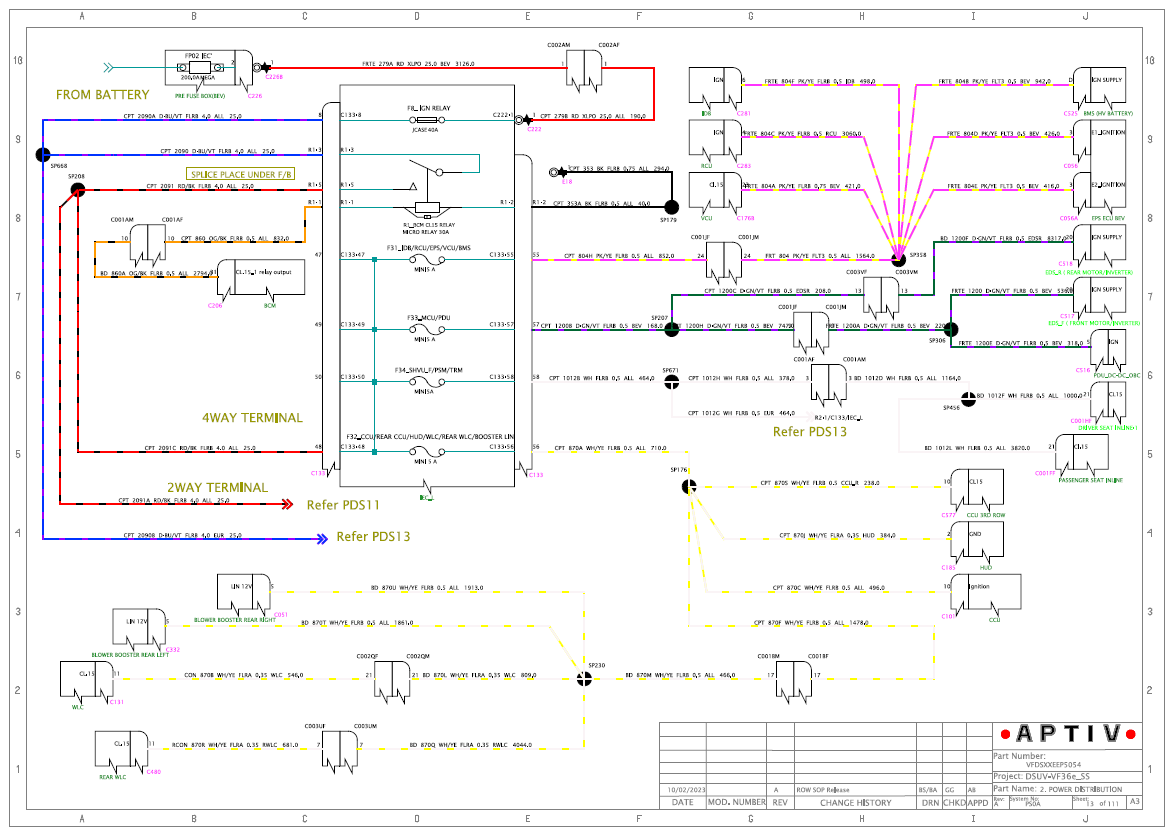

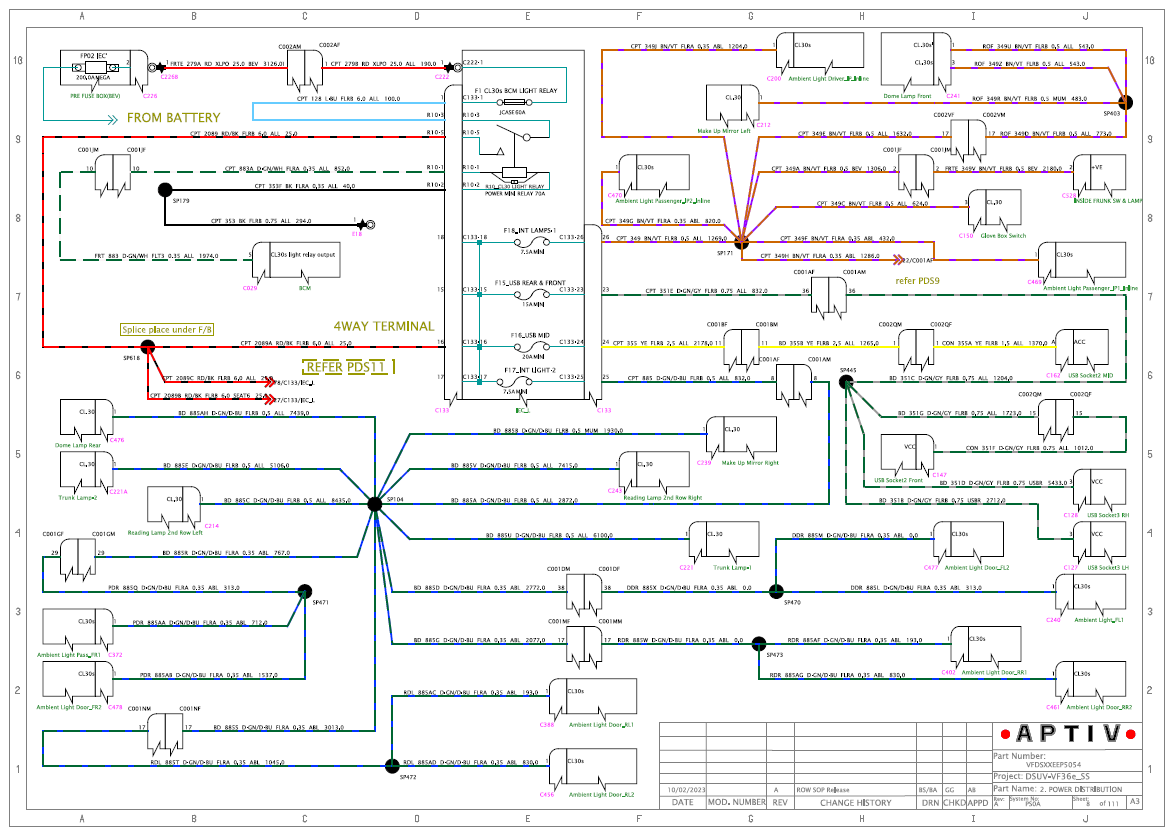

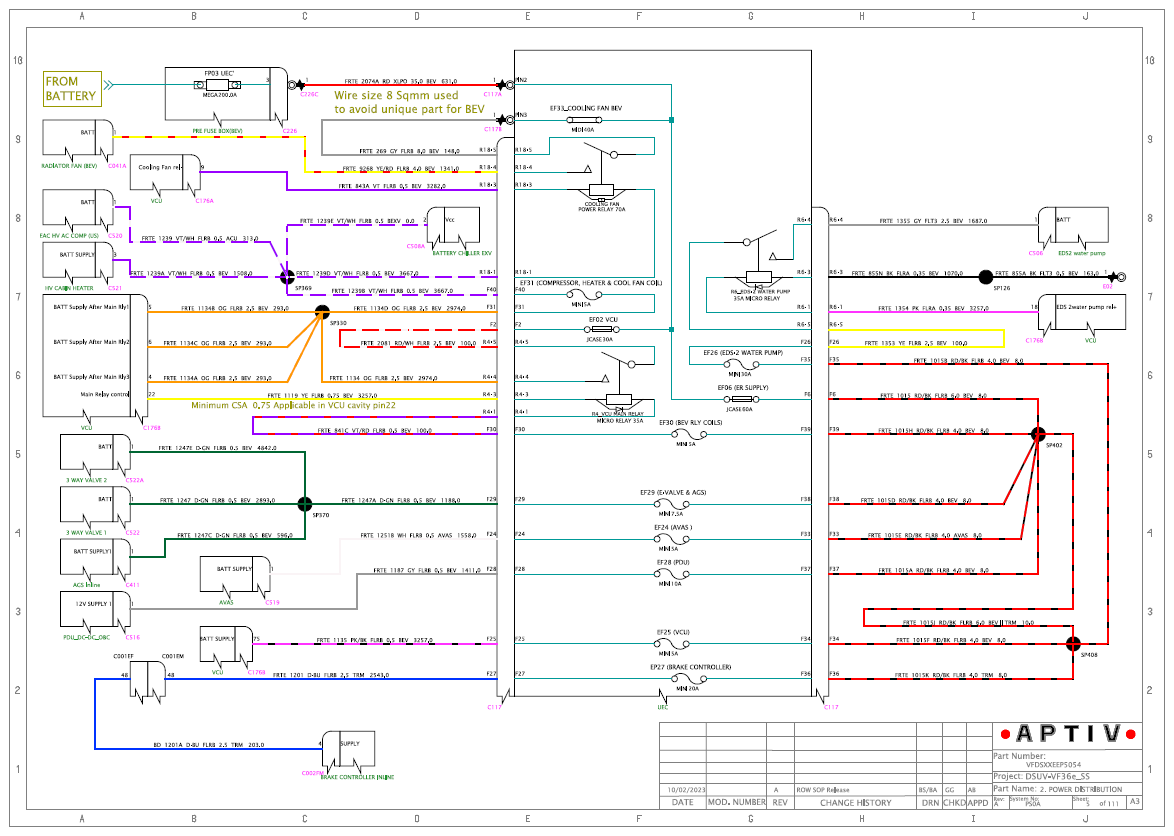

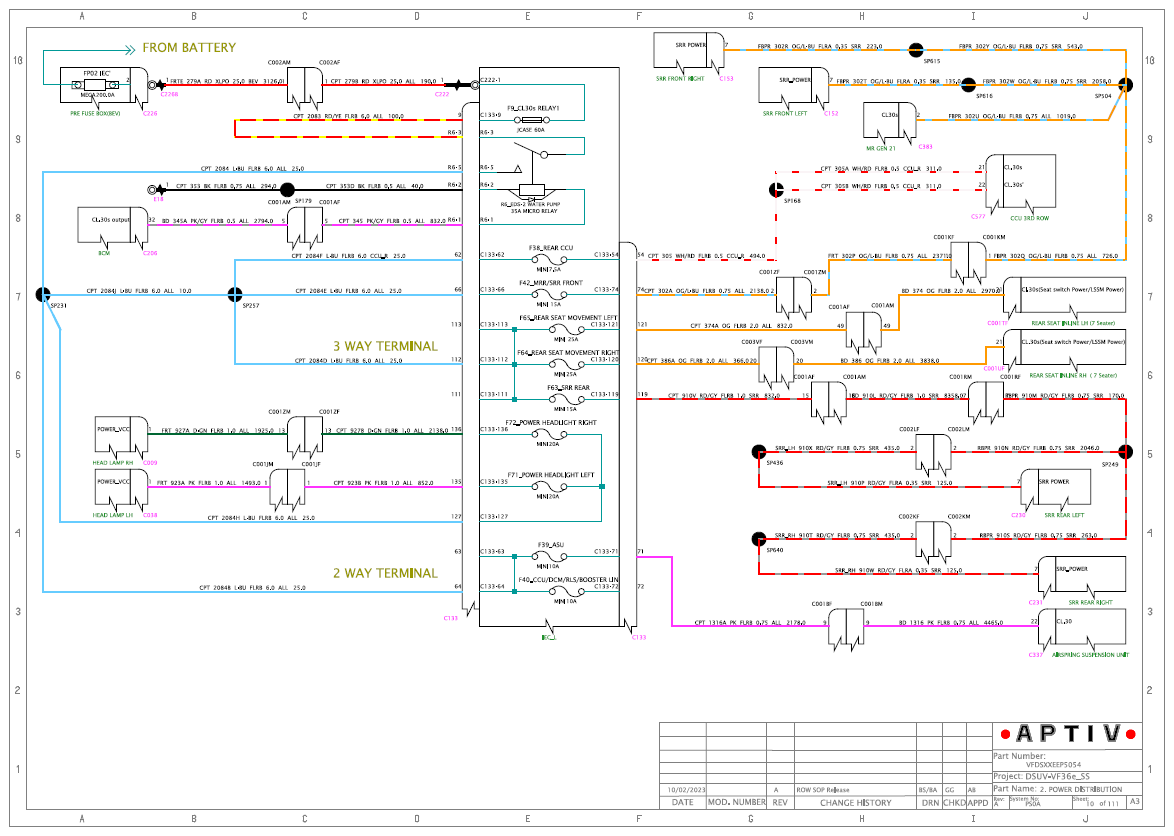

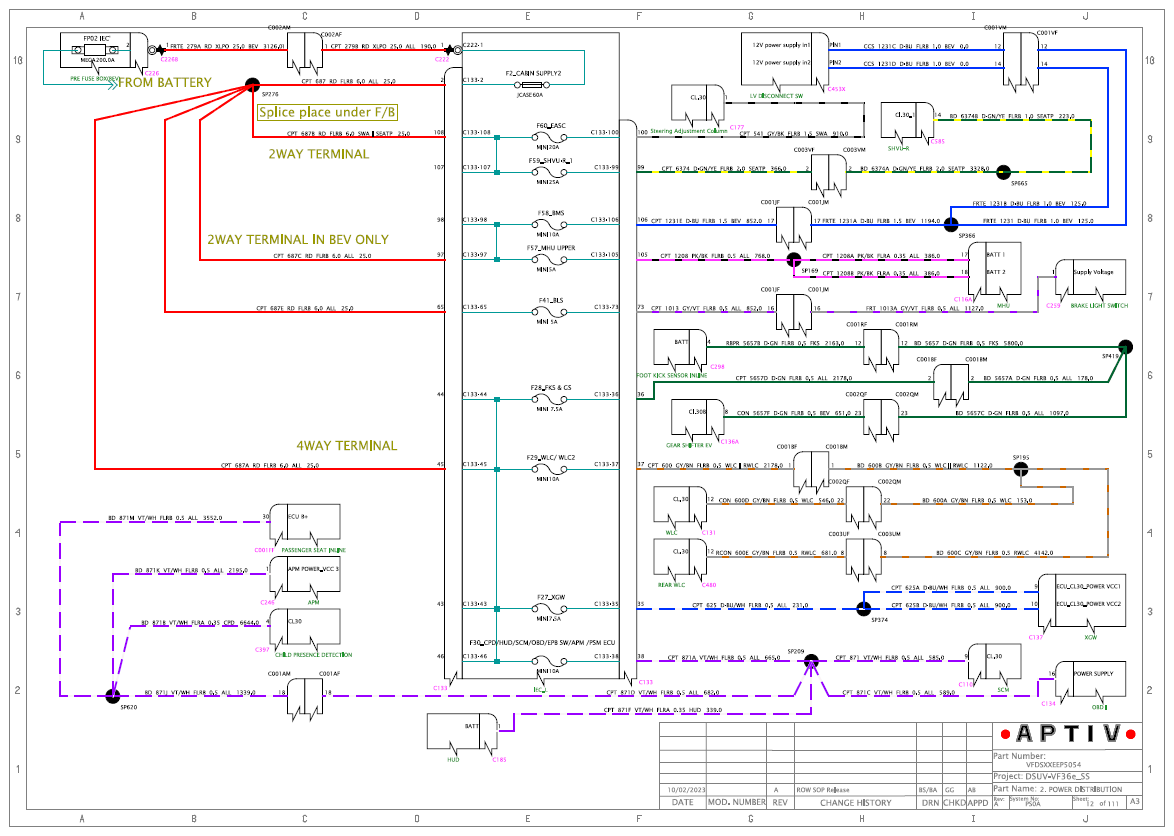

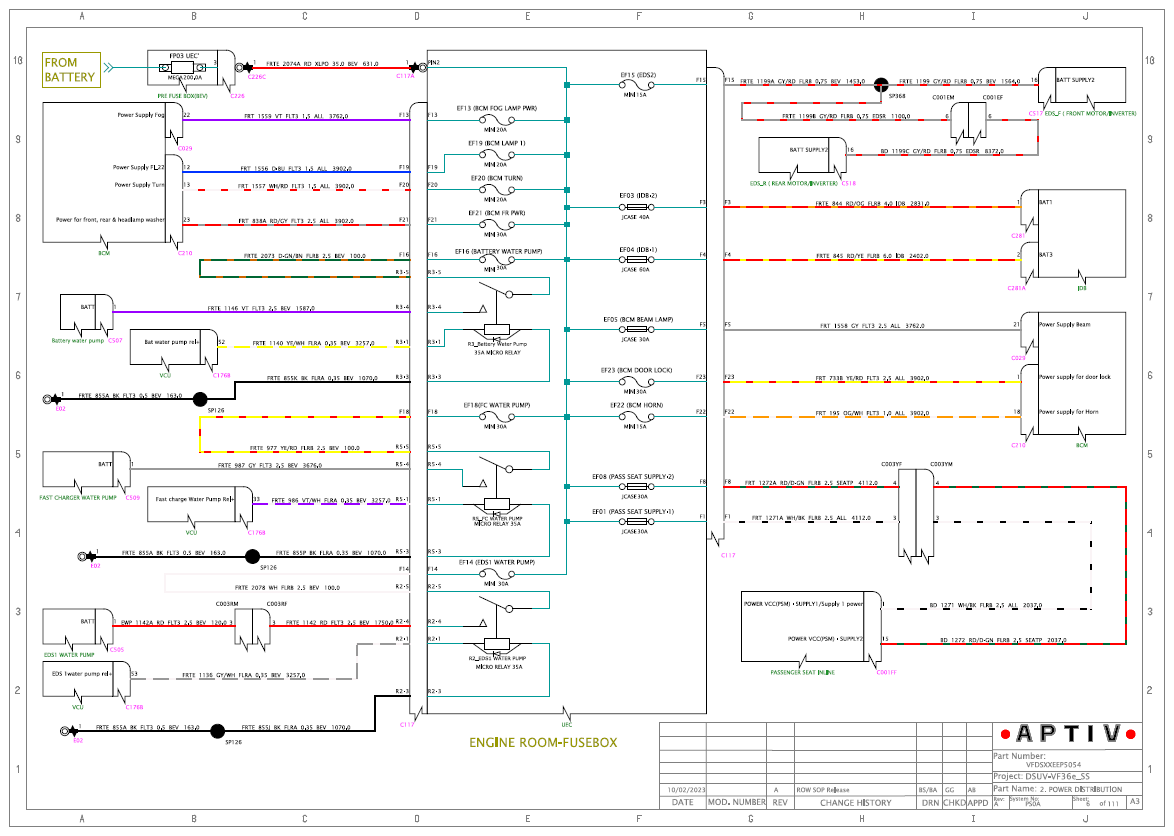

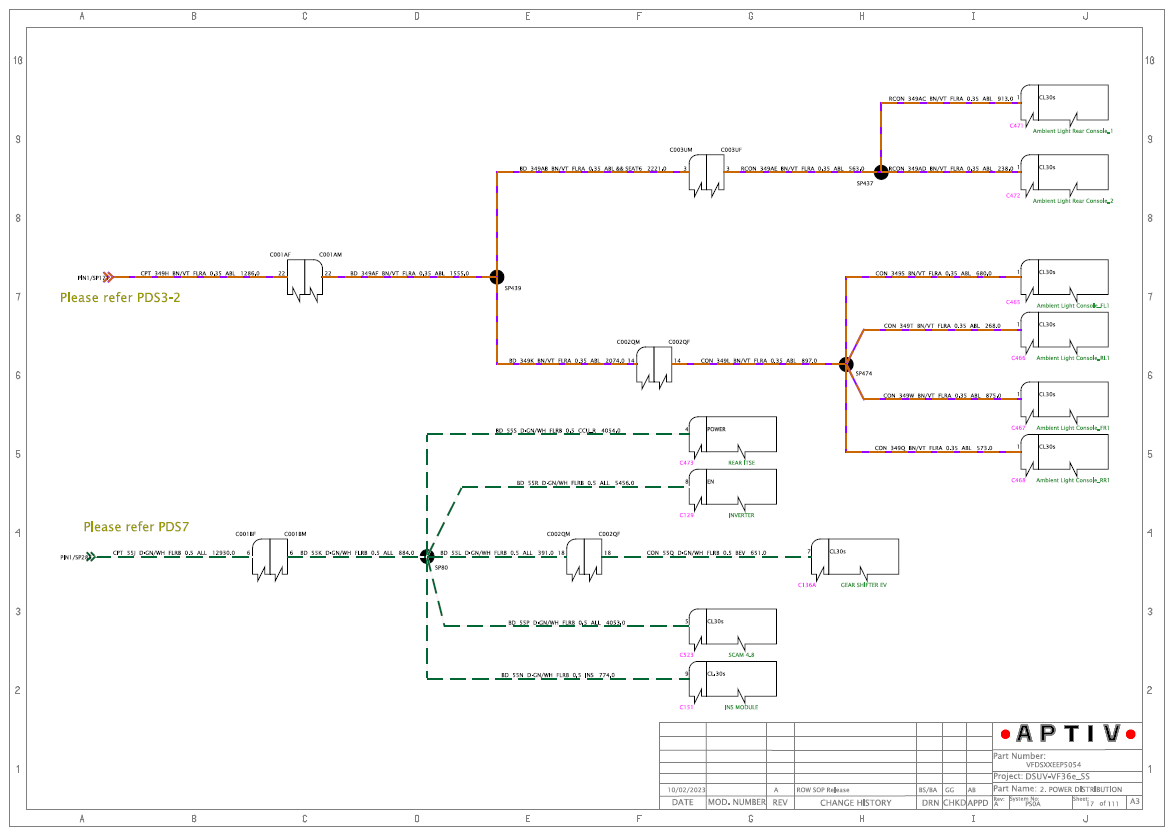

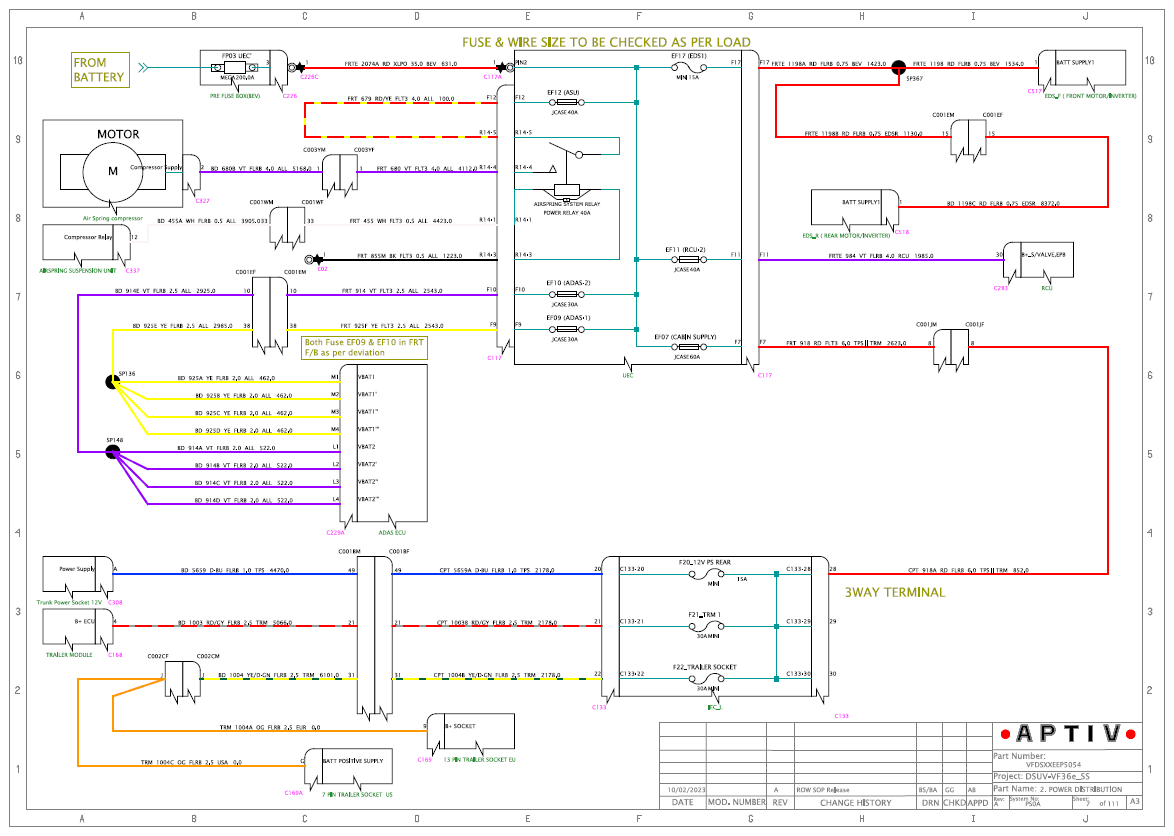

PDS1

Courtesy of VINFAST, LLC

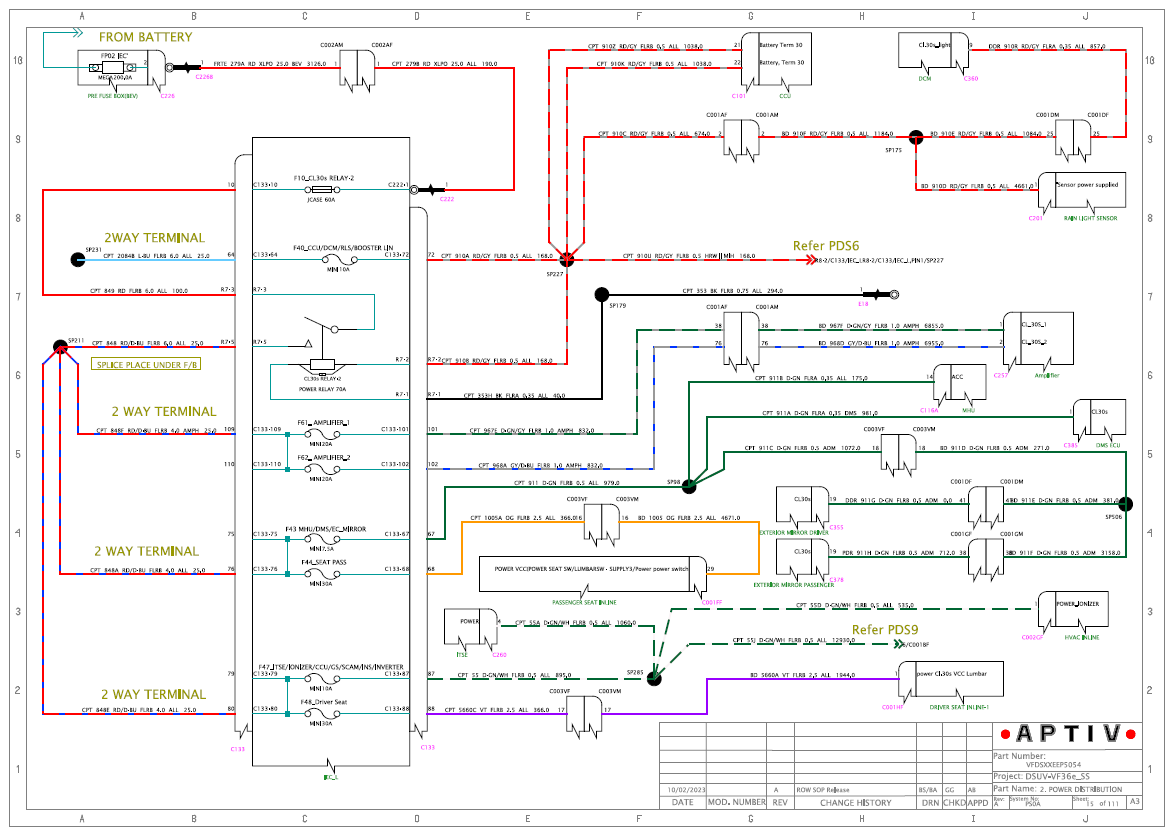

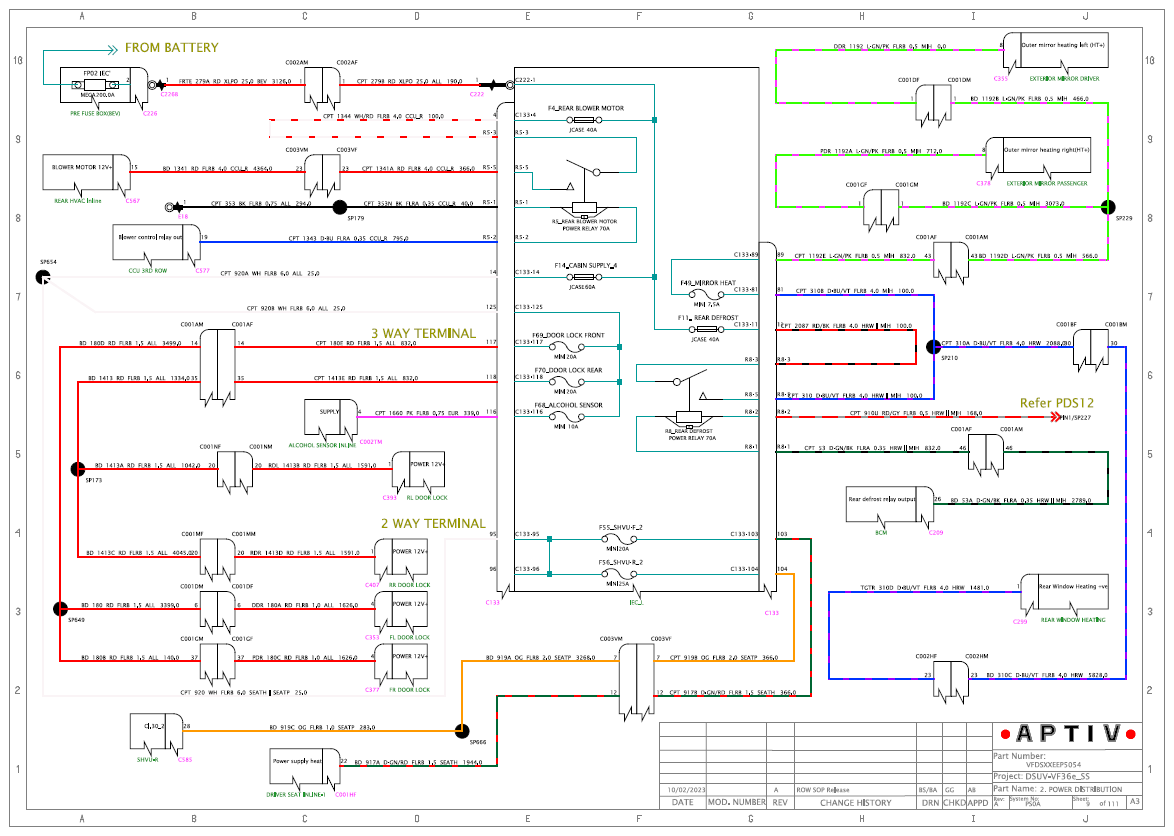

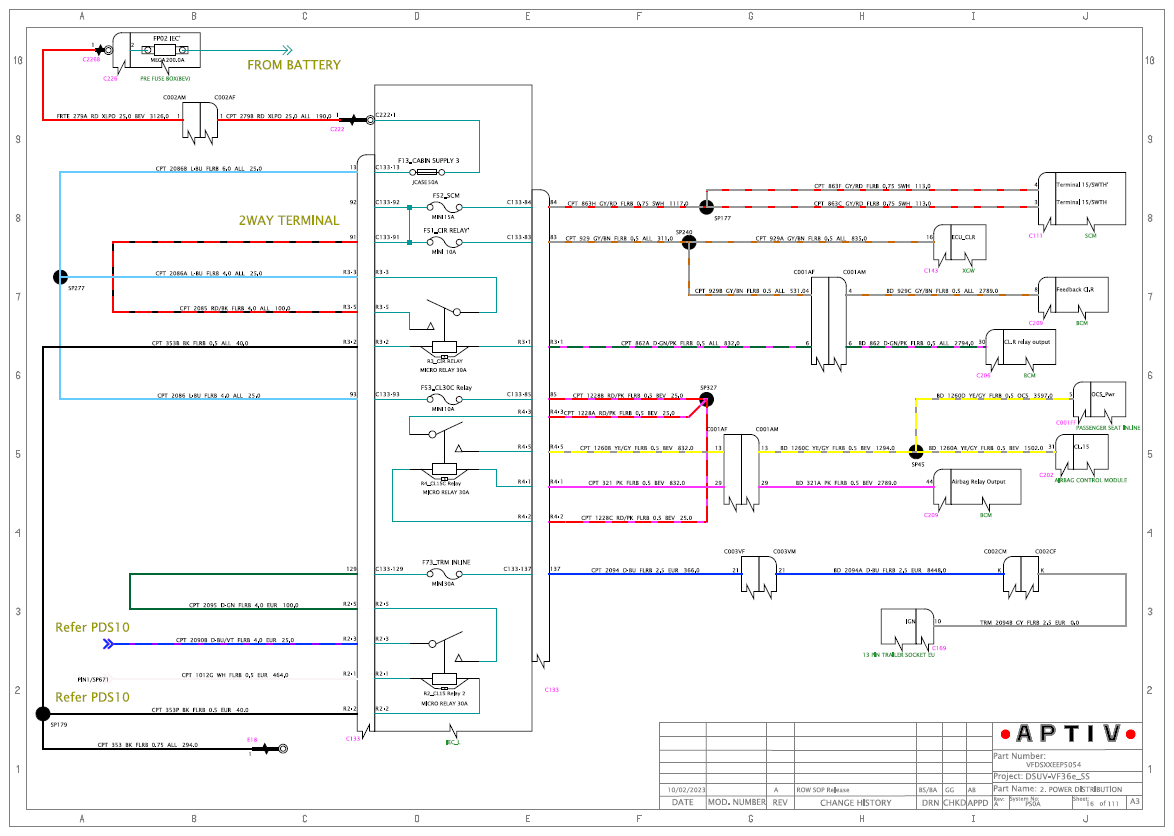

PDS2

Courtesy of VINFAST, LLC

PDS3

Courtesy of VINFAST, LLC

PDS4

Courtesy of VINFAST, LLC

PDS5

Courtesy of VINFAST, LLC

PDS6

Courtesy of VINFAST, LLC

PDS7

Courtesy of VINFAST, LLC

PDS8

Courtesy of VINFAST, LLC

PDS9

Courtesy of VINFAST, LLC

PDS10

Courtesy of VINFAST, LLC

PDS11

Courtesy of VINFAST, LLC

PDS12

Courtesy of VINFAST, LLC

PDS13

Courtesy of VINFAST, LLC

PDS14

Courtesy of VINFAST, LLC

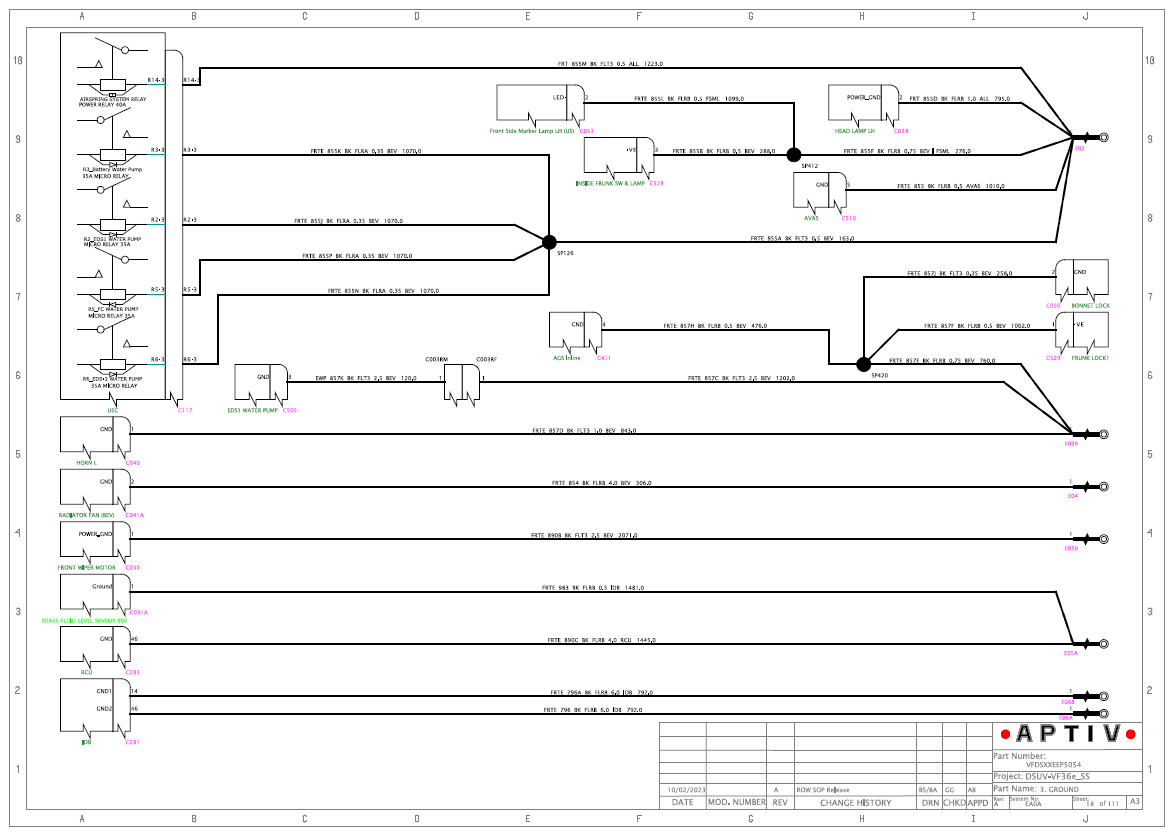

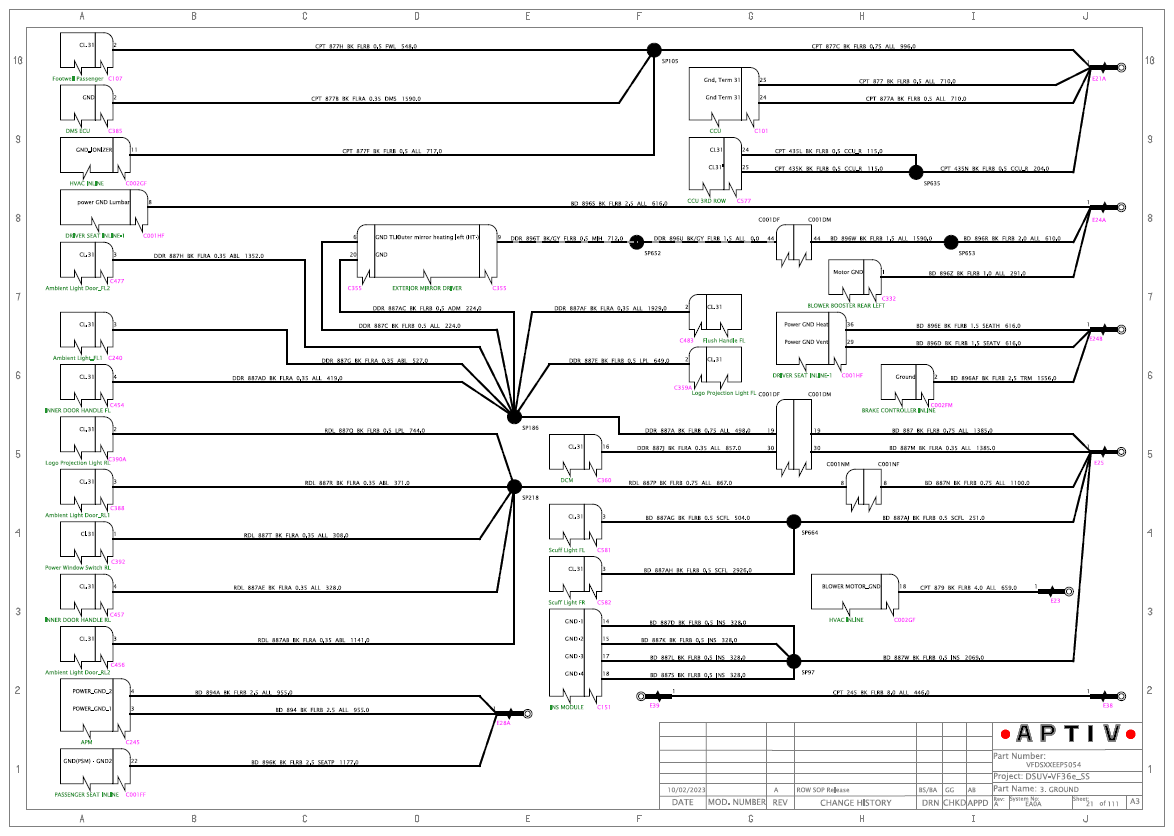

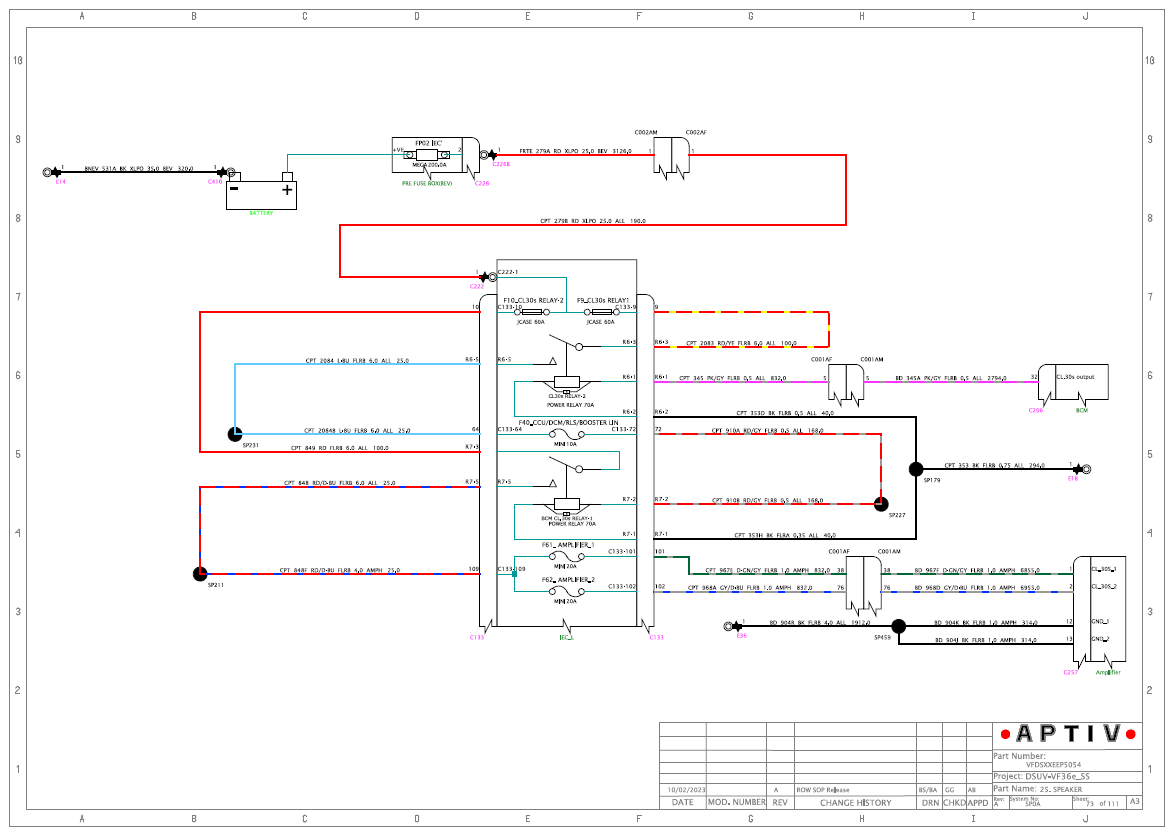

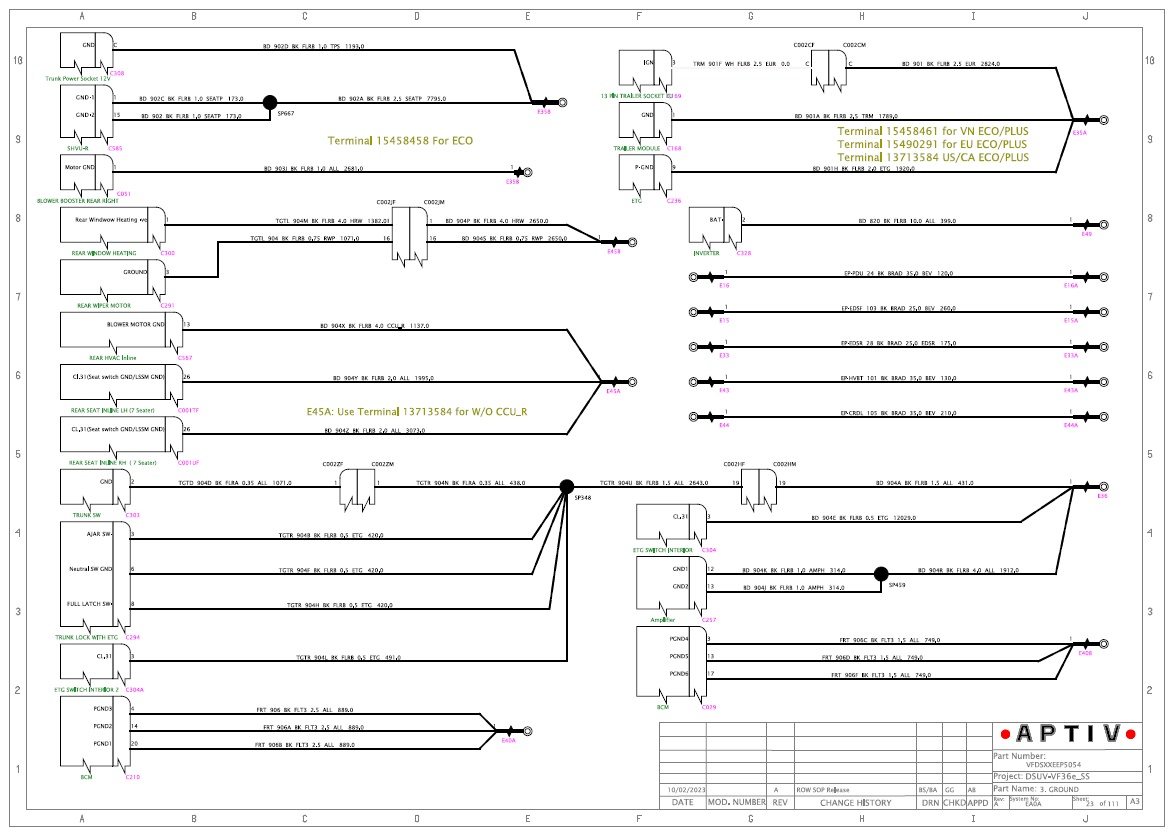

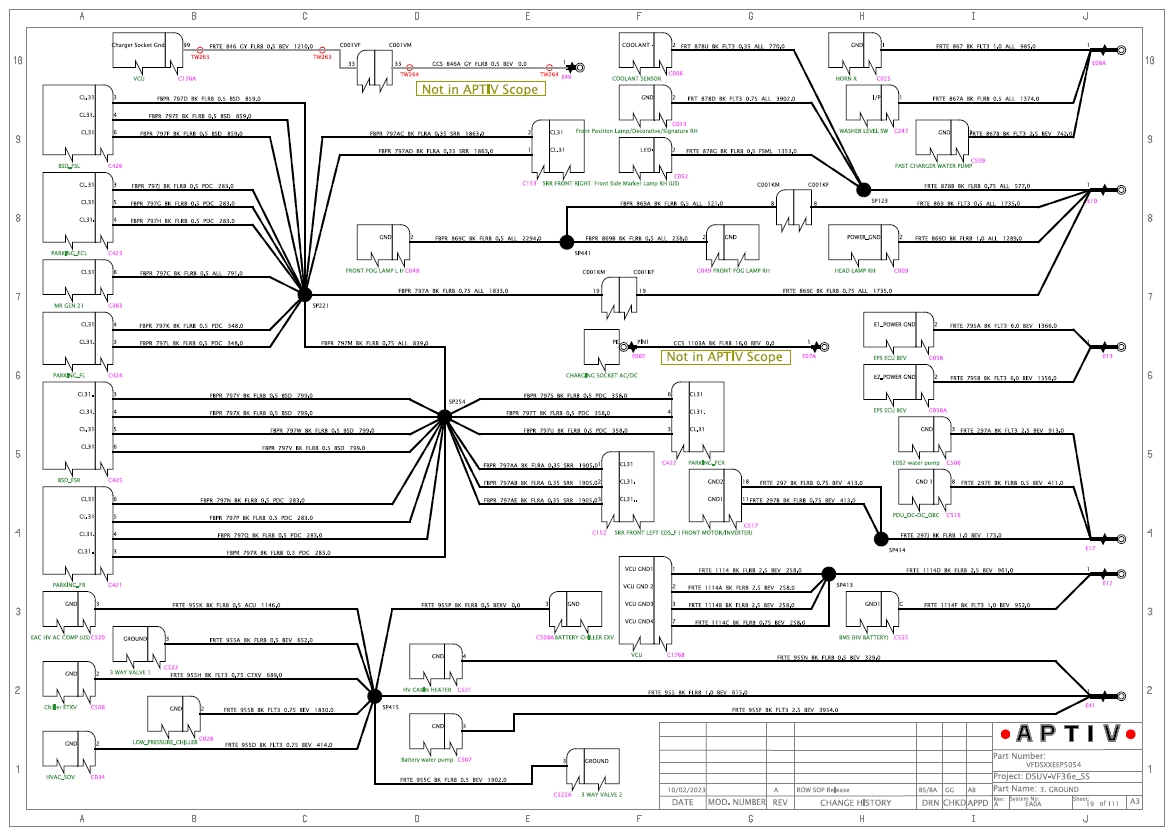

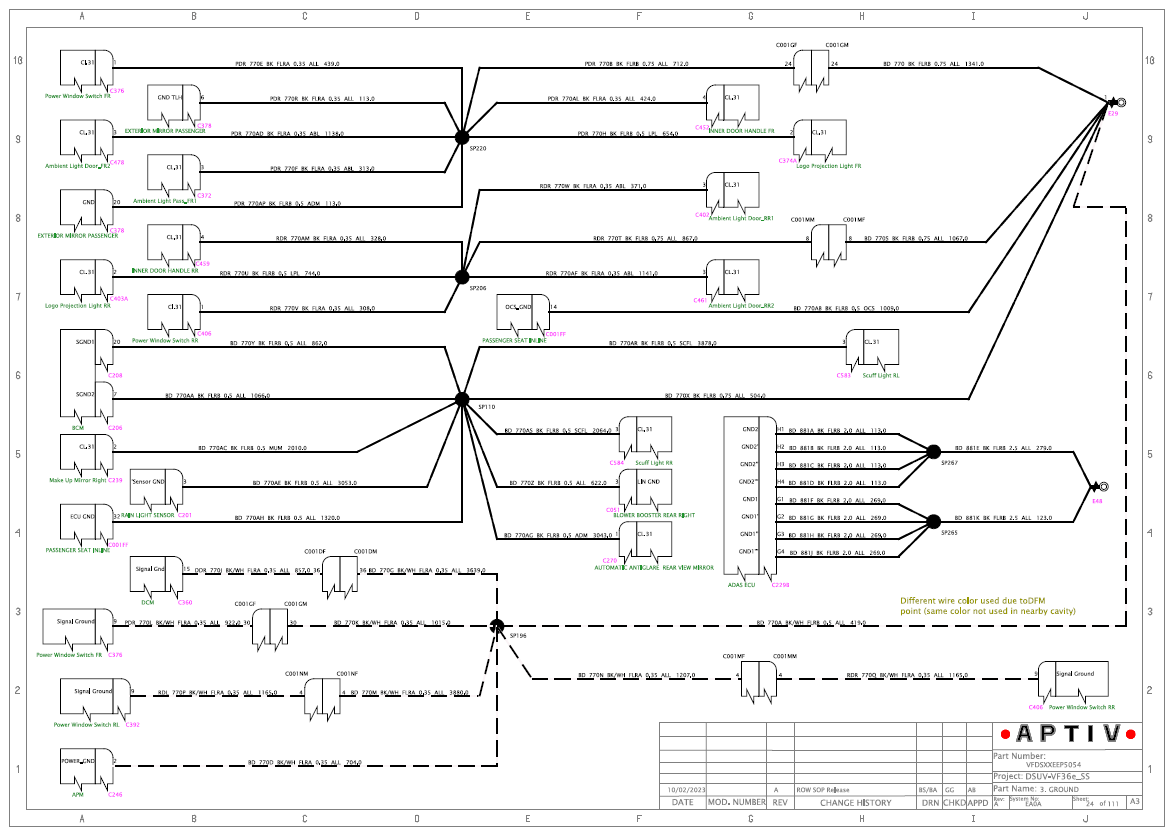

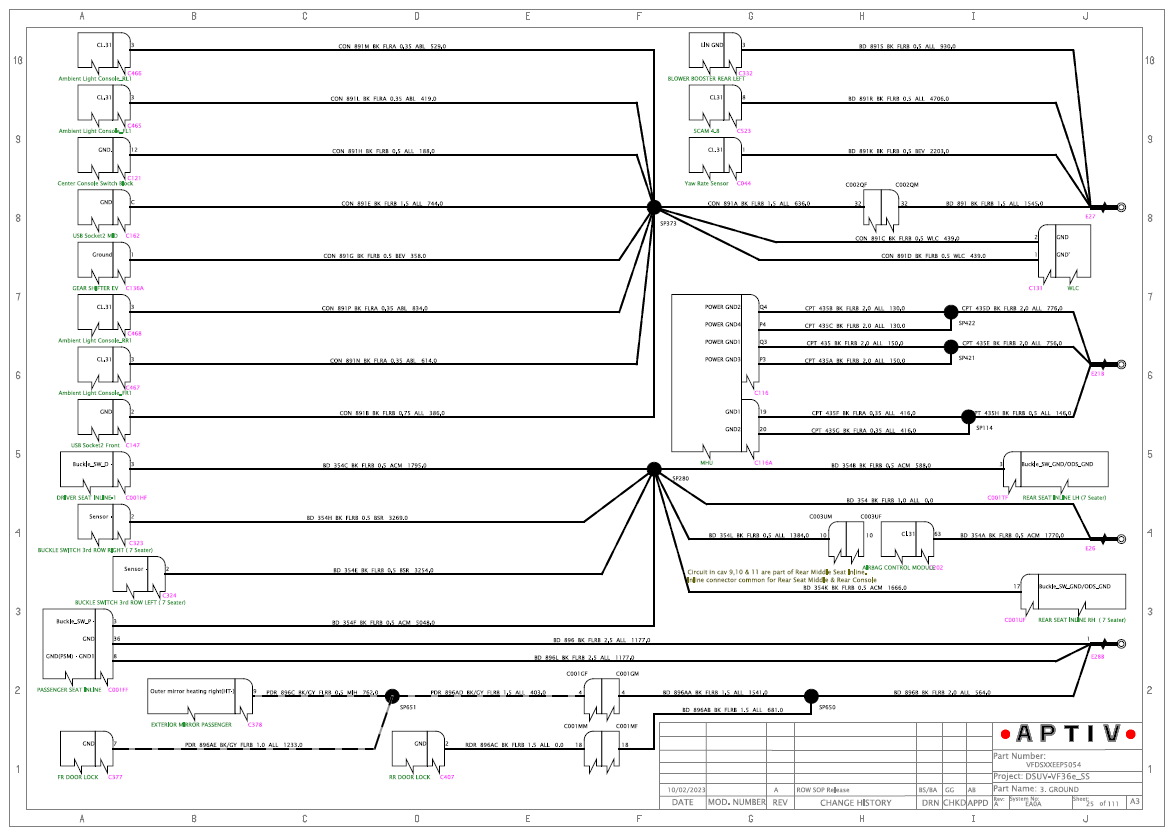

GND1

Courtesy of VINFAST, LLC

GND2

Courtesy of VINFAST, LLC

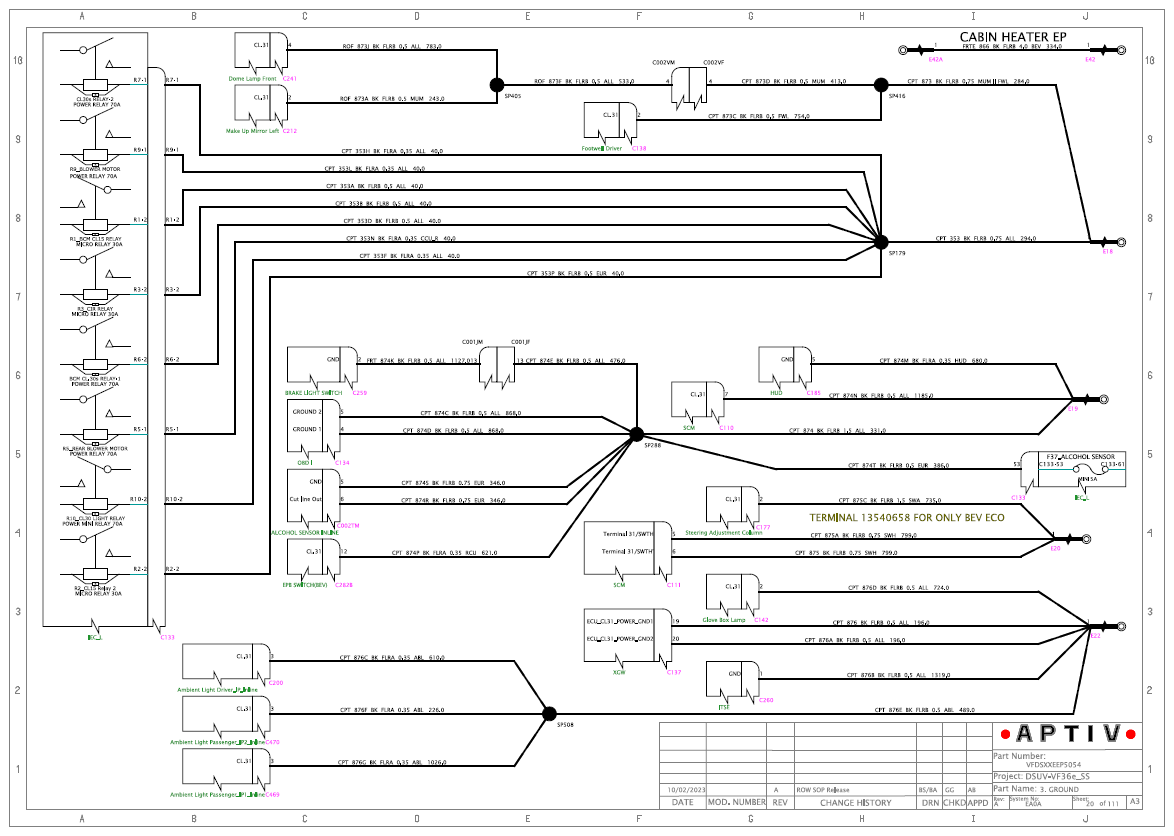

GND3

Courtesy of VINFAST, LLC

GND4

Courtesy of VINFAST, LLC

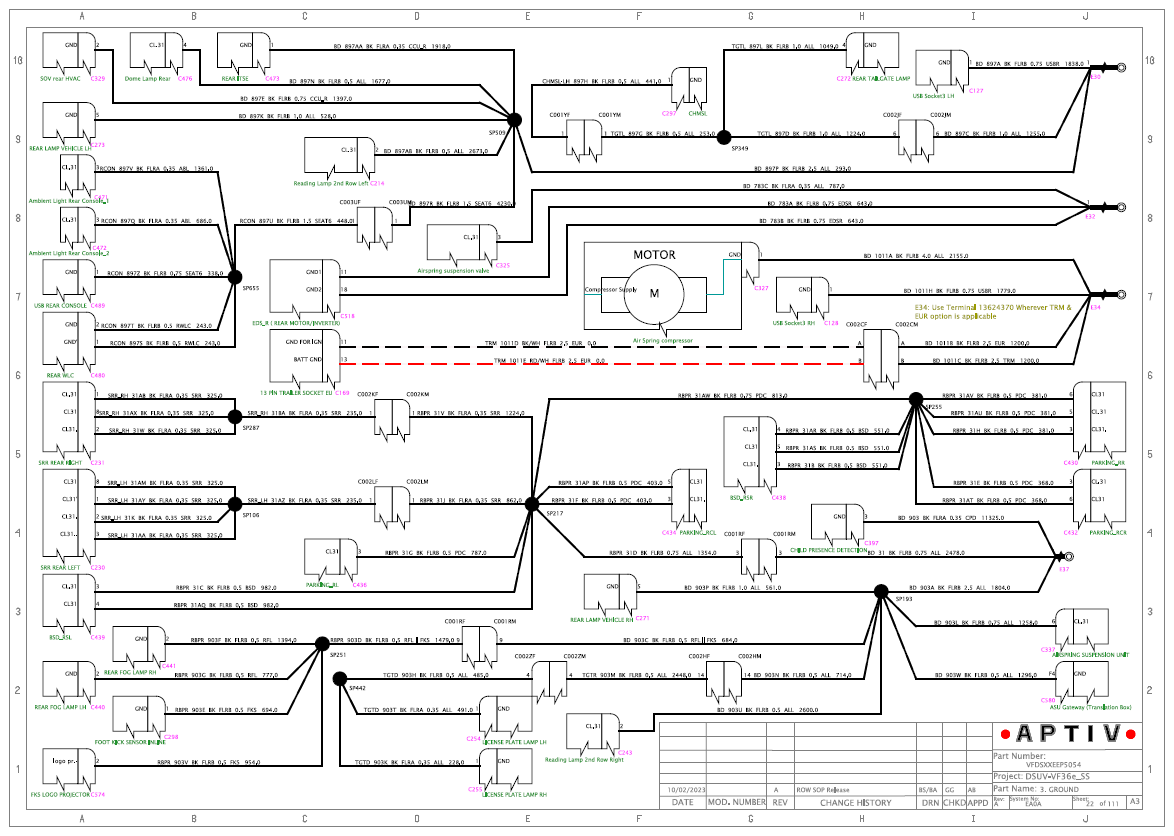

GND5

Courtesy of VINFAST, LLC

GND6

Courtesy of VINFAST, LLC

GND7

Courtesy of VINFAST, LLC

GND8

Courtesy of VINFAST, LLC

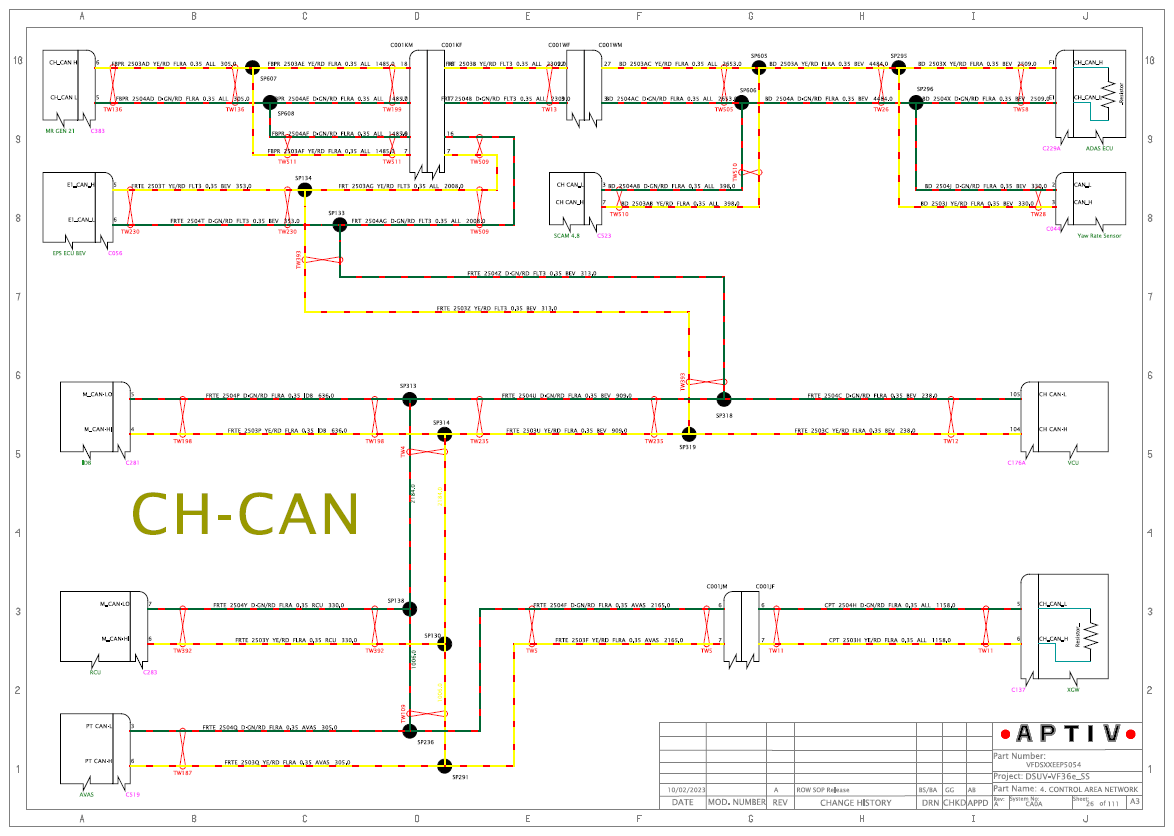

1. CH CAN

Courtesy of VINFAST, LLC

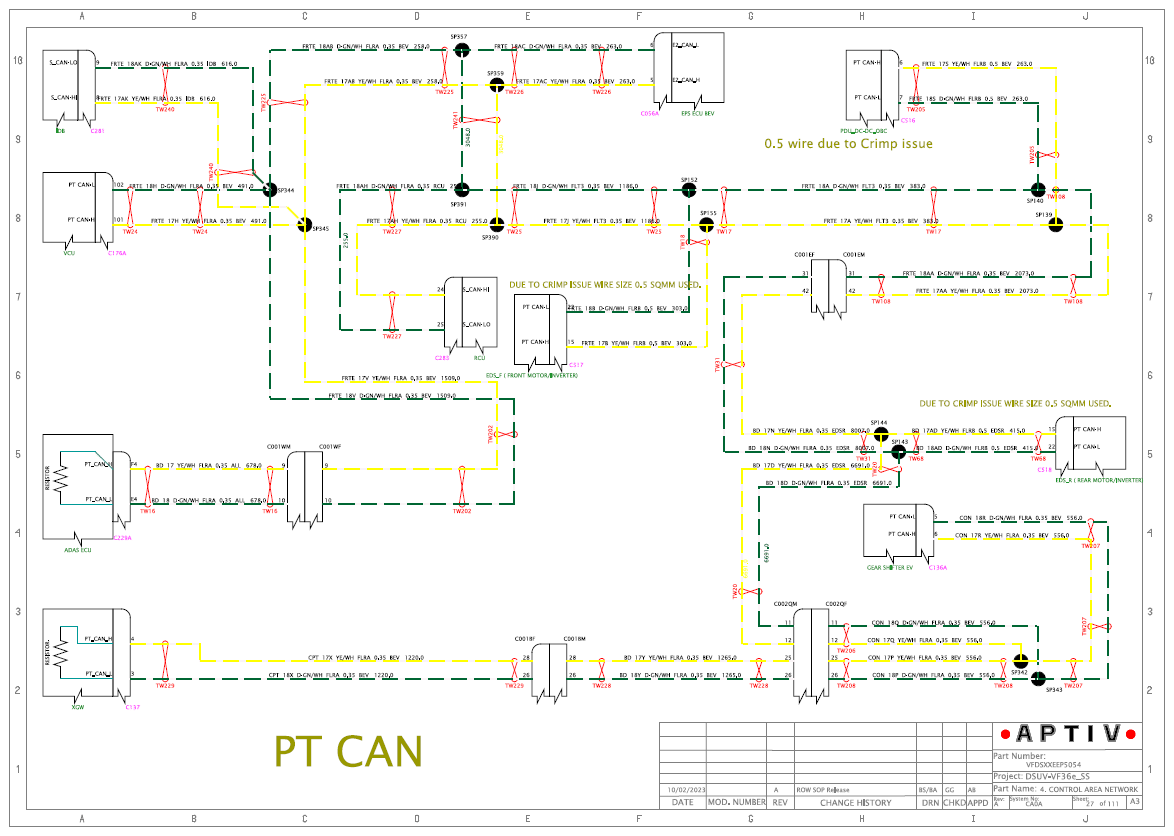

2. PT CAN

Courtesy of VINFAST, LLC

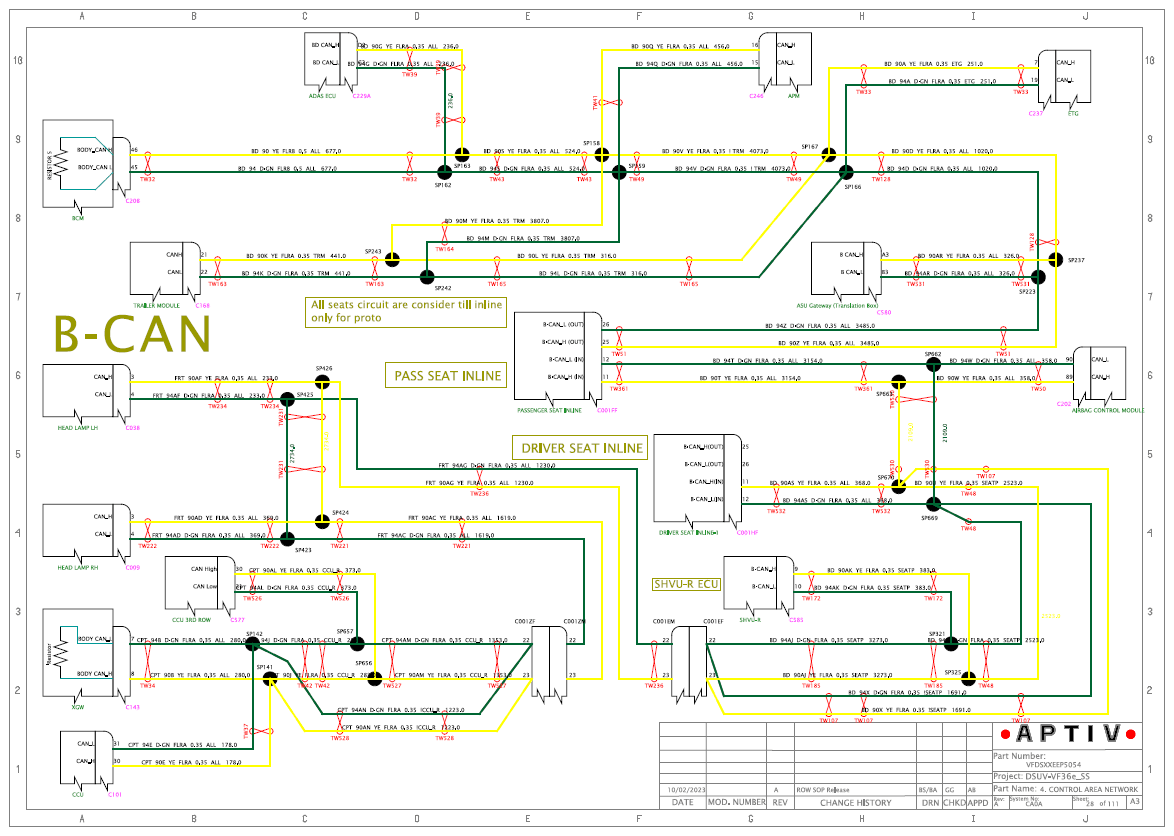

3. BD CAN

Courtesy of VINFAST, LLC

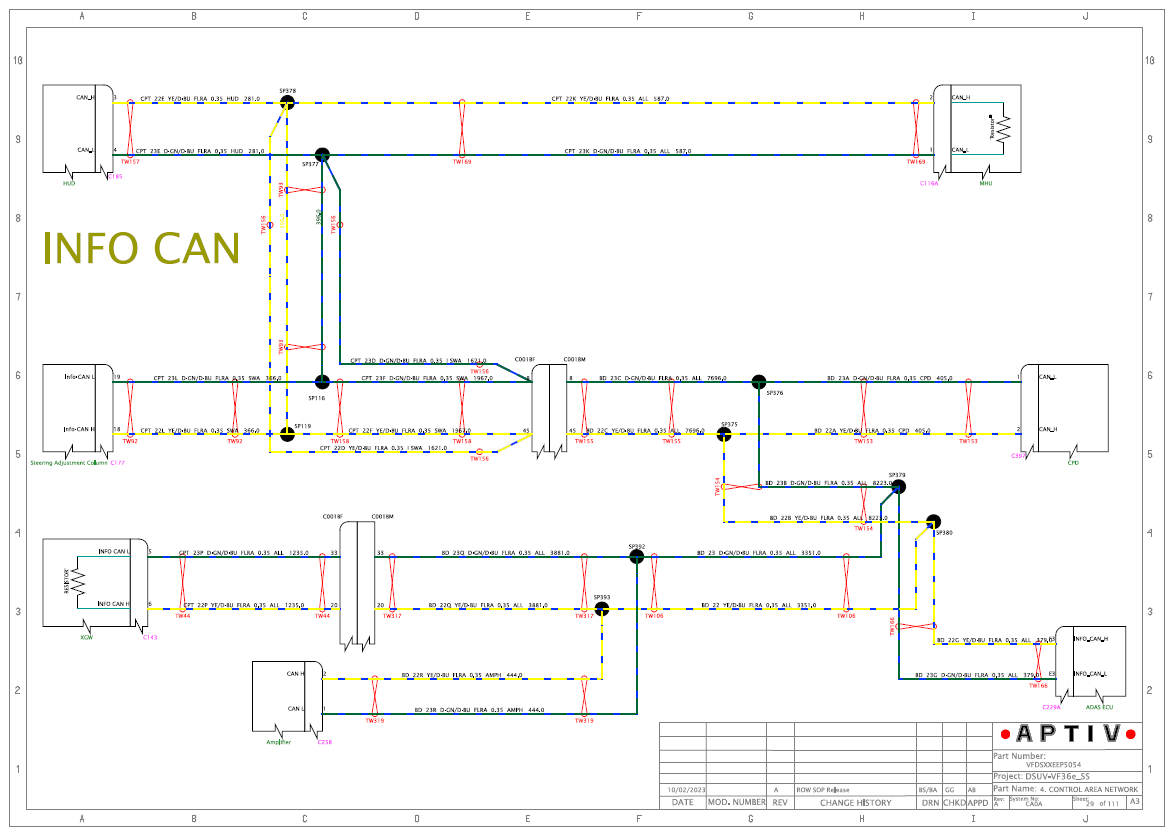

4. INFO CAN

Courtesy of VINFAST, LLC

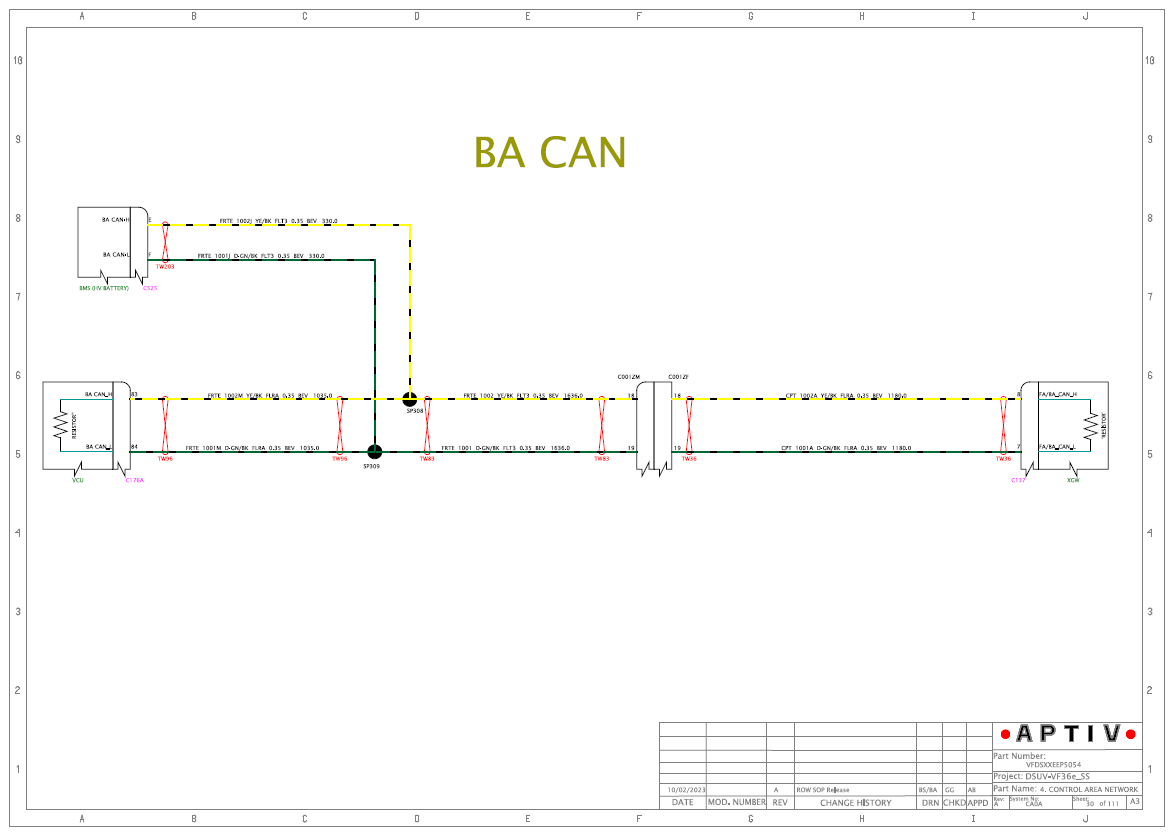

5. BA CAN

Courtesy of VINFAST, LLC

LIN

Courtesy of VINFAST, LLC

OBD 1

Courtesy of VINFAST, LLC

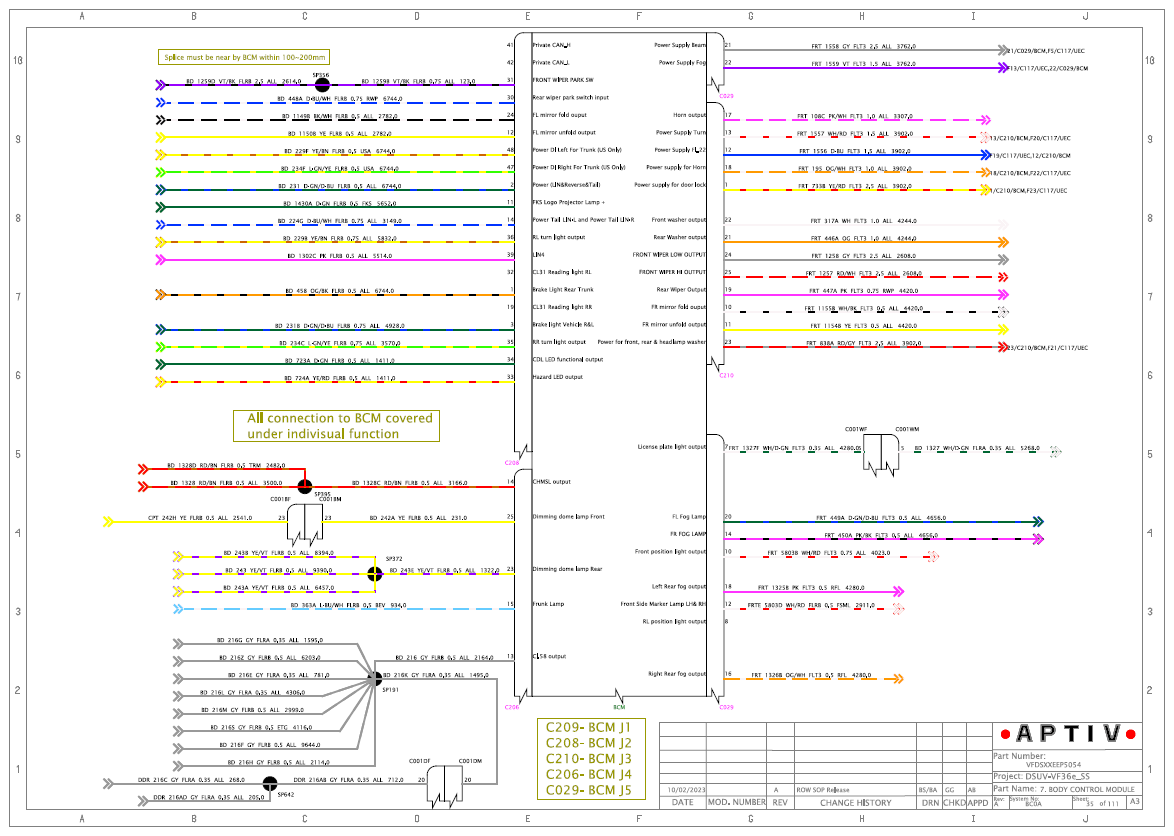

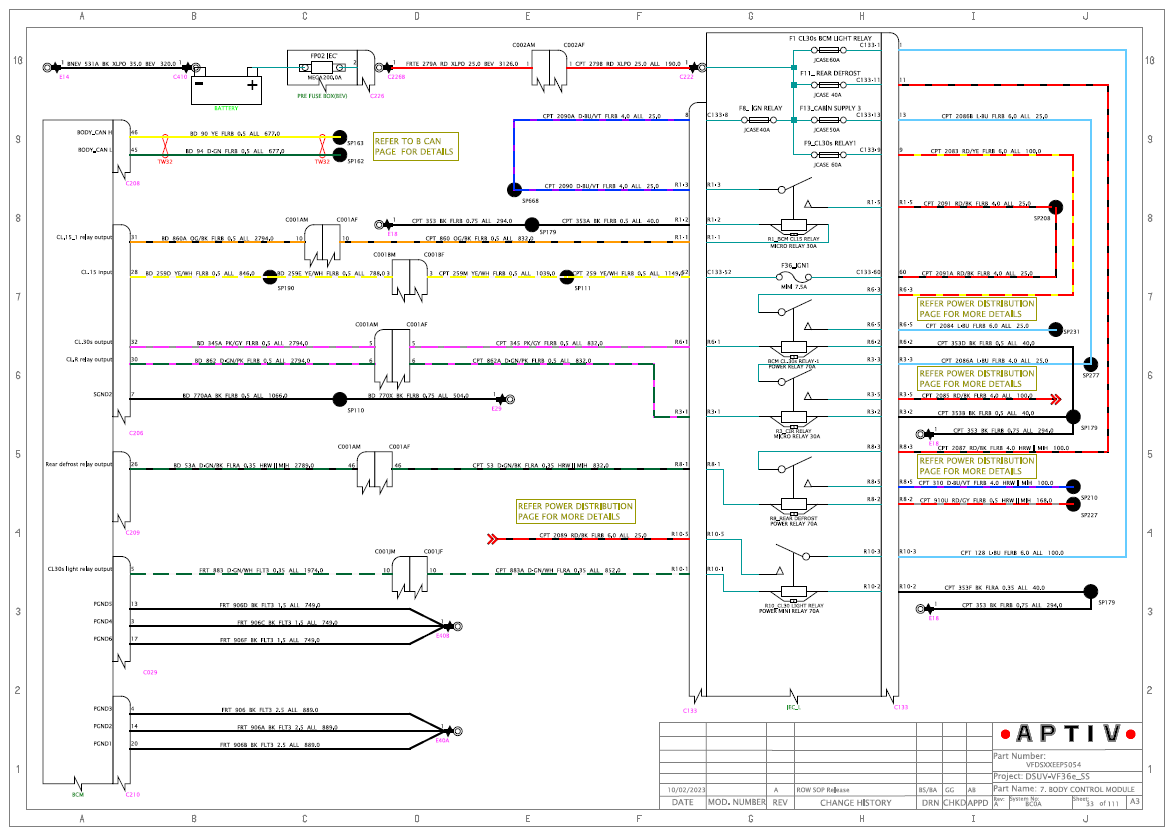

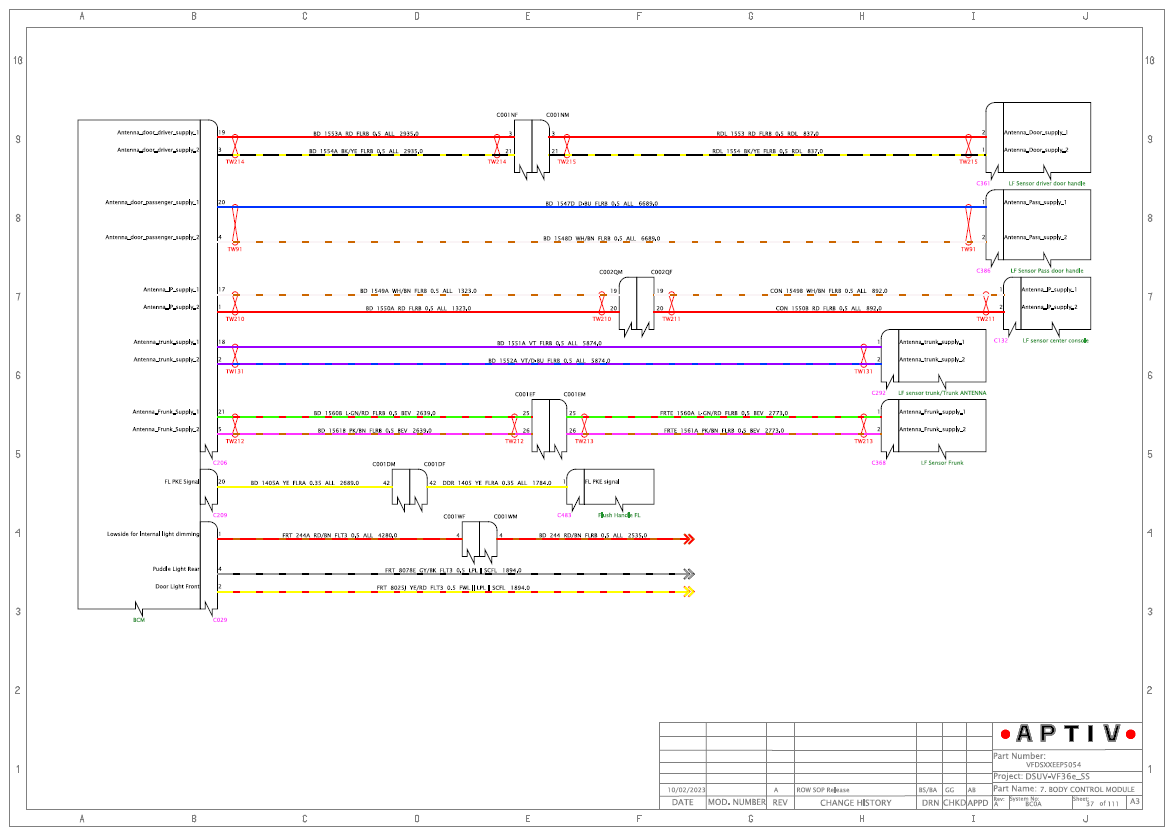

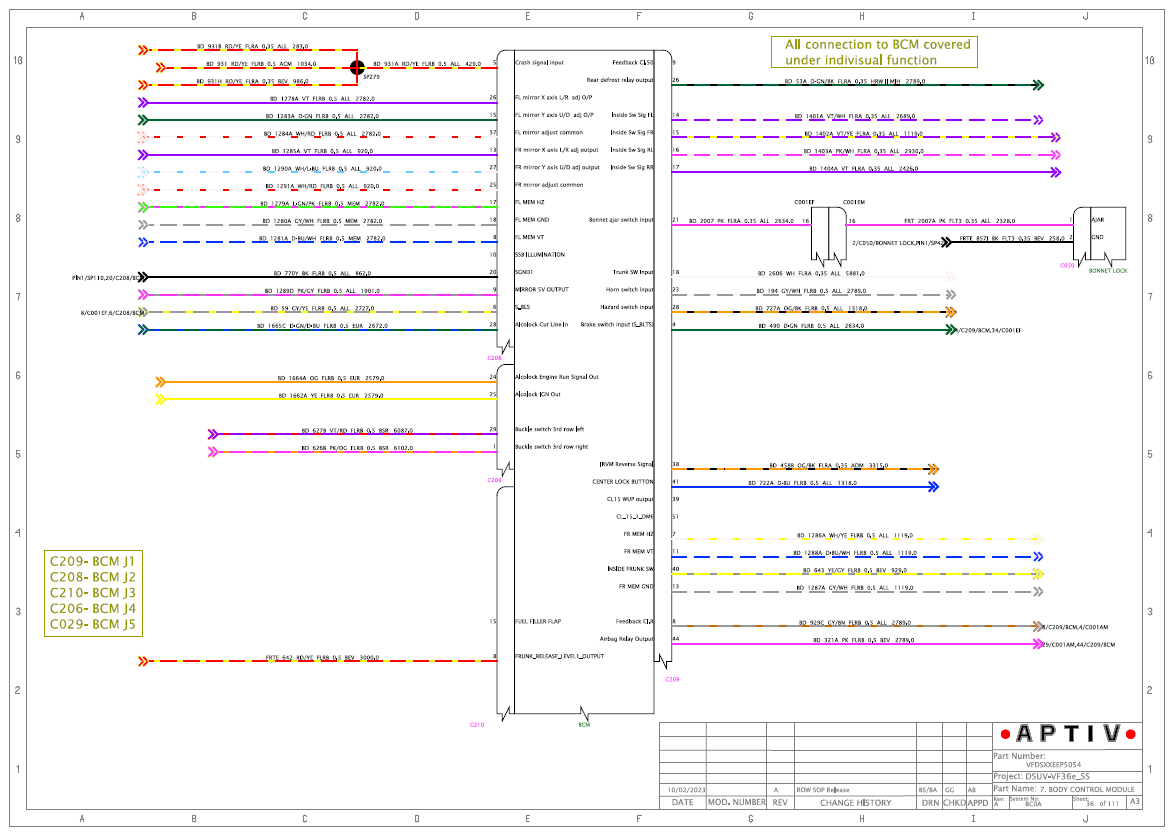

BCM 1

Courtesy of VINFAST, LLC

BCM 2

Courtesy of VINFAST, LLC

BCM 3

Courtesy of VINFAST, LLC

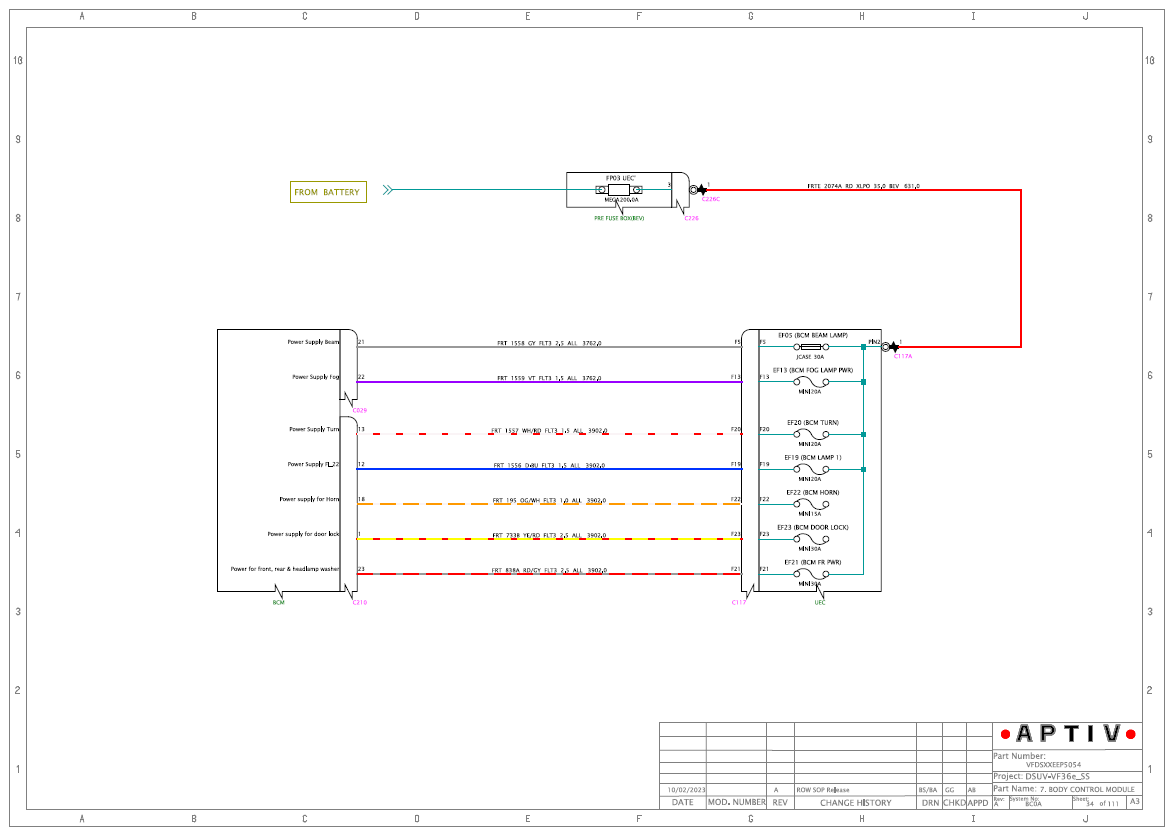

BCM 4

Courtesy of VINFAST, LLC

BCM 5

Courtesy of VINFAST, LLC

BKS

Courtesy of VINFAST, LLC

XGW

Courtesy of VINFAST, LLC

XGW 2

Courtesy of VINFAST, LLC

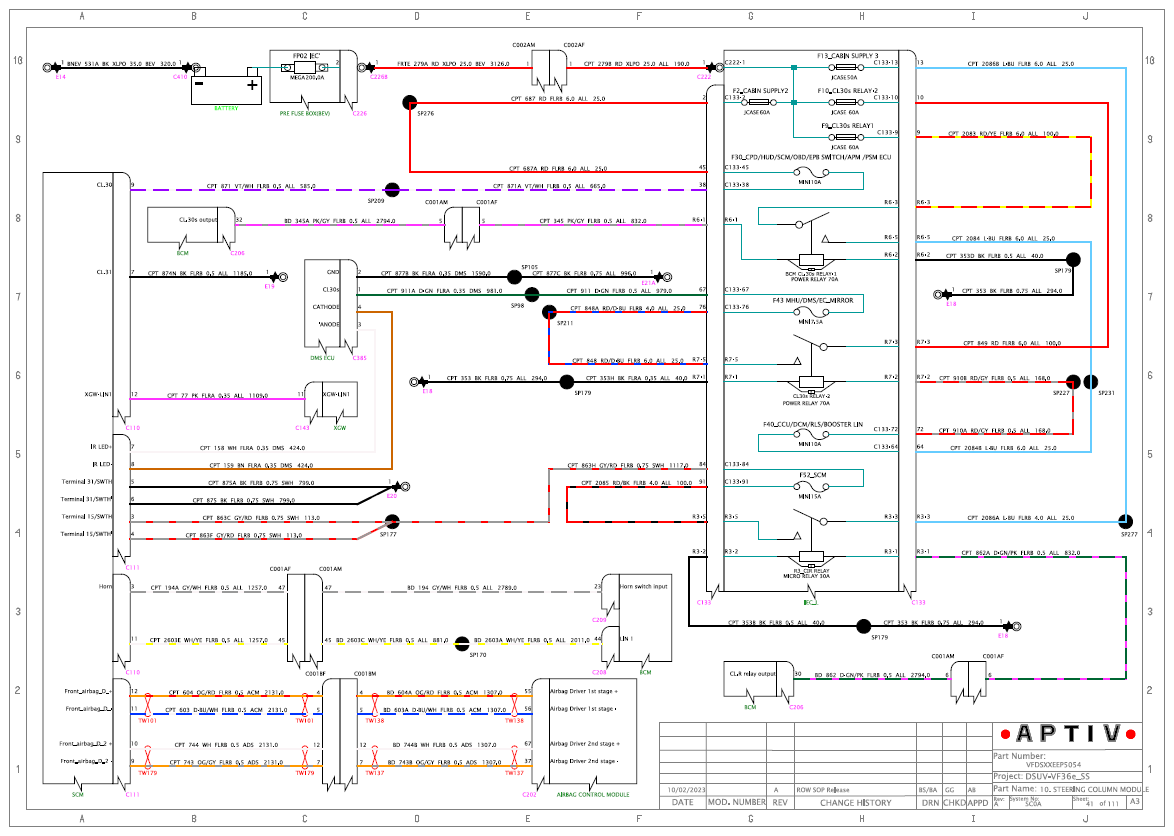

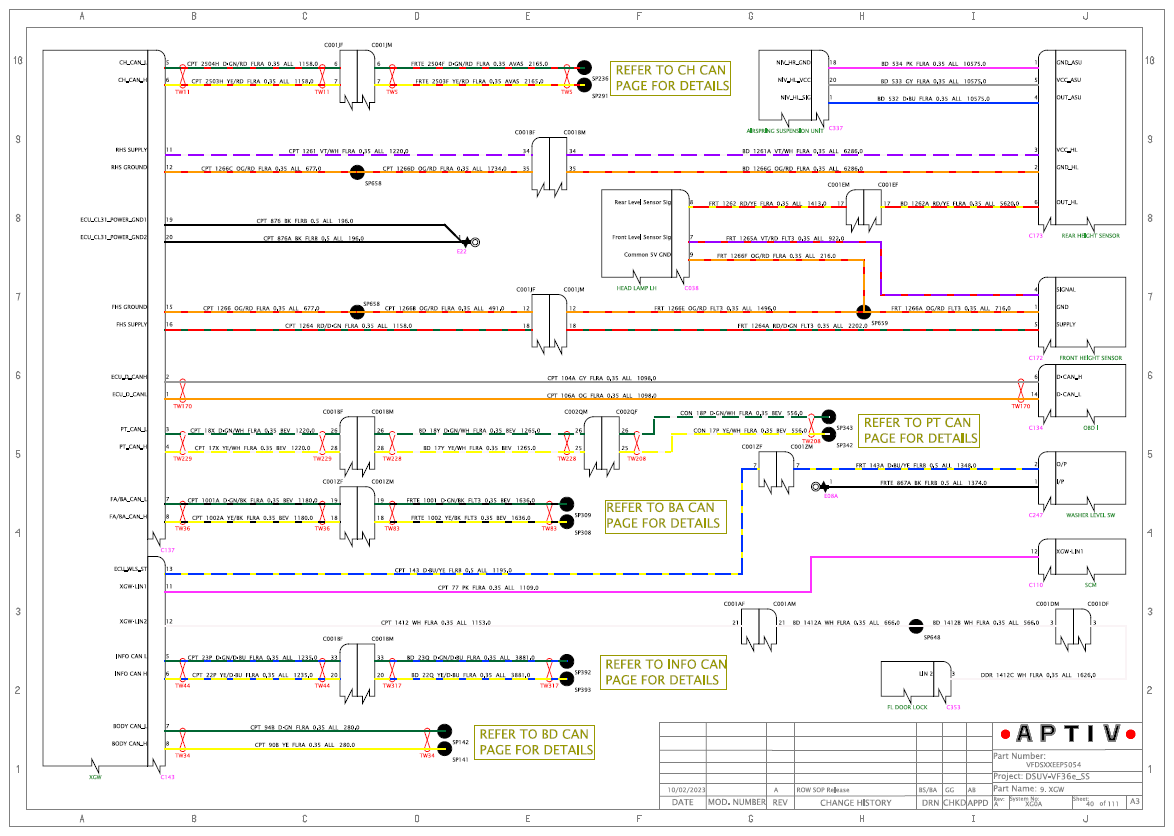

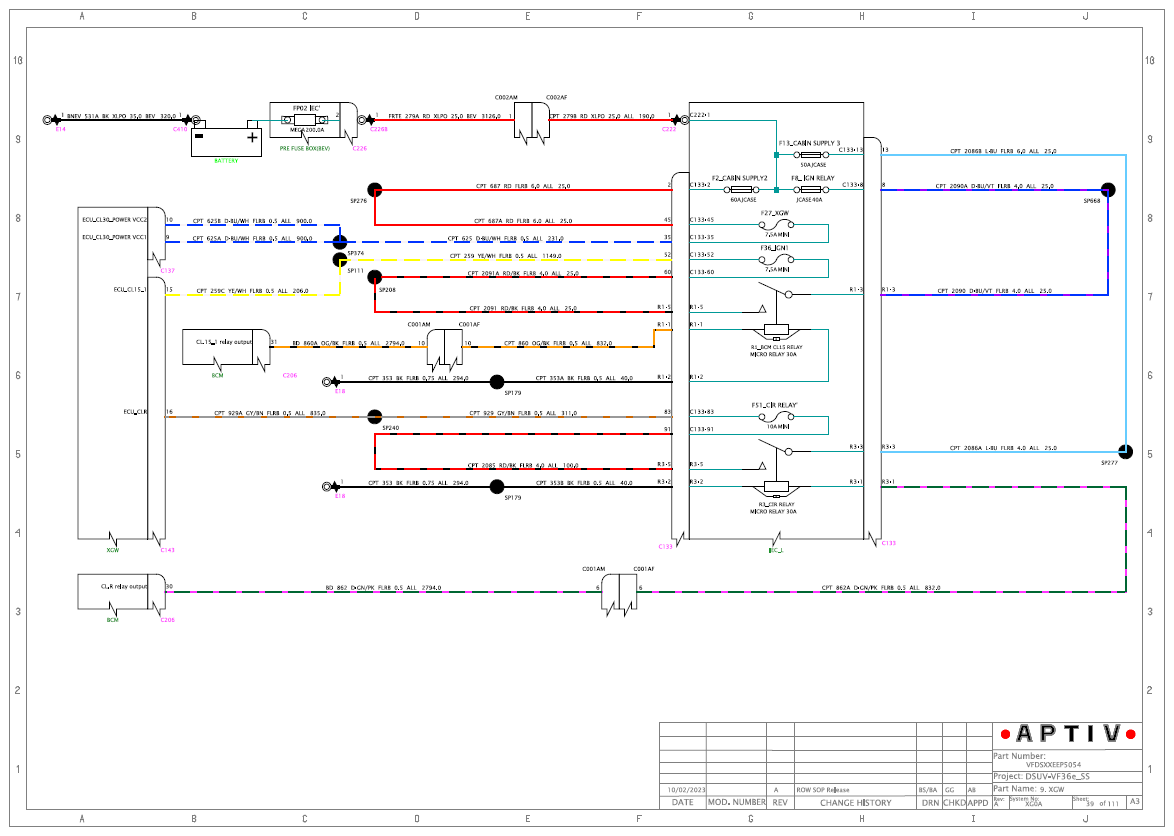

SCM

Courtesy of VINFAST, LLC

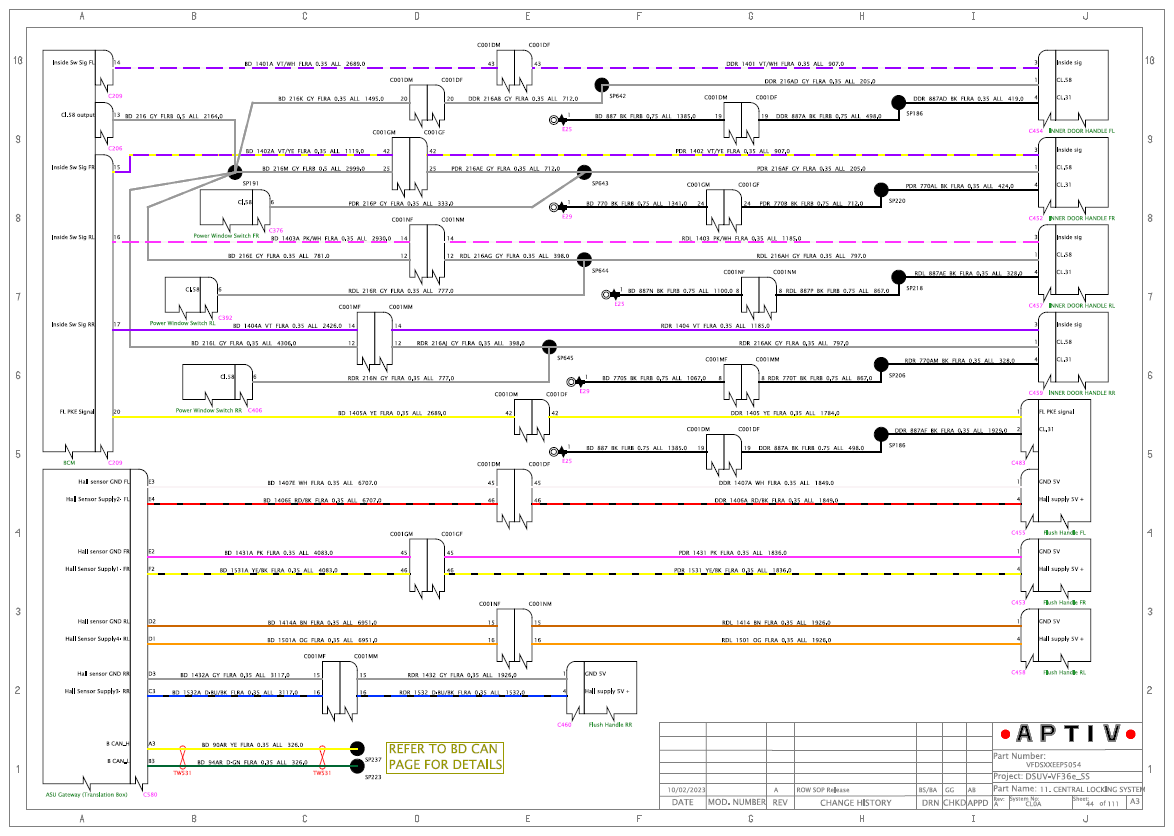

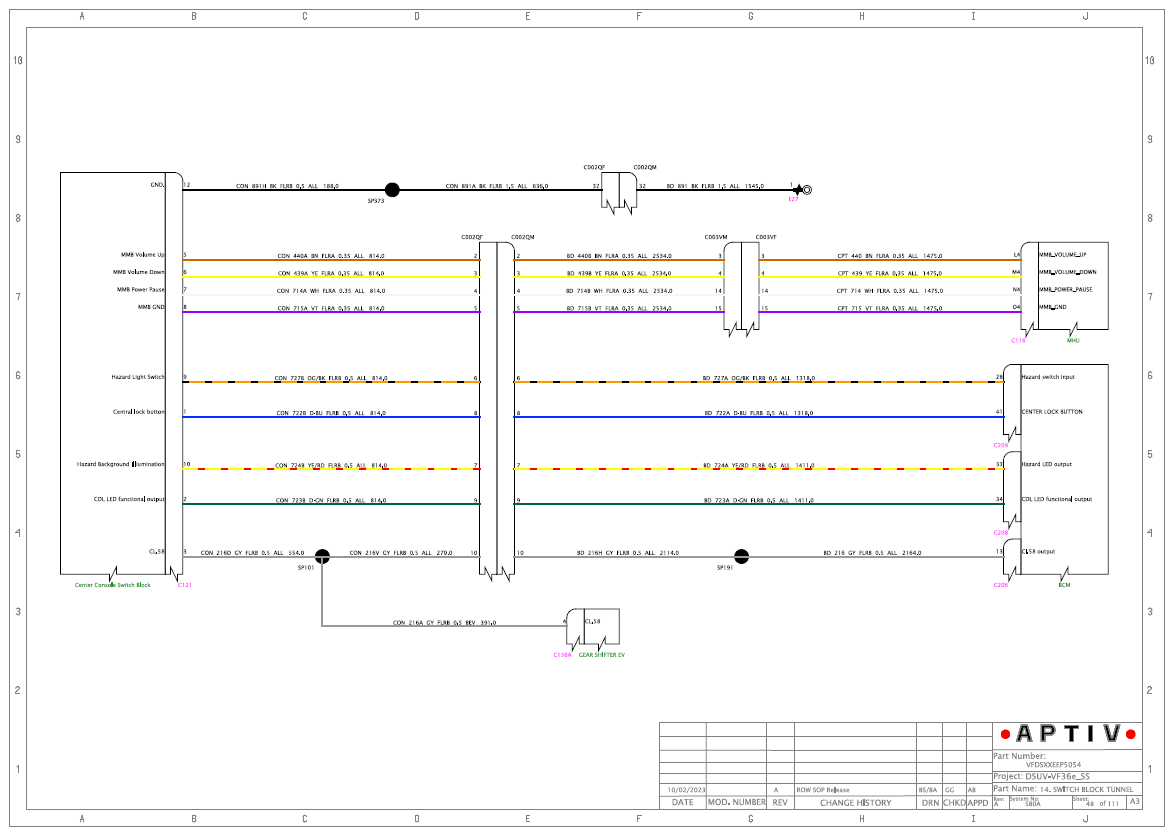

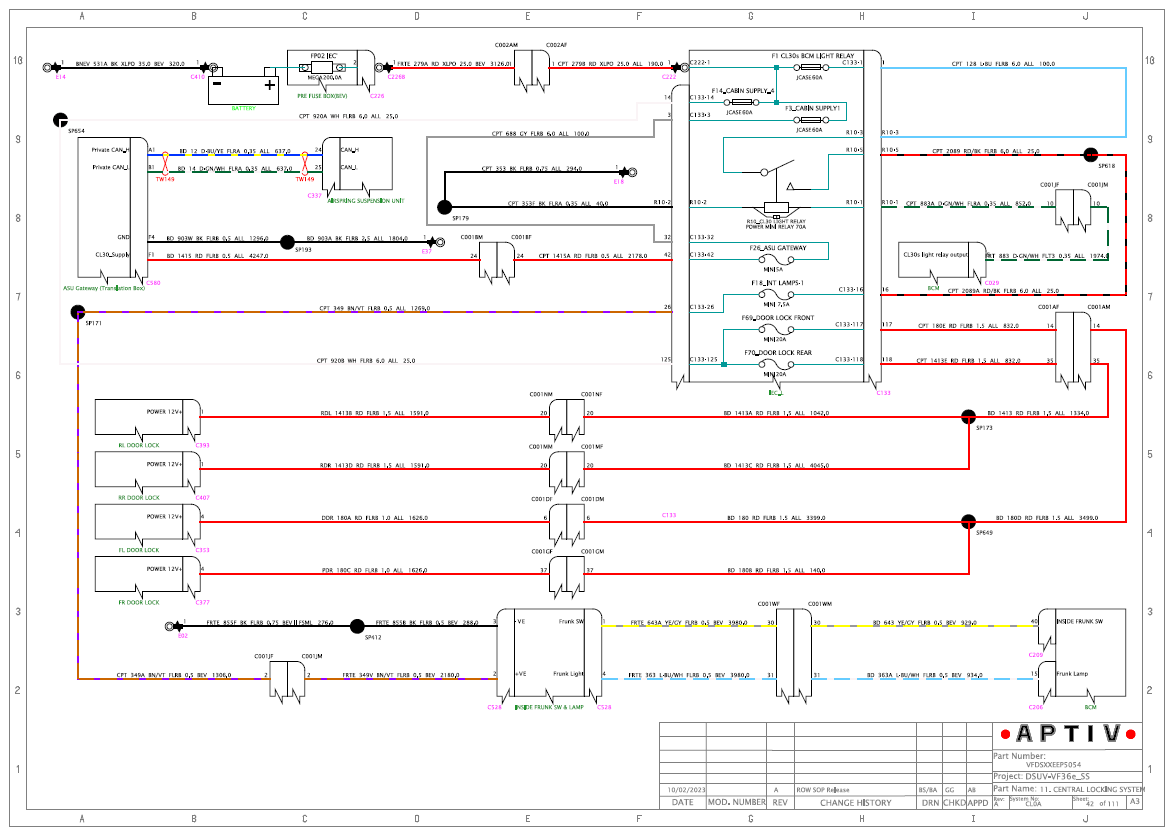

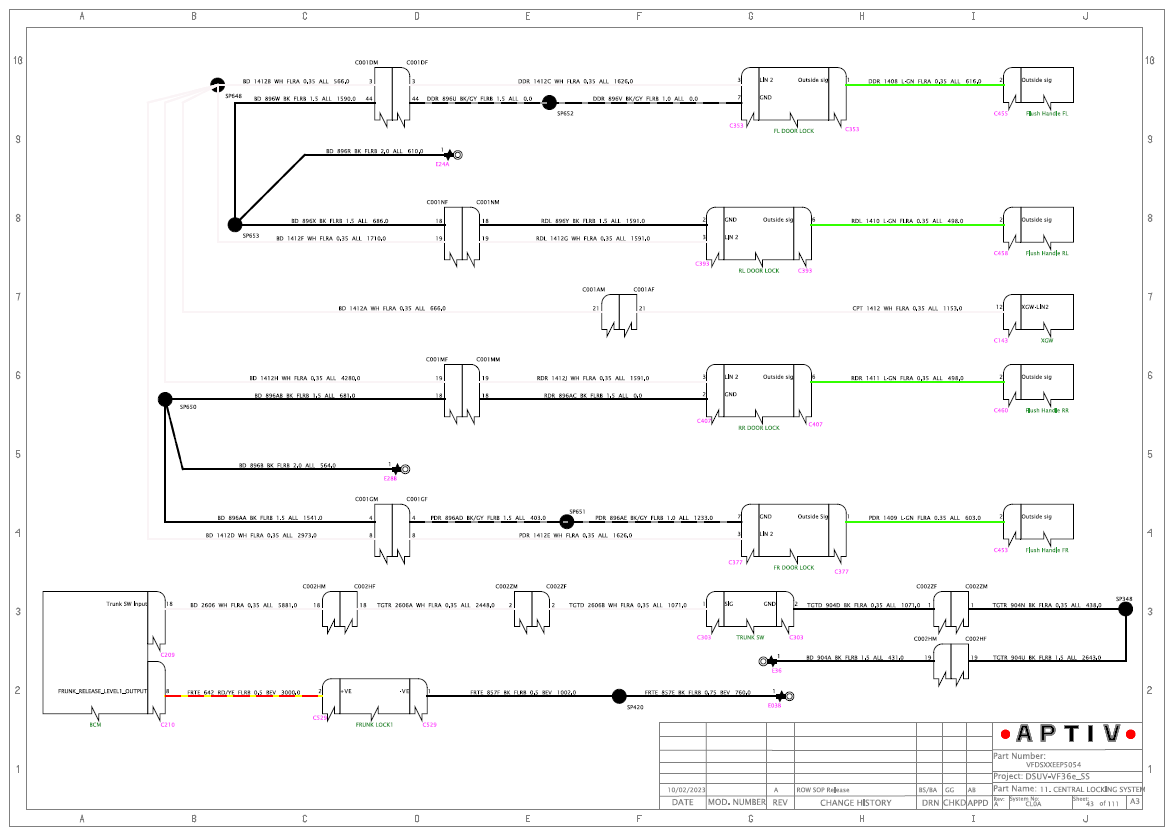

CLS 1

Courtesy of VINFAST, LLC

CLS 2

Courtesy of VINFAST, LLC

CLS 3

Courtesy of VINFAST, LLC

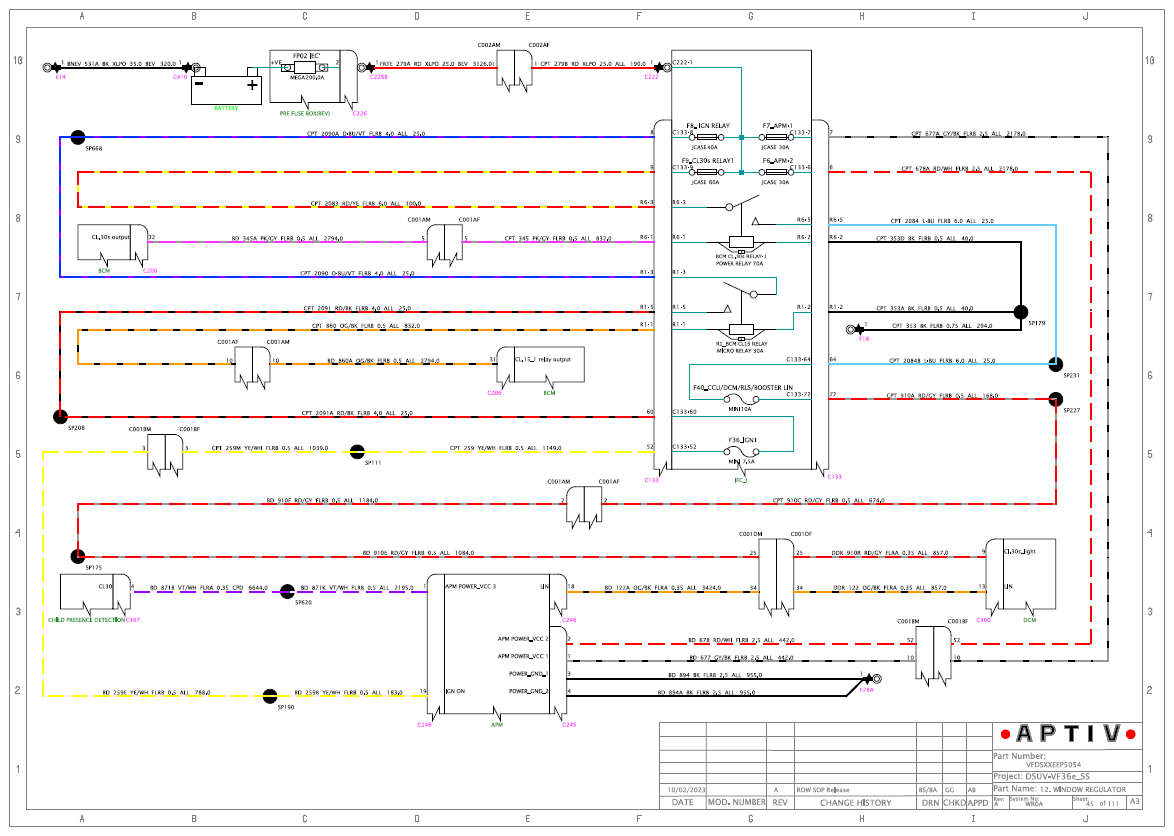

APM 1

Courtesy of VINFAST, LLC

APM 2

Courtesy of VINFAST, LLC

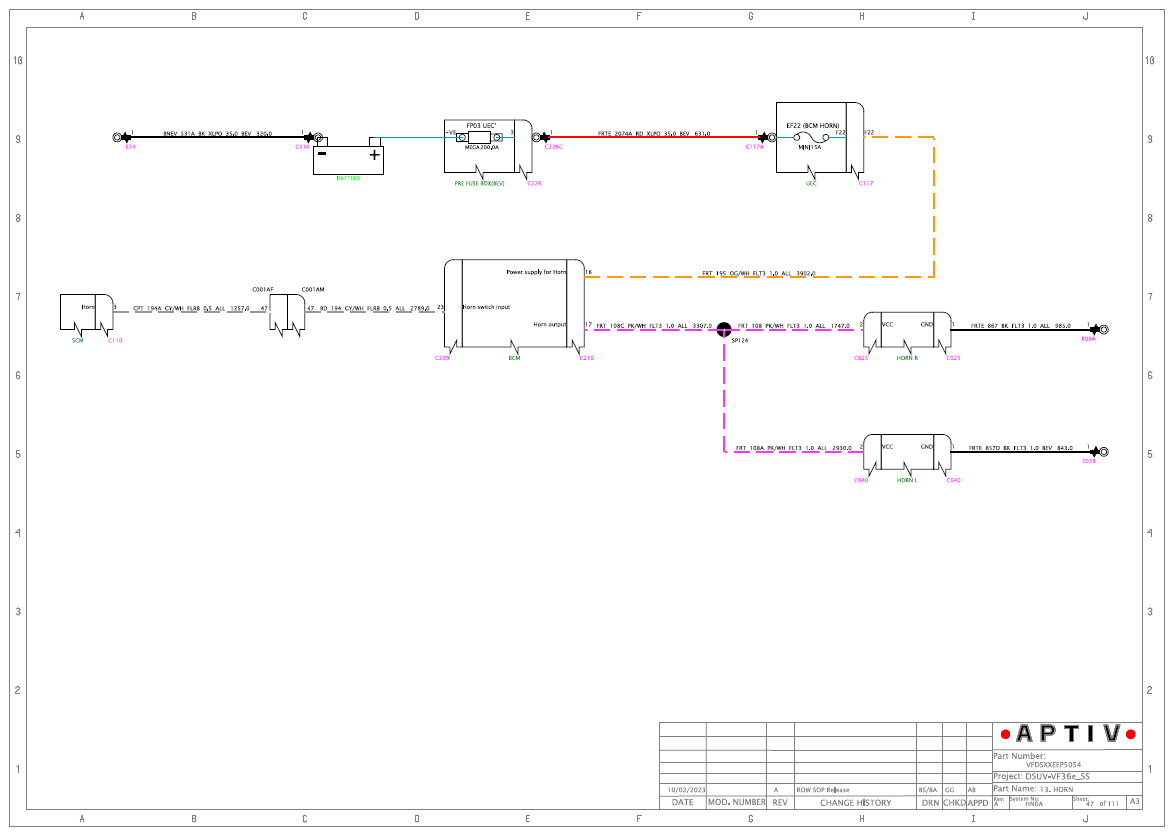

HORN

Courtesy of VINFAST, LLC

SBT

Courtesy of VINFAST, LLC

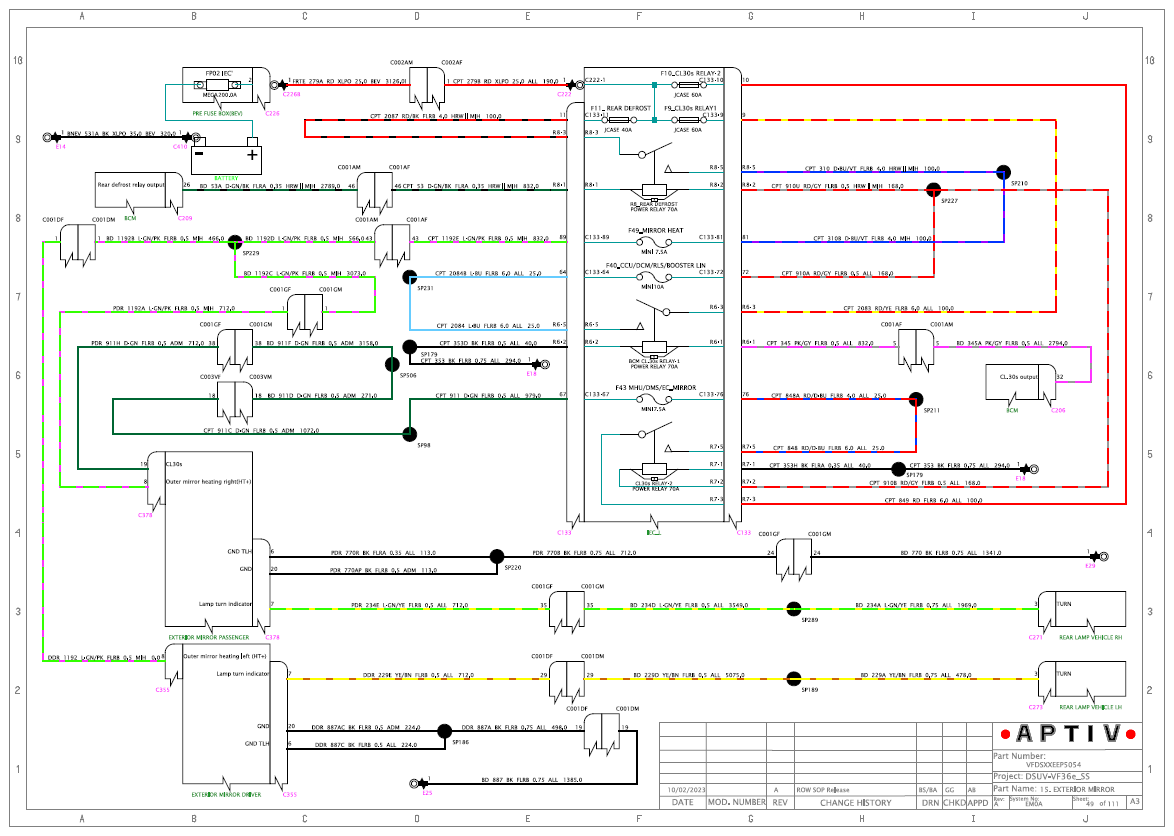

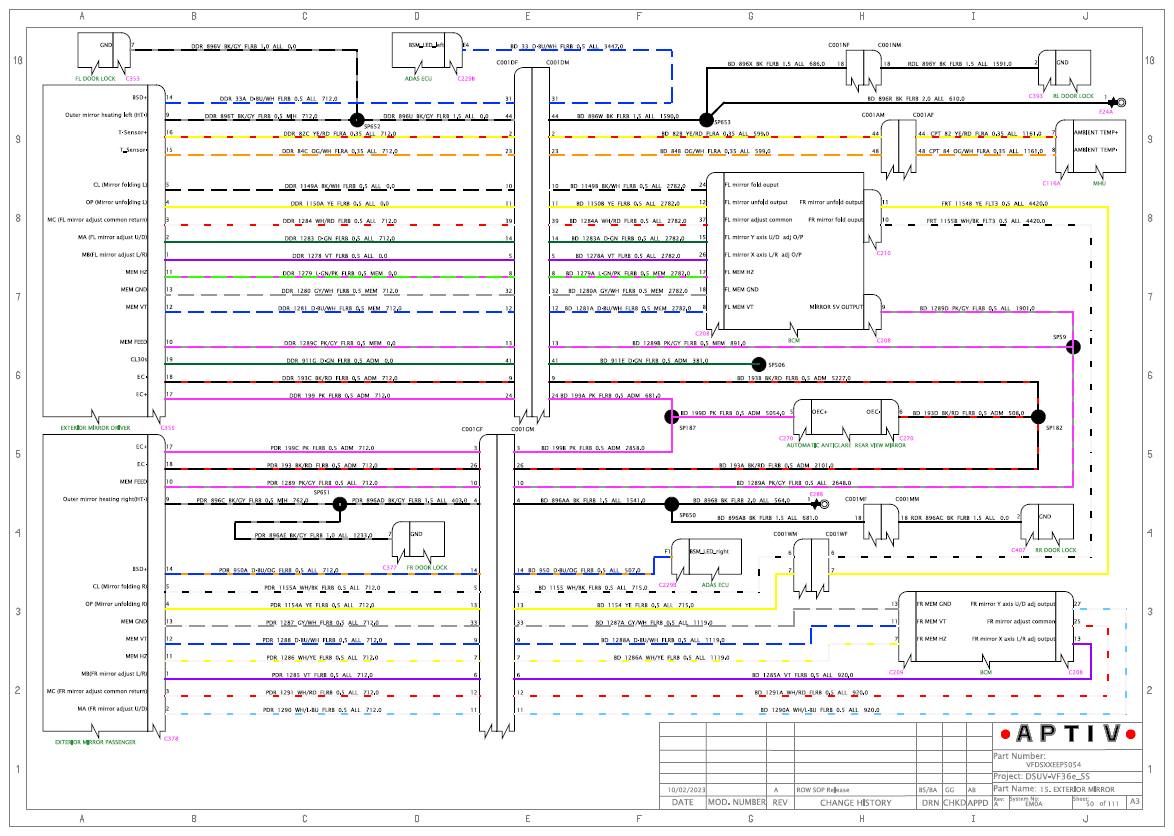

EXTERIOR MIRROR 1

Courtesy of VINFAST, LLC

EXTERIOR MIRROR 2

Courtesy of VINFAST, LLC

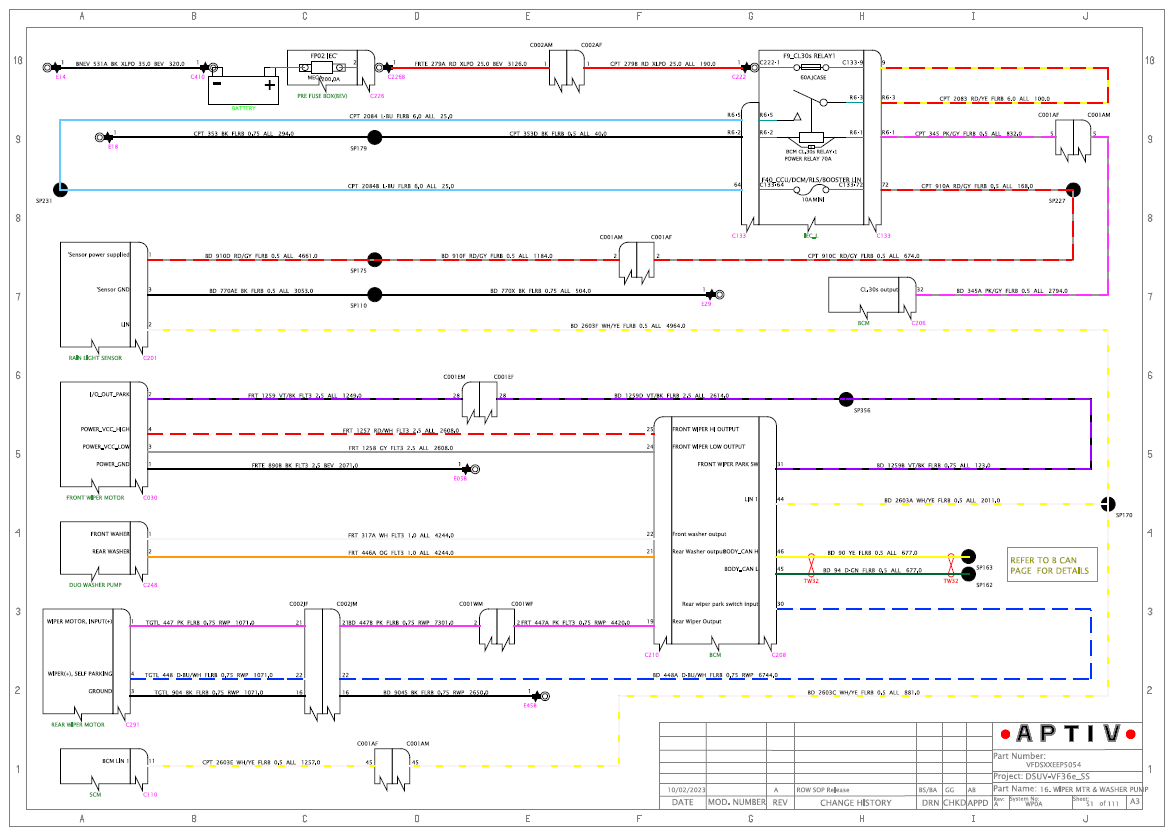

WP MTR & FRT WSHR PMP

Courtesy of VINFAST, LLC

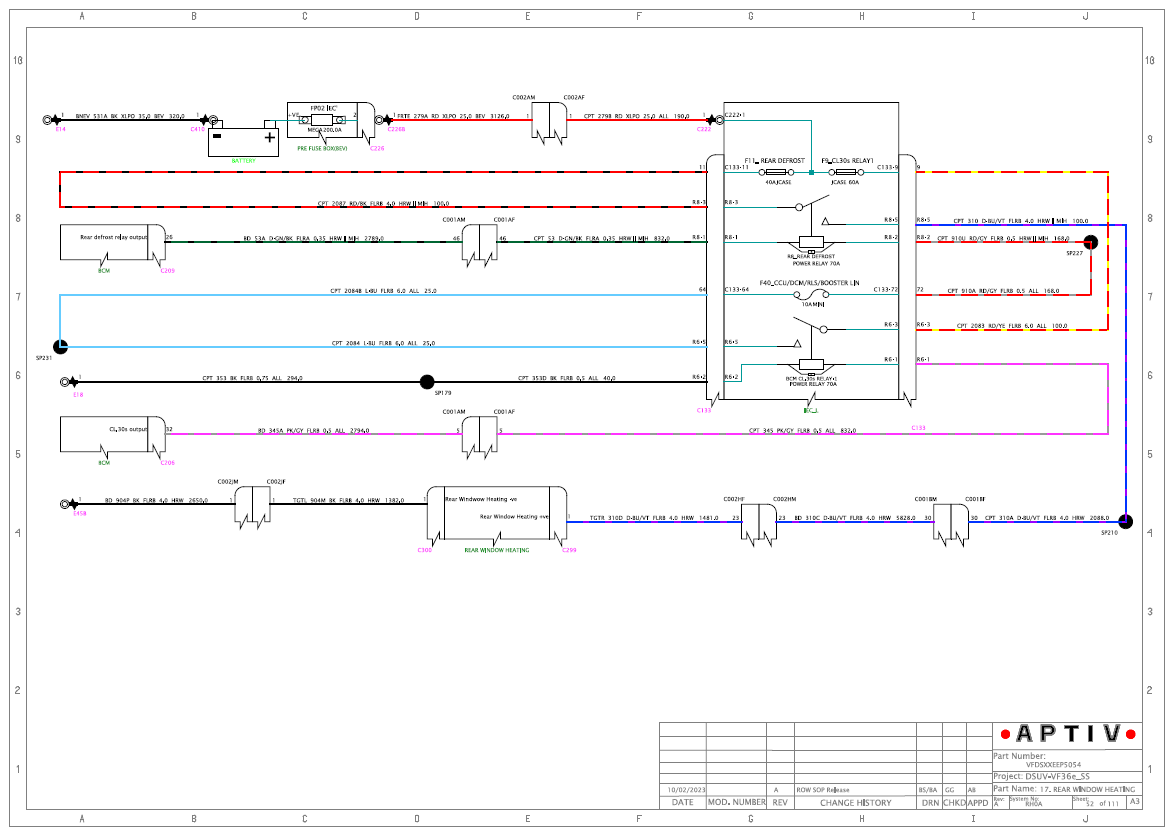

RWH 1

Courtesy of VINFAST, LLC

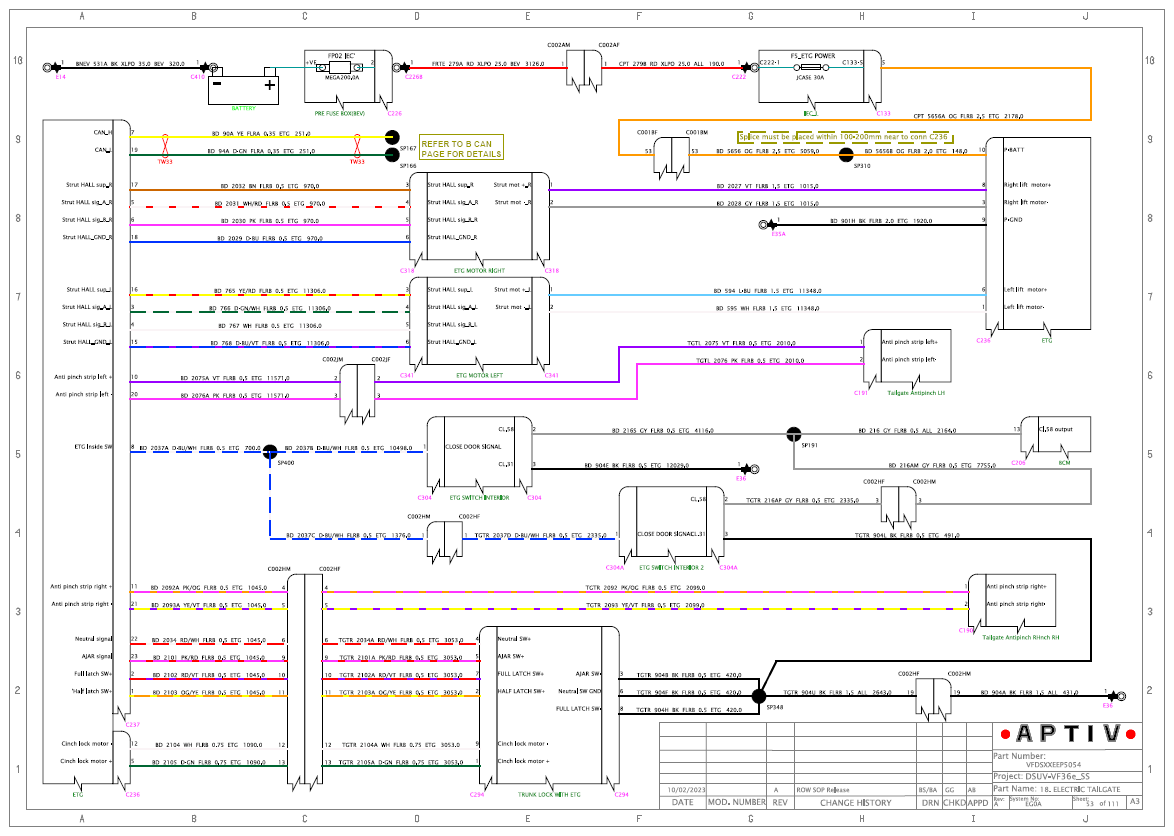

ETG

Courtesy of VINFAST, LLC

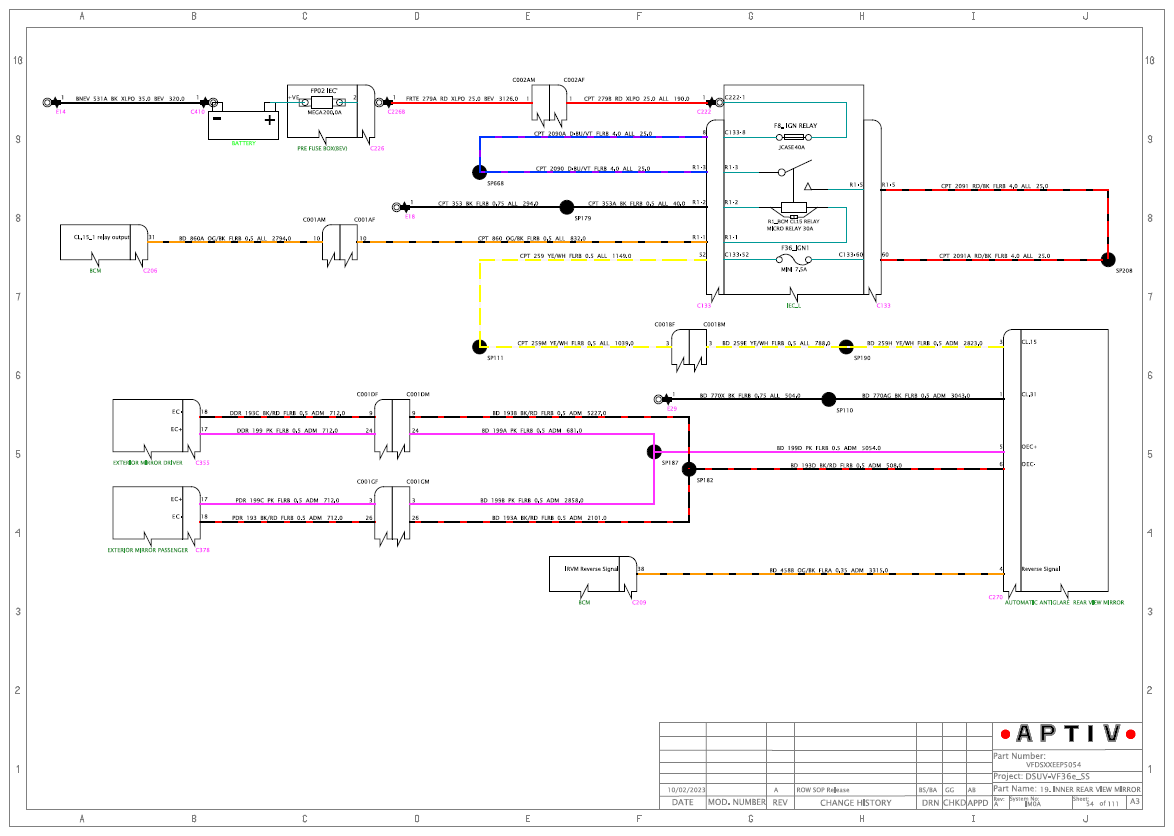

ECMI

Courtesy of VINFAST, LLC

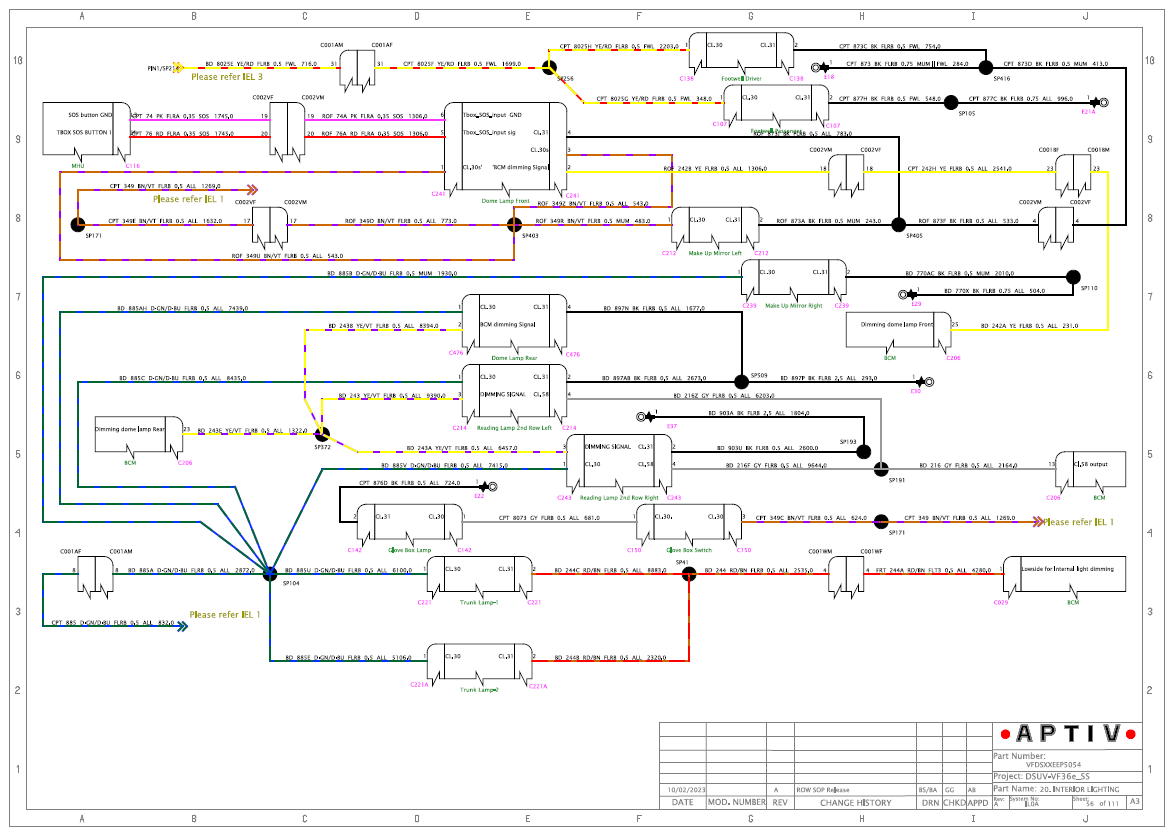

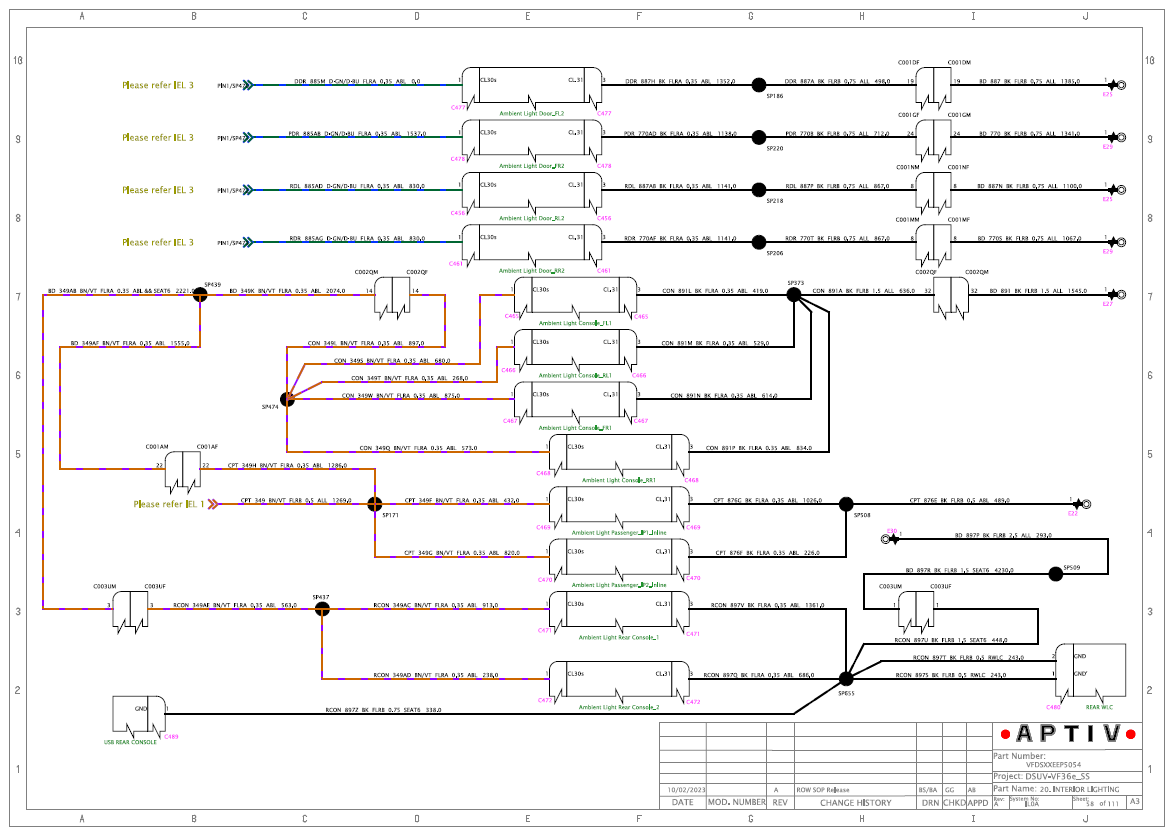

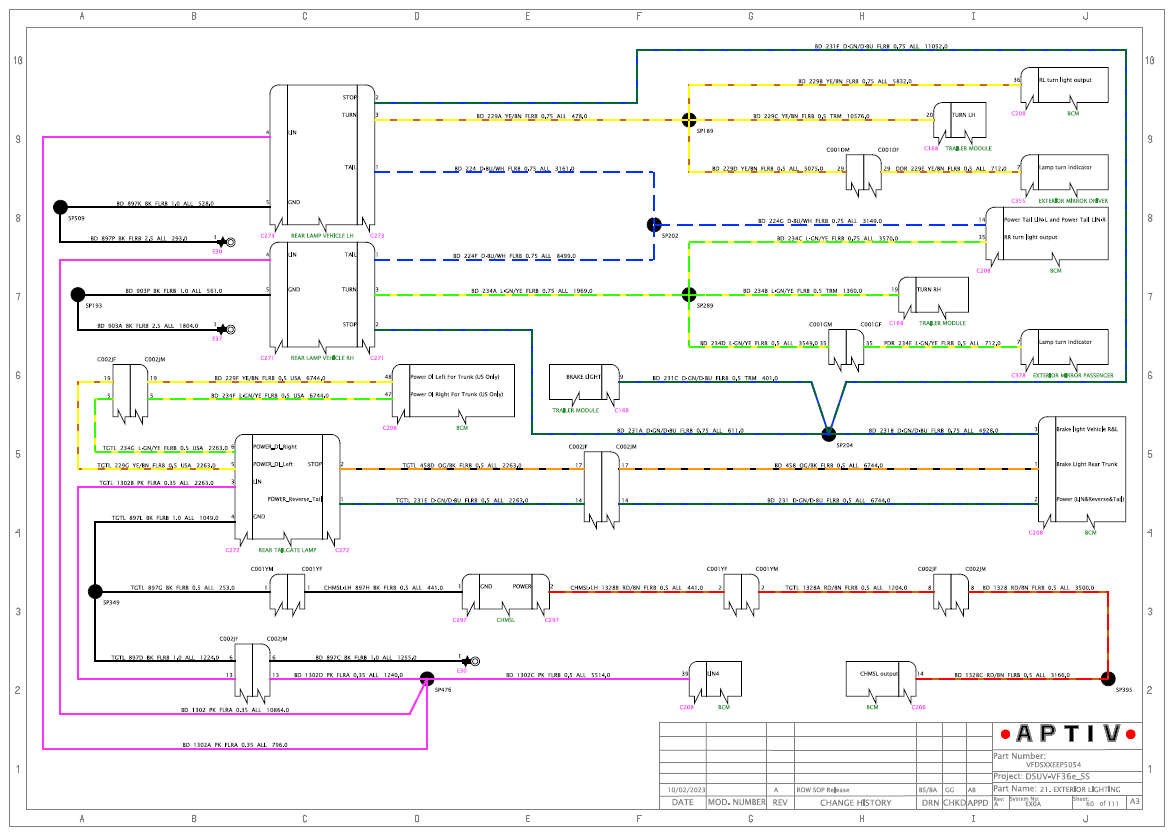

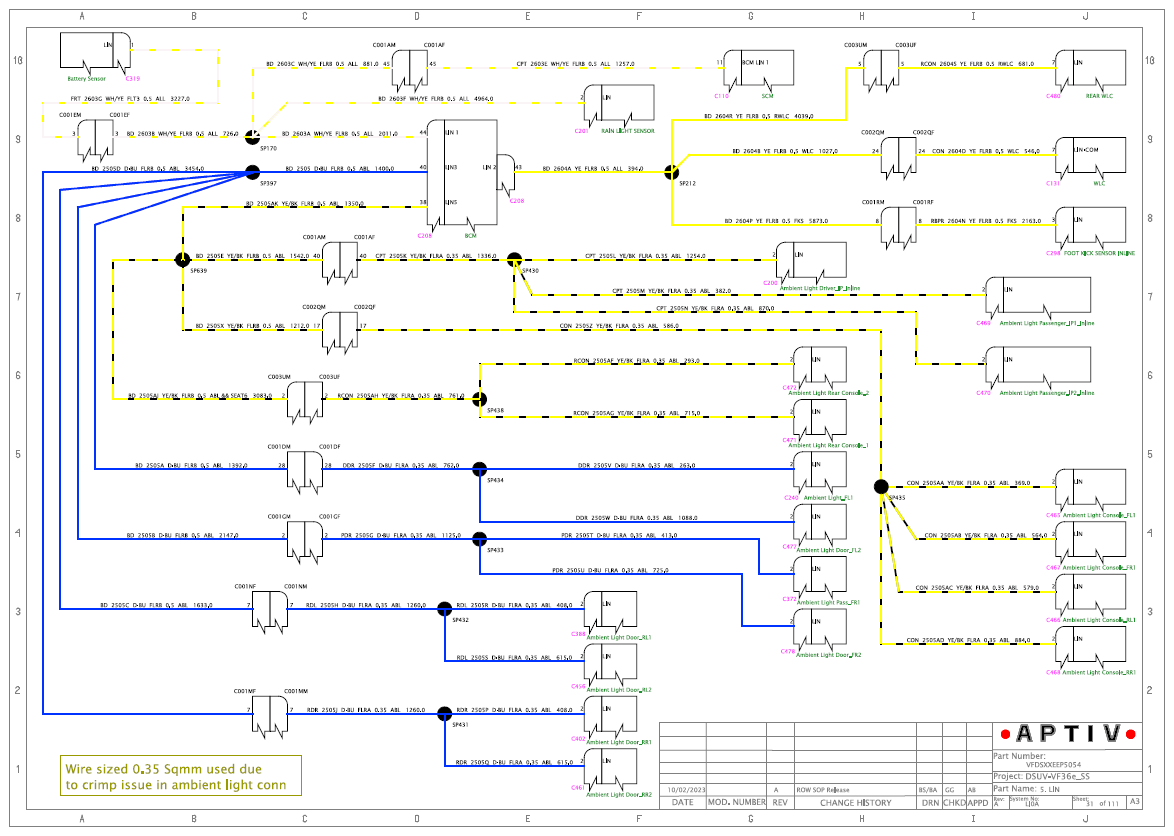

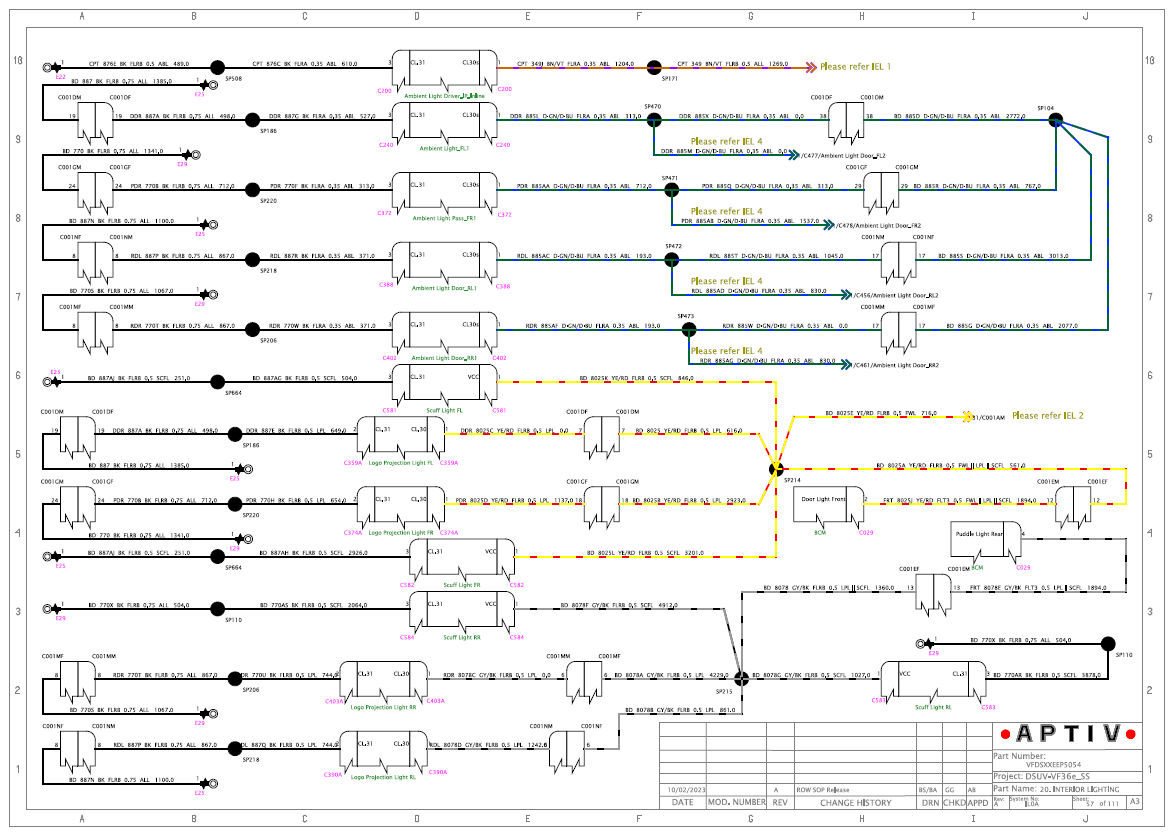

IEL 1

Courtesy of VINFAST, LLC

IEL 2

Courtesy of VINFAST, LLC

IEL 3

Courtesy of VINFAST, LLC

IEL 4

Courtesy of VINFAST, LLC

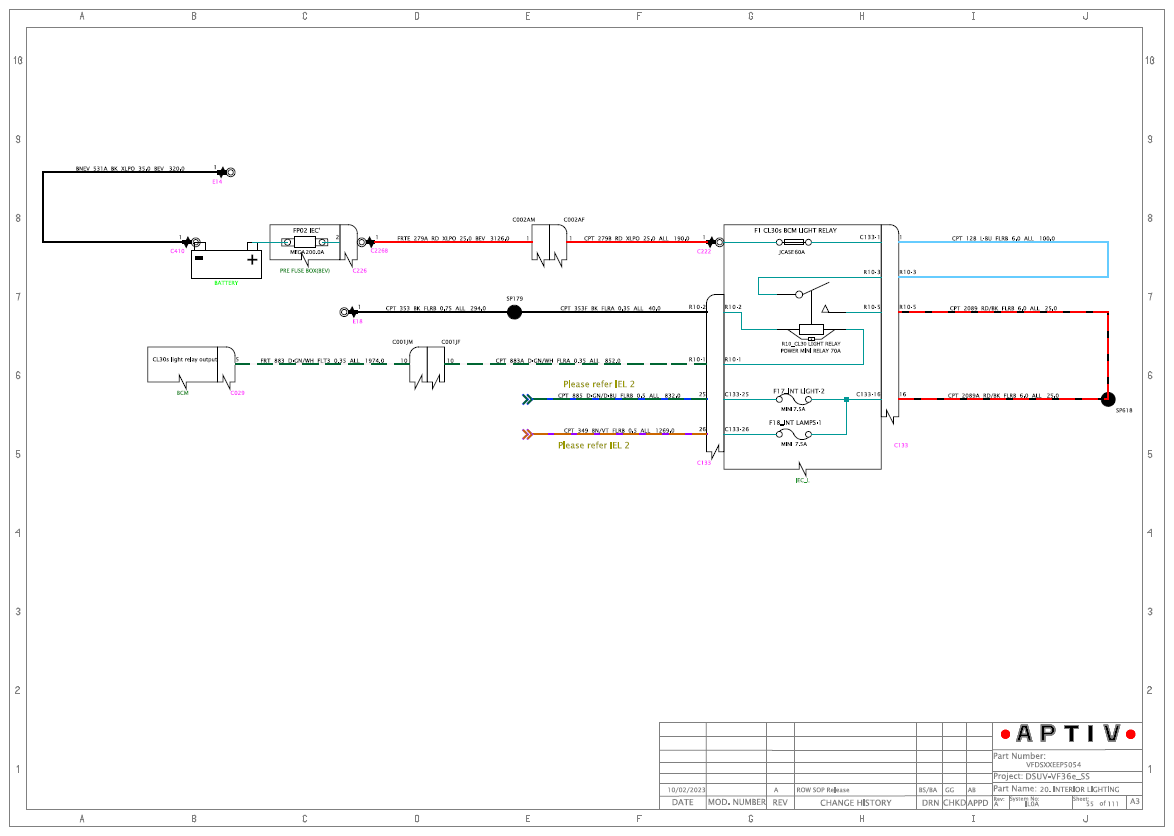

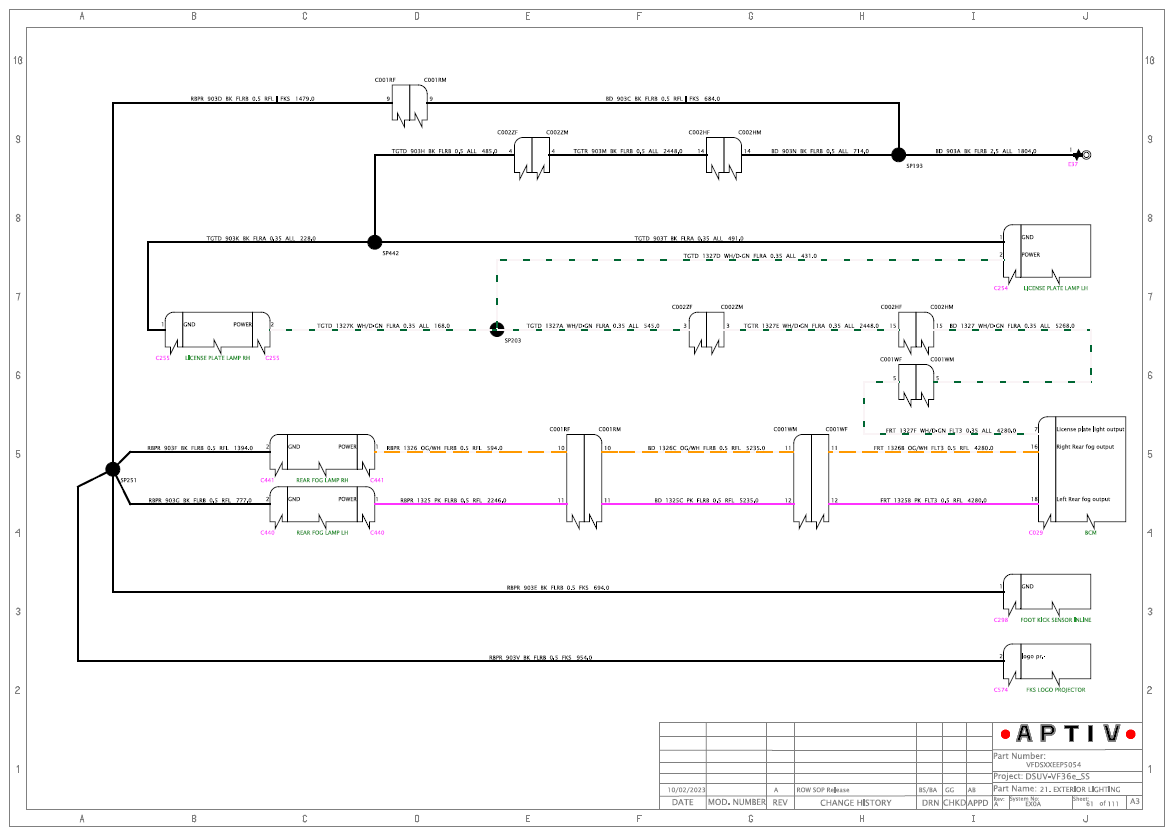

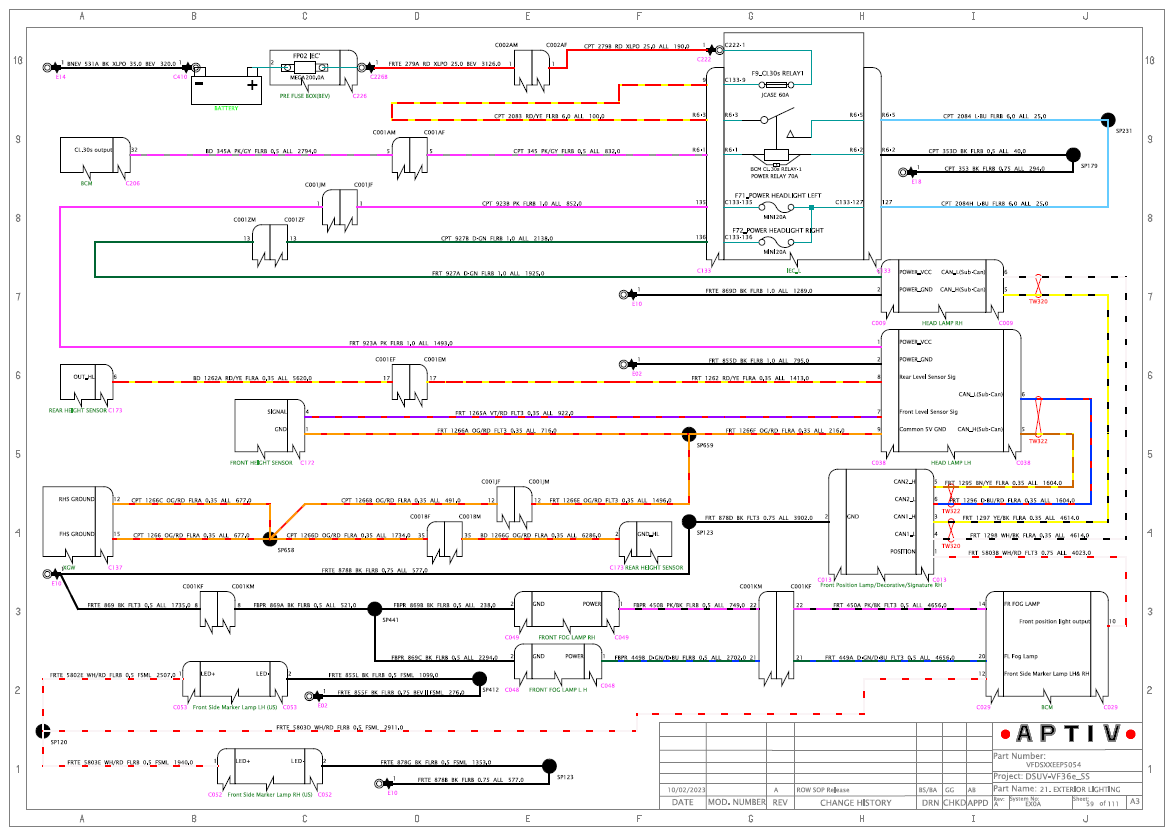

ELS1

Courtesy of VINFAST, LLC

ELS2

Courtesy of VINFAST, LLC

ELS3

Courtesy of VINFAST, LLC

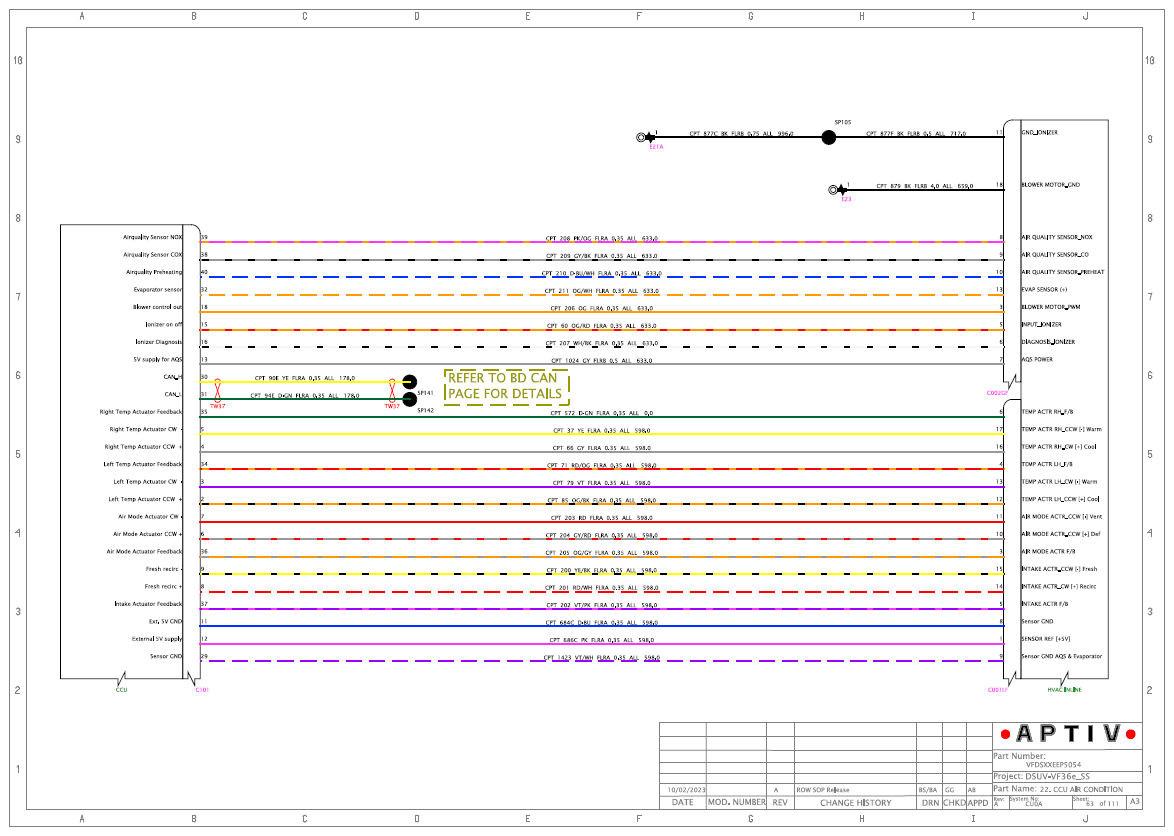

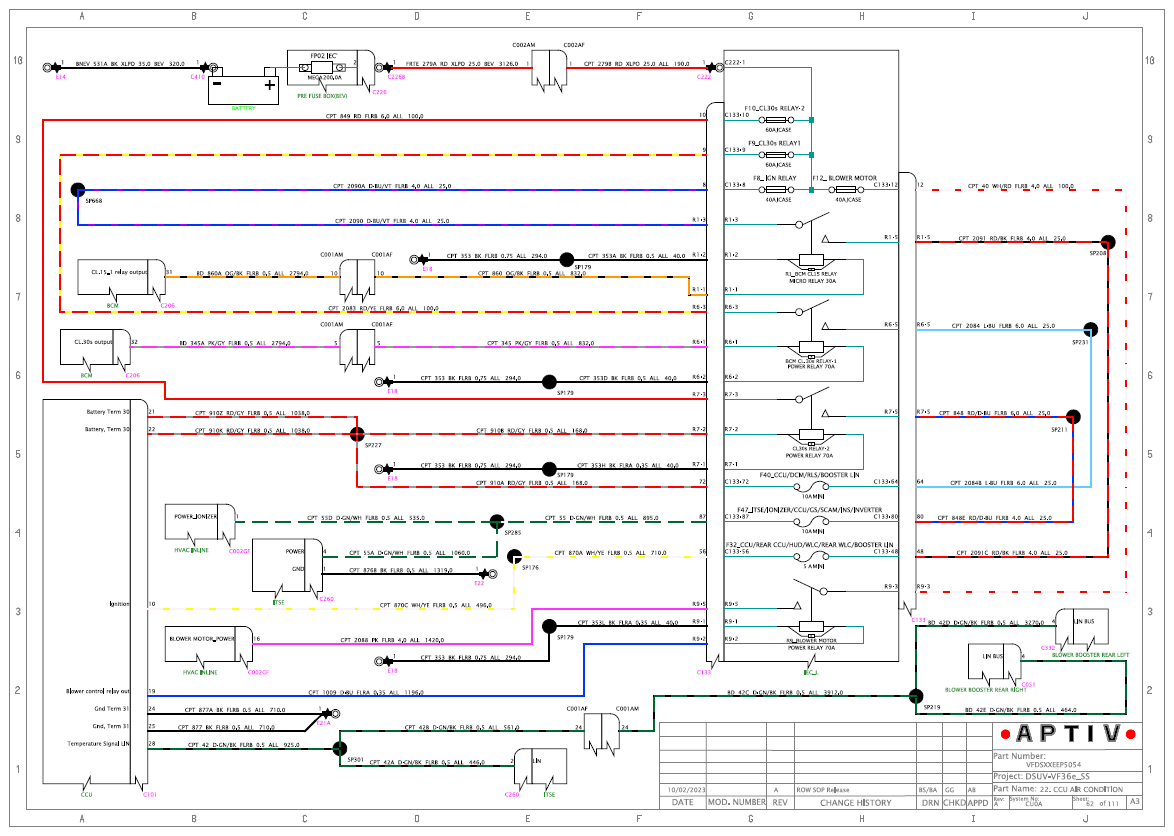

CCU

Courtesy of VINFAST, LLC

CCU 2

Courtesy of VINFAST, LLC

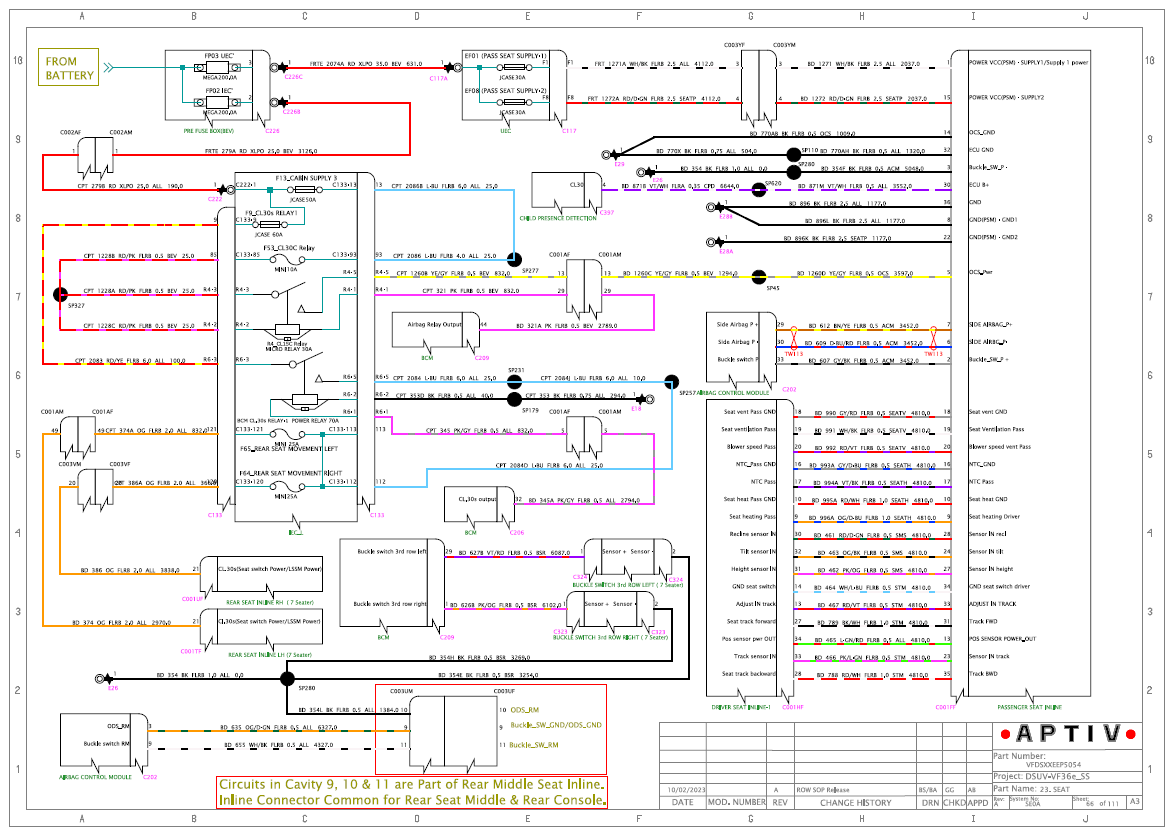

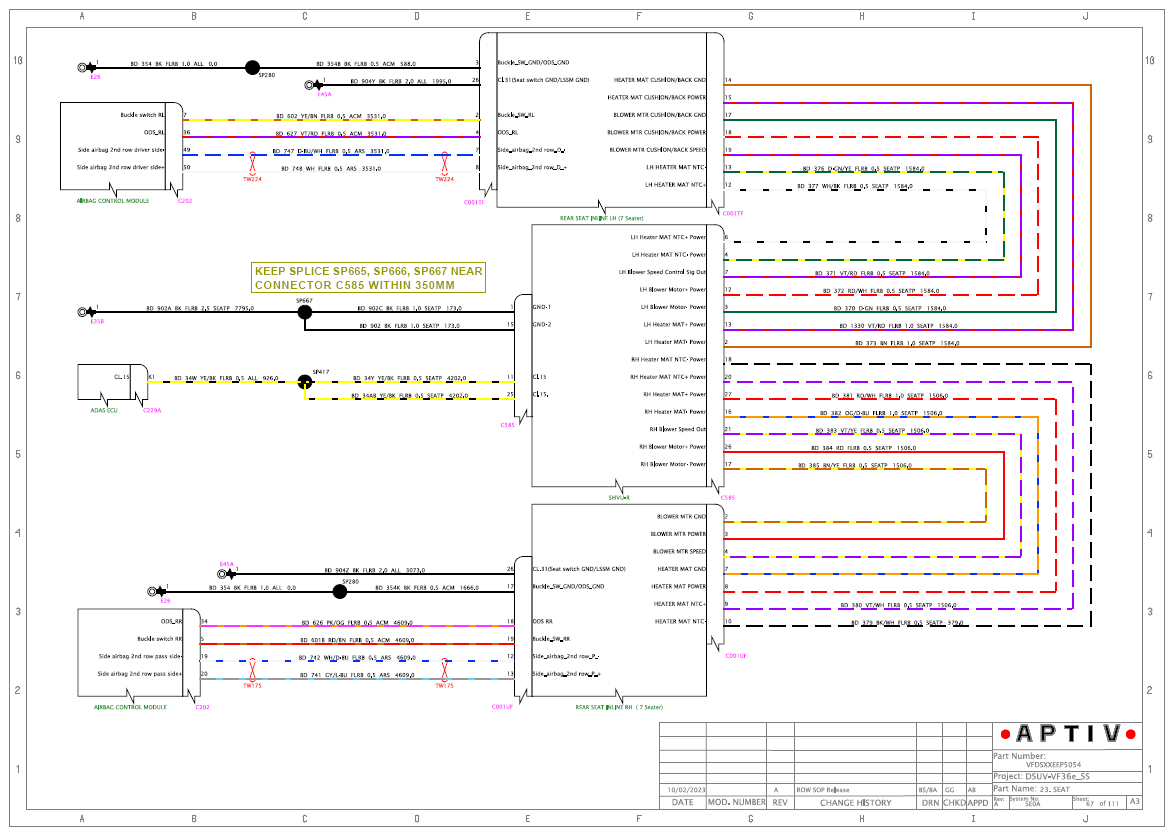

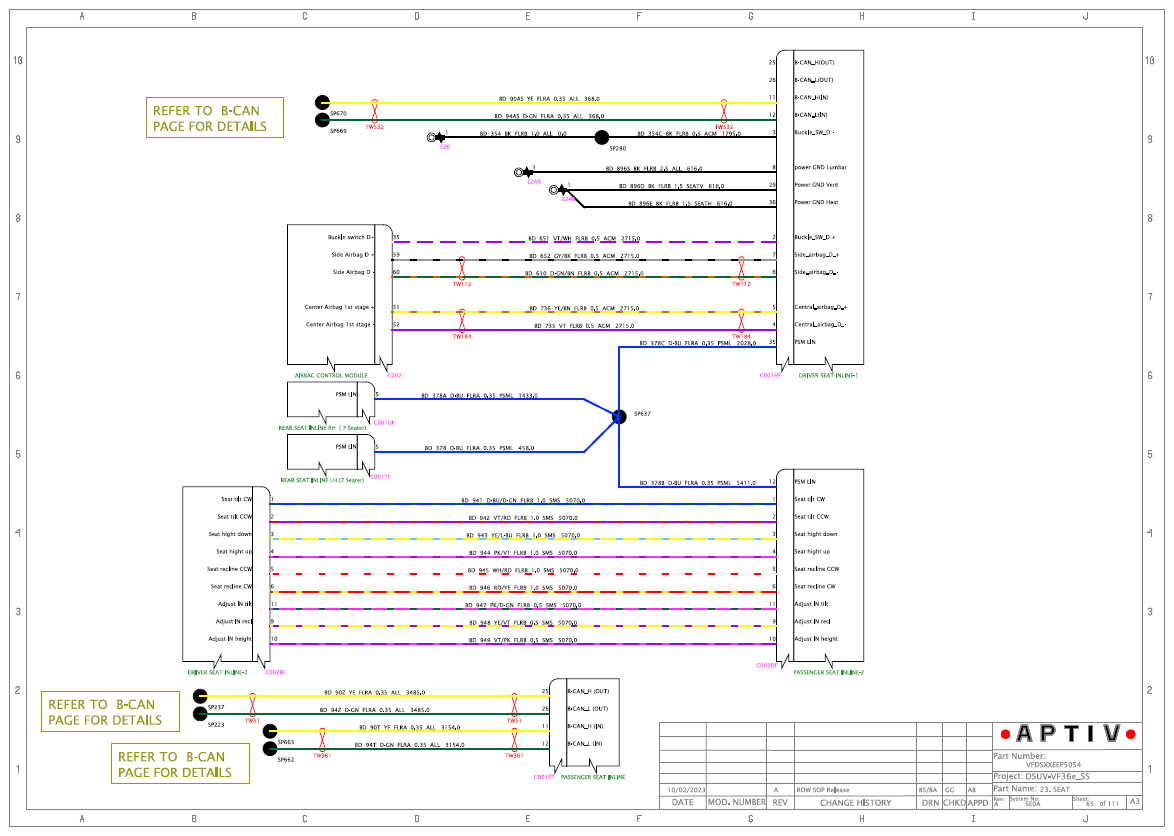

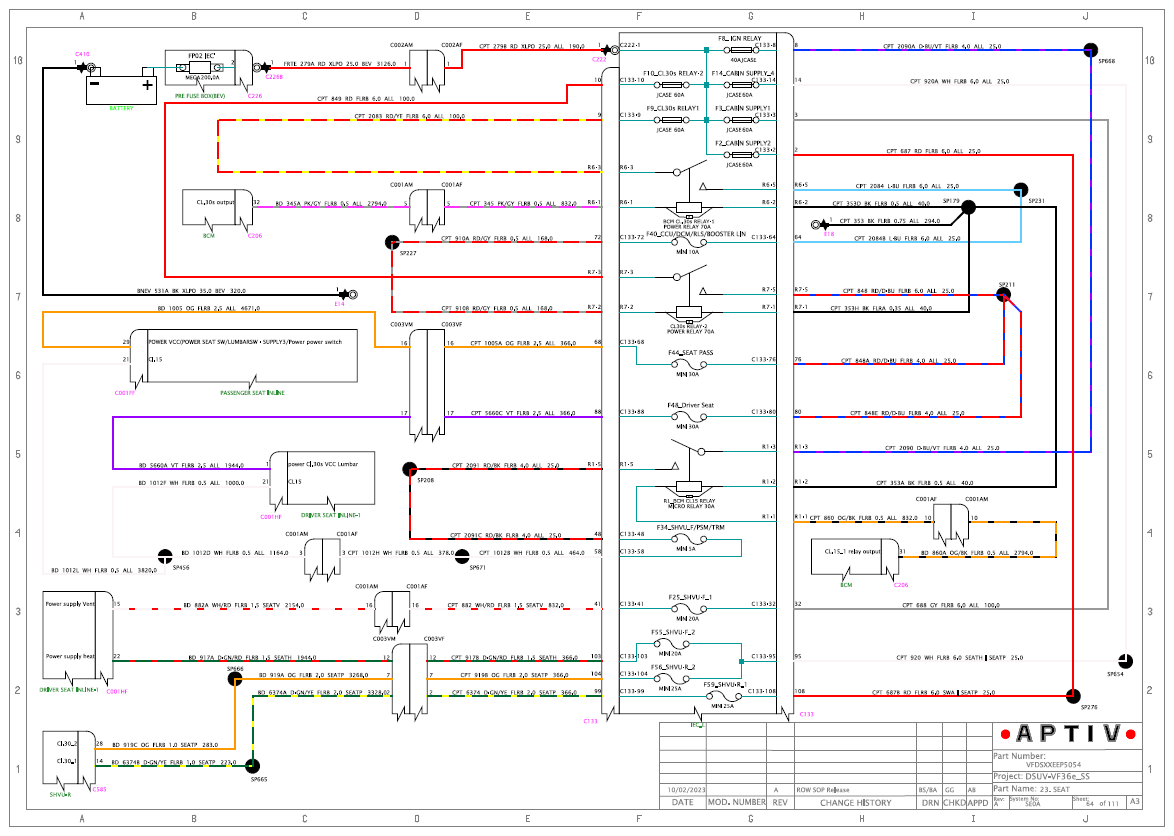

SEAT 1

Courtesy of VINFAST, LLC

SEAT 2

Courtesy of VINFAST, LLC

SEAT 3

Courtesy of VINFAST, LLC

SEAT 4

Courtesy of VINFAST, LLC

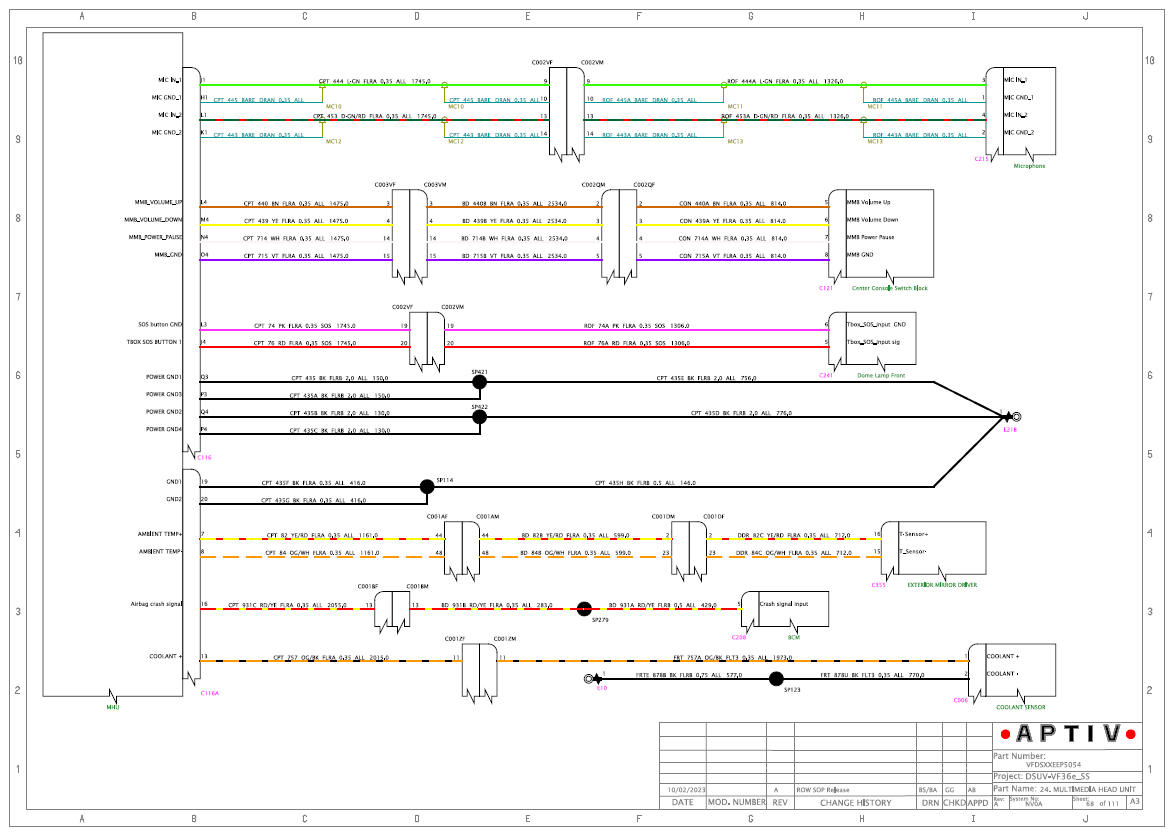

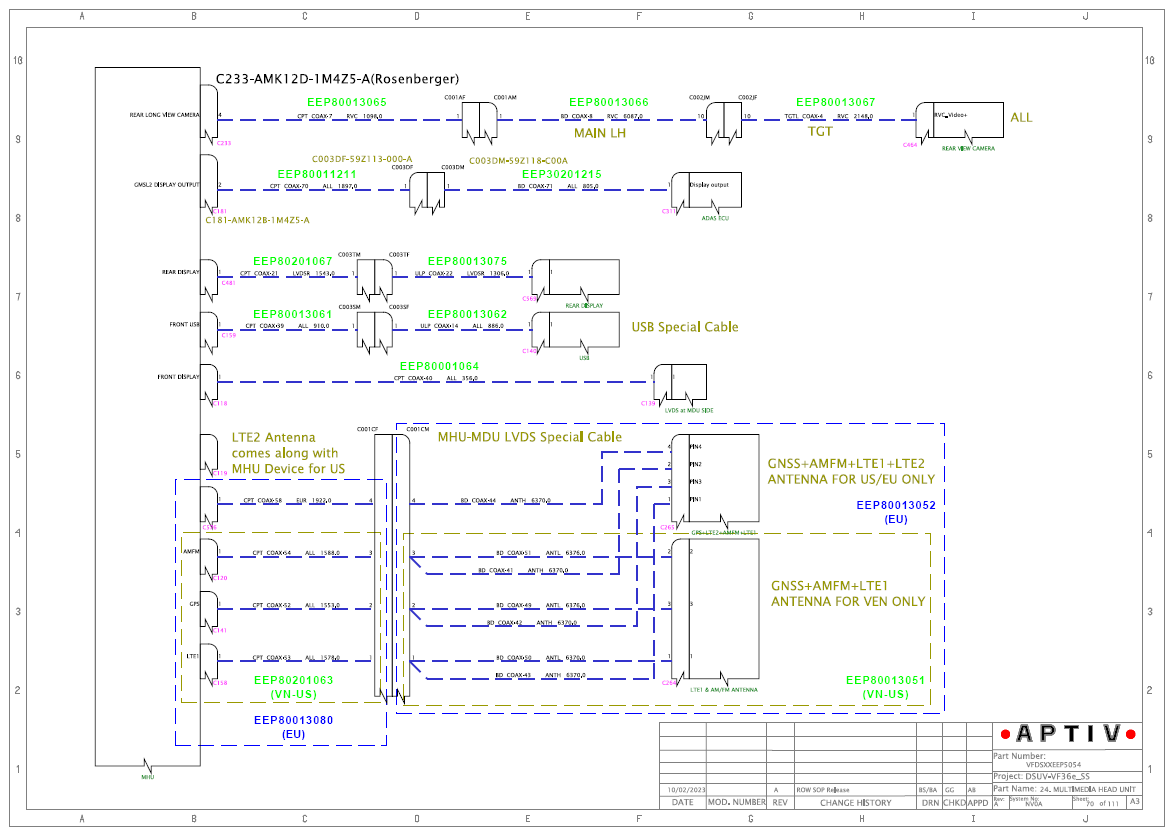

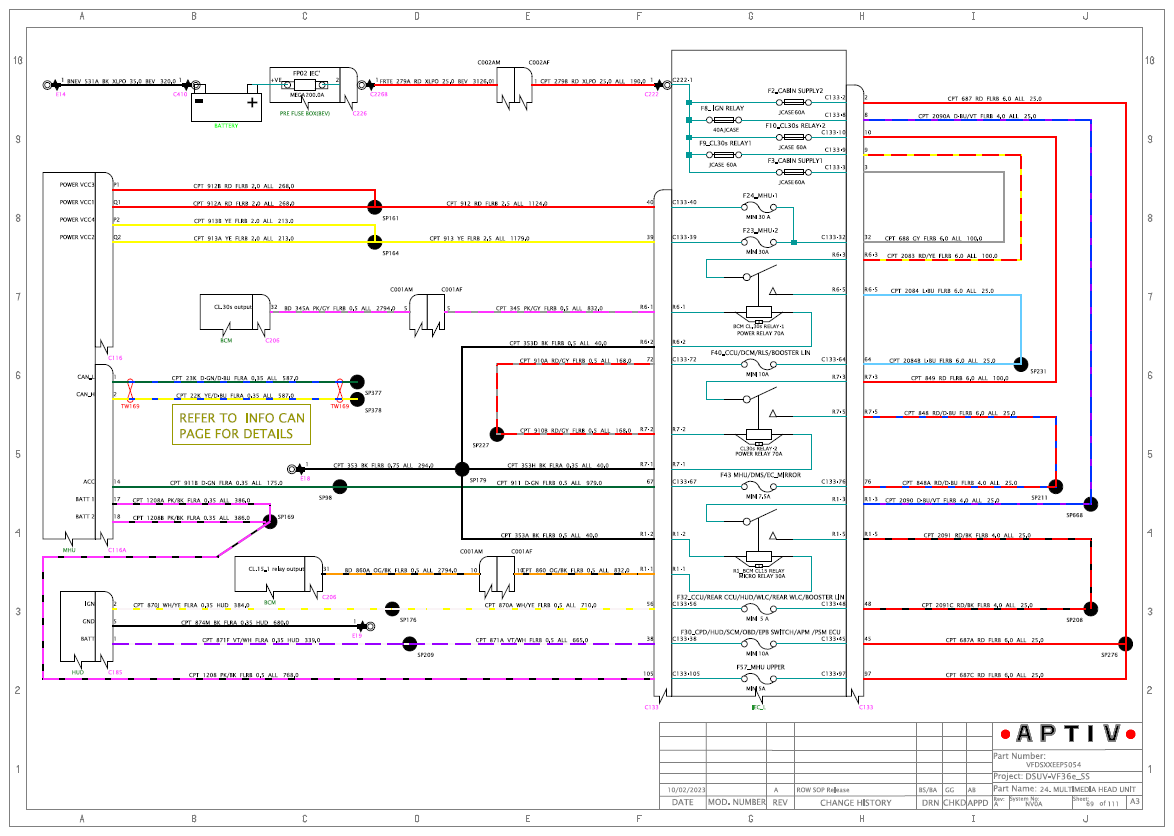

MHU 1

Courtesy of VINFAST, LLC

MHU 2

Courtesy of VINFAST, LLC

MHU 3

Courtesy of VINFAST, LLC

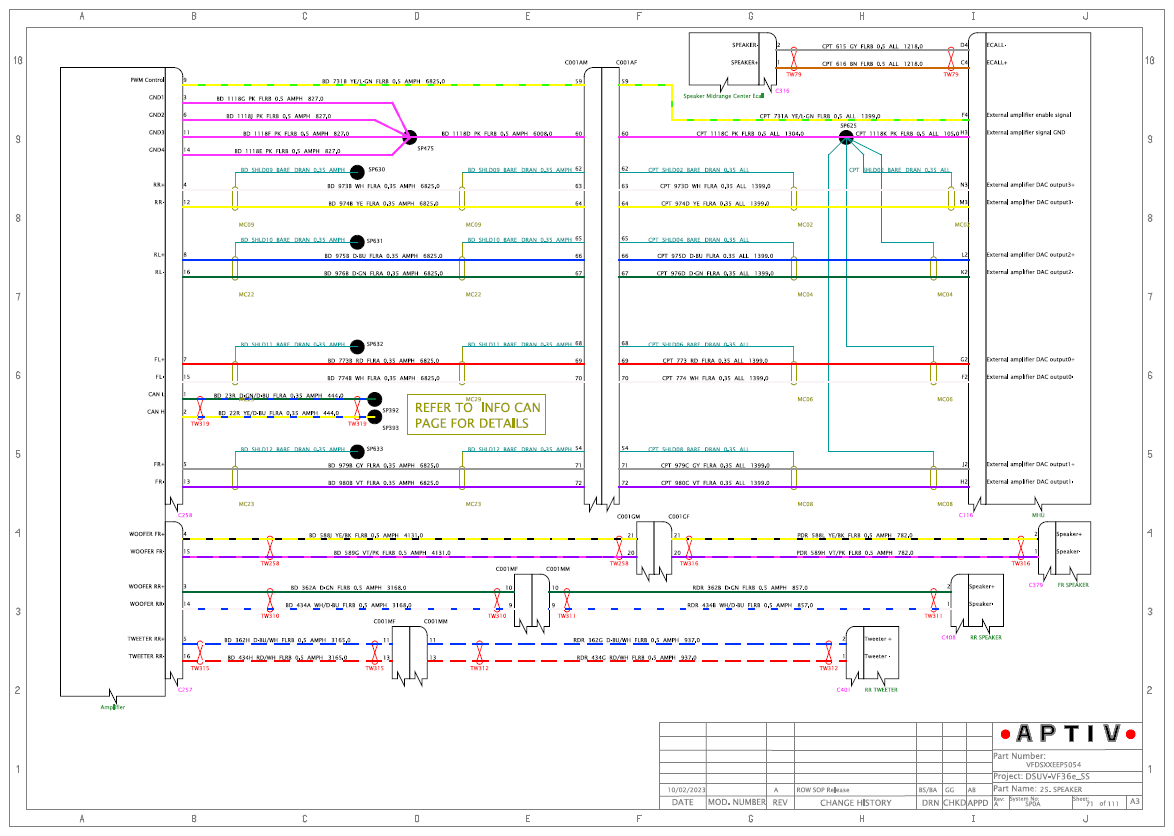

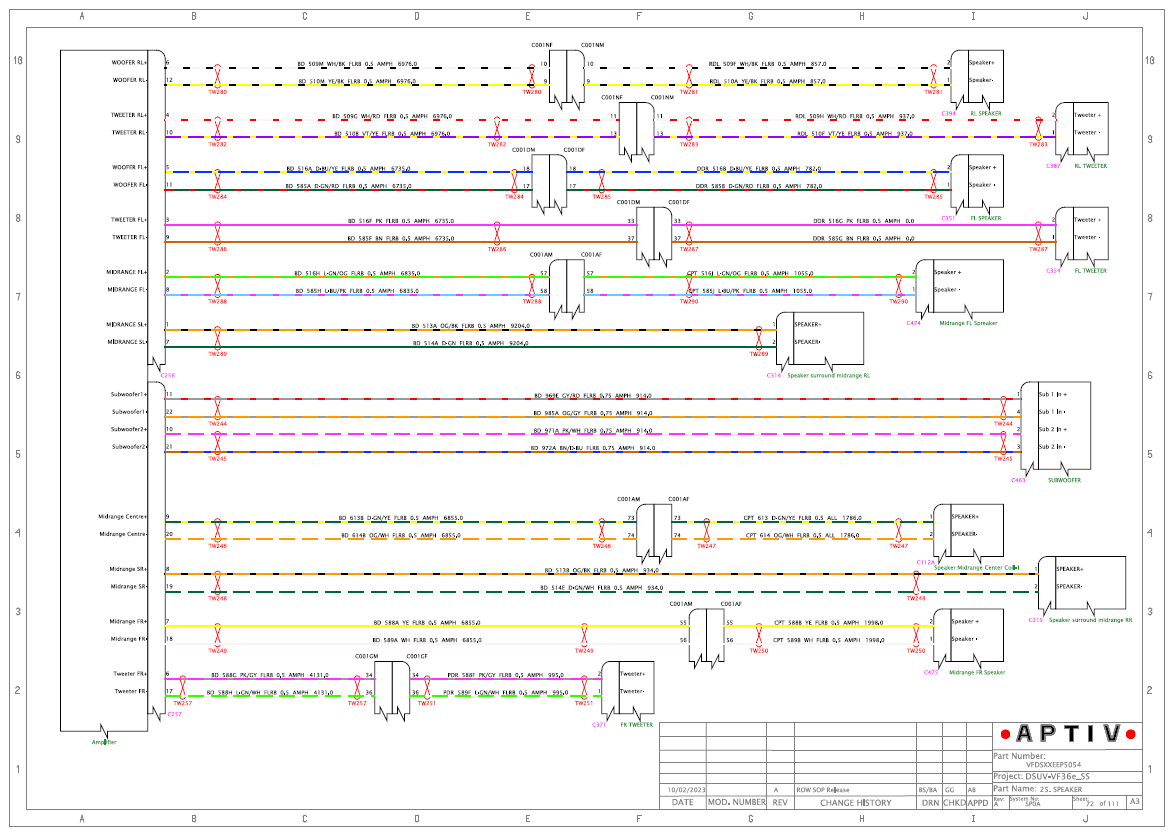

AMP PLUS 1

Courtesy of VINFAST, LLC

AMP PLUS 2

Courtesy of VINFAST, LLC

AMP PLUS 3

Courtesy of VINFAST, LLC

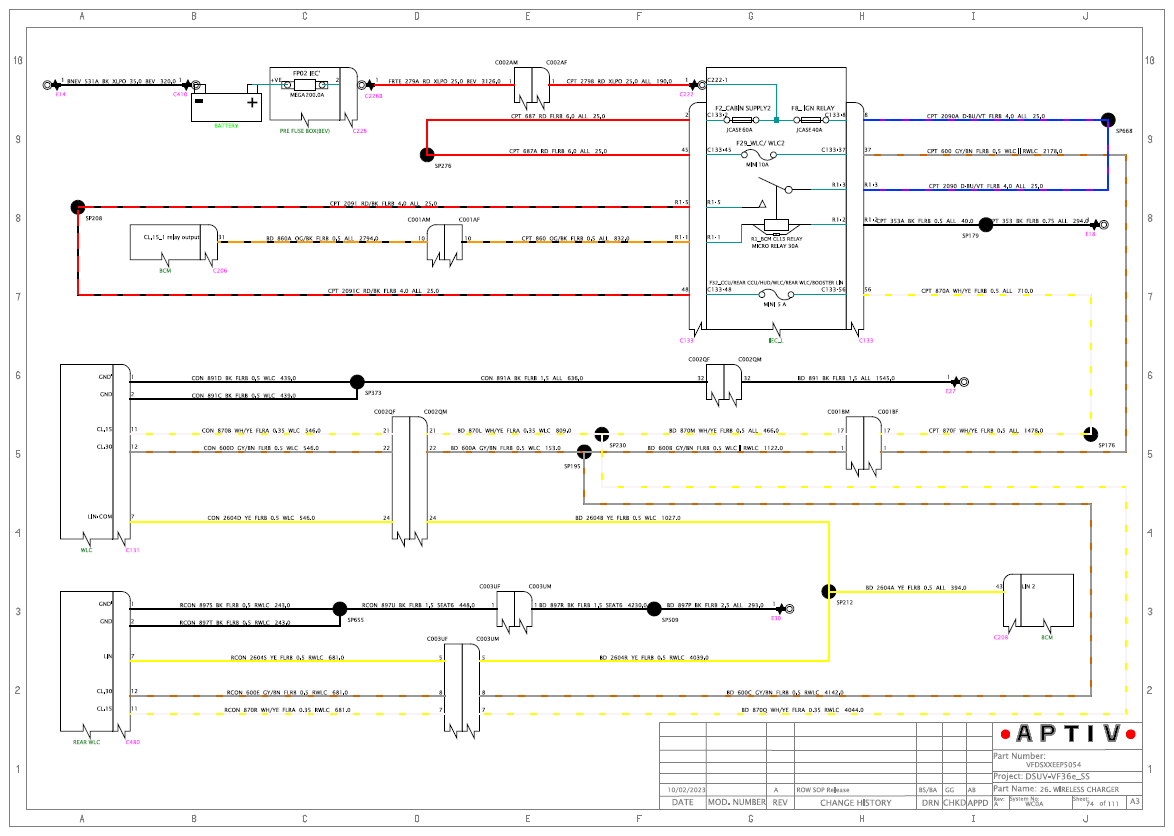

WLC

Courtesy of VINFAST, LLC

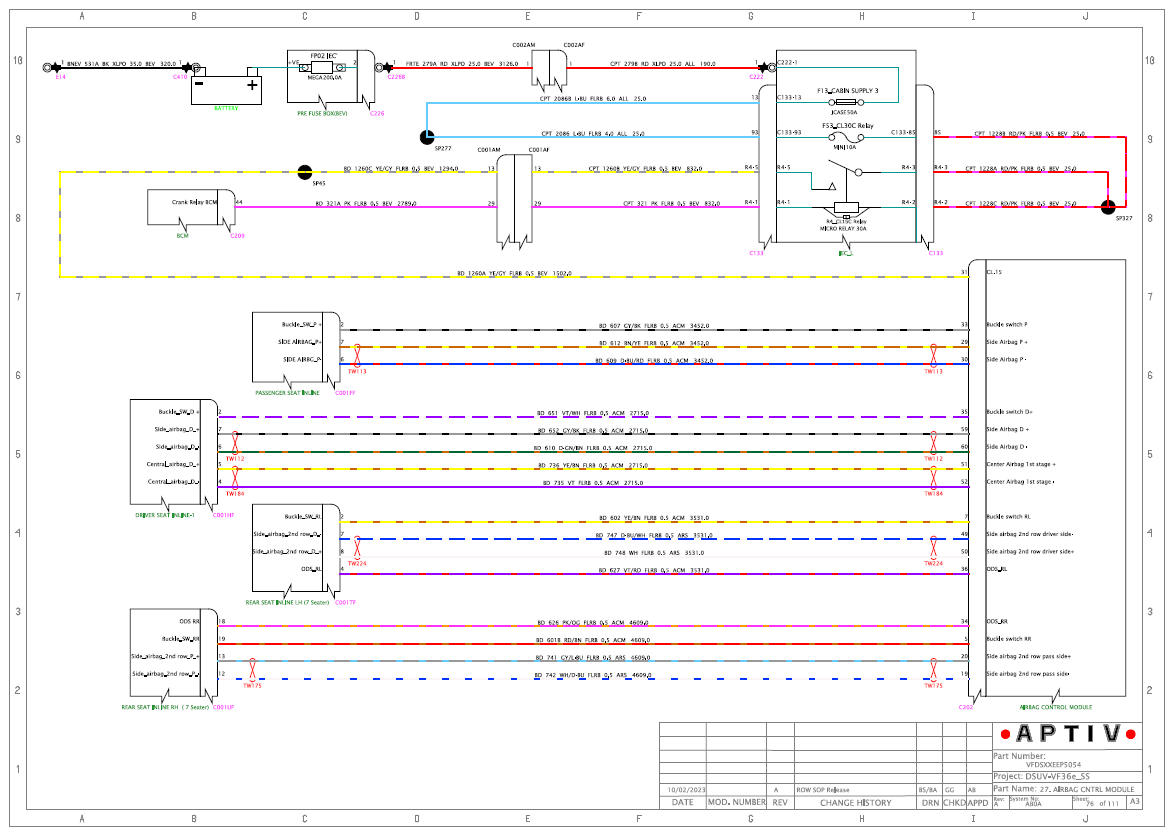

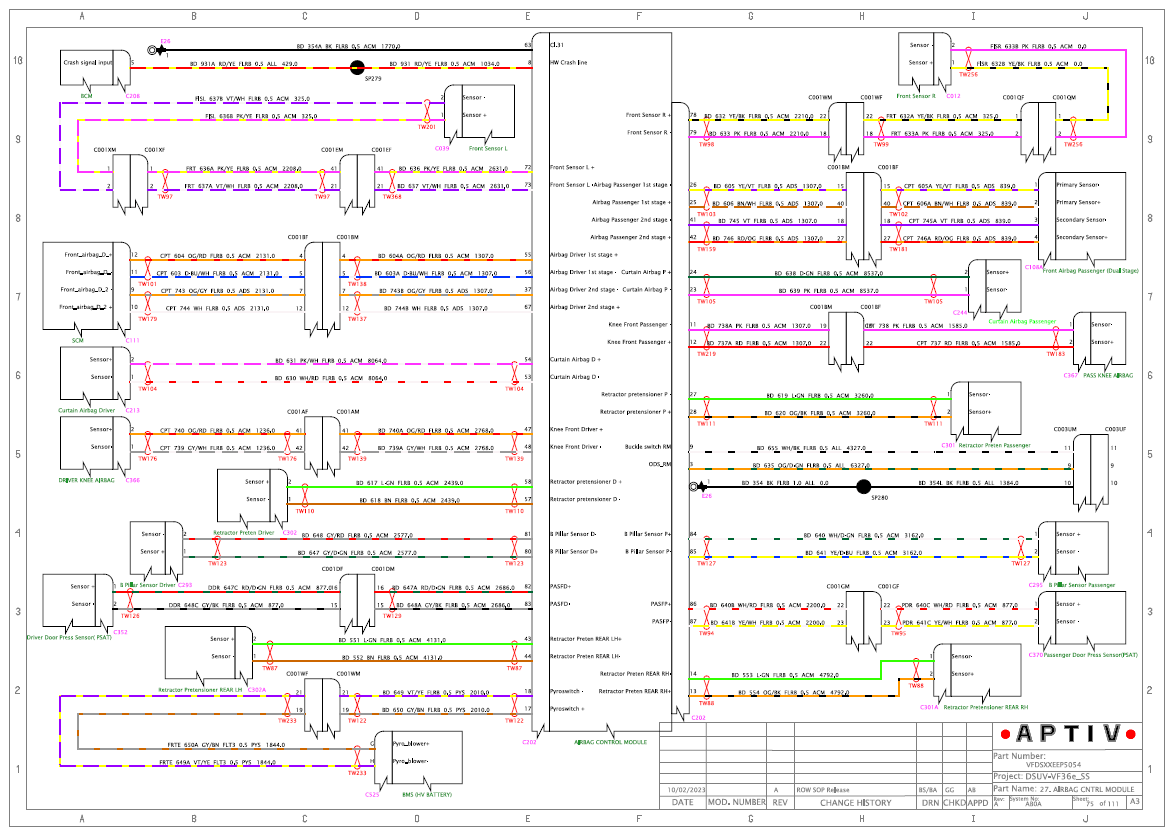

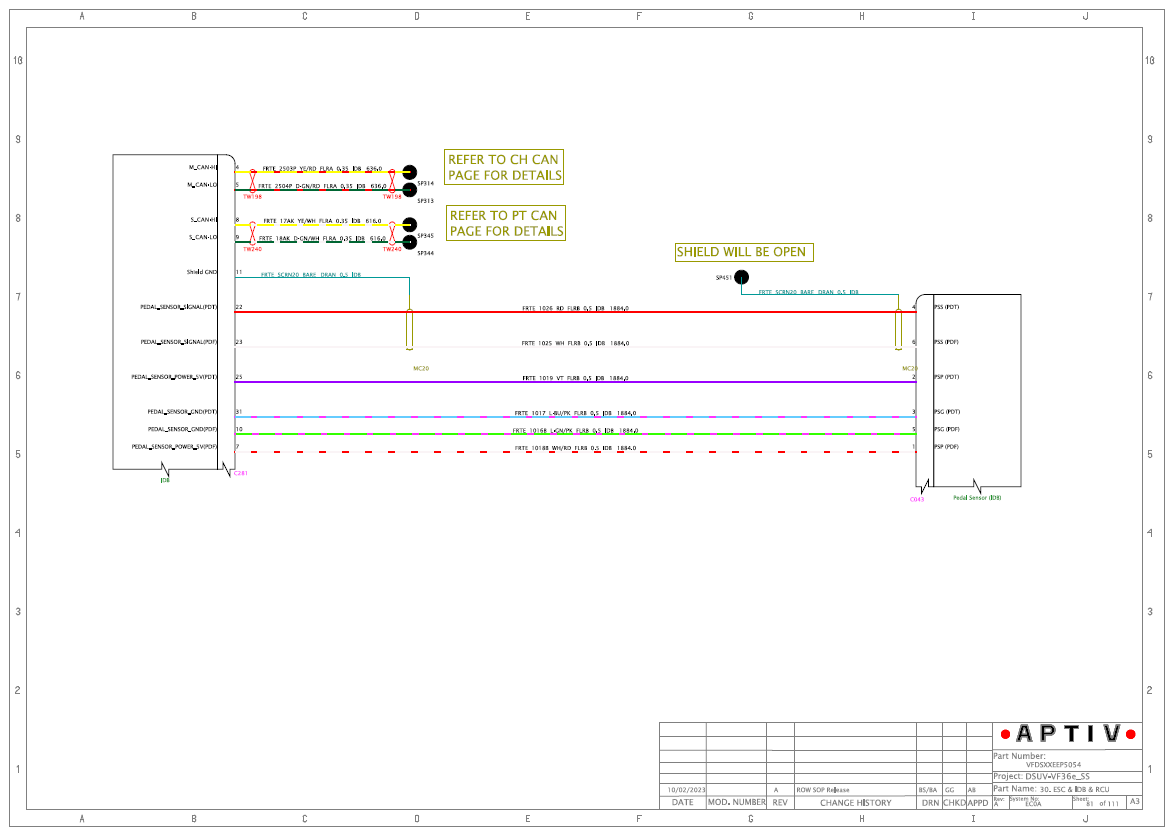

ACM-1

Courtesy of VINFAST, LLC

ACM-2

Courtesy of VINFAST, LLC

TCU 1

Courtesy of VINFAST, LLC

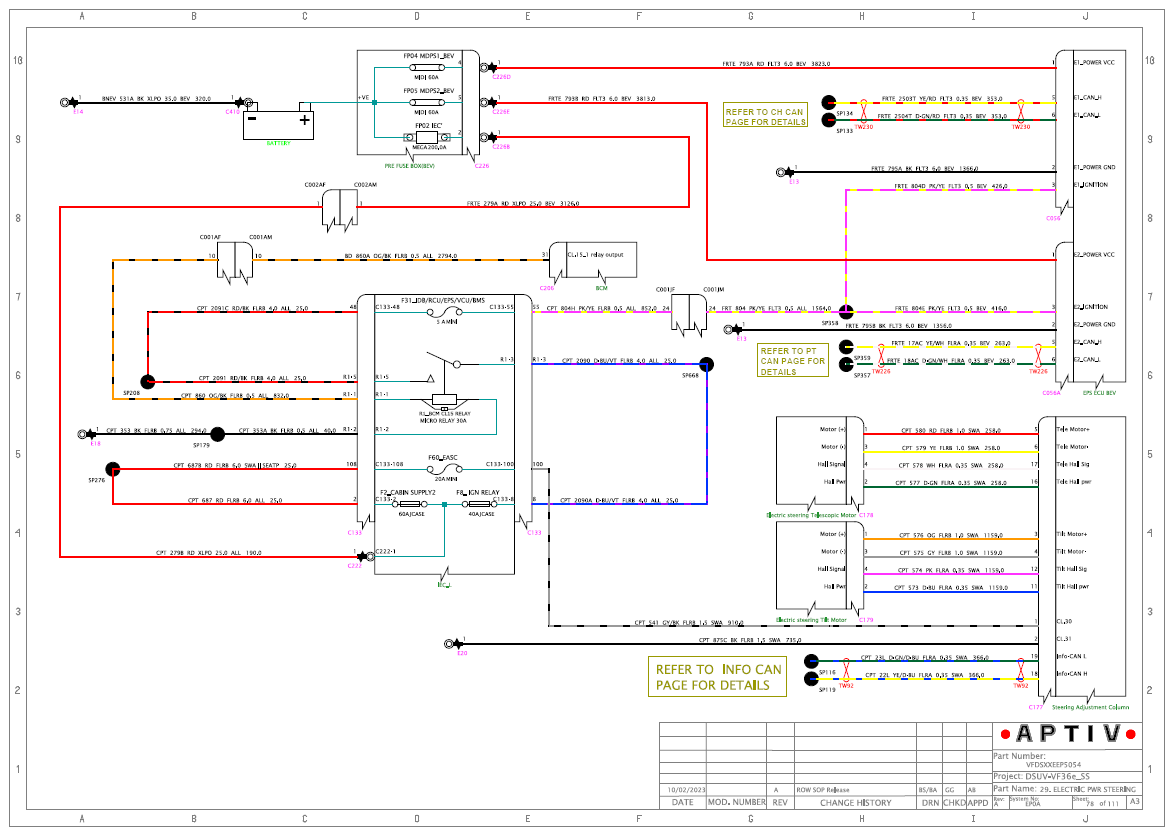

EPS

Courtesy of VINFAST, LLC

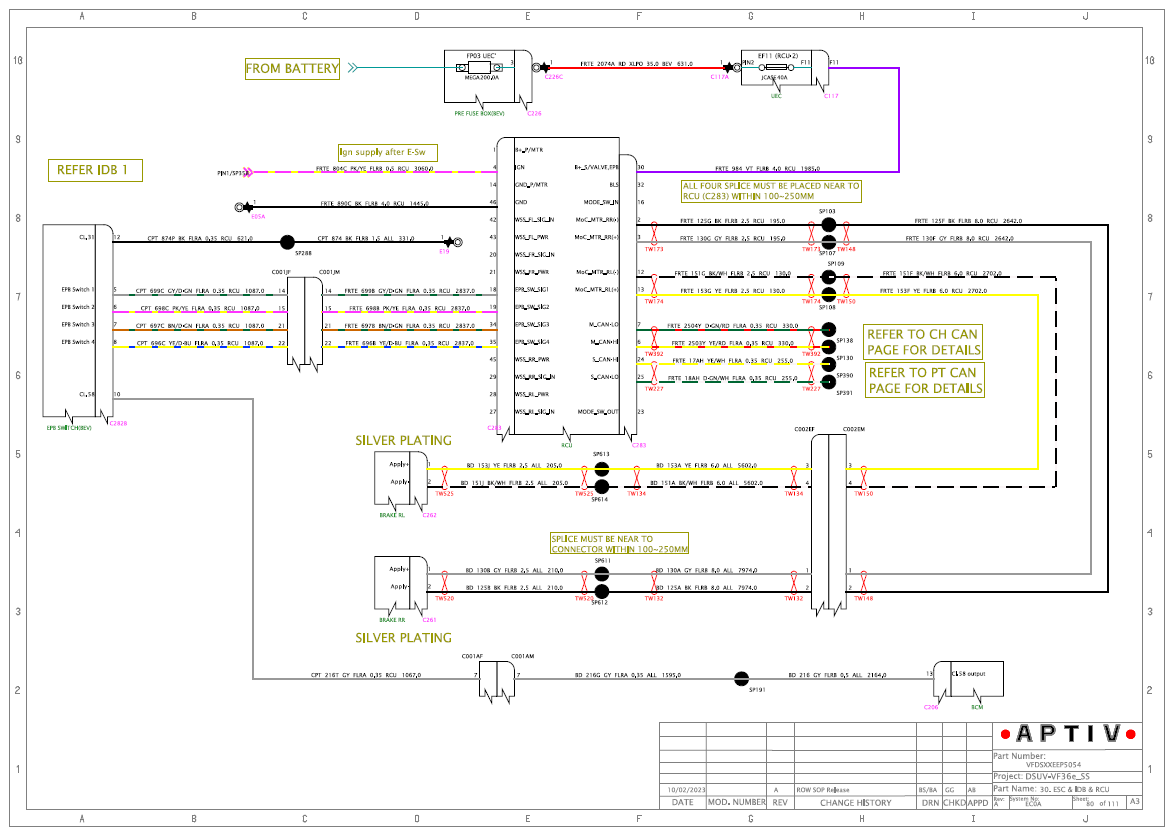

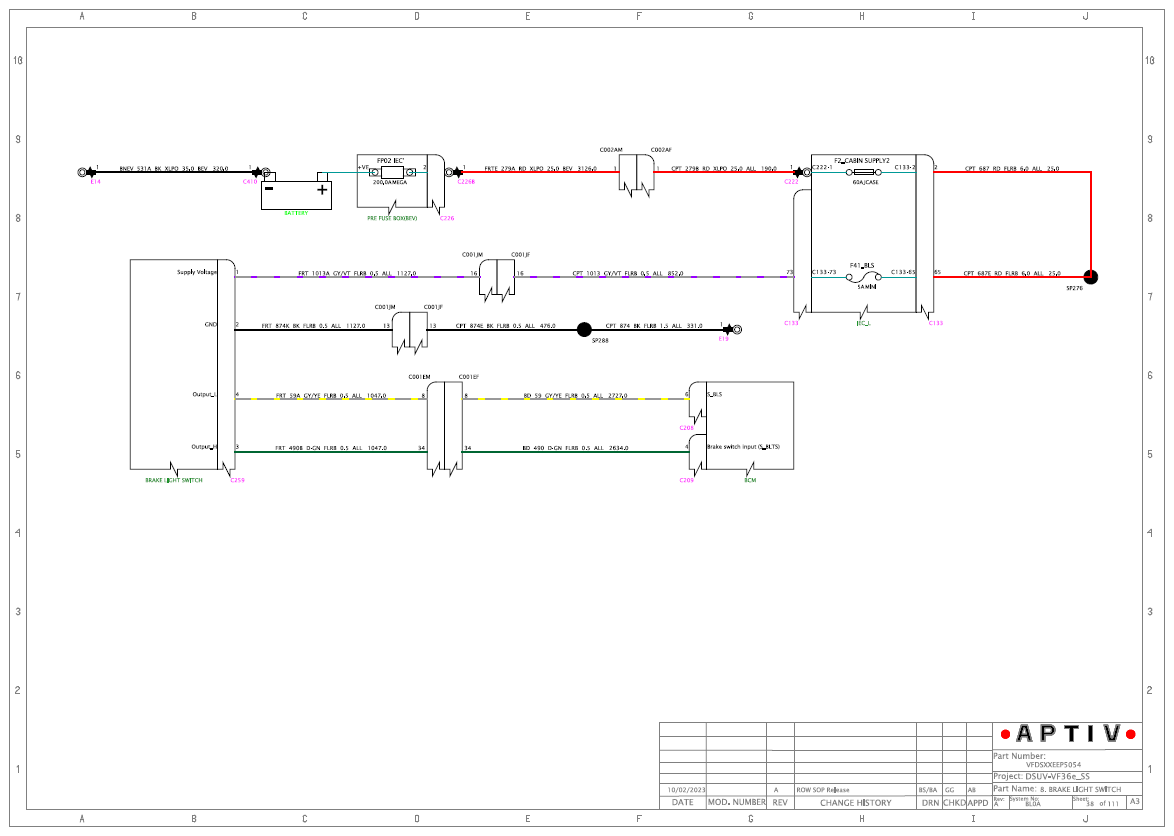

IDB1

Courtesy of VINFAST, LLC

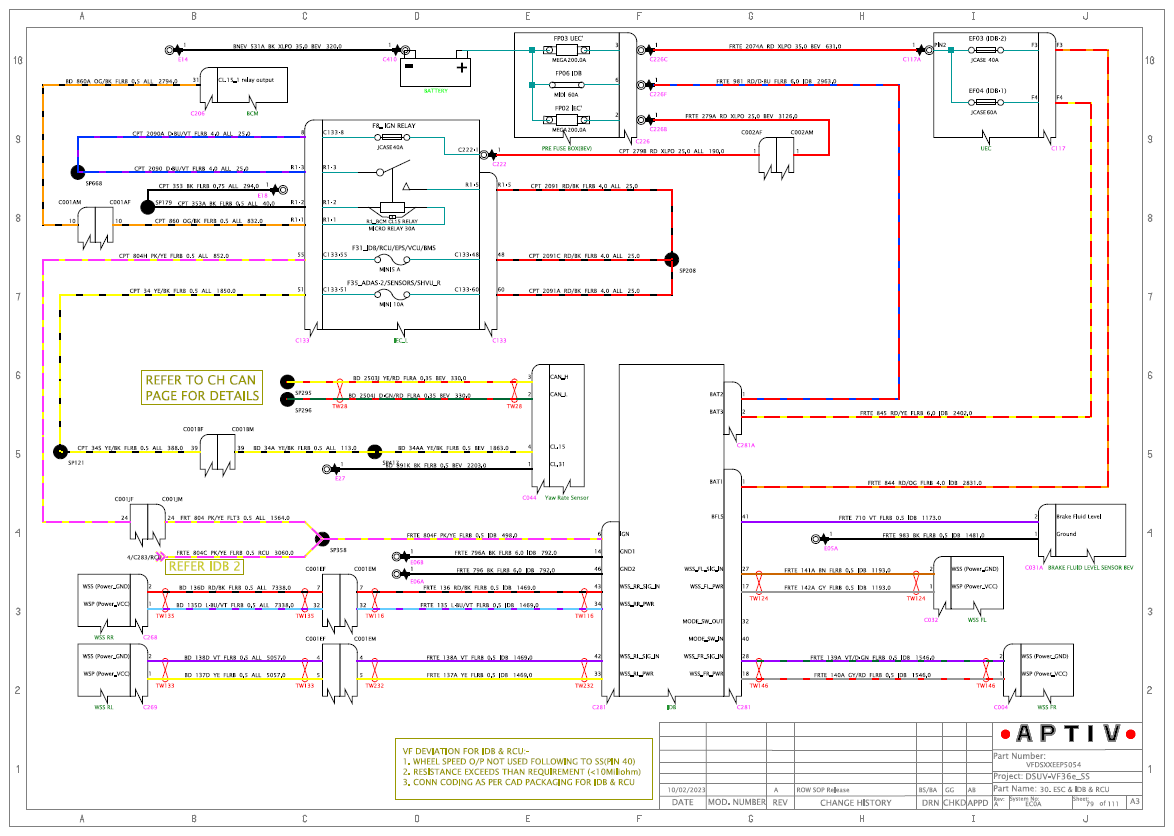

IDB2

Courtesy of VINFAST, LLC

IDB3

Courtesy of VINFAST, LLC

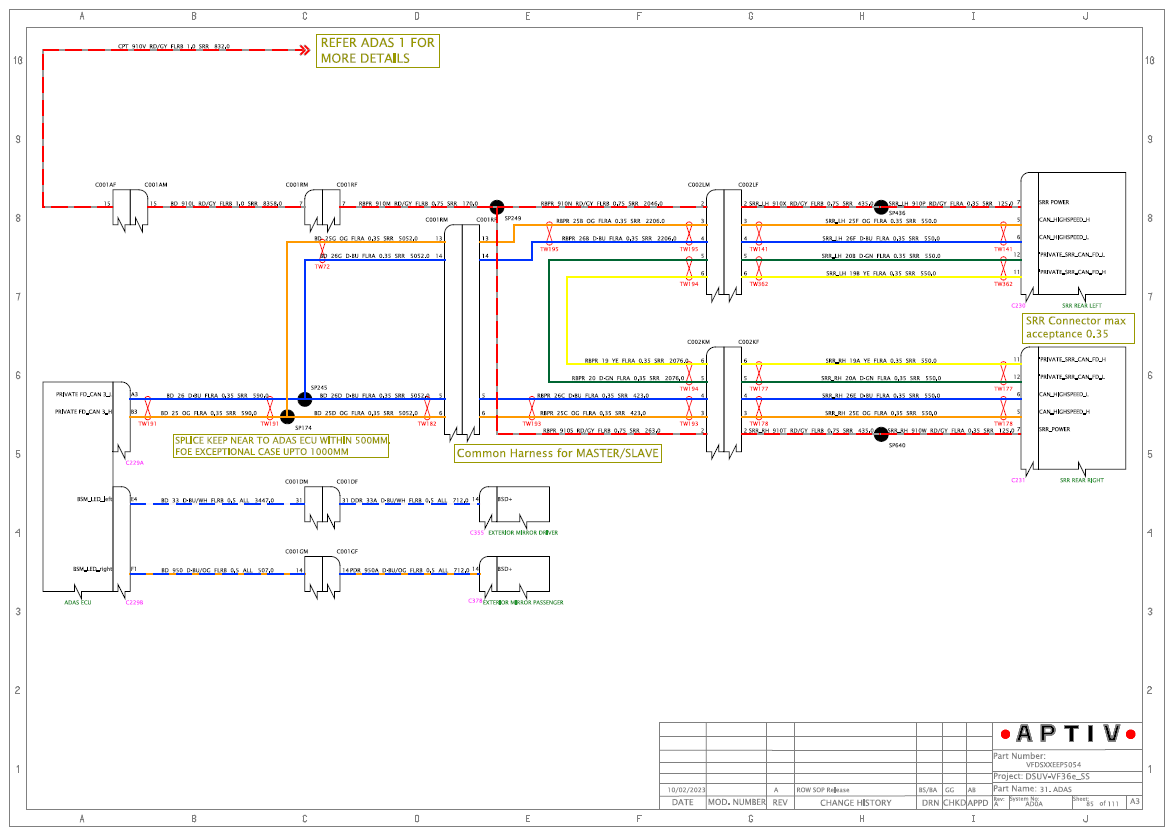

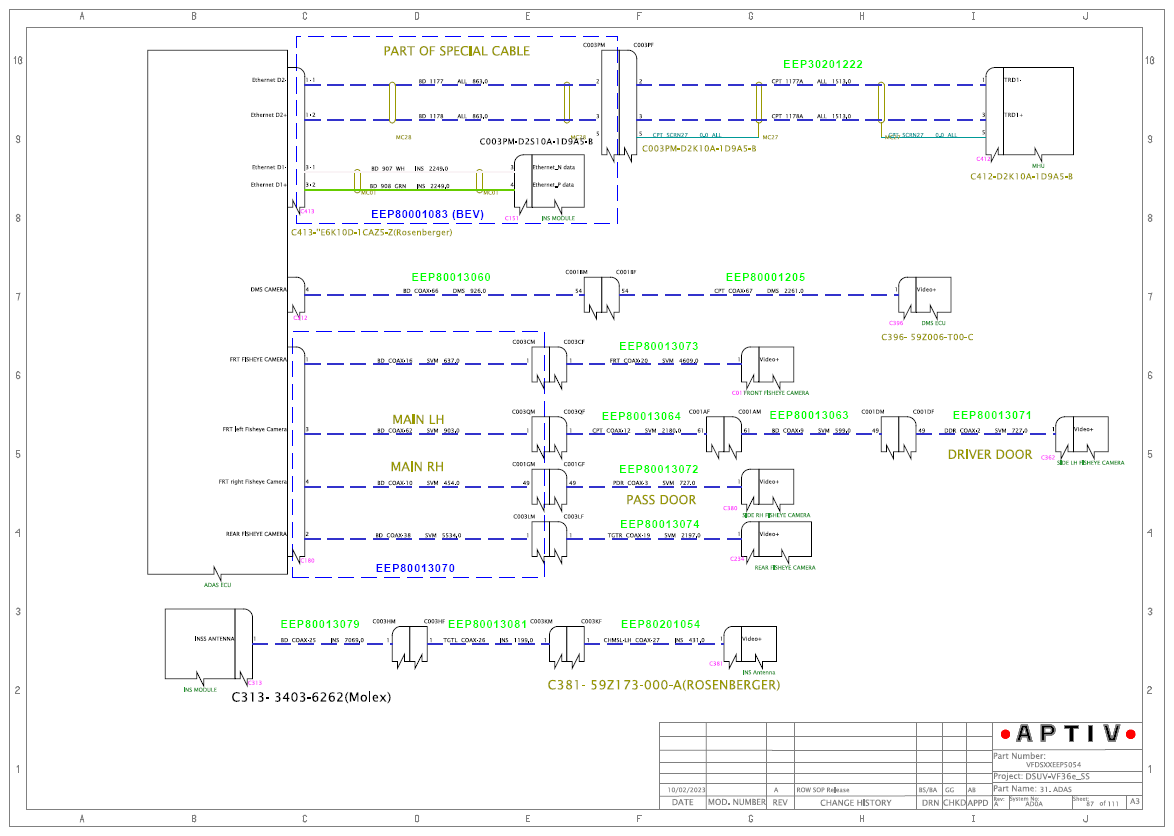

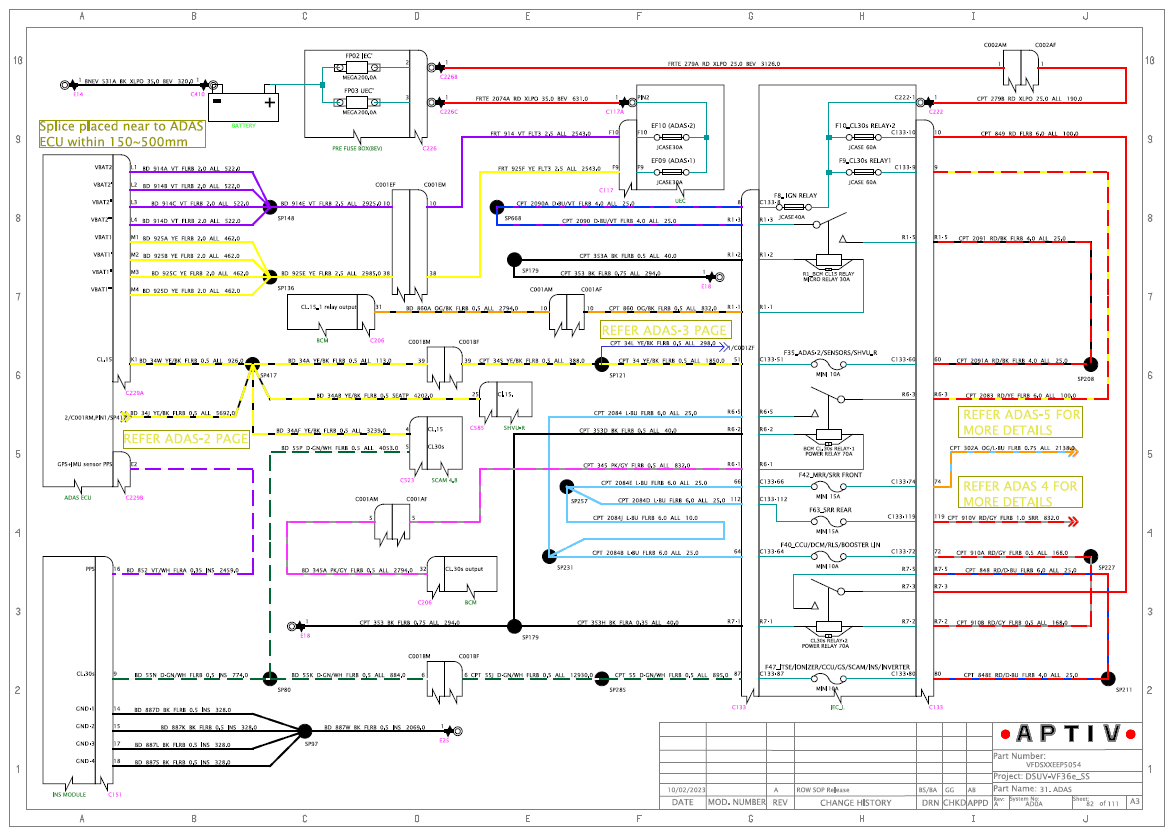

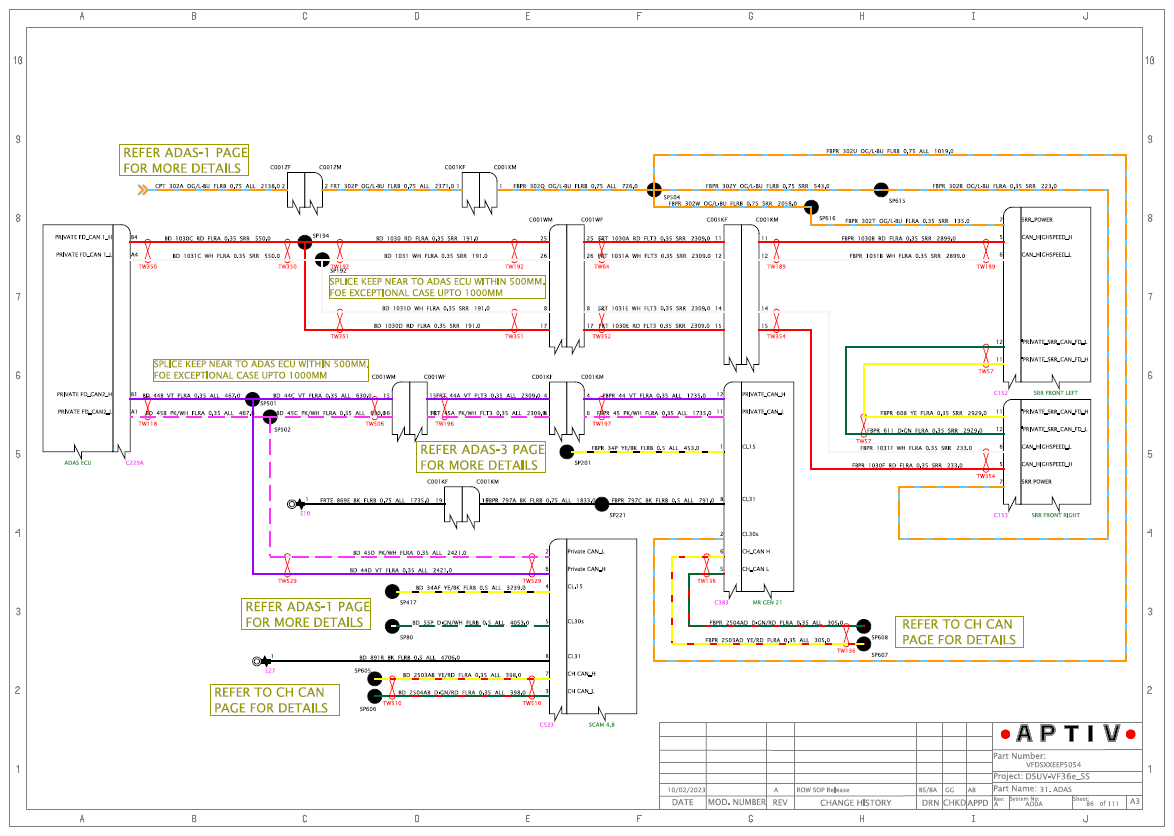

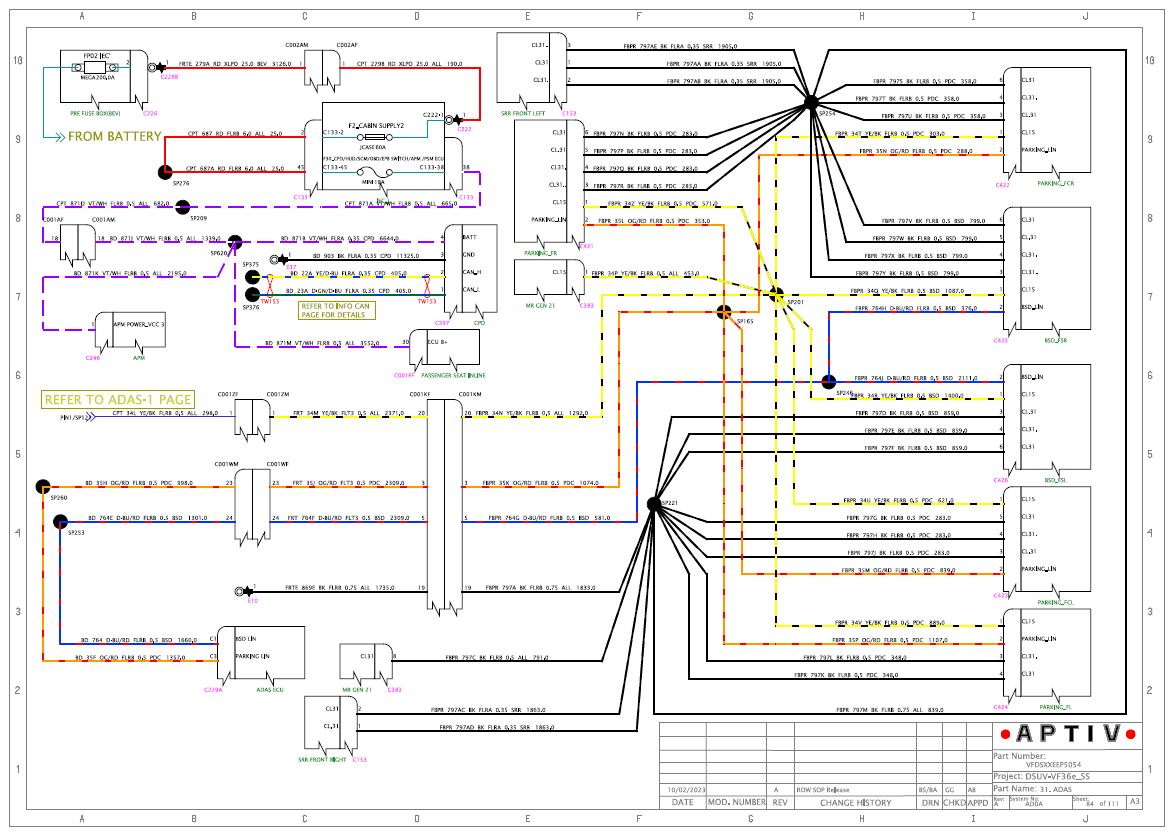

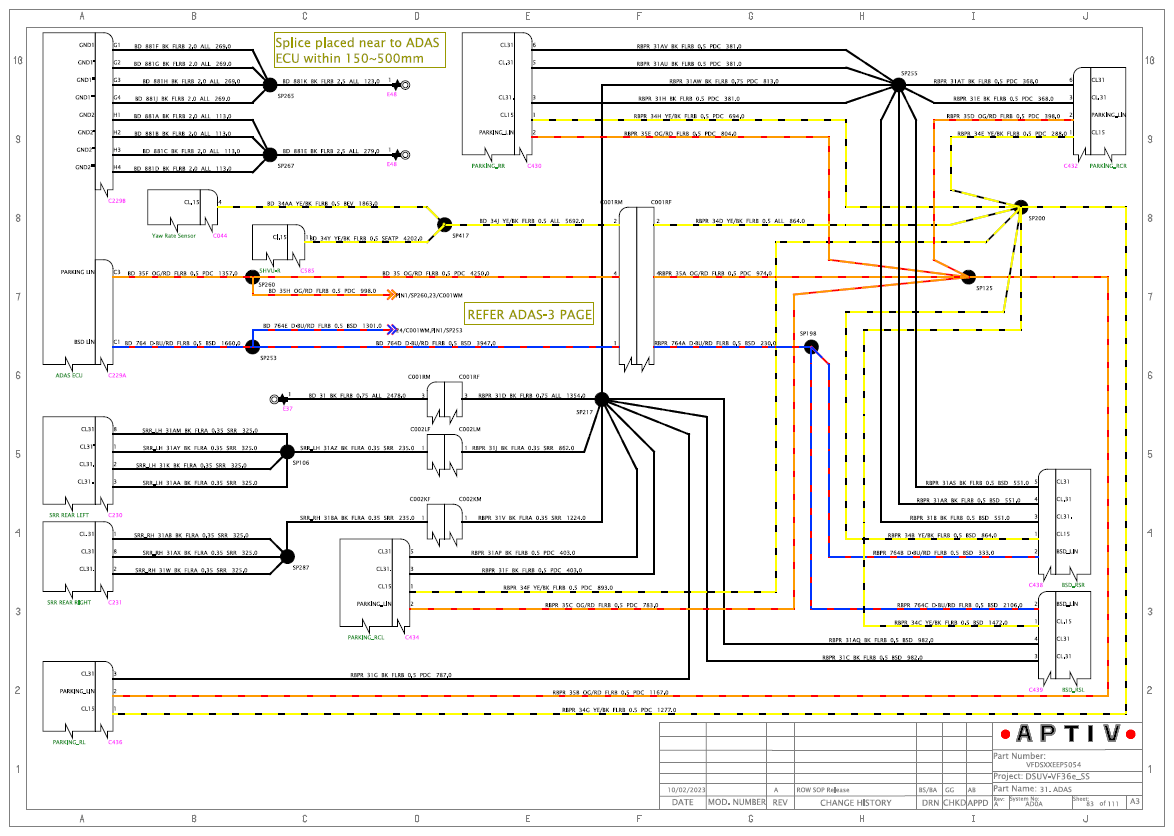

ADAS 1

Courtesy of VINFAST, LLC

ADAS 2

Courtesy of VINFAST, LLC

ADAS 3

Courtesy of VINFAST, LLC

ADAS 4

Courtesy of VINFAST, LLC

ADAS 5

Courtesy of VINFAST, LLC

ADAS 6

Courtesy of VINFAST, LLC

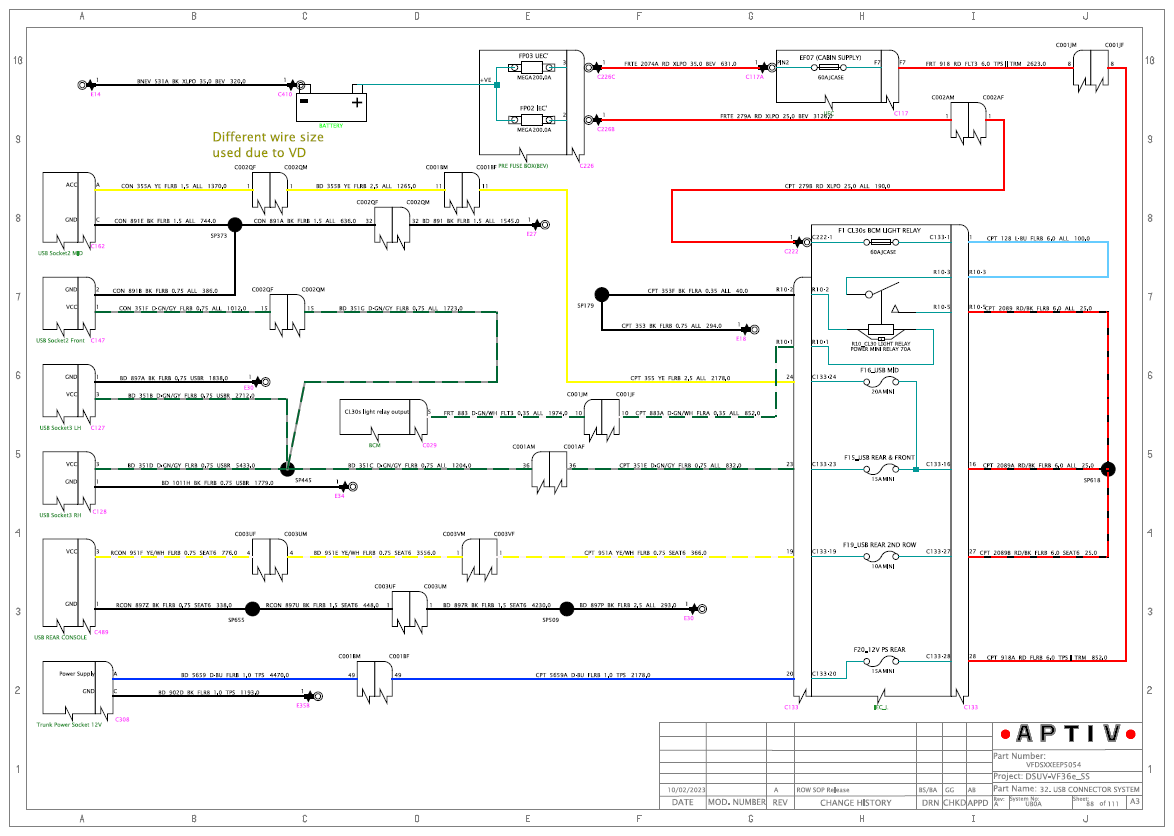

USB 1

Courtesy of VINFAST, LLC

RDF

Courtesy of VINFAST, LLC

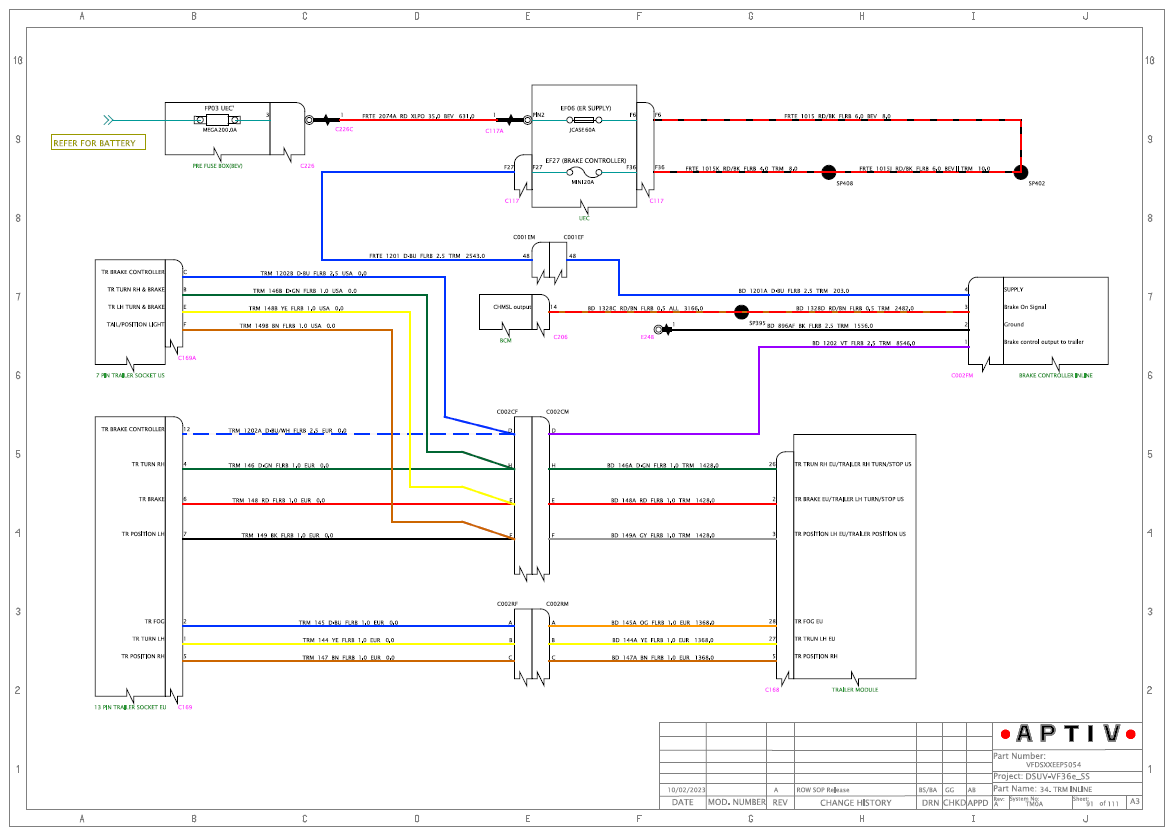

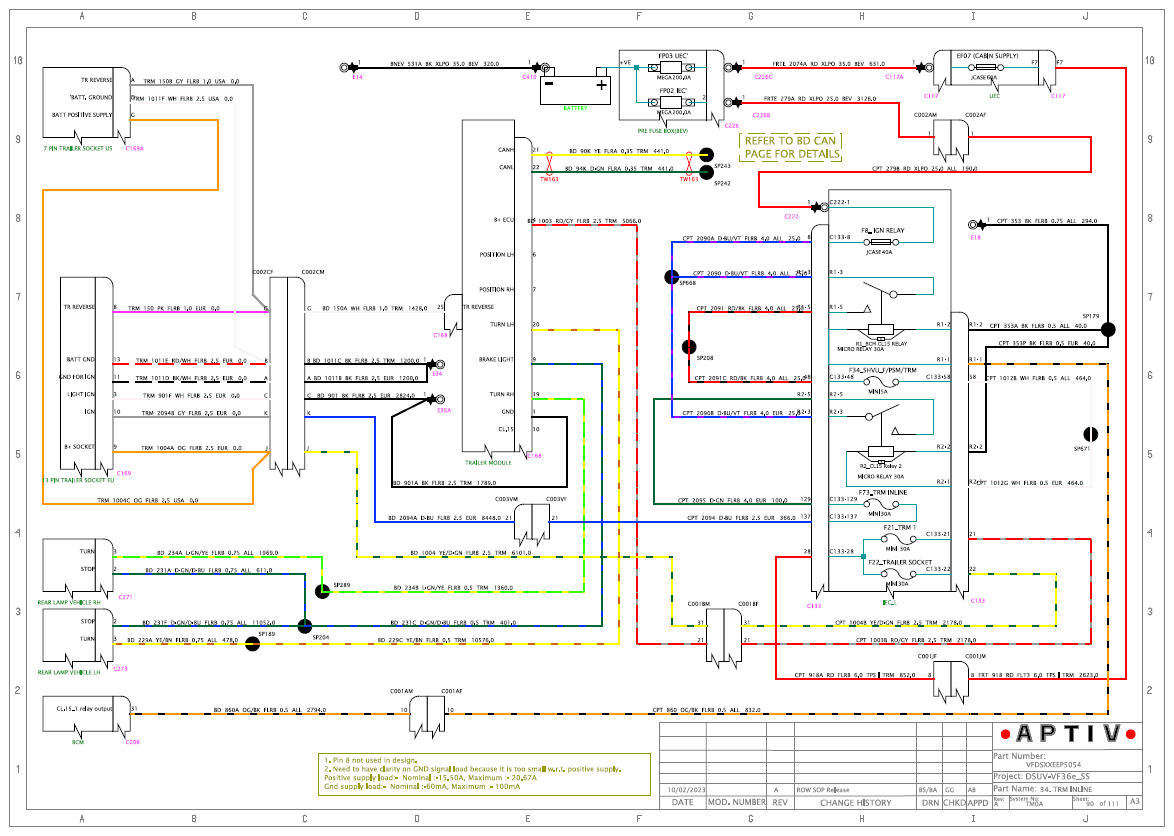

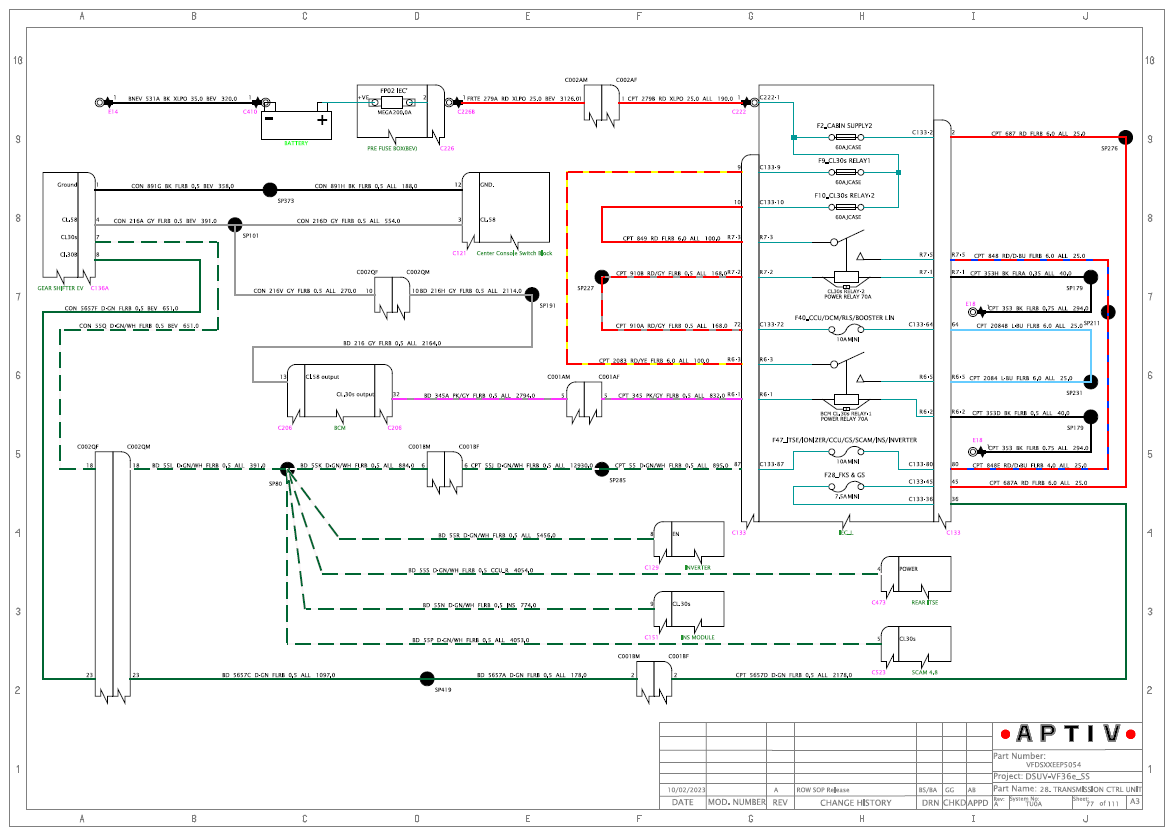

TRM

Courtesy of VINFAST, LLC

TRM1

Courtesy of VINFAST, LLC

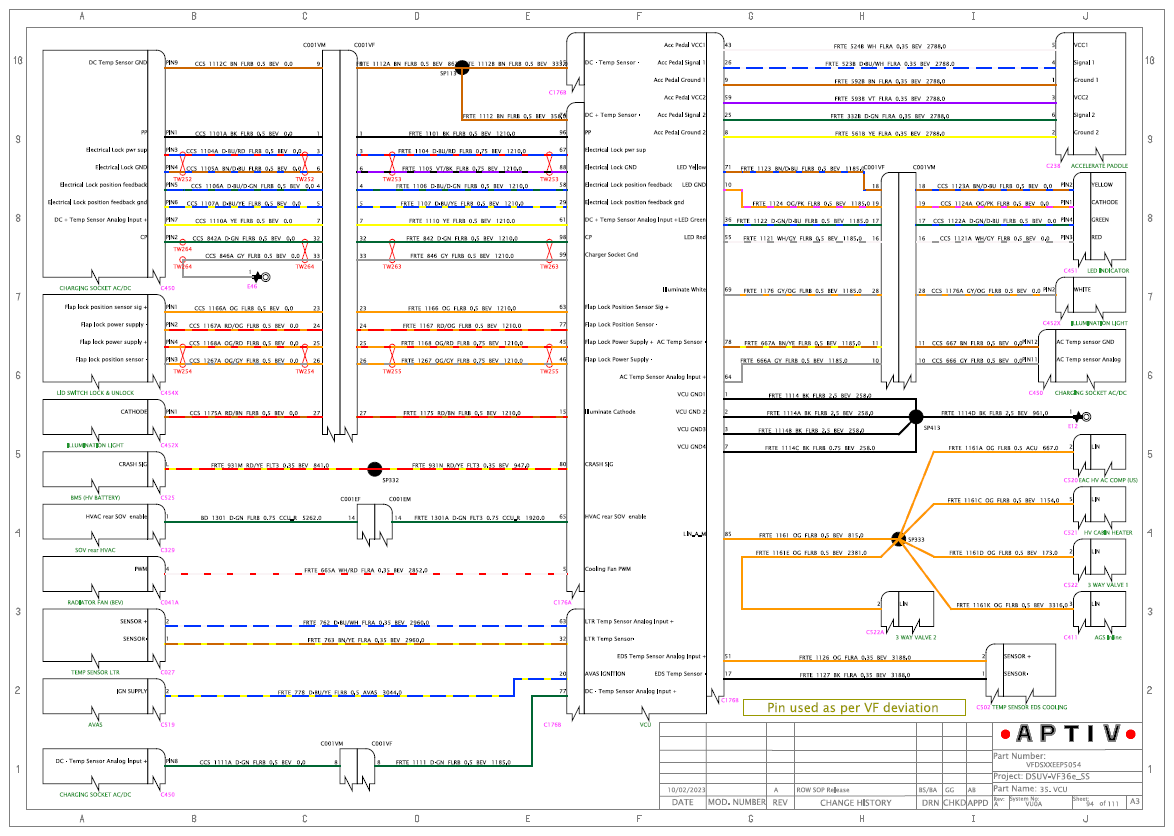

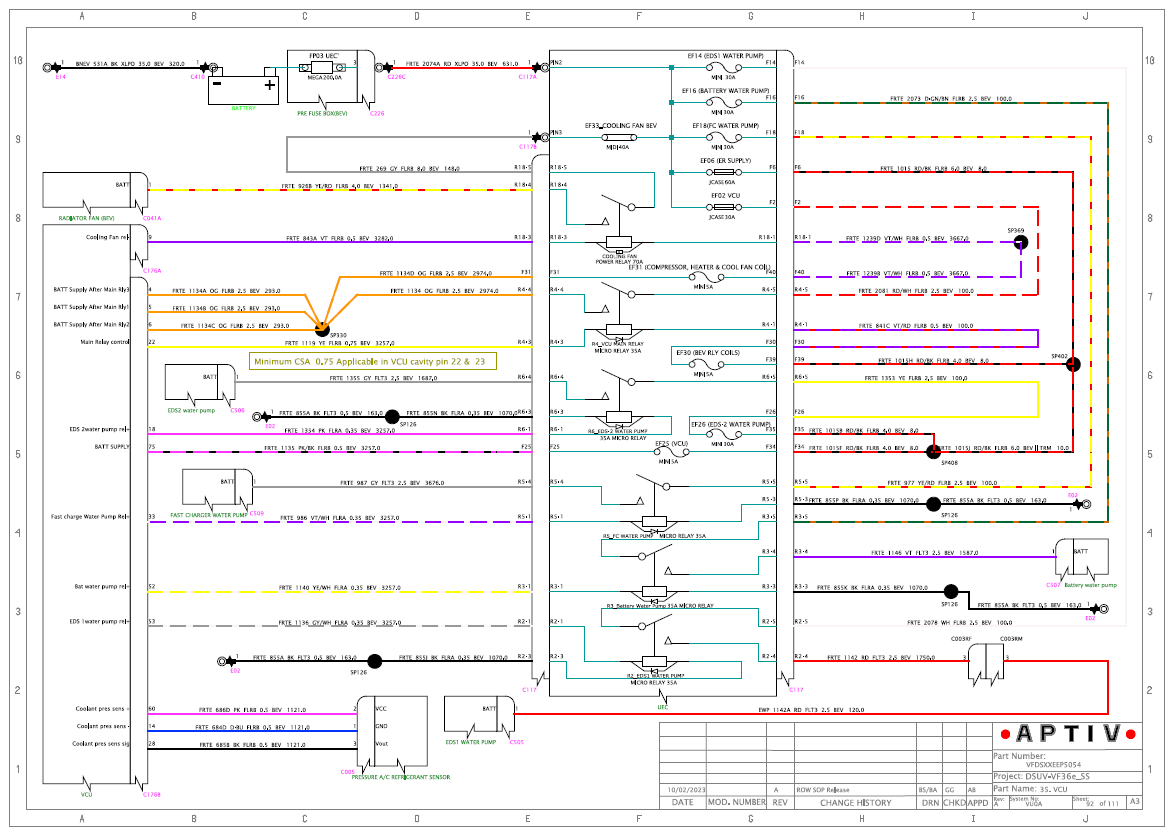

VCU 1

Courtesy of VINFAST, LLC

VCU 2

Courtesy of VINFAST, LLC

VCU 3

Courtesy of VINFAST, LLC

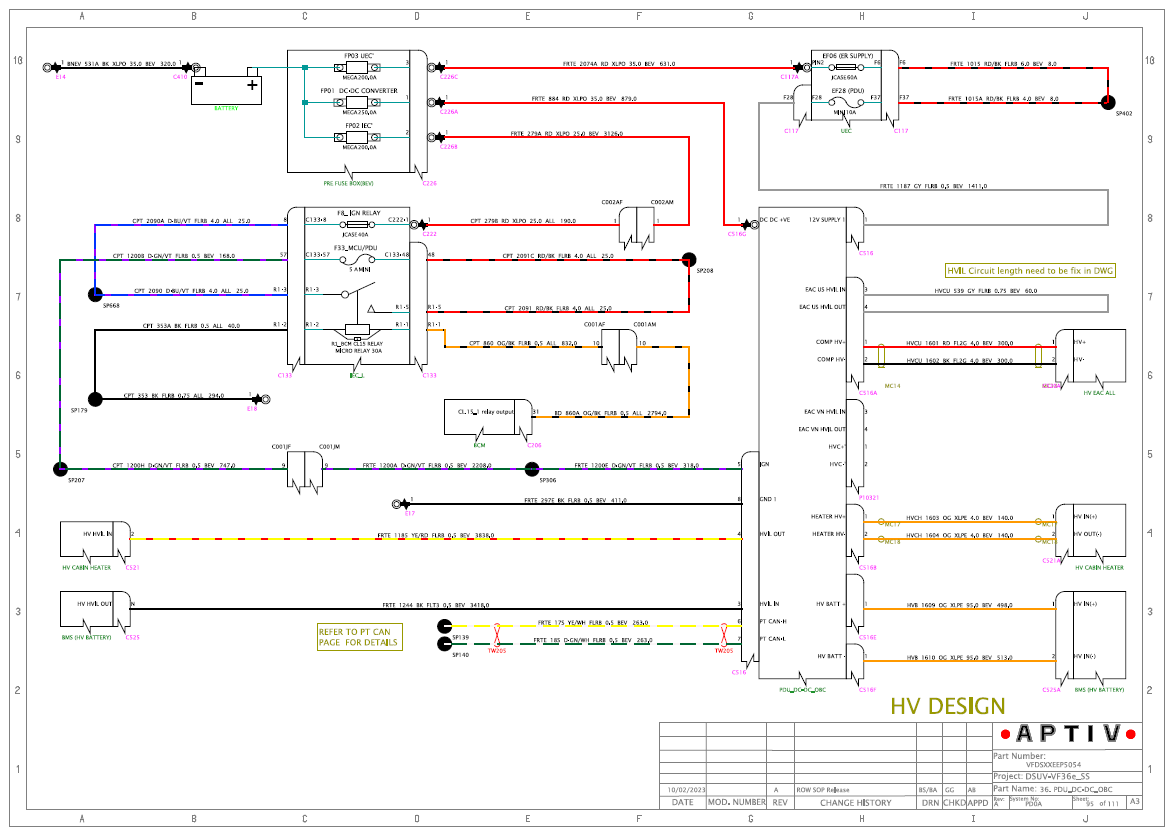

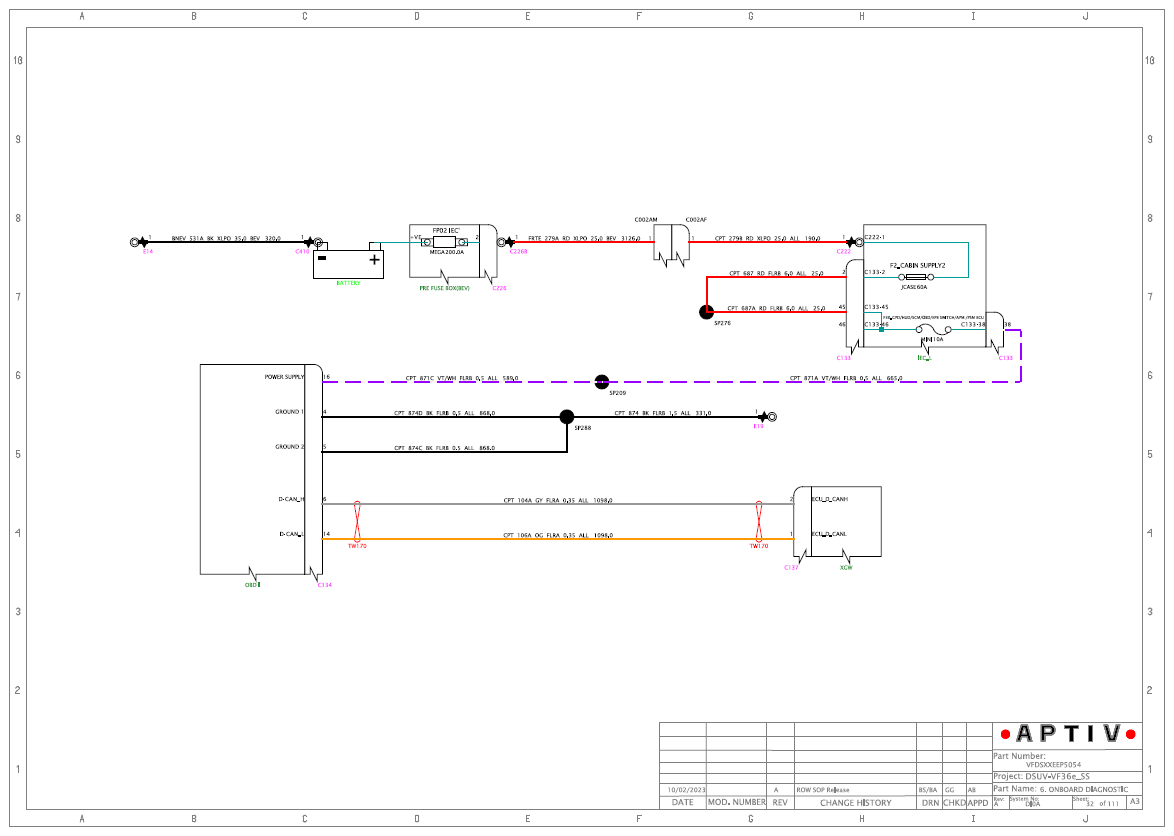

PDU_DC-DC_OBC

Courtesy of VINFAST, LLC

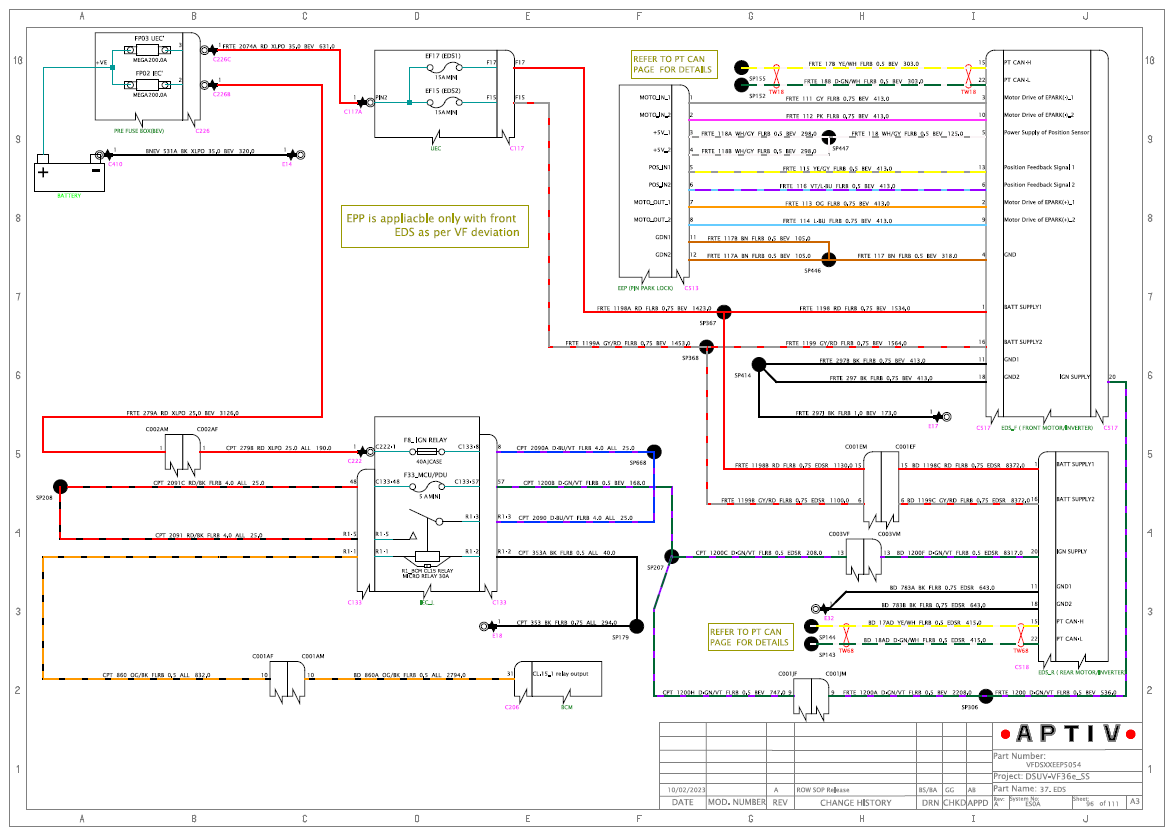

EDS

Courtesy of VINFAST, LLC

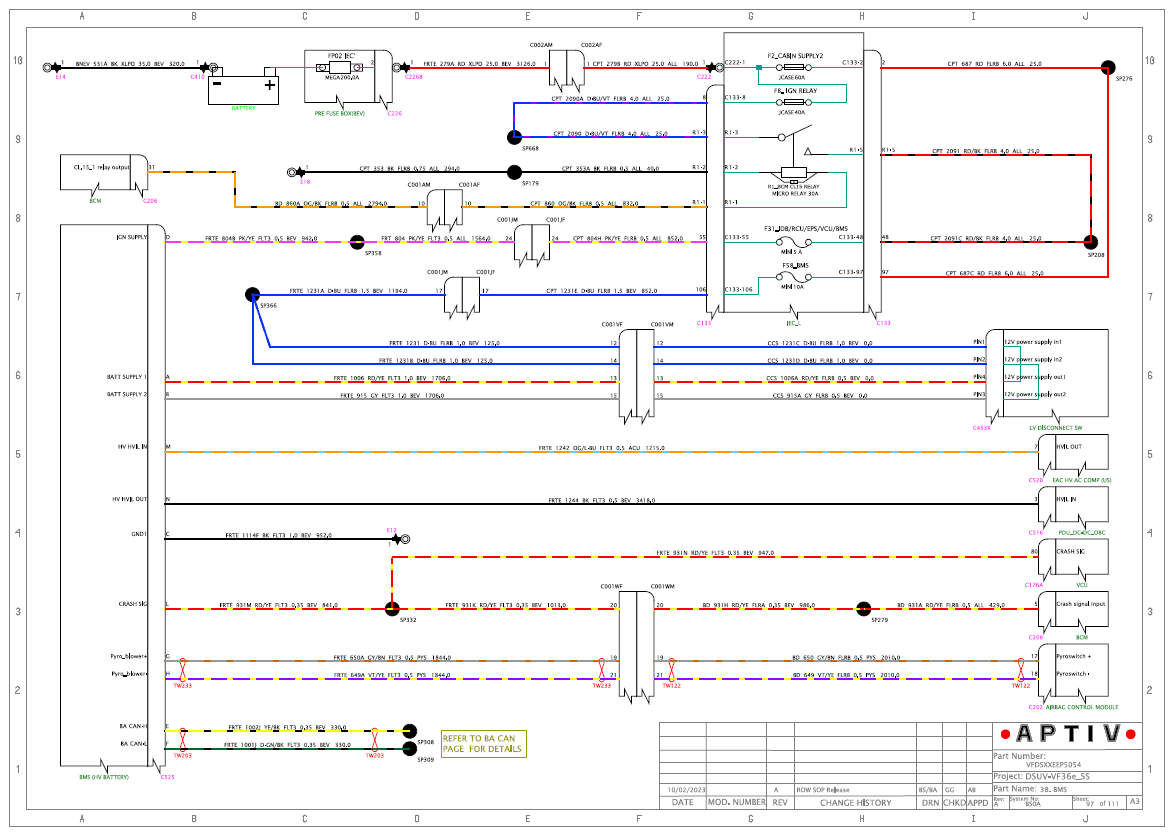

BMS

Courtesy of VINFAST, LLC

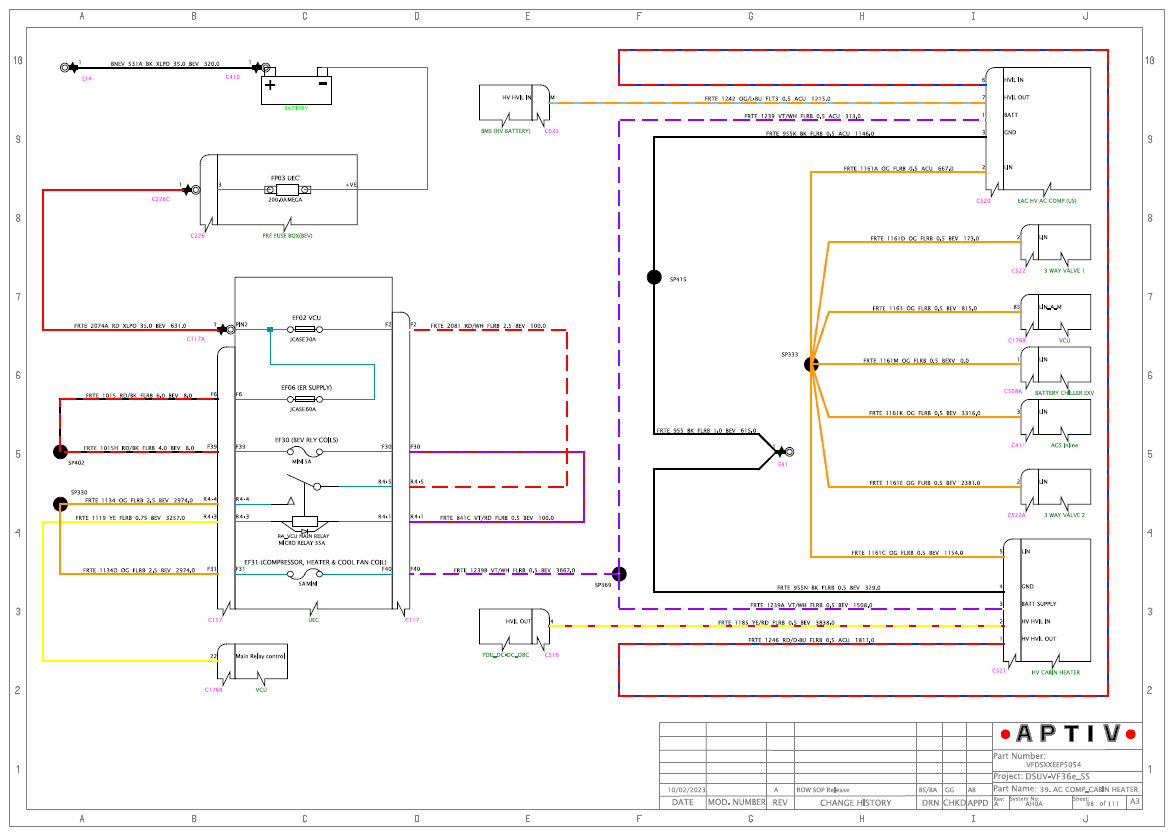

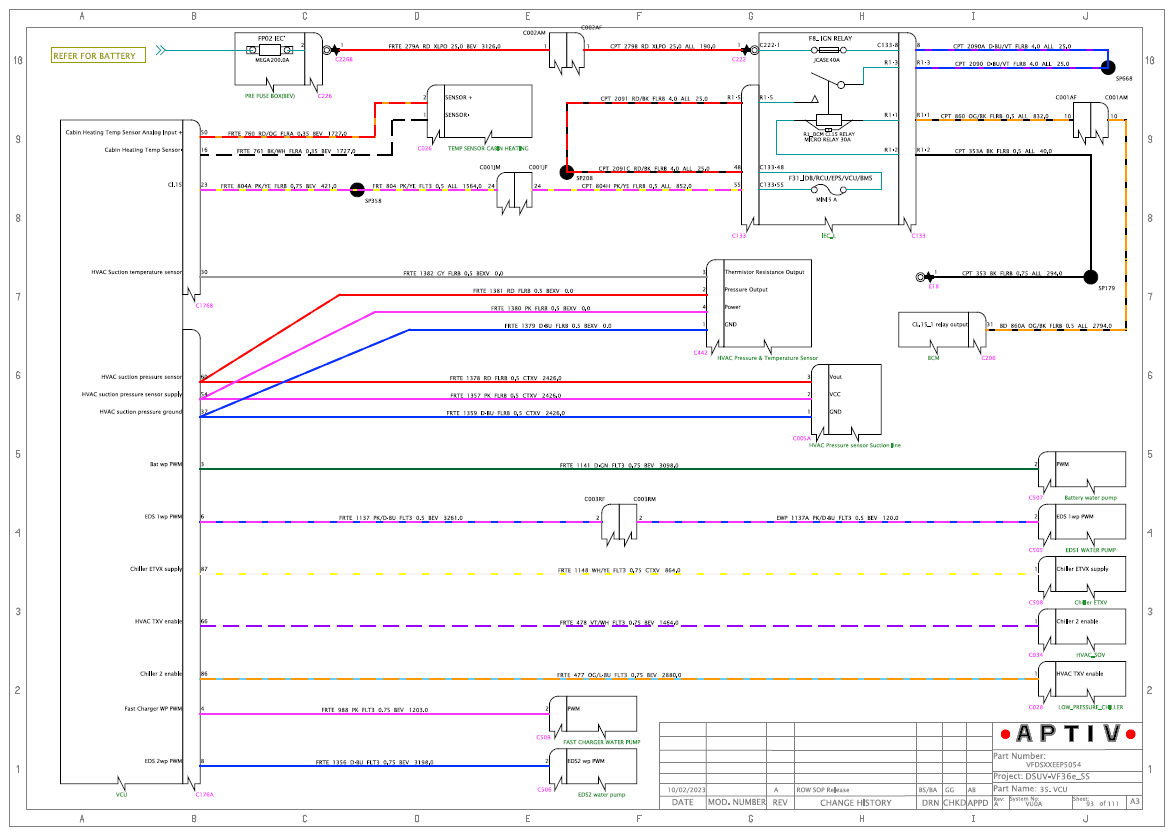

AC COMPRESSOR_CABIN HEATER

Courtesy of VINFAST, LLC

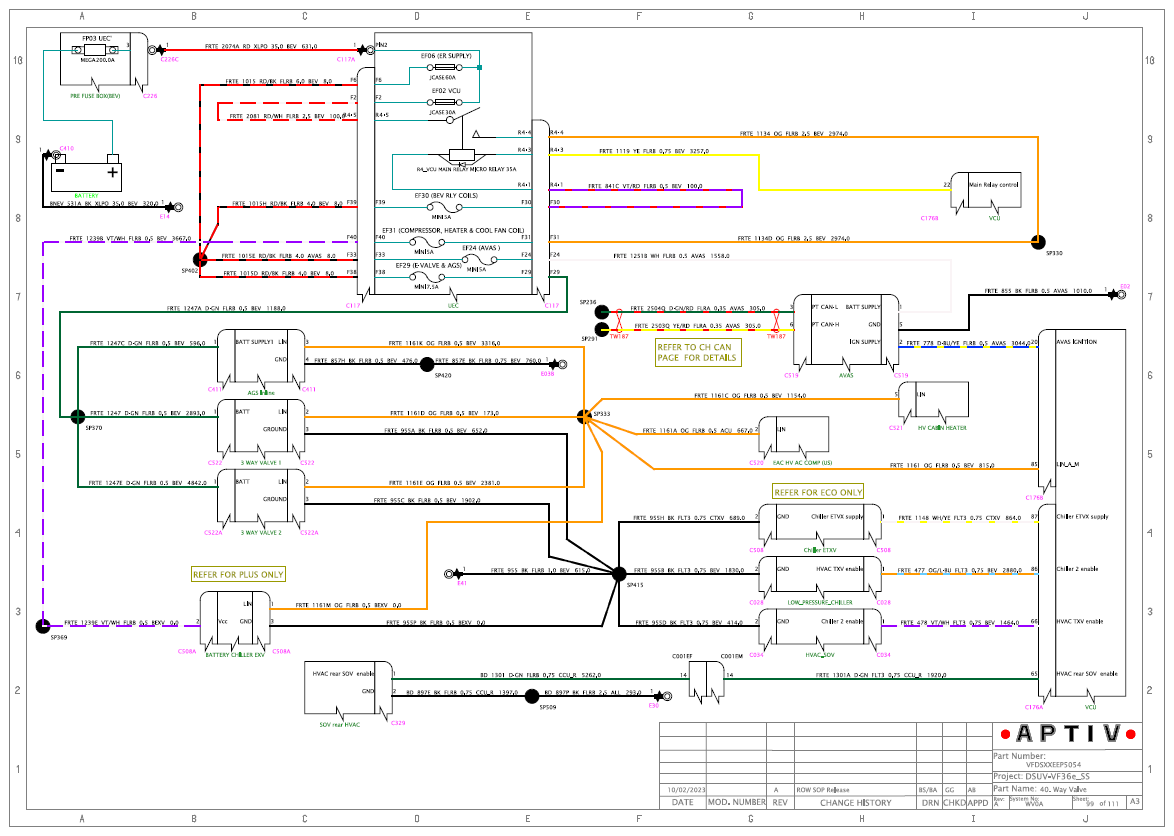

Way Valve

Courtesy of VINFAST, LLC

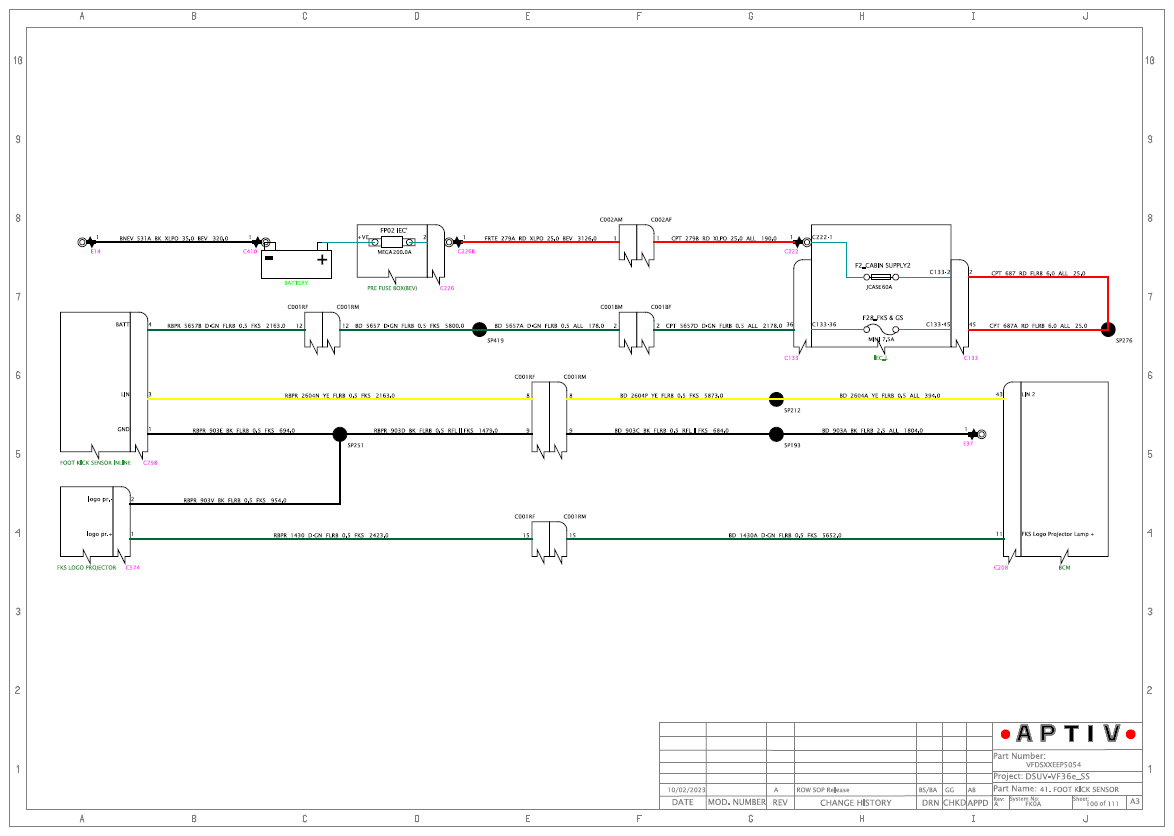

FKS

Courtesy of VINFAST, LLC

SUNROOF_SUNSHADE

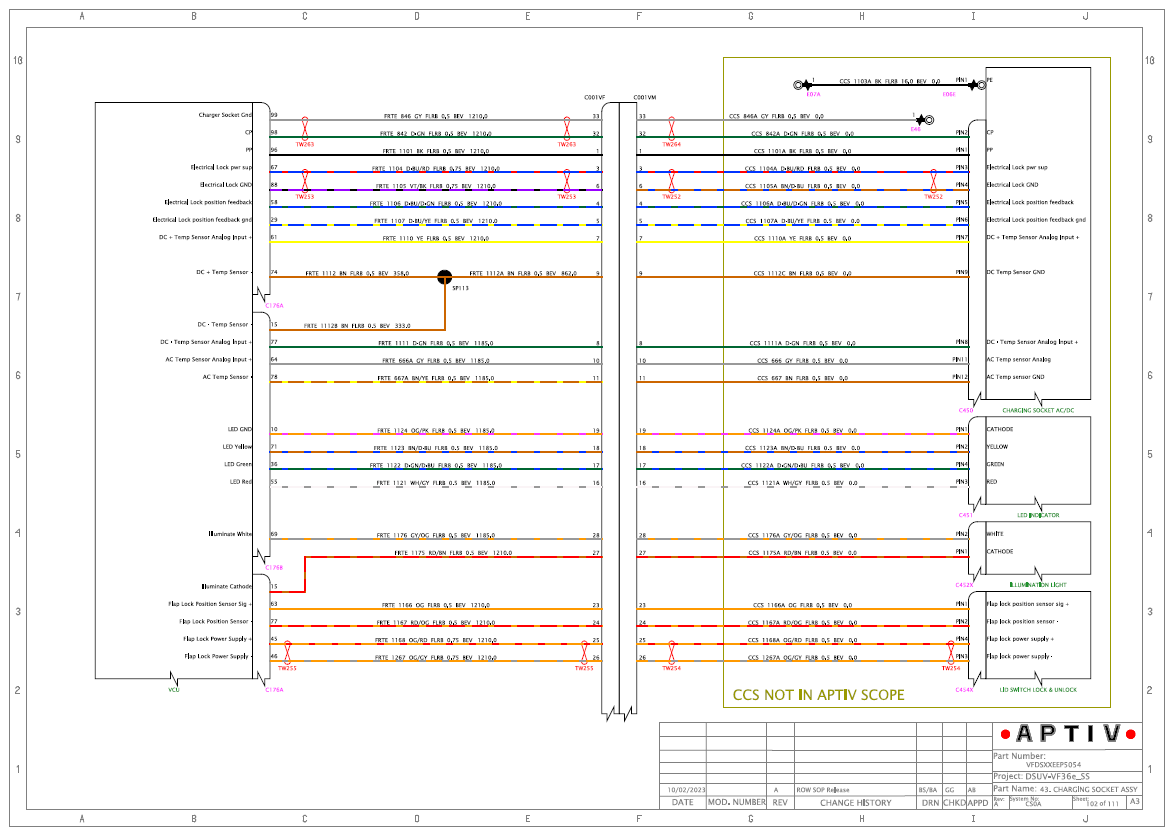

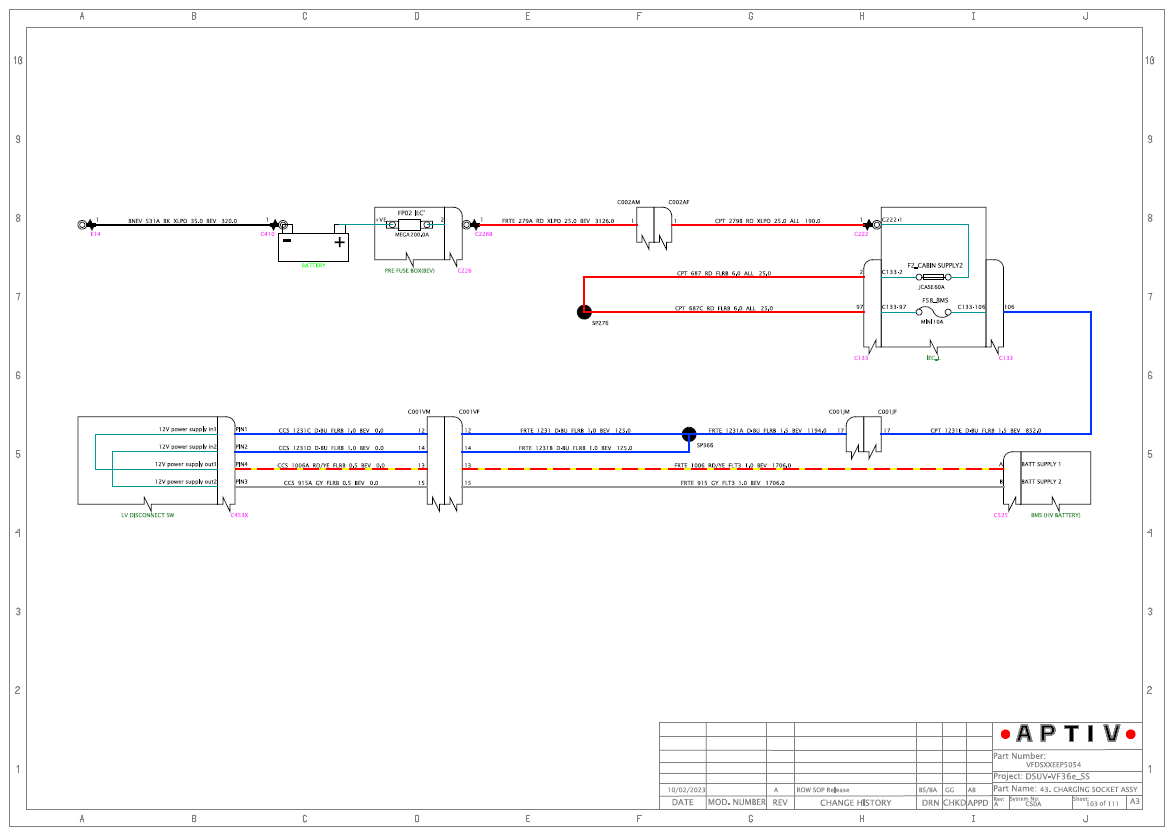

CCS 1

Courtesy of VINFAST, LLC

CCS 2

Courtesy of VINFAST, LLC

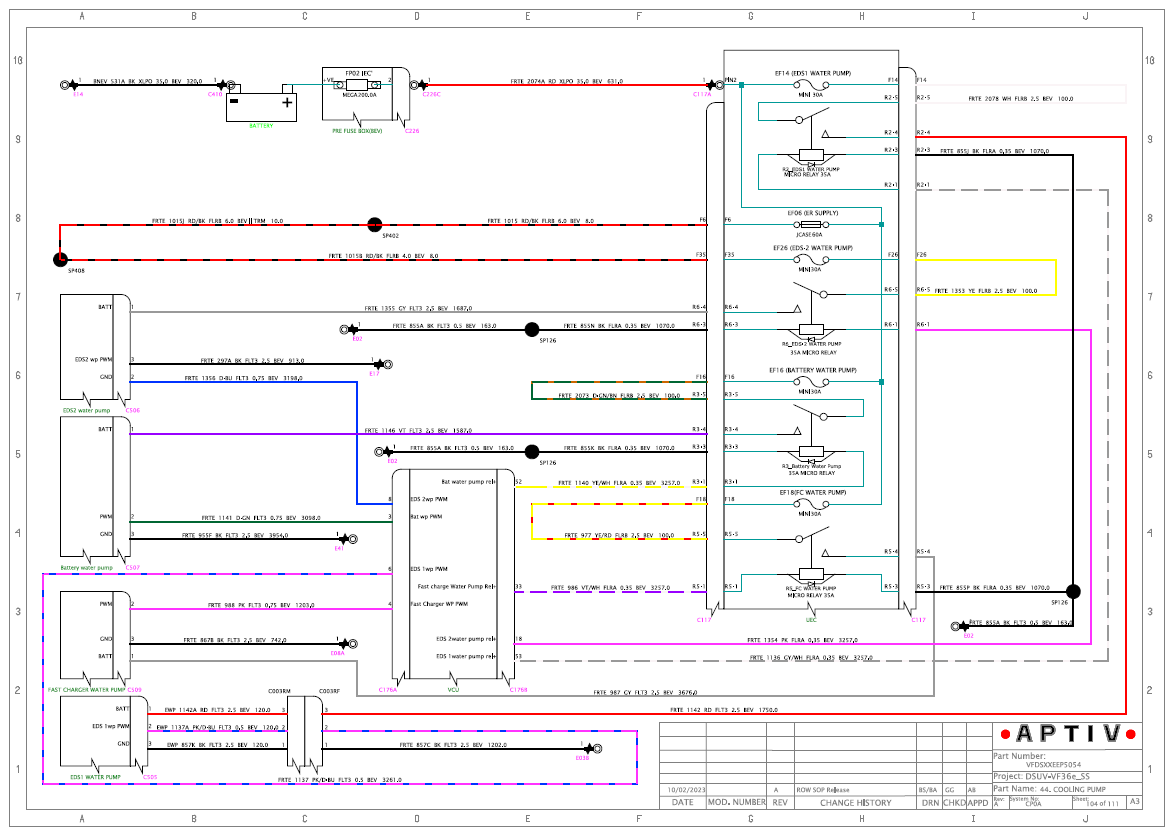

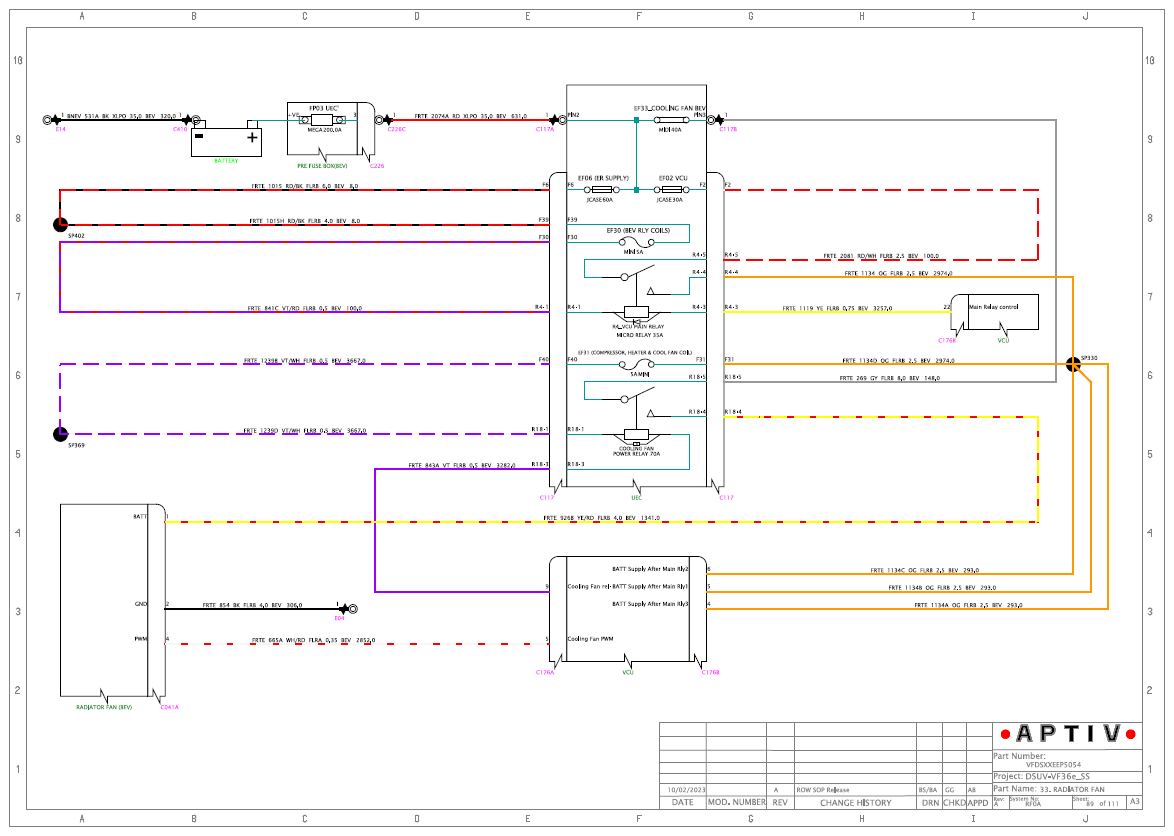

COOLING PUMP

Courtesy of VINFAST, LLC

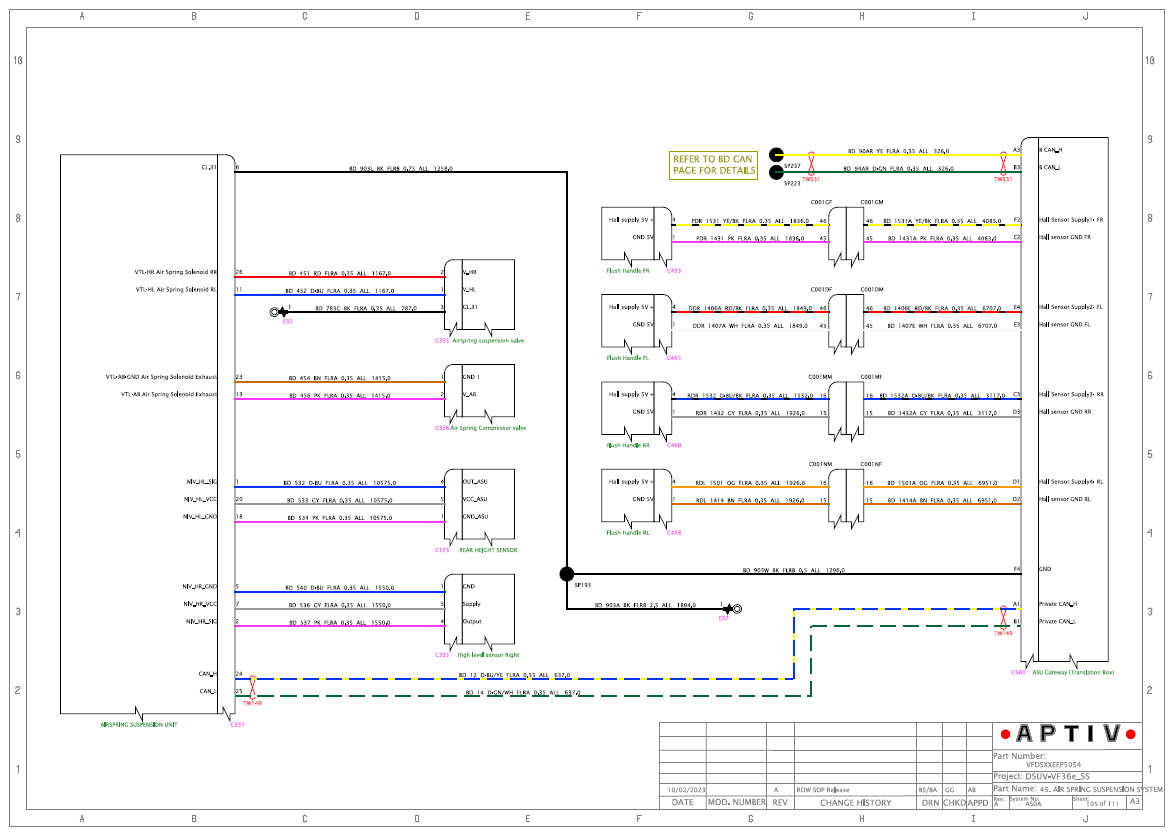

ESM 1

Courtesy of VINFAST, LLC

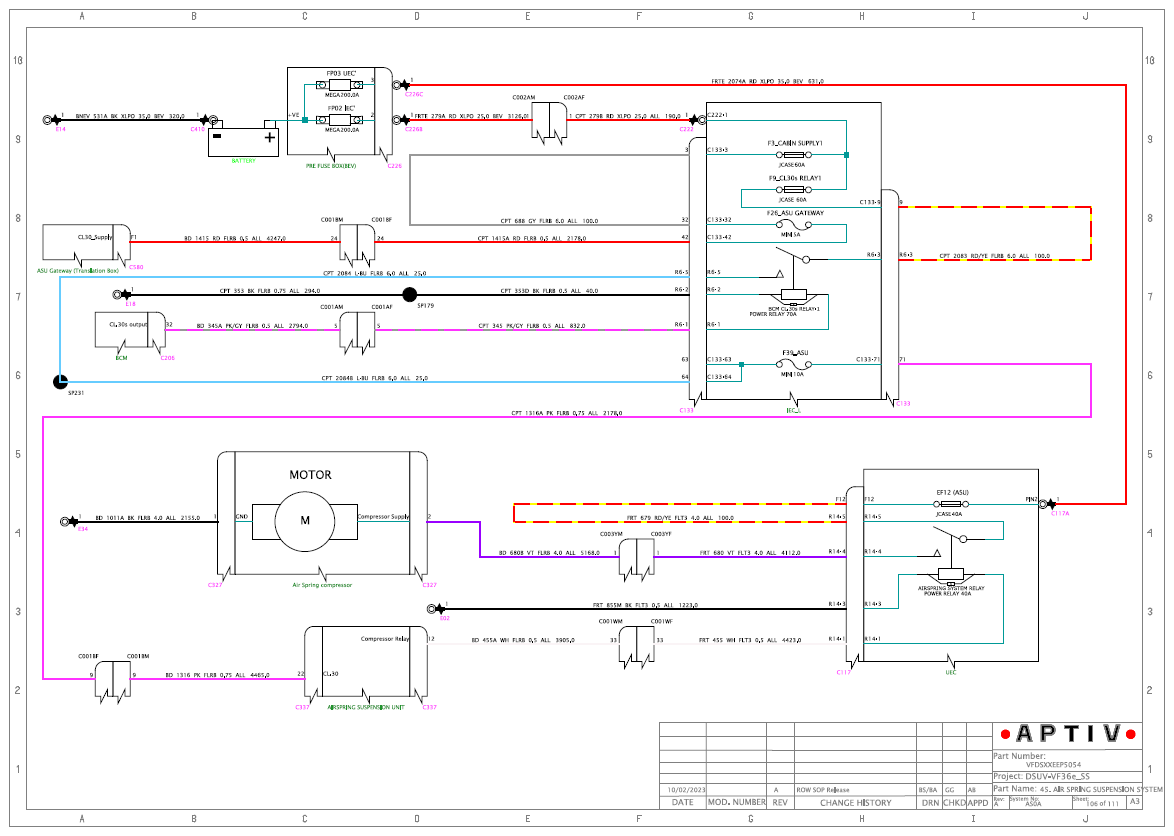

ESM 2

Courtesy of VINFAST, LLC

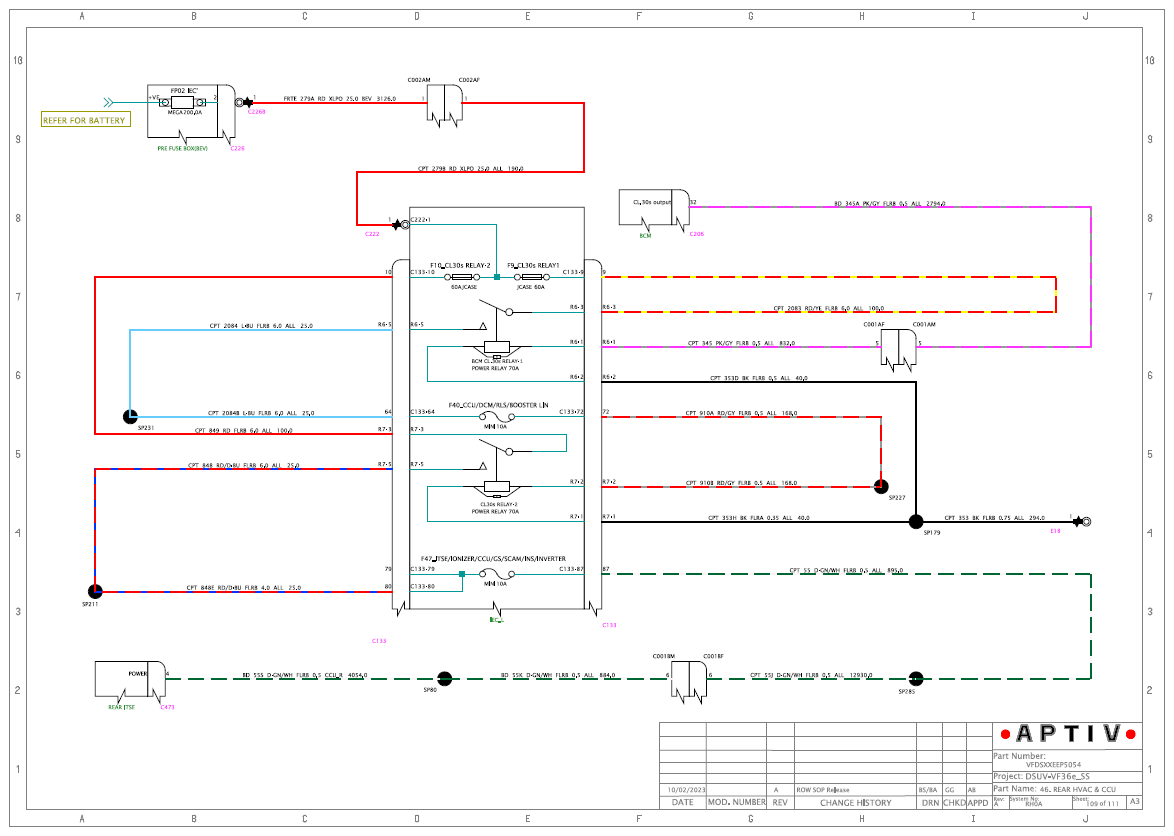

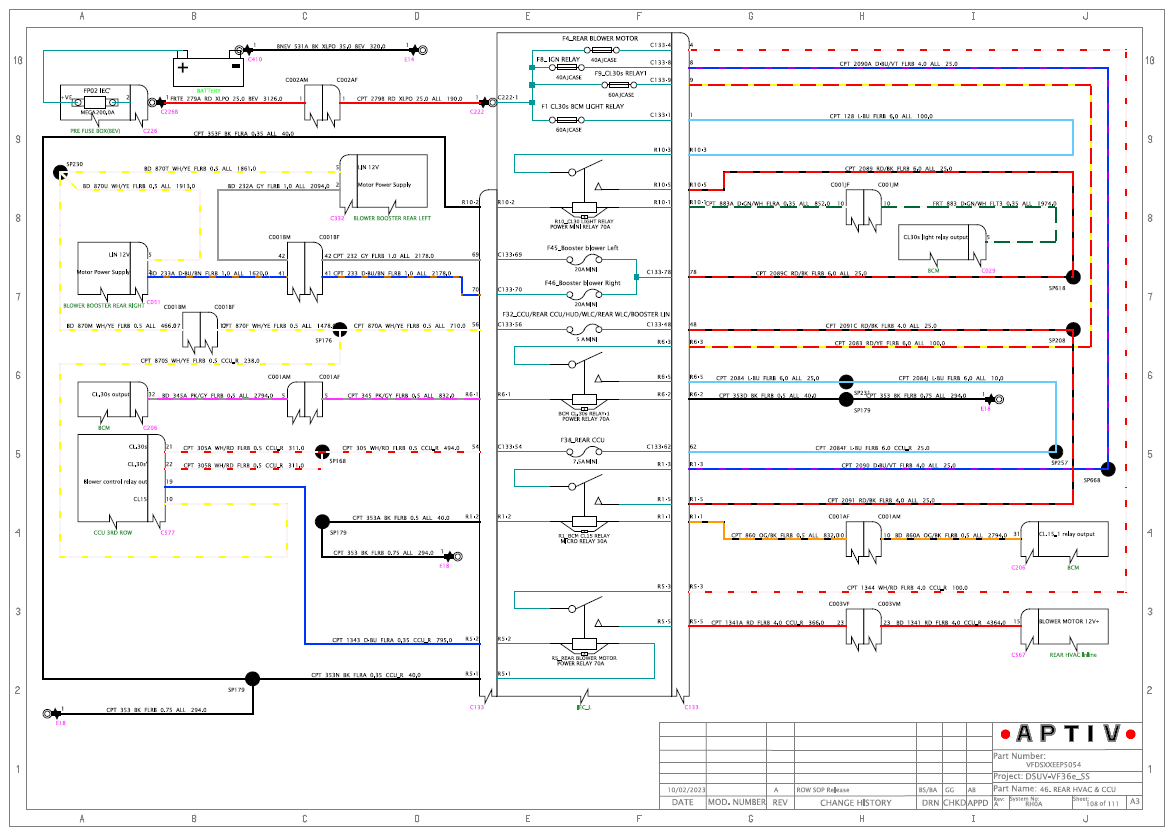

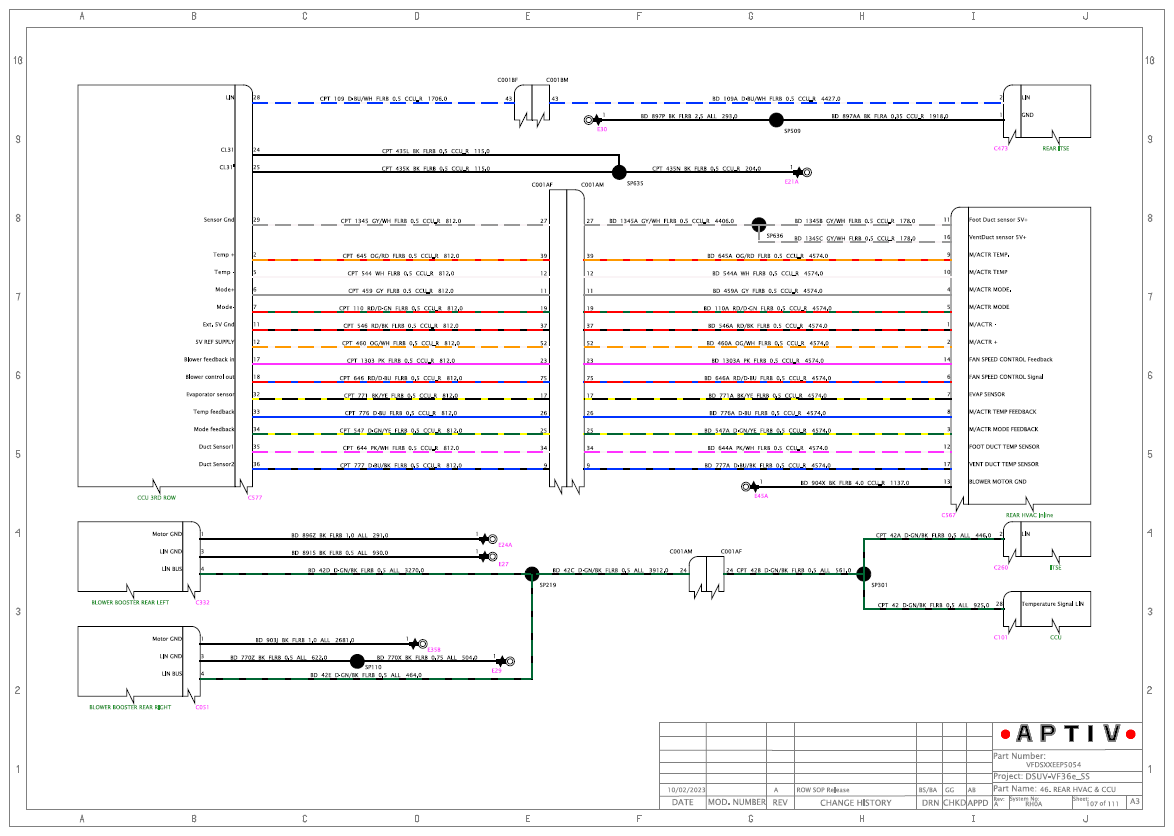

REAR HVAC & CCU 1

Courtesy of VINFAST, LLC

REAR HVAC & CCU 2

Courtesy of VINFAST, LLC

REAR HVAC & CCU 3

Courtesy of VINFAST, LLC

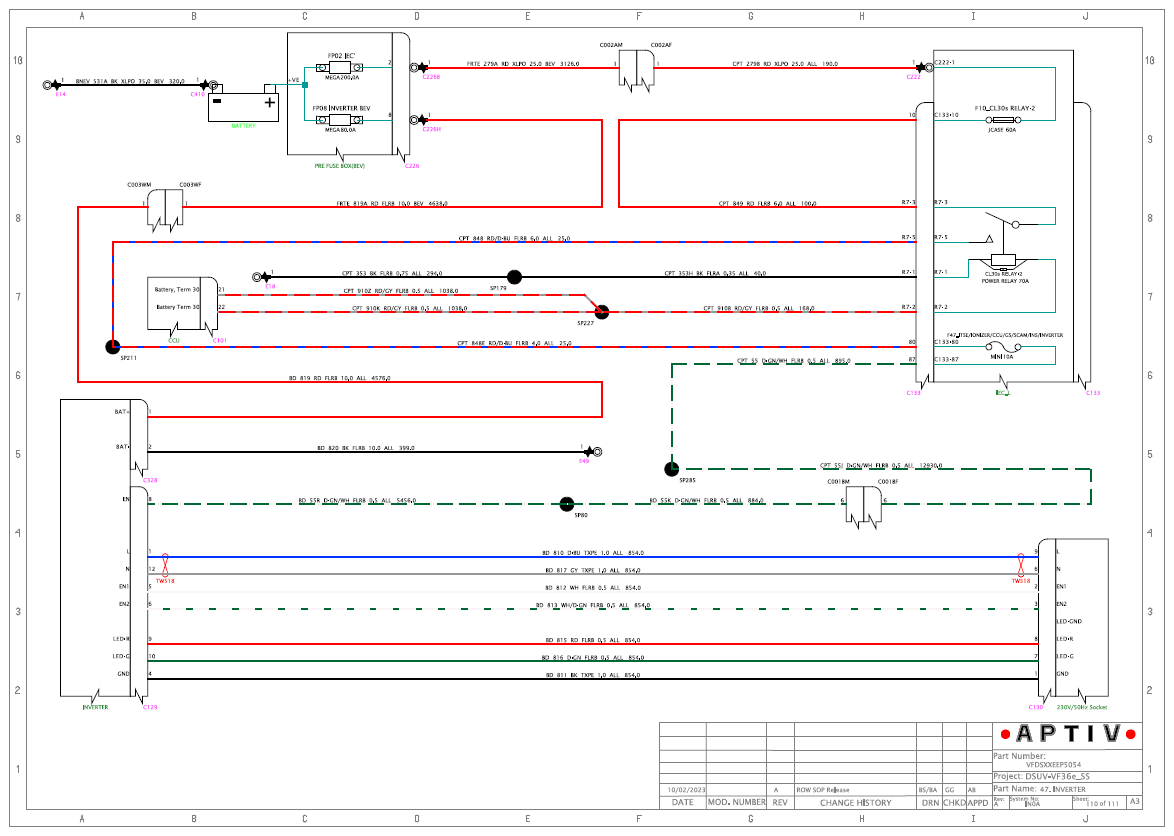

INVERTER

Courtesy of VINFAST, LLC

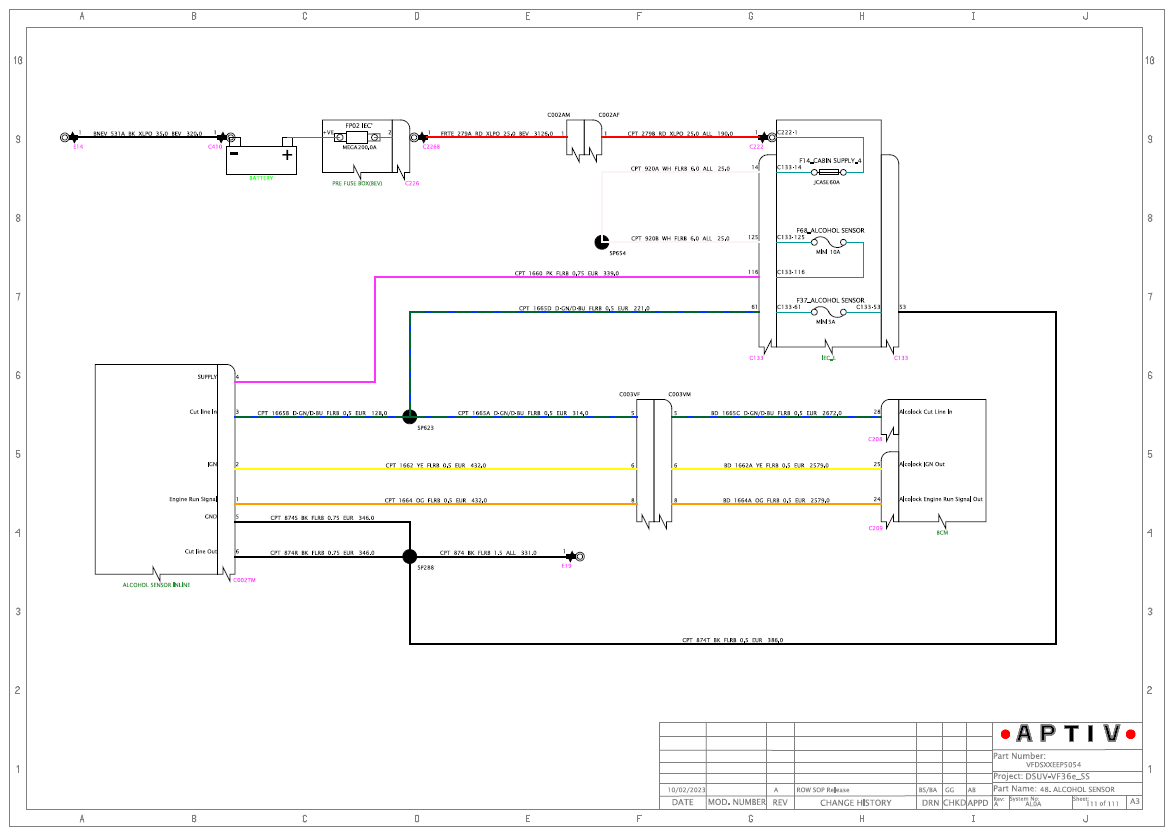

ALCOHOL SENSOR

Courtesy of VINFAST, LLC
