IP Harness Connector And Module Components Location

Courtesy of VINFAST, LLC

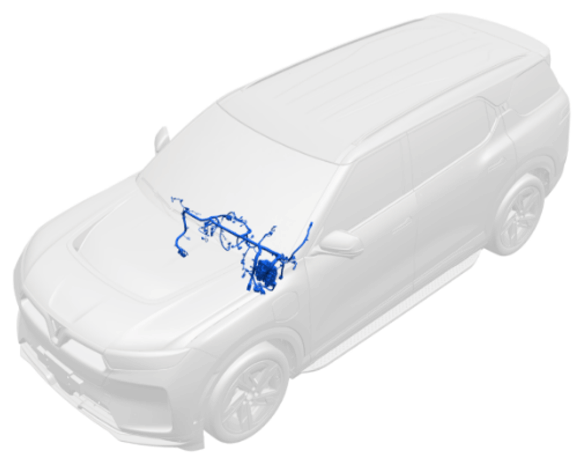

Location of IP Harness Connectors and Modules

Courtesy of VINFAST, LLC

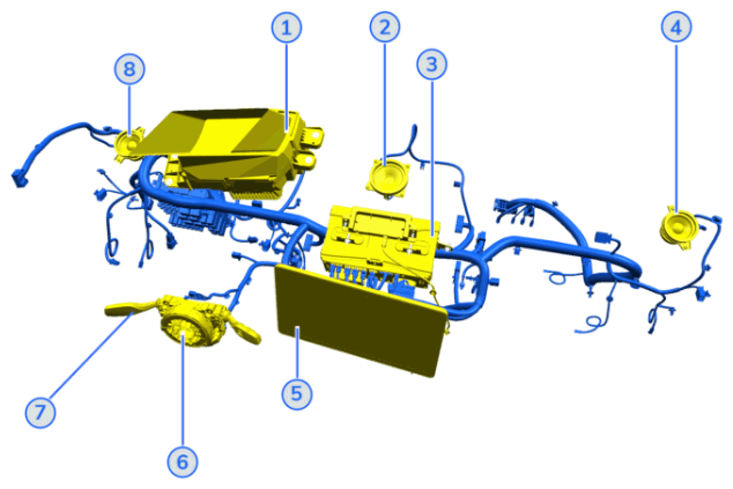

Components

1. Head-up display
2. Loudspeaker Center Dual
3. Multi-media head unit
4. Speaker Midrange
5. Multi-media display
6. Clock spring
7. Multi-function stalks
8. Speaker Midrange

Courtesy of VINFAST, LLC

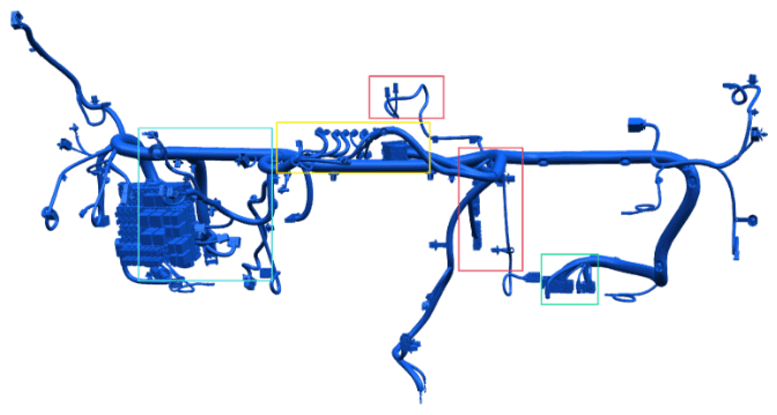

IP Harness Overview

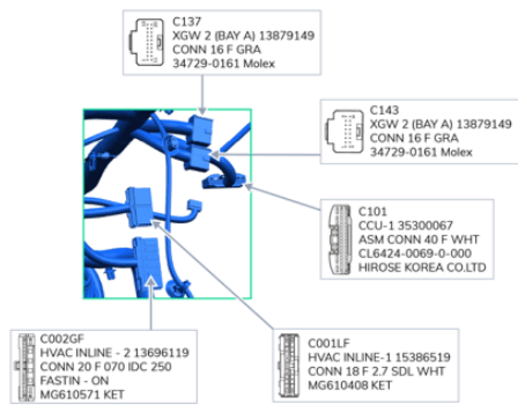

IP Harness Connector and Module on Left-Hand Side

Courtesy of VINFAST, LLC

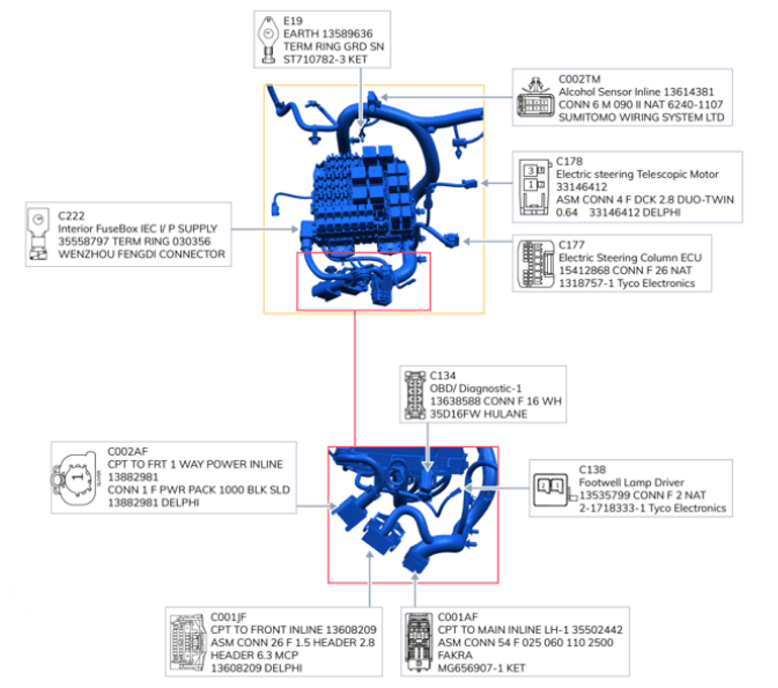

IP Harness Connector and Module on Lower Left-Hand Side

Courtesy of VINFAST, LLC

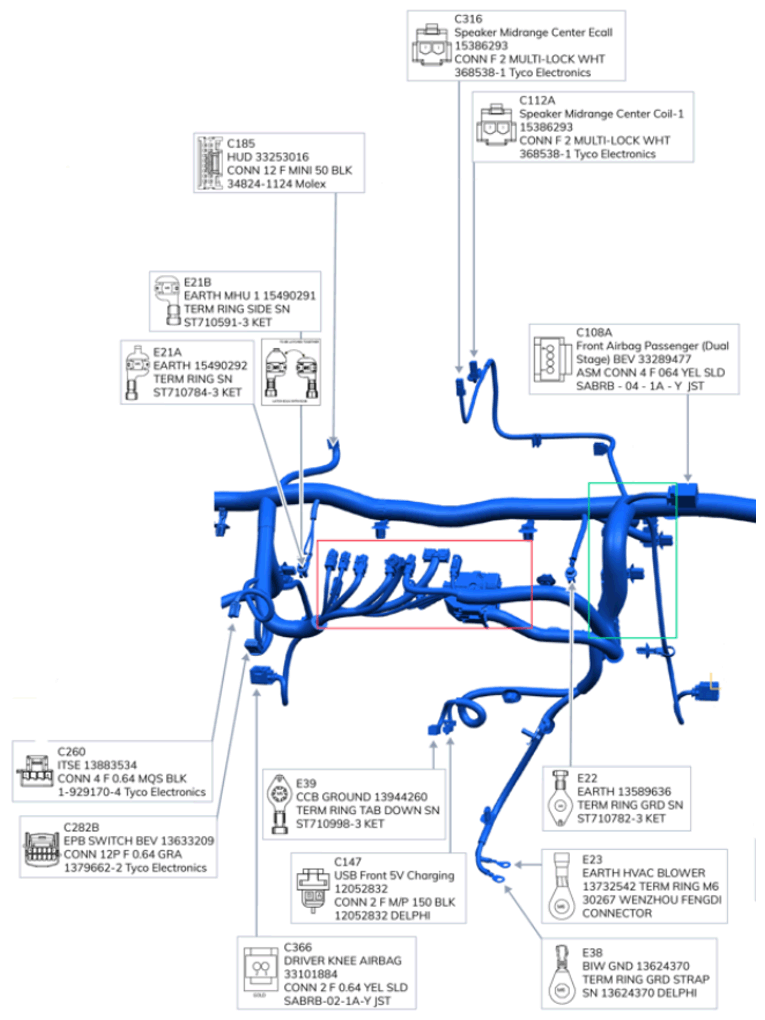

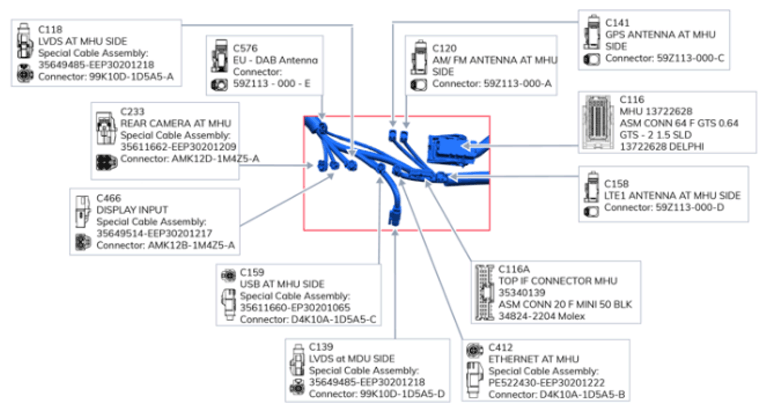

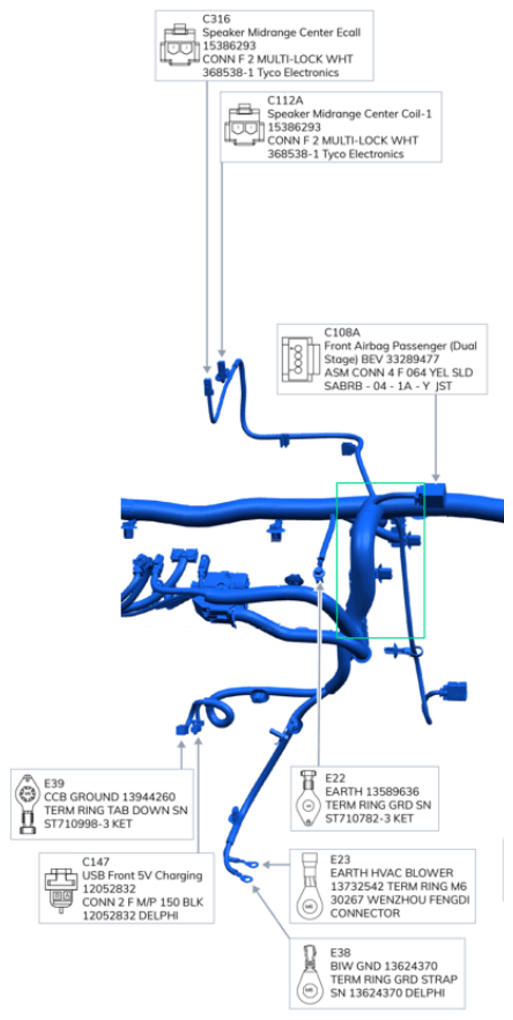

IP Harness Connector and Module in the Middle

Courtesy of VINFAST, LLC

Courtesy of VINFAST, LLC

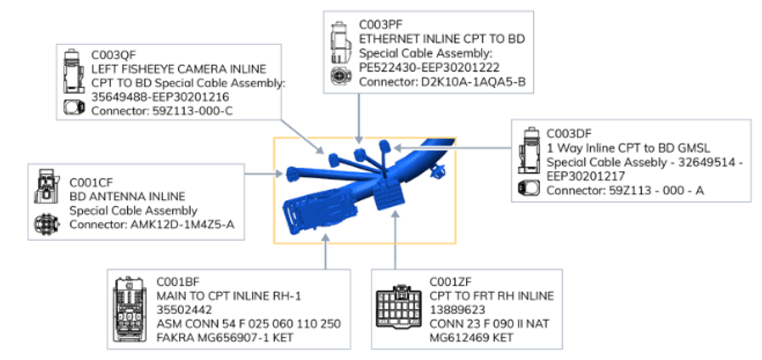

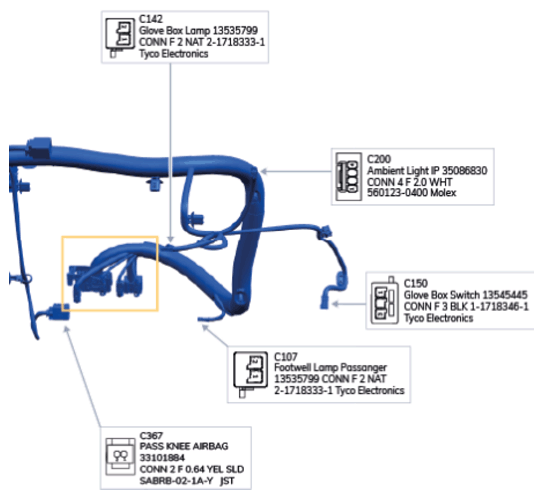

IP Harness Connector and Module on Right-Hand Side

Courtesy of VINFAST, LLC

Courtesy of VINFAST, LLC

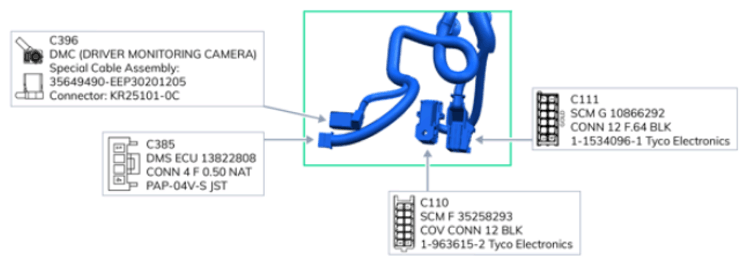

IP Harness Connector and Module on Lower Right-Hand Side

Courtesy of VINFAST, LLC

Courtesy of VINFAST, LLC
