eMotor (FWD) Mount Bracket (Left Side) Removal And Installation/Replacement

Mobile Repair Possible:  No

Special Tools Required:

Transmission Jack/Hydraulic Jack - no part number

WARNING: Overhead Suspended Load and Falling Parts
Failure to follow specified procedures may result in death or serious injury when elevated load or components are incorrectly secured/supported.
  • All lifting equipment weight rating must meet or exceed the weight of the vehicle and any contents.
  • The lifting equipment must be in good condition and approved for use.
  • Only lift the vehicle from the identified lift points.
  • Ensure vehicle is stable before performing any work underneath.
  • Ensure there are no loose components which may fall.
  • Always use personal protective equipment (PPE).
  • Seek assistance when handling larger components.
WARNING: Electricity hazard
Failure to follow specified procedures may result in death or serious injury from electric shock when working on or near high-voltage components.
  • Only authorised and appropriately trained persons may carry out work on high-voltage vehicles and components.
  • Perform High Voltage isolation procedure prior to commencing work.
  • Ensure appropriate Personal Protective Equipment is worn until the system is verified safe.

Removal Procedure:

  1. Remove underbody air shield. Refer to UNDERBODY FRONT AIR SHIELD REMOVAL AND INSTALLATION/REPLACEMENT
  2. Remove front wheelhouse liner. Refer to FRONT WHEELHOUSE LINER REMOVAL AND INSTALLATION/REPLACEMENT
  3. Remove PDU EMI Filter (US/CA). Refer to PDU EMI FILTER REMOVAL AND INSTALLATION/REPLACEMENT (US/CA)

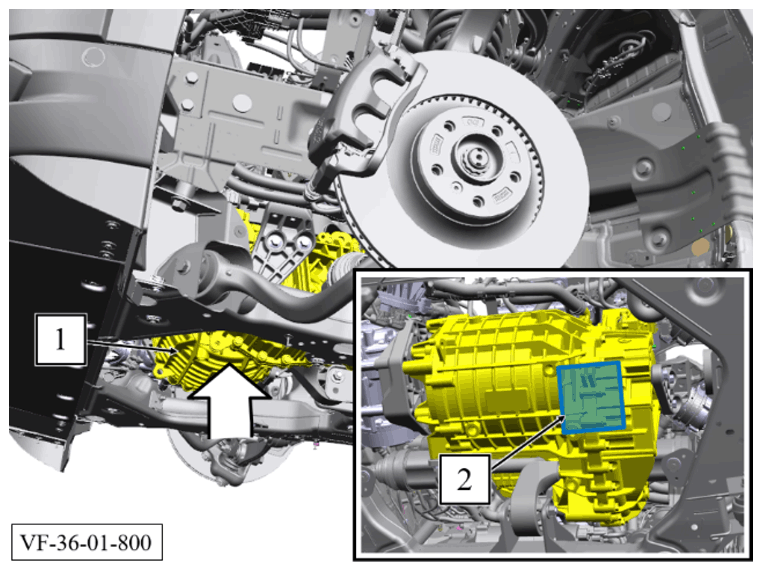

    G16030223Courtesy of VINFAST, LLC
  4. Support the eMotor (FWD) (1) with a transmission jack or hydraulic jack using a rubber pad in the marked area (2) for the entire procedure.

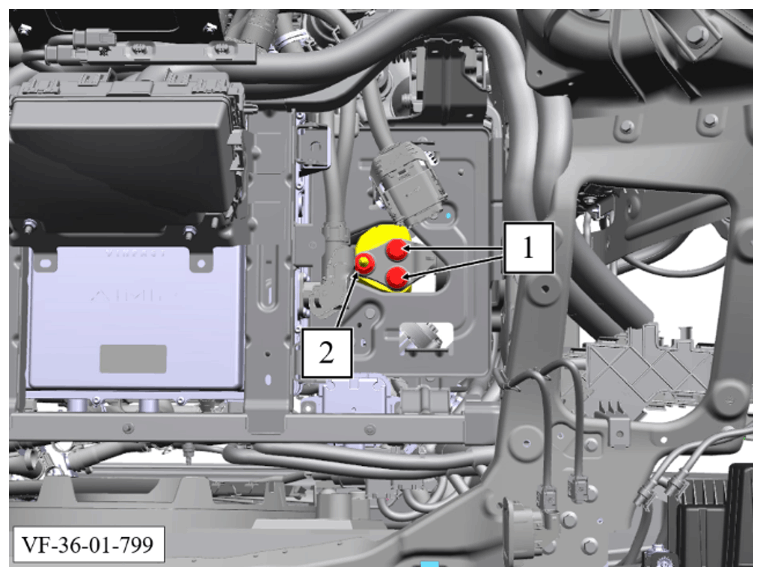

    G16030224Courtesy of VINFAST, LLC
  5. Remove 2 bolts (1).

    Torque: 88 Nm

  6. Remove nut (2).

    Torque: 88 Nm

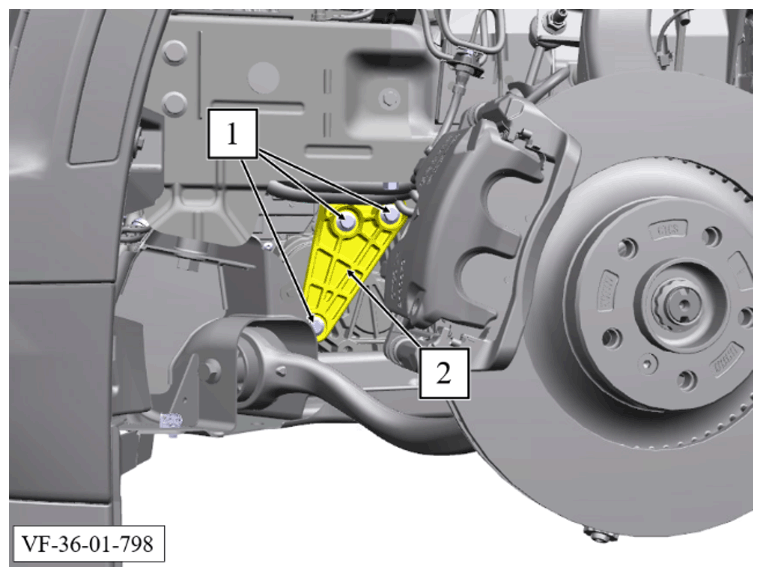

    G16030225Courtesy of VINFAST, LLC
  7. Remove 3 bolts (1).

    Torque: 88 Nm

  8. Remove the eMotor mount bracket (2) downwards.

Installation Procedure:

  1. Installation is the reverse of removal procedure, noting the following.

    All fasteners must be tightened to torque specification.

  2. Install underbody air shield. Refer to UNDERBODY FRONT AIR SHIELD REMOVAL AND INSTALLATION/REPLACEMENT
  3. Install front wheelhouse liner. Refer to FRONT WHEELHOUSE LINER REMOVAL AND INSTALLATION/REPLACEMENT
  4. Install PDU EMI Filter (US/CA). Refer to PDU EMI FILTER REMOVAL AND INSTALLATION/REPLACEMENT (US/CA)
