Repair and Diagnosis: Transmission: Clutches: Description

Clutch is a single plate dry disc type, using a diaphragm type pressure plate and a transmission mounted clutch release bearing. Clutch is cable operated.

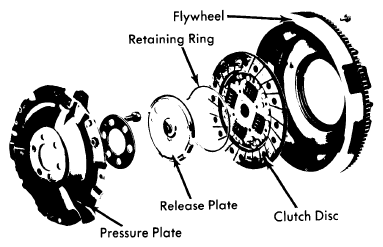

Fig 1: Exploded View of Clutch and Flywheel Assembly

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
