Base Ignition Timing Specifications

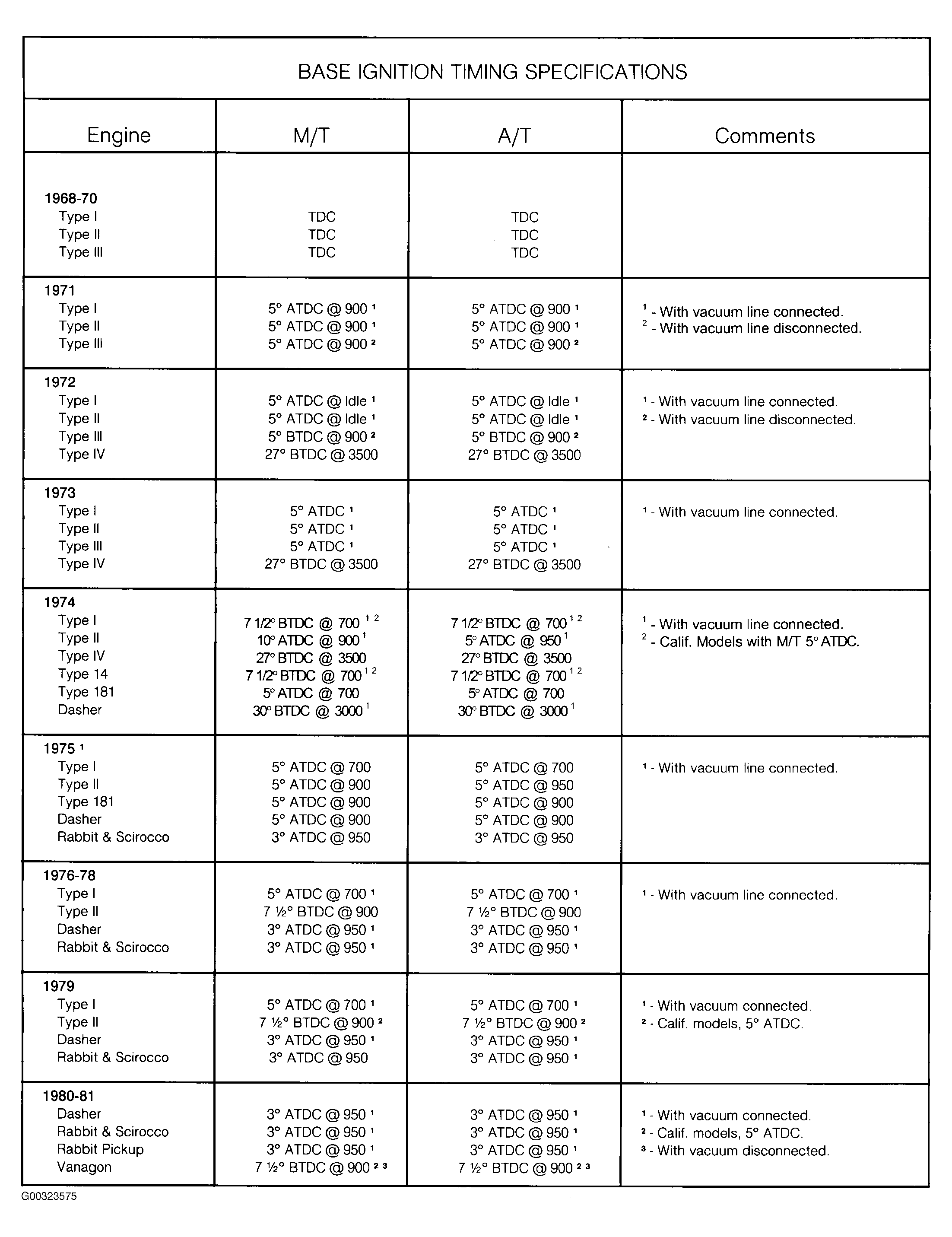

Fig 1:

G00323575

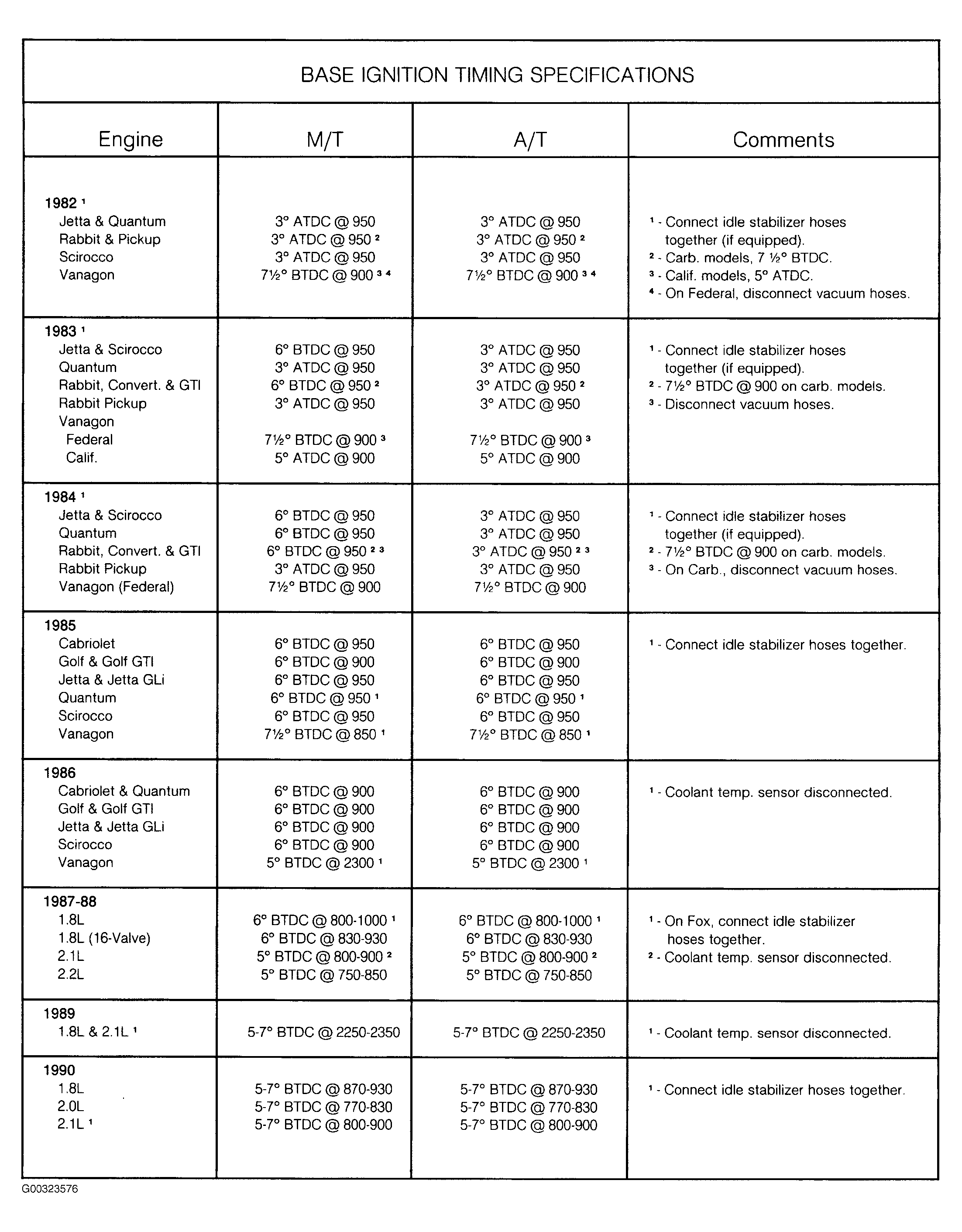

Fig 2:

G00323576

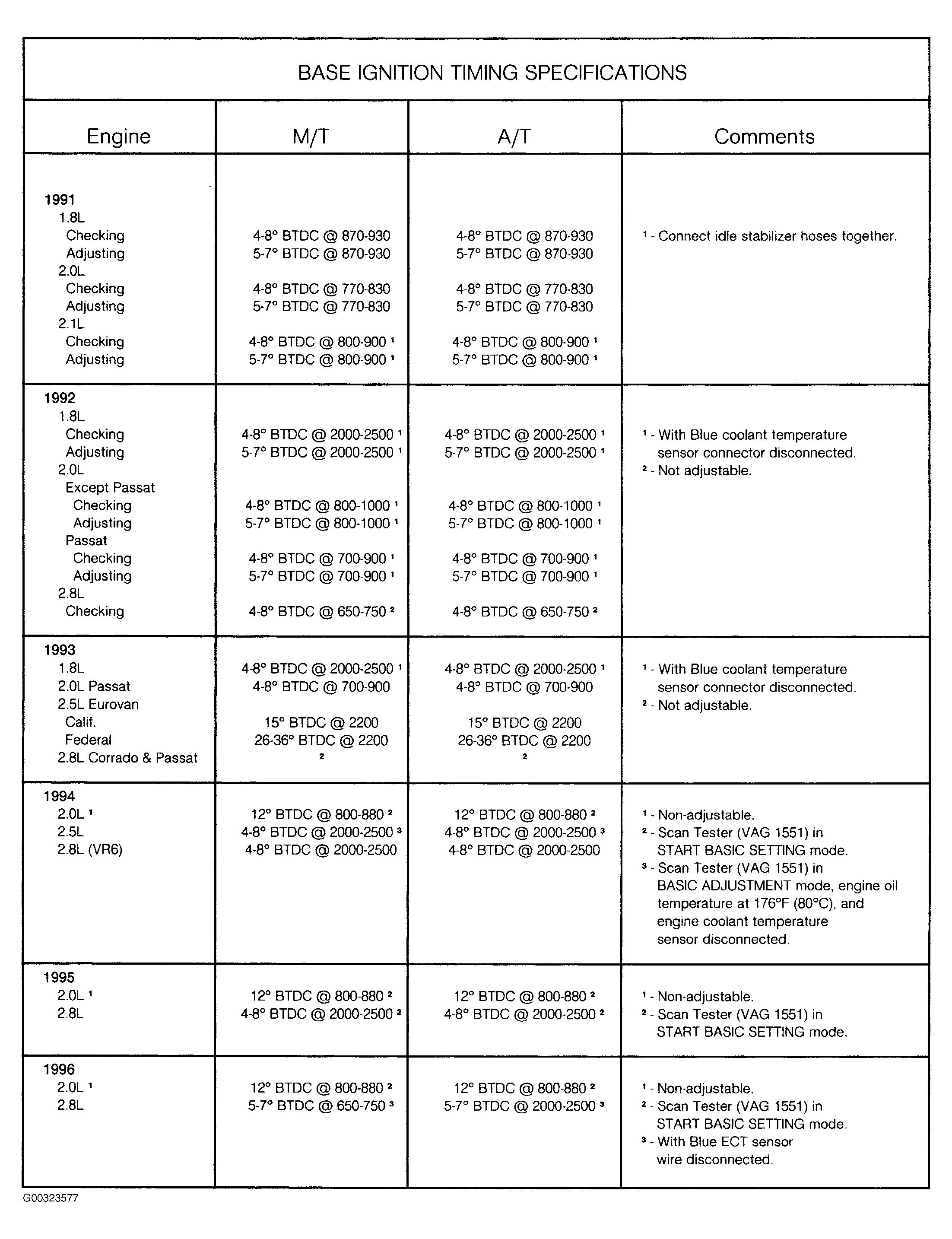

Fig 3:

G00323577

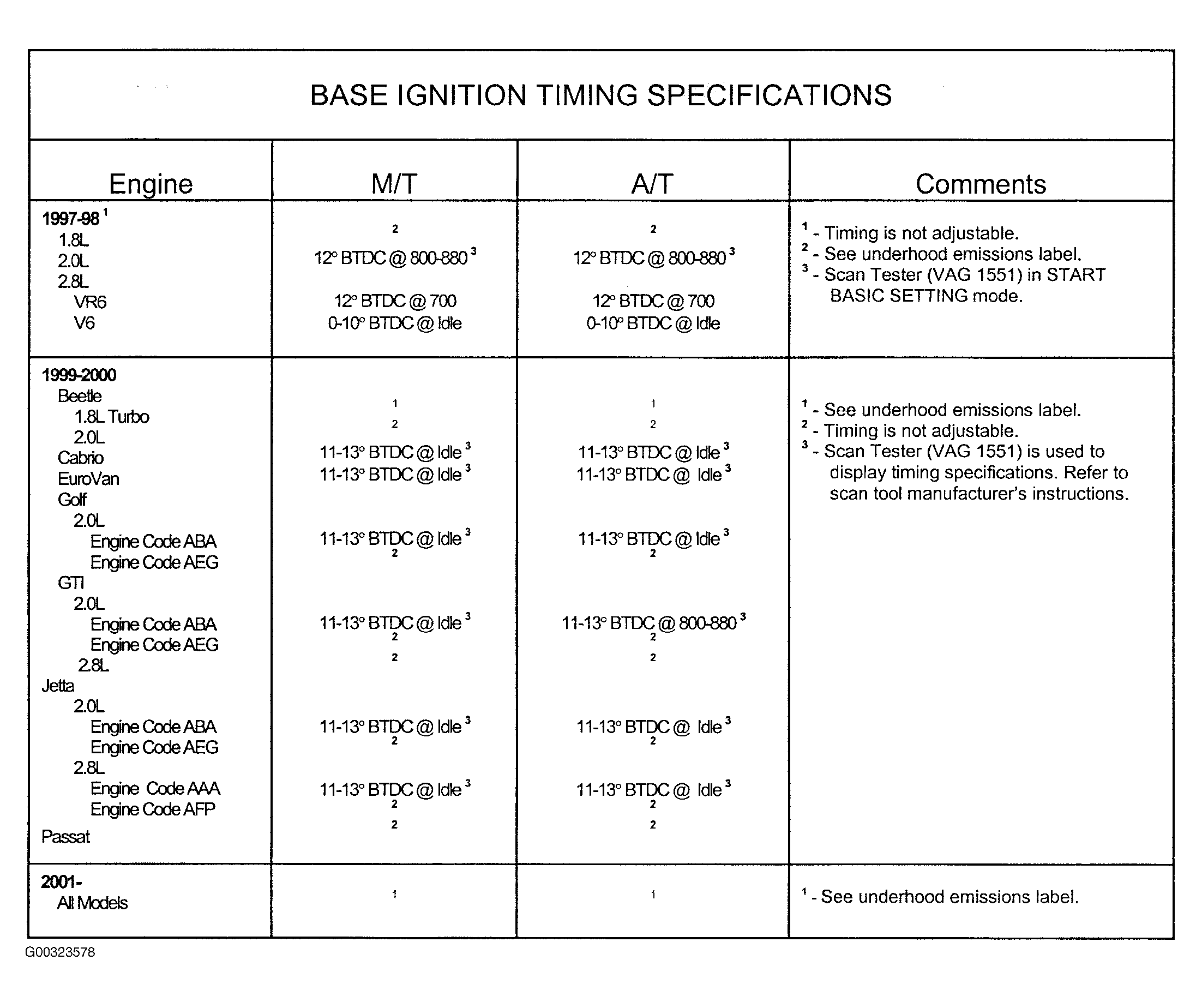

Fig 4:

G00323578
