Valve Body Assembly: Notes

NOTE: Valve body components, especially the springs, are very similar in appearance. Ensure all components are separated and marked for identification, for reassembly reference see Fig 1 .

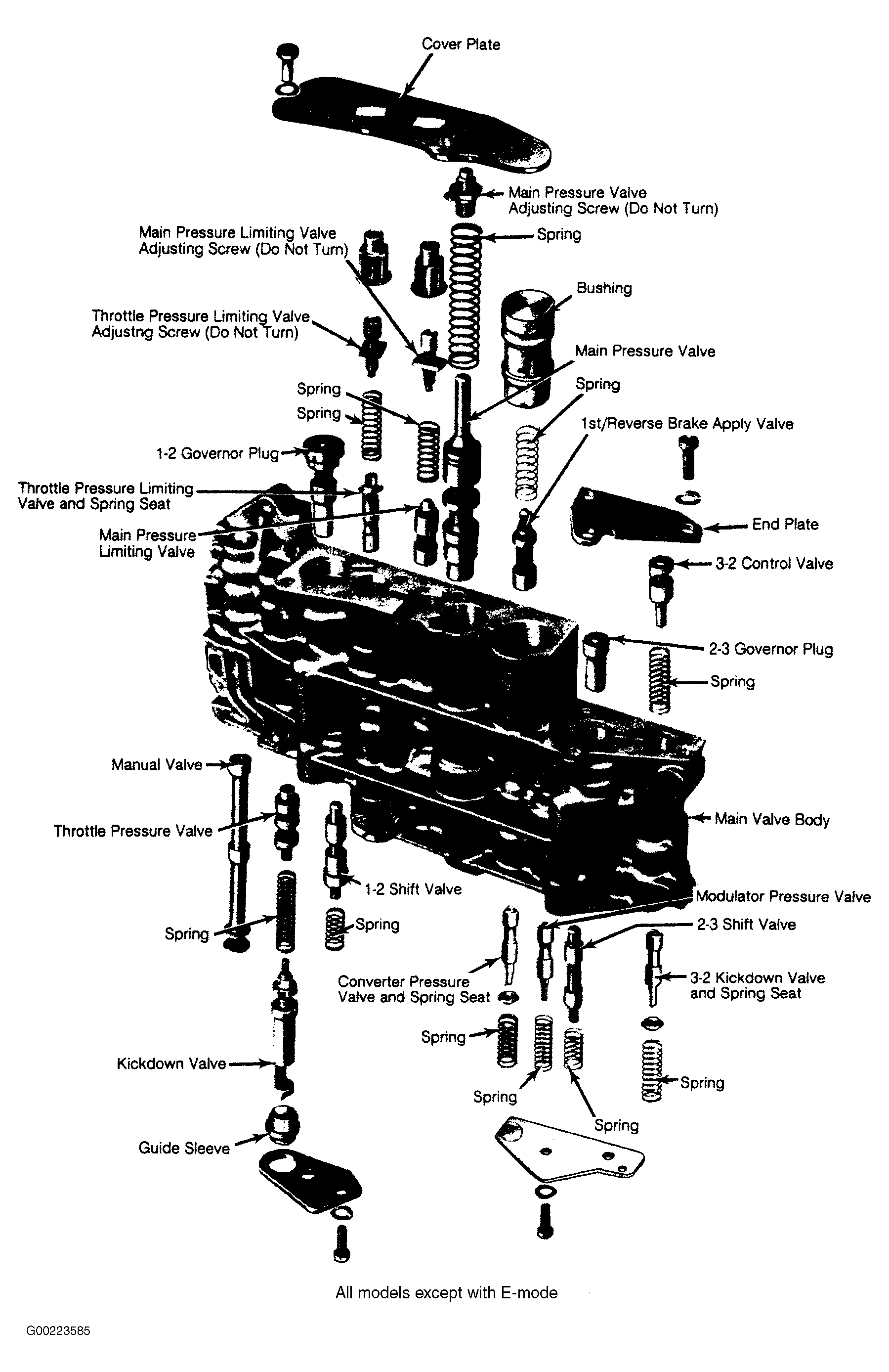

Fig 1: Exploded View of Main Valve Body

Courtesy of VOLKSWAGEN UNITED STATES, INC.
