Description & Operation: Notes

NOTE: For References to Cross-Sectional View of Type 010 A/T Assembly and CLUTCH and BAND APPLICATIONS, See Fig 1 and Fig 2 .

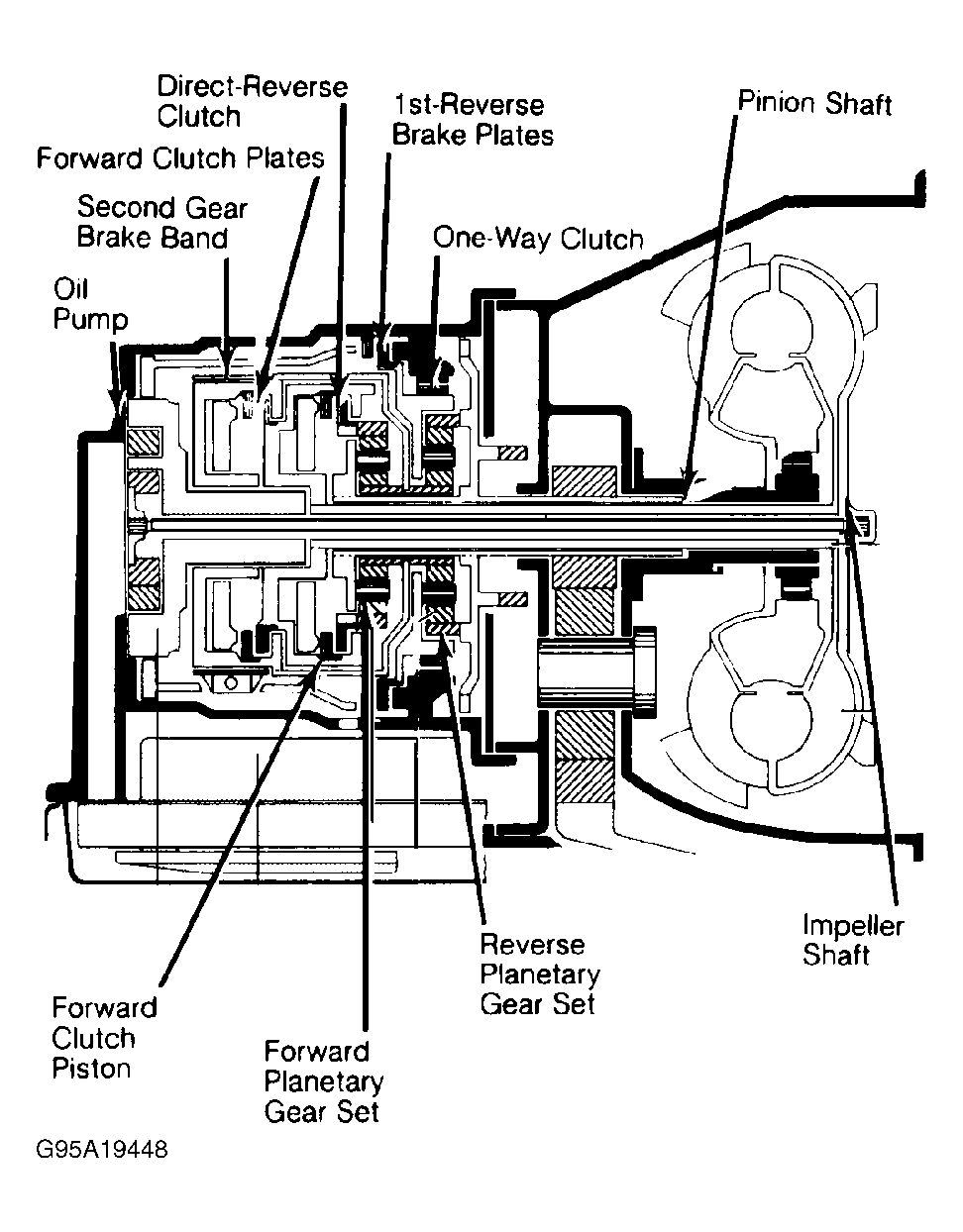

Fig 1: Cross Section View Of 010 Transmission

Courtesy of VOLKSWAGEN UNITED STATES, INC.

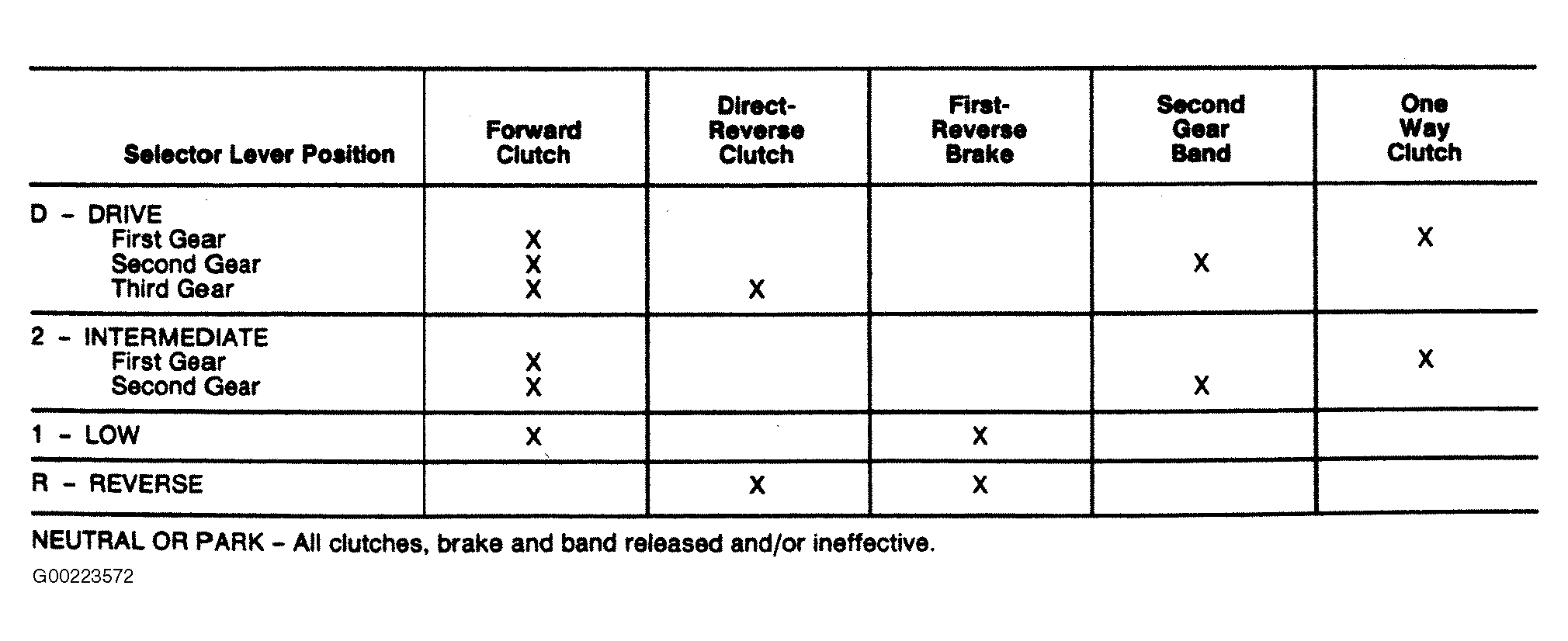

Fig 2: CLUTCH and BAND APPLICATION Chart (ELEMENTS in USE)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
