Calif. Models

Remove speed limit switch from firewall and connect positive voltmeter lead to terminal 8 and negative voltmeter lead to terminal 6. Start engine and accelerate to 3000 RPM. Voltmeter should indicate battery voltage. If not, replace speed limit switch.

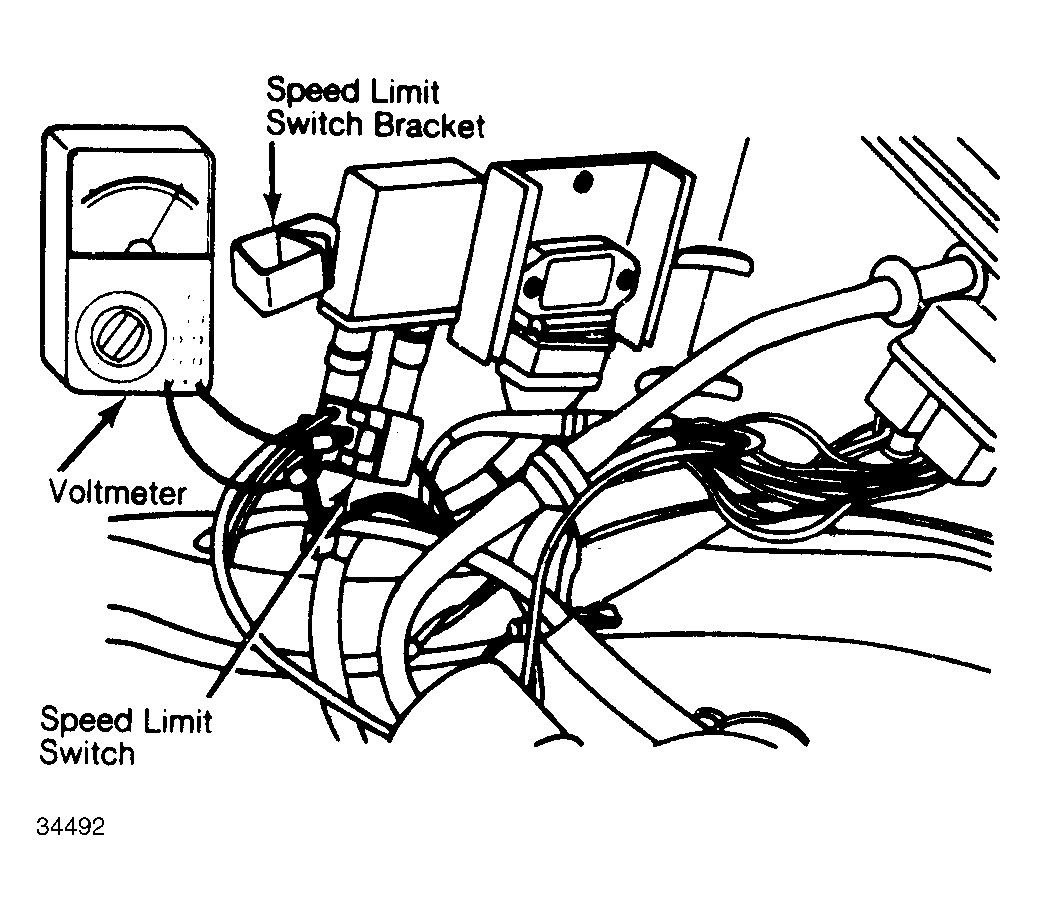

Fig 1: Testing Speed Limit Switch Illustration applies to Calif. Vanagon only.
