Volkswagen
›
1984
›
Rabbit Base, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Feedback Carburetor System
›
Wiring Diagrams
Wiring Diagrams

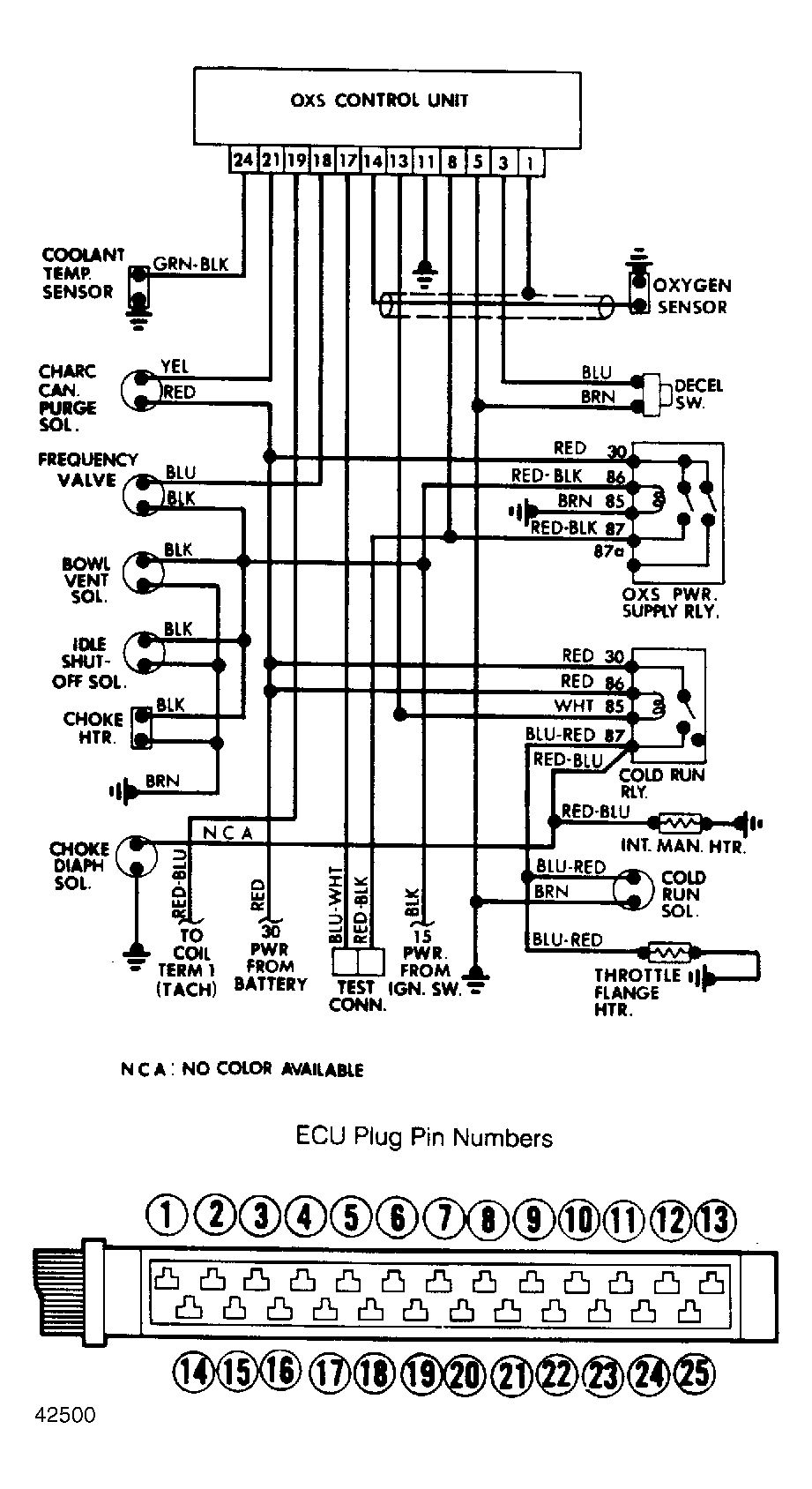

Fig 1: Wiring Diagram for Rabbit Feedback Carburetor Use pin numbers shown at ECU plug for testing procedure.
