Fuel Injection System - DIGIJET
›
Wiring Diagrams
Wiring Diagrams

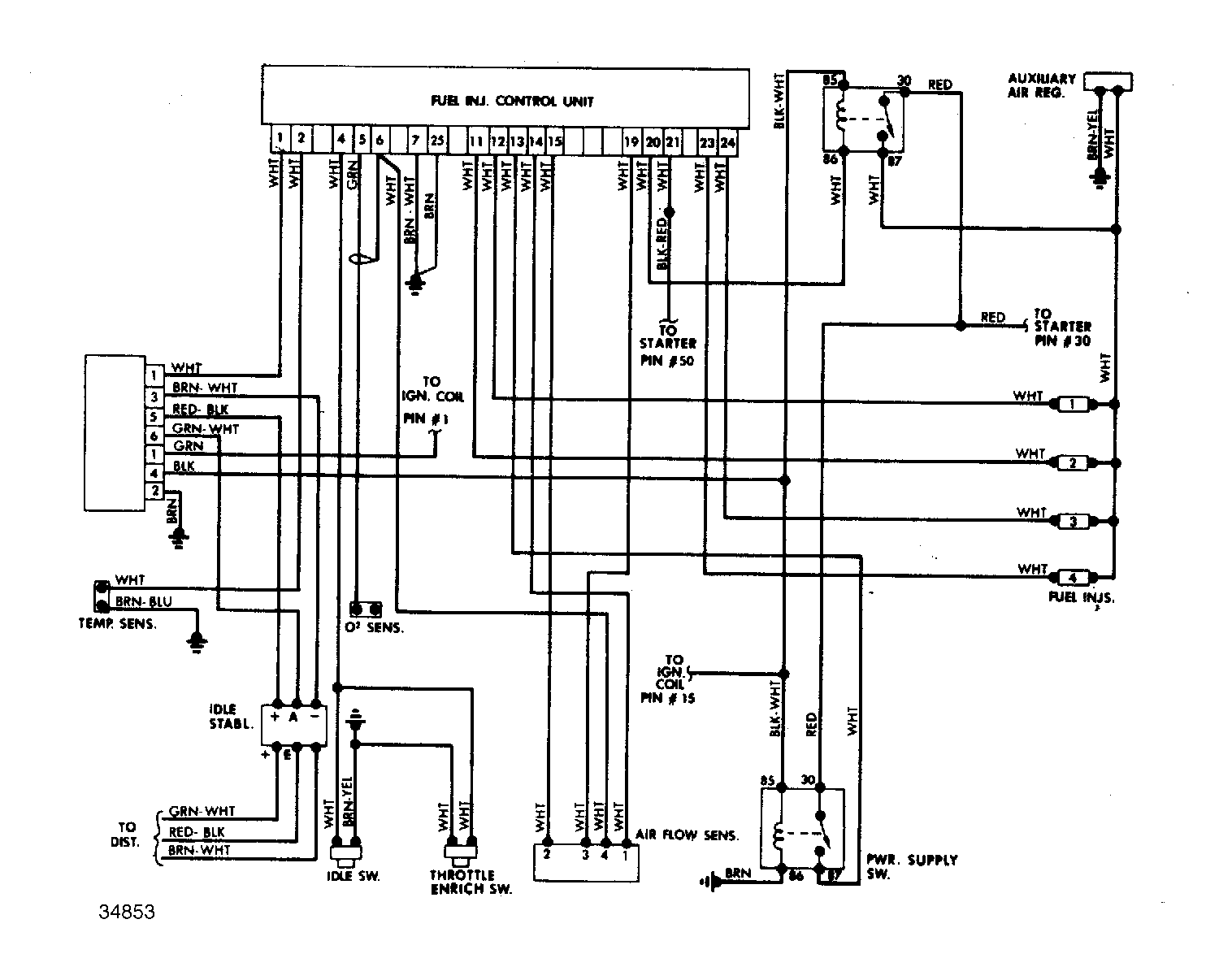

Fig 1: Bosch AFC Digijet Fuel Injection Wiring Diagram
Fig 2: Supplement to Figure 1 ECU Connector Pin Layout
