Drive Belt Routing

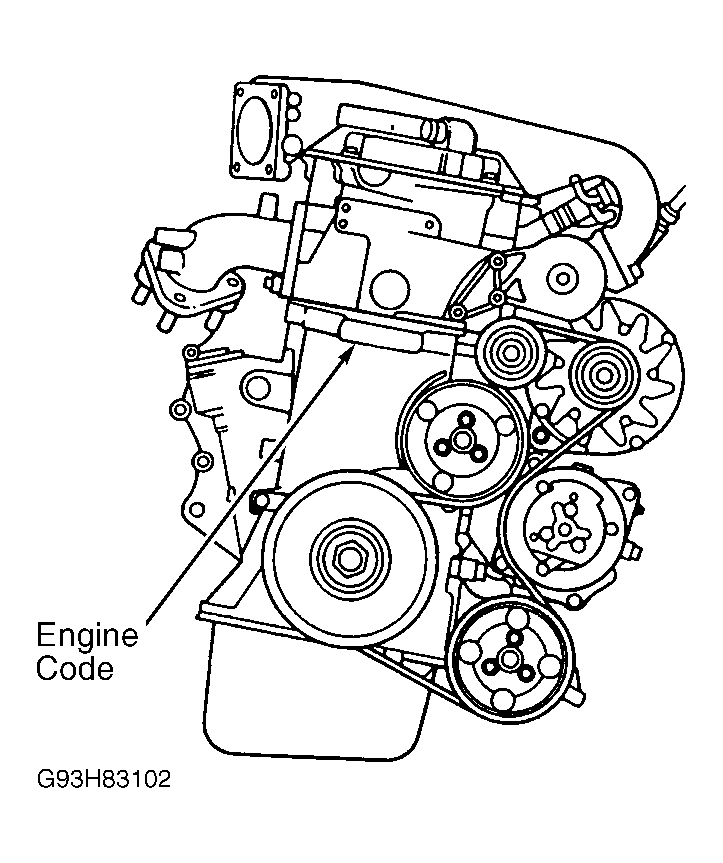

Drive Belt Routing

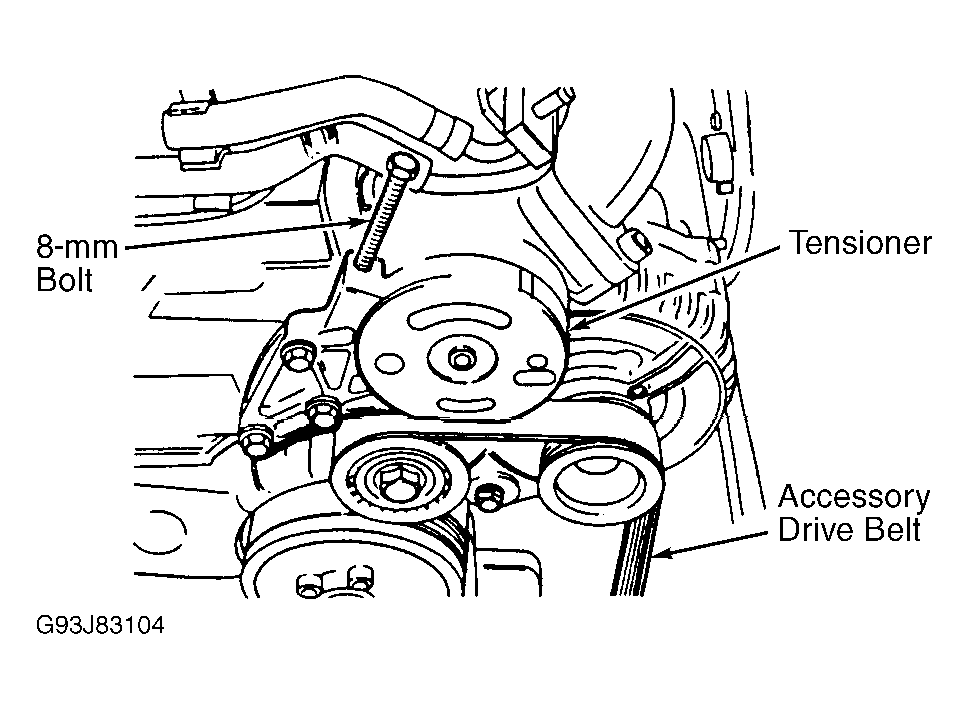

Fig 1: Drive Belt Tensioner Adjustment (VR6)
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Fig 2: Drive Belt Routing (VR6)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

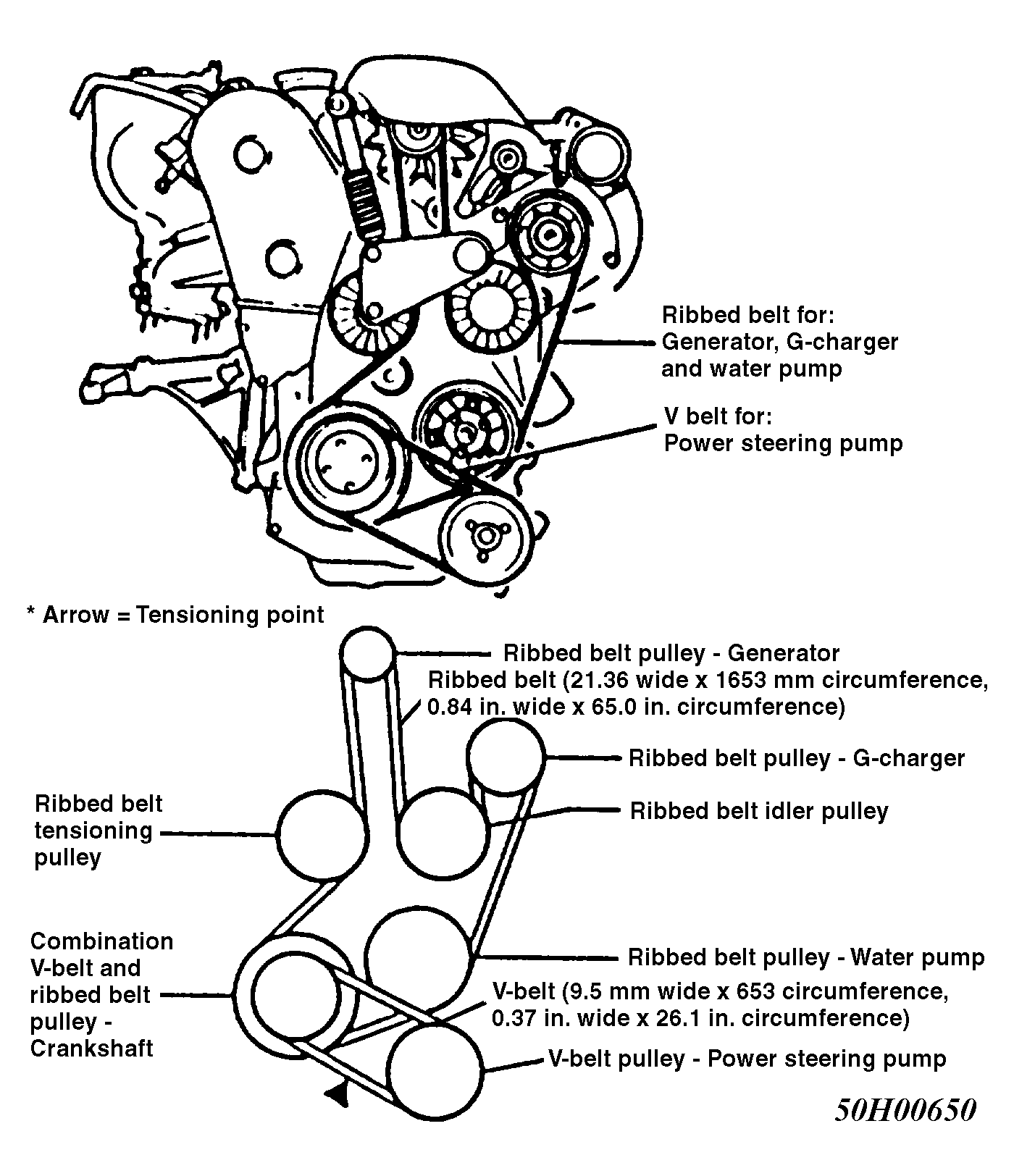

Fig 3: Drive Belt Routing (Four Cylinder Without A/C)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

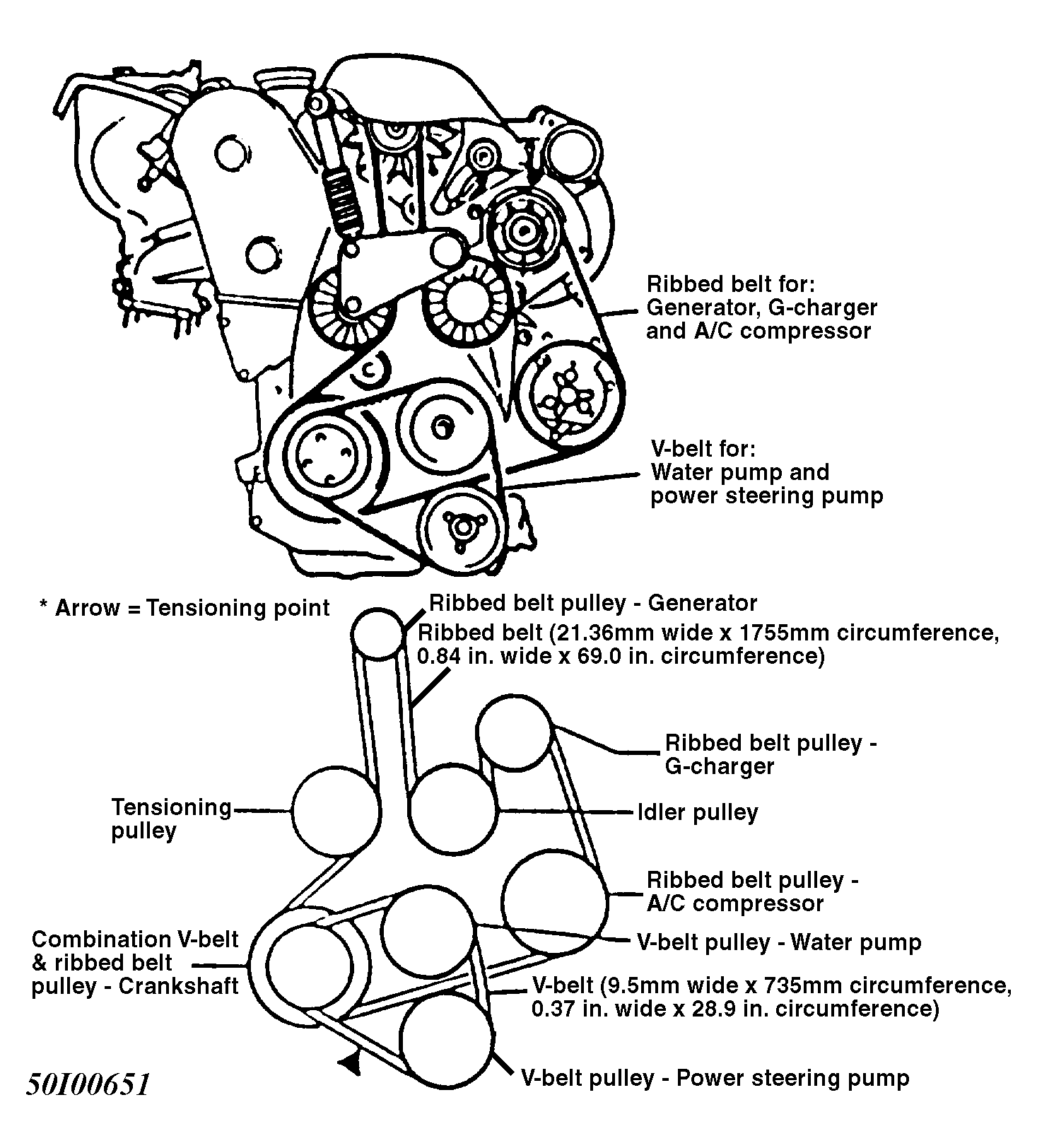

Fig 4: Drive Belt Routing (Four Cylinder With A/C)
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
