Wiring Diagrams

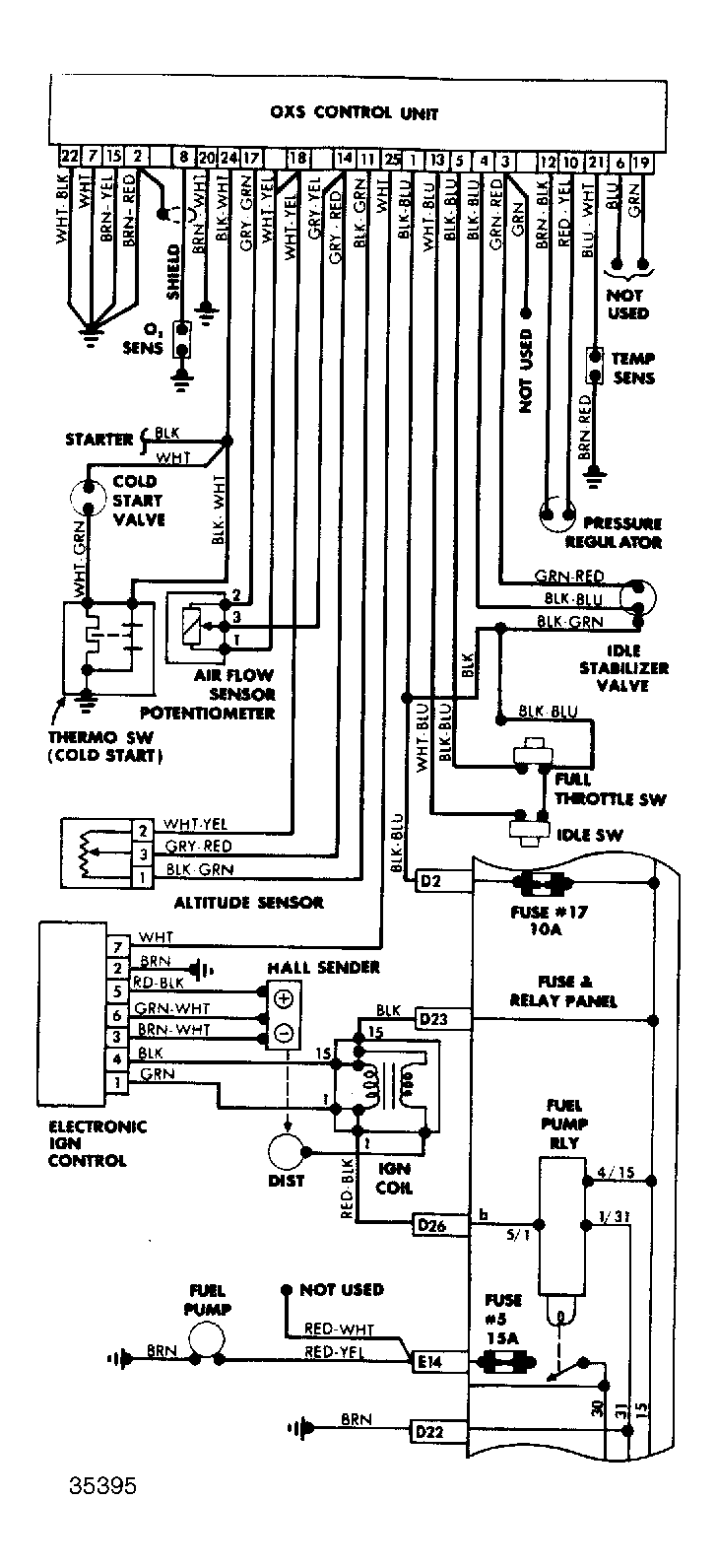

Fig 1: CIS-E Wiring Diagram (Quantum 5-Cylinder)

G35395

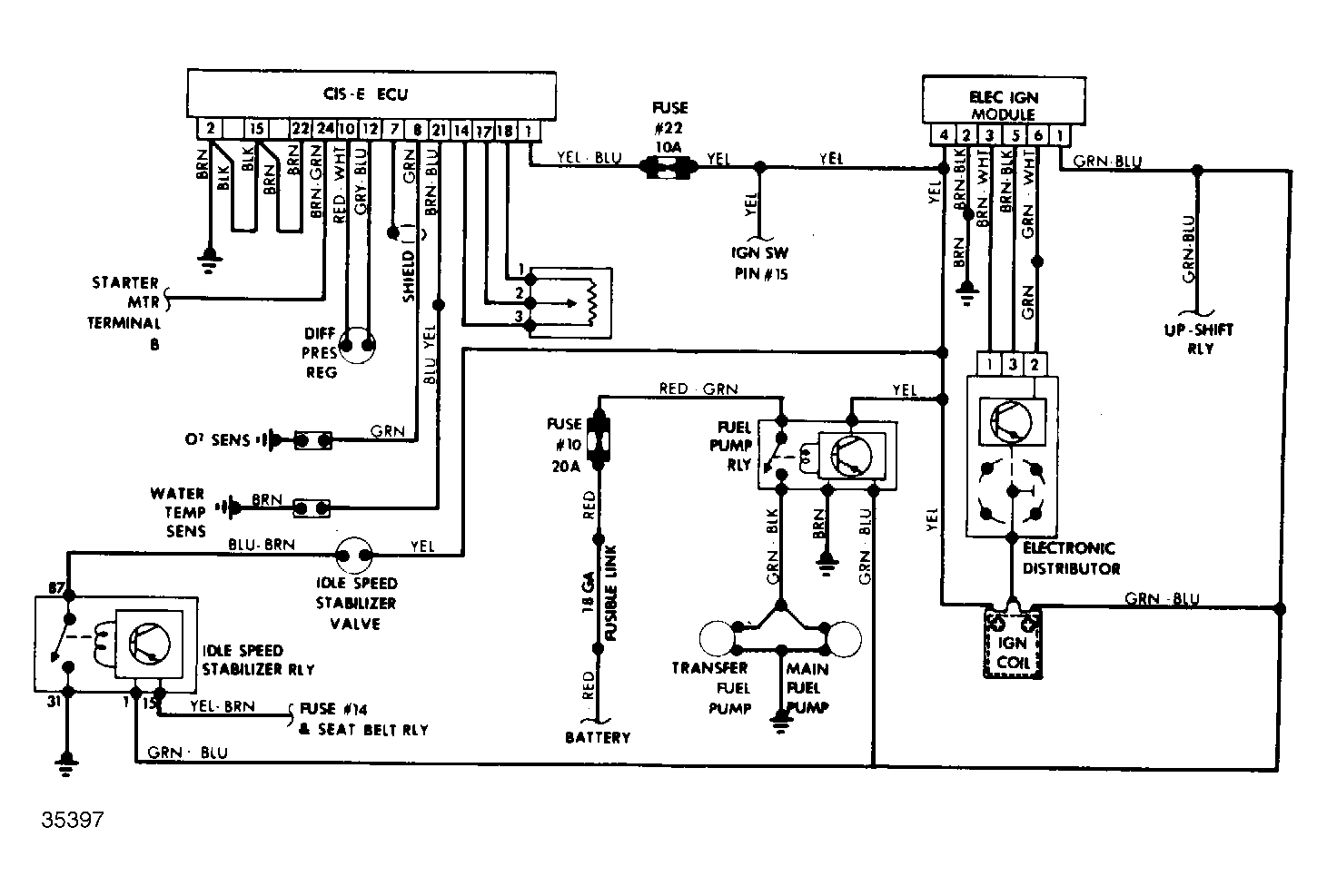

Fig 2: Wiring Diagram (Golf CIS-E)

G35397

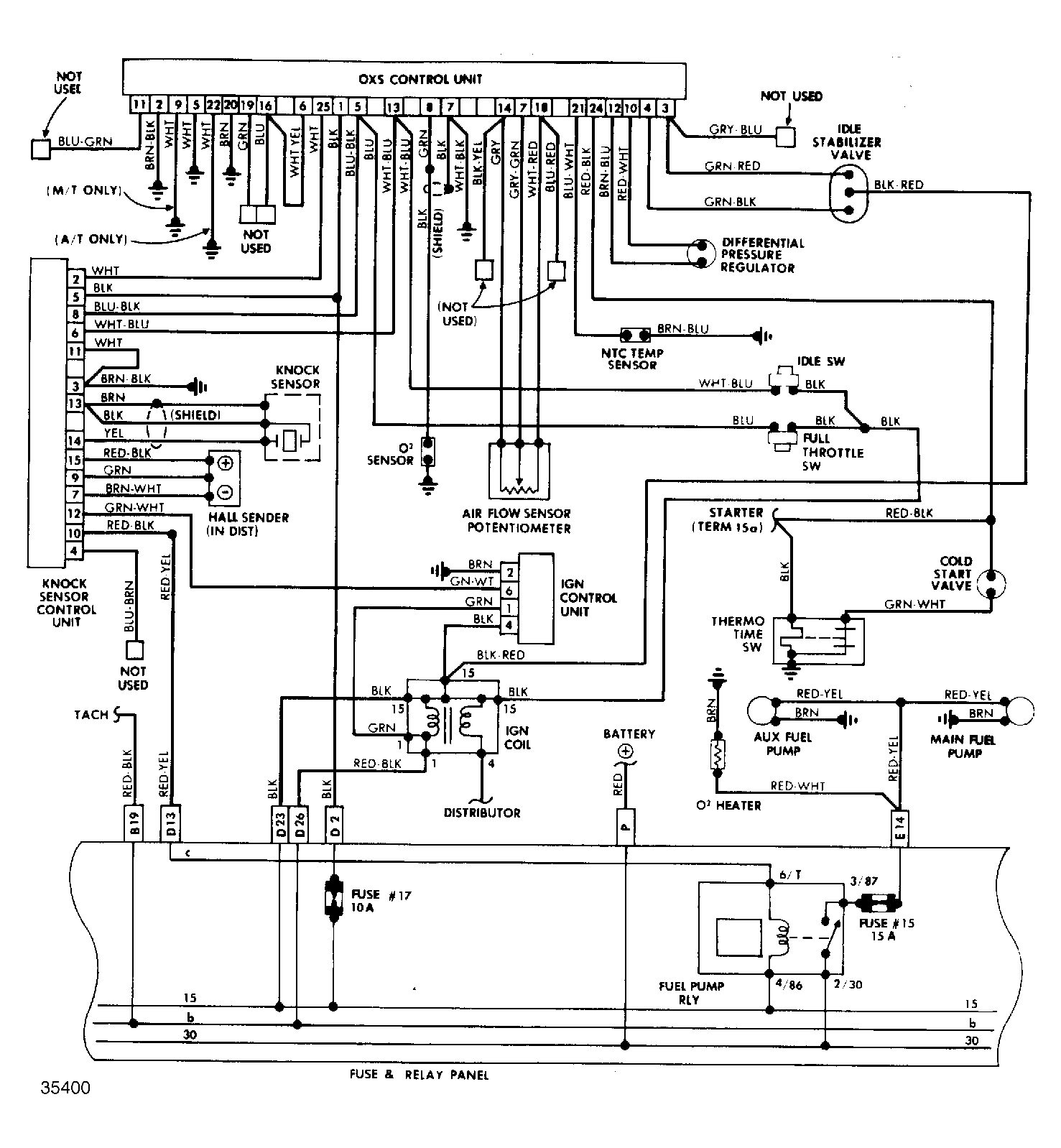

Fig 3: Wiring Diagram (GLI CIS-E)

G35400

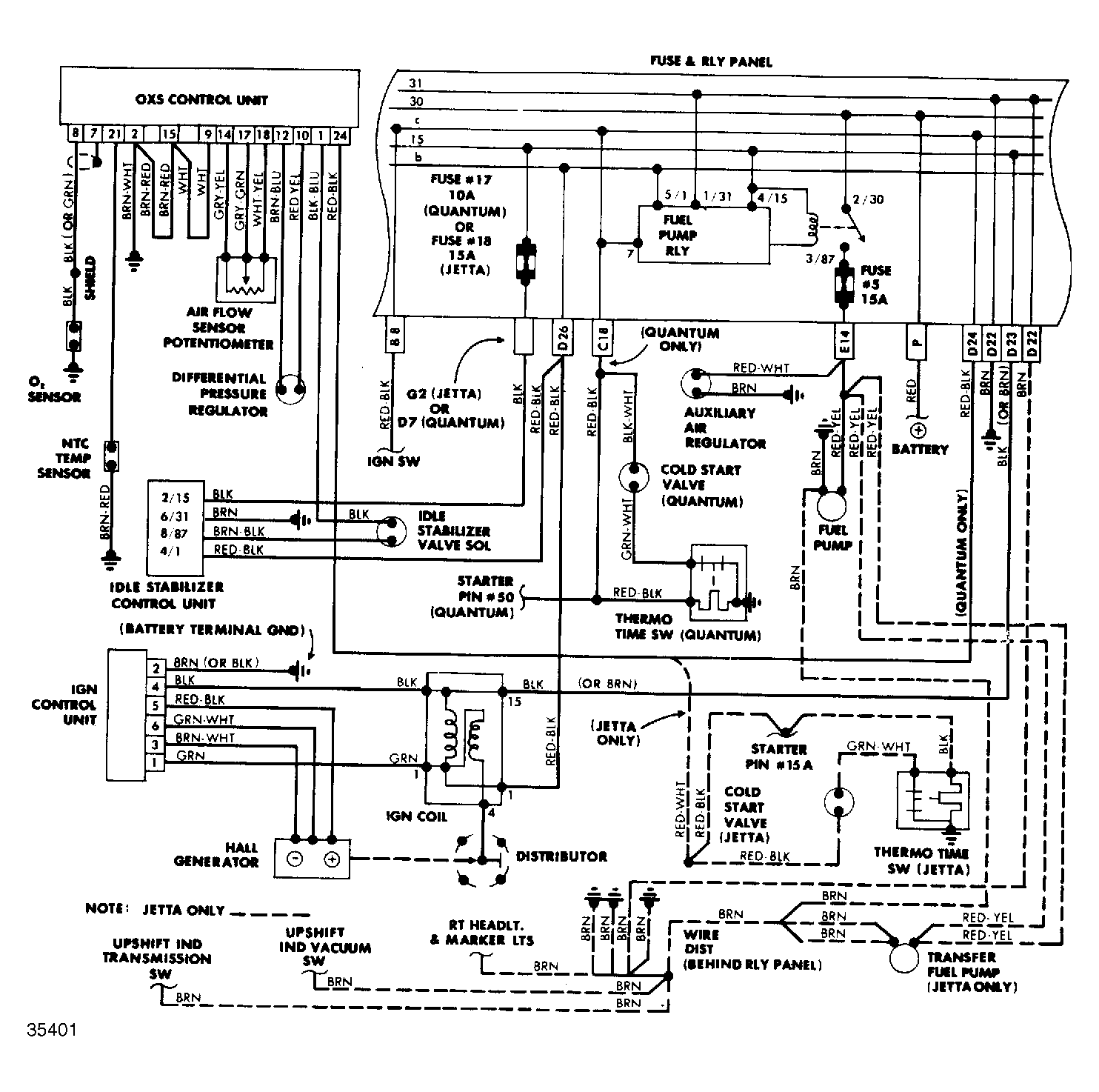

Fig 4: CIS-E Wiring Diagram (Jetta & Quantum 4-Cylinder)

G35401

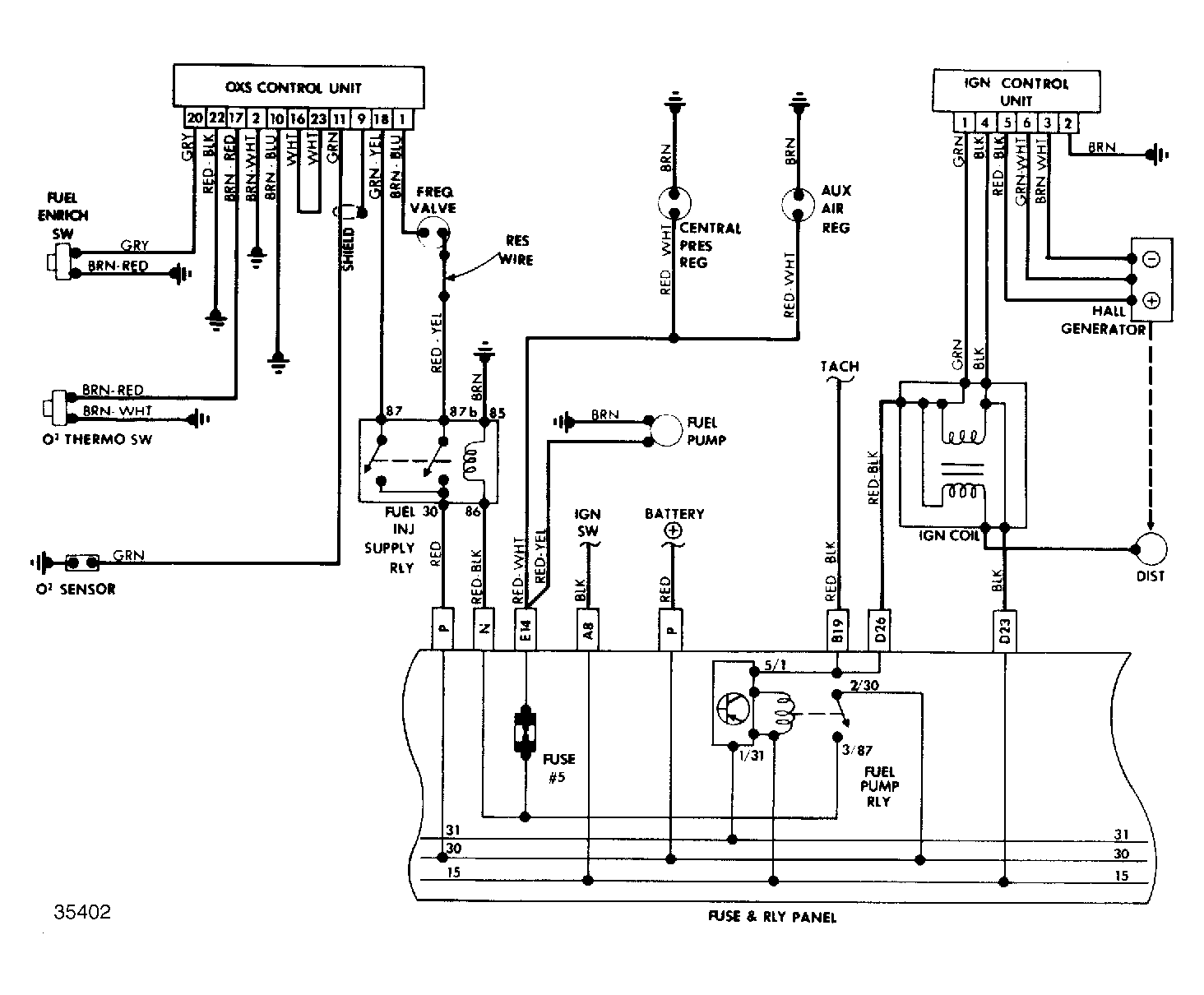

Fig 5: CIS-E Wiring Diagram (Scirocco)

G35402

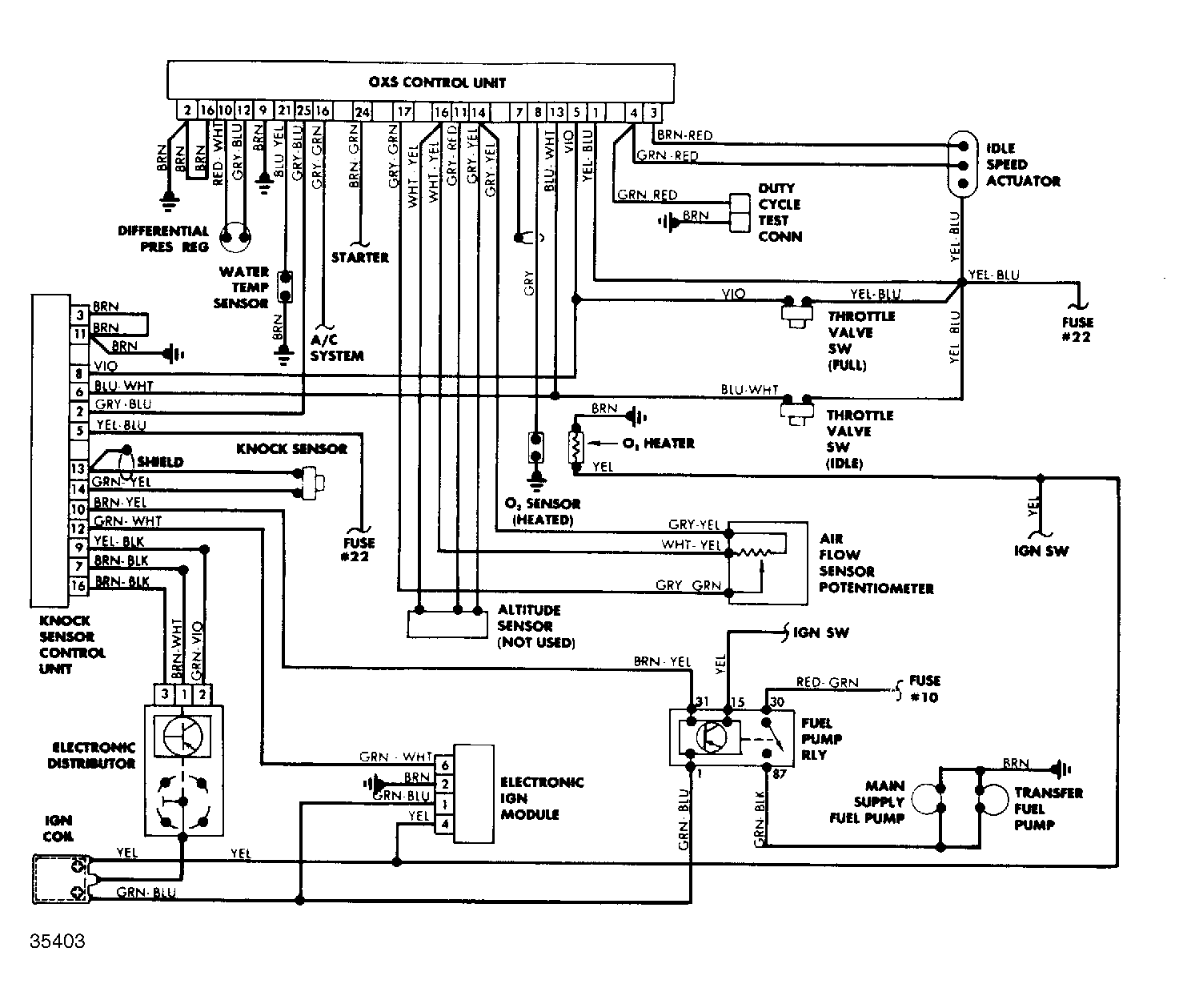

Fig 6: CIS-E Wiring Diagram (GTI)

G35403
