Fuel Injection System - BOSCH DIGIJET: Wiring Diagram

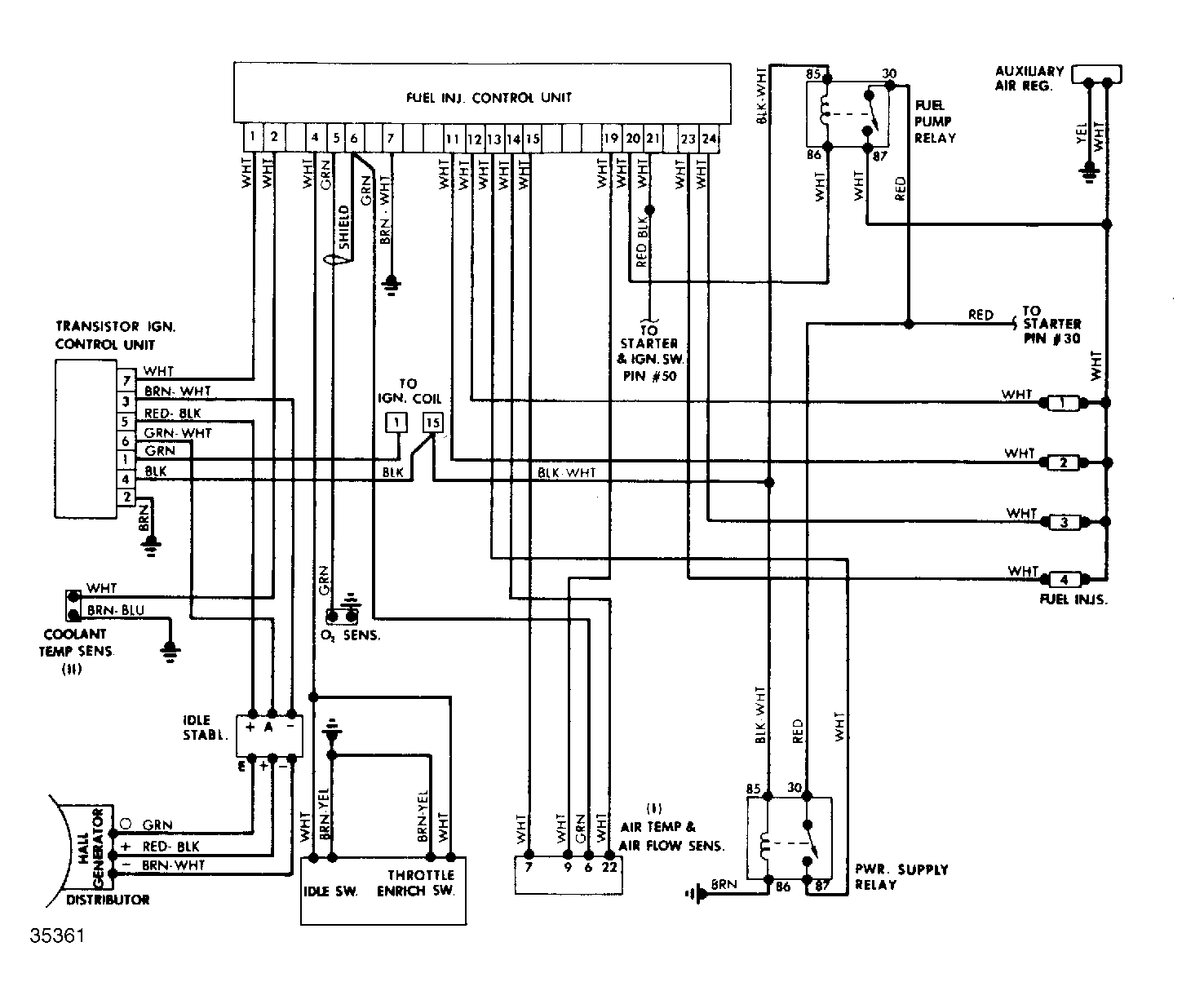

Fig 1: Bosch AFC Digijet Fuel Injection Wiring Diagram
G35361
