Wiring Diagrams

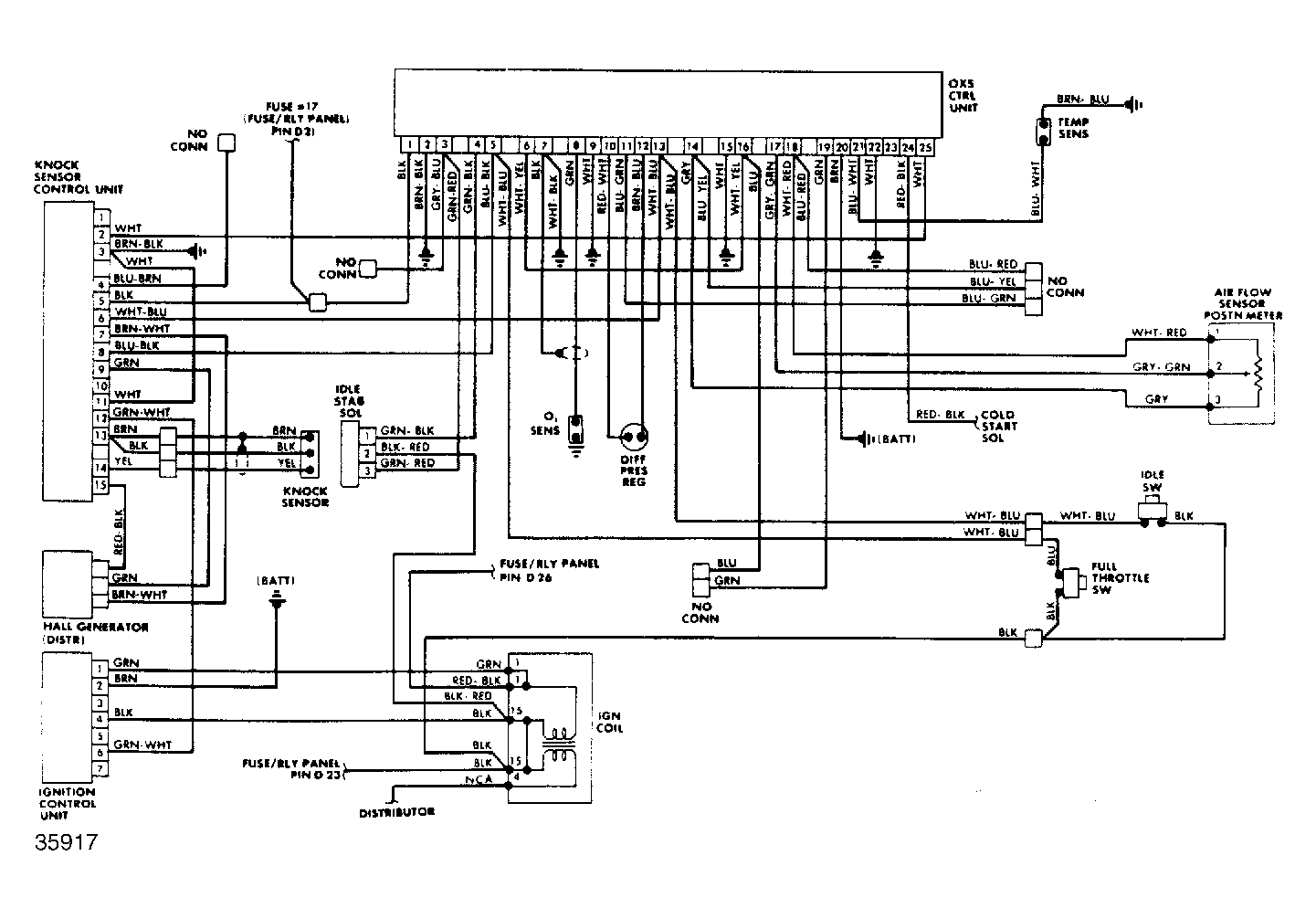

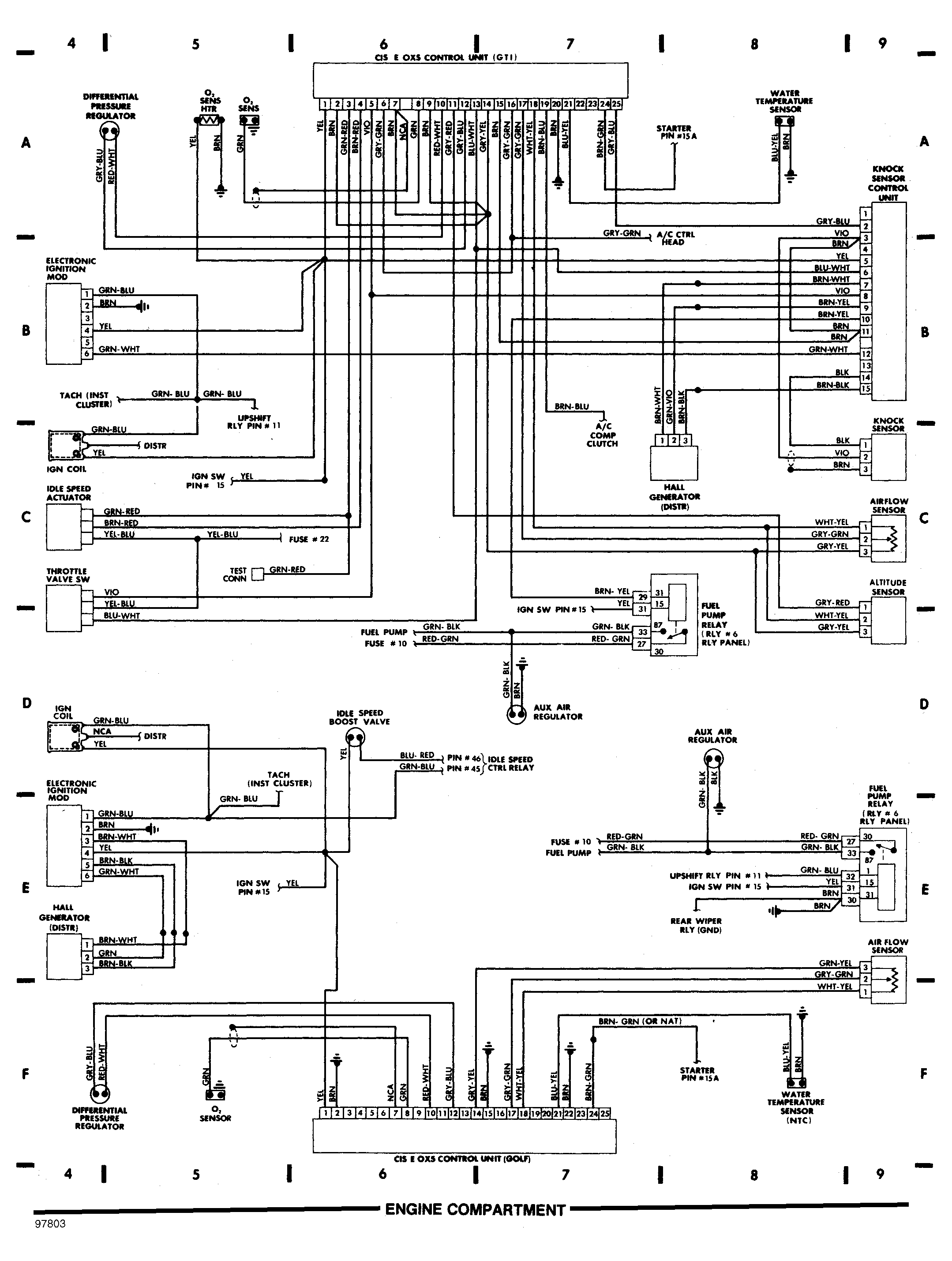

Fig 1: CIS-E Wiring Diagram (Golf/GTI)

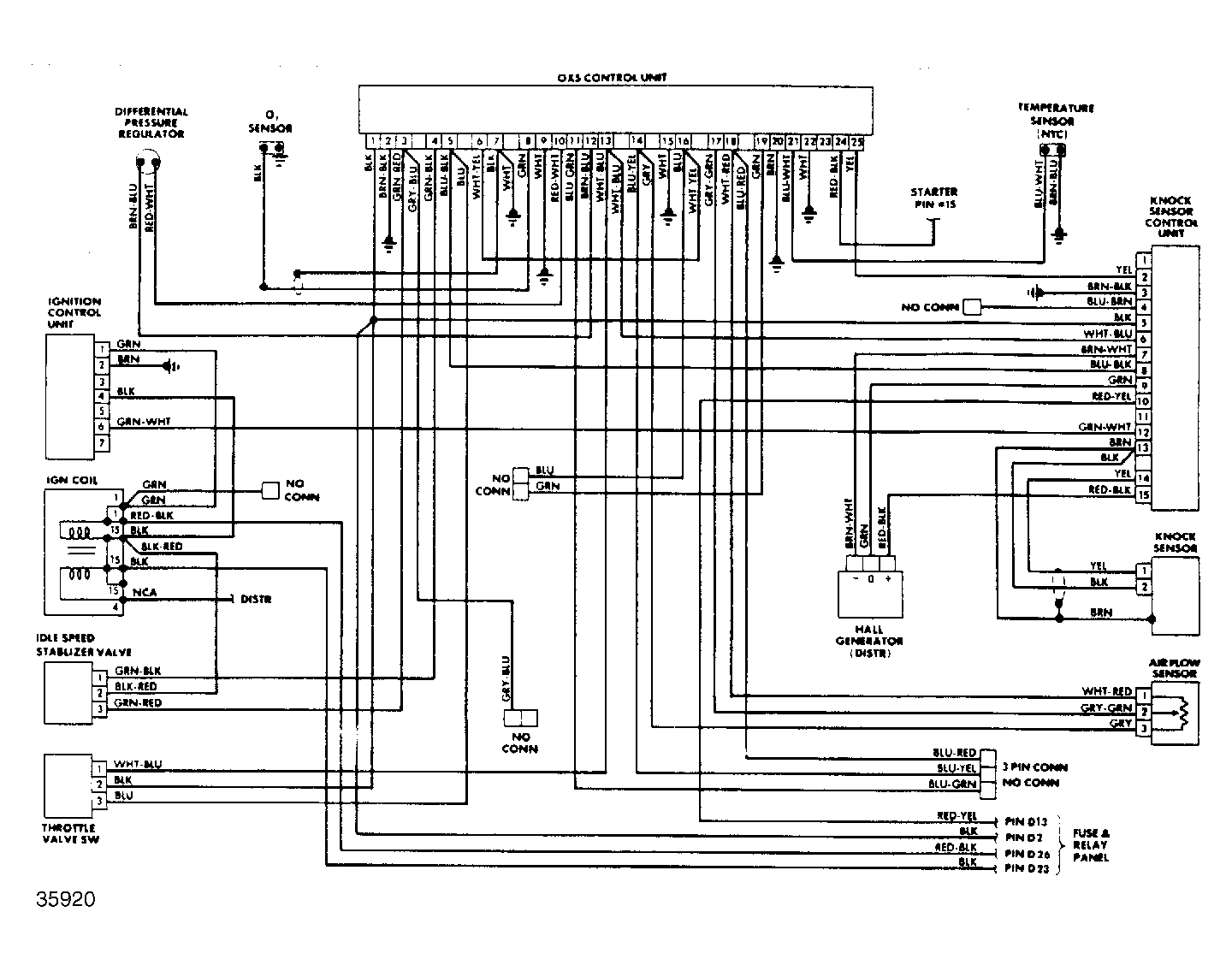

Fig 2: CIS-E Wiring Diagram (GLI)

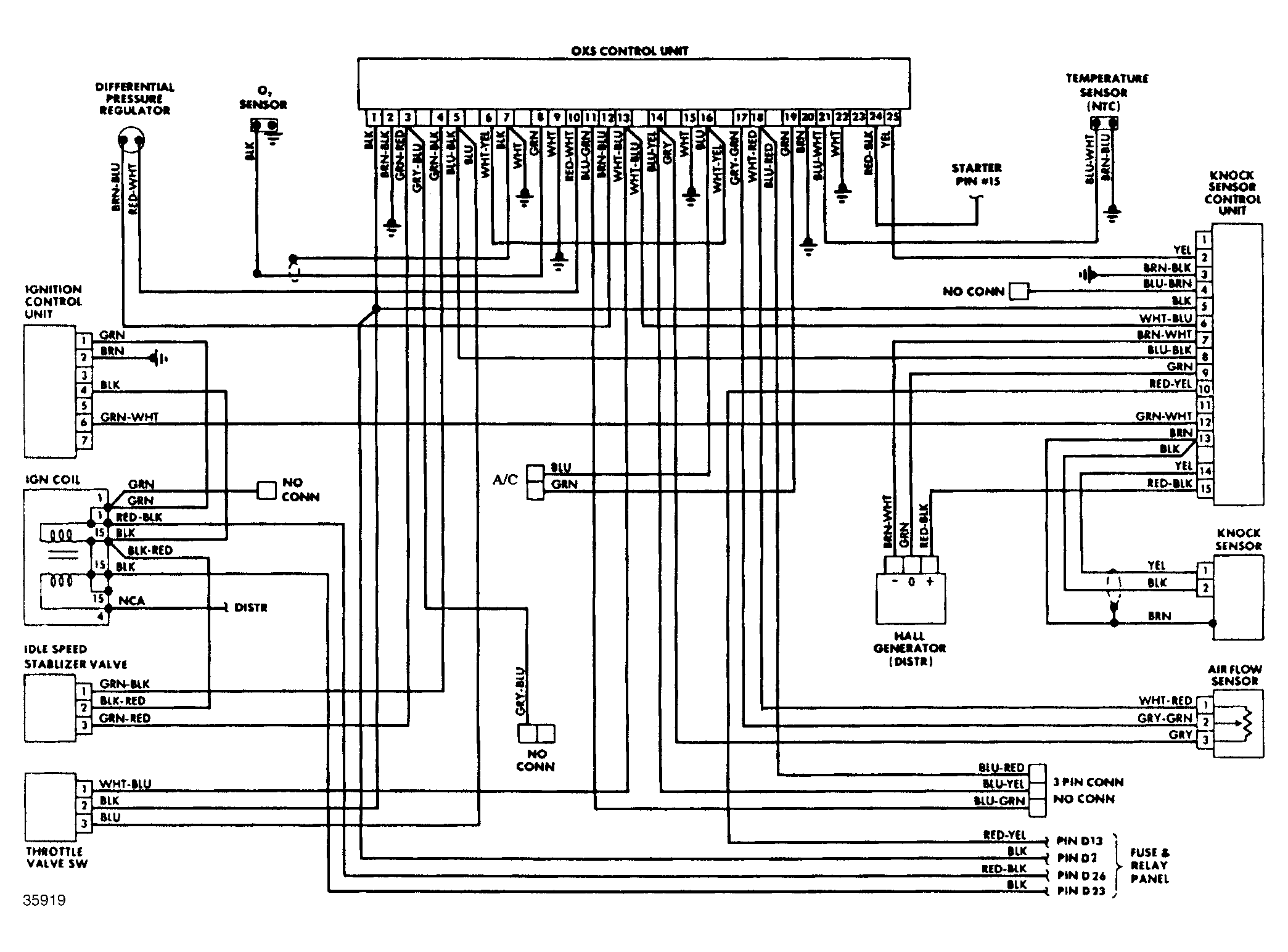

Fig 3: CIS-E Wiring Diagram (Jetta)

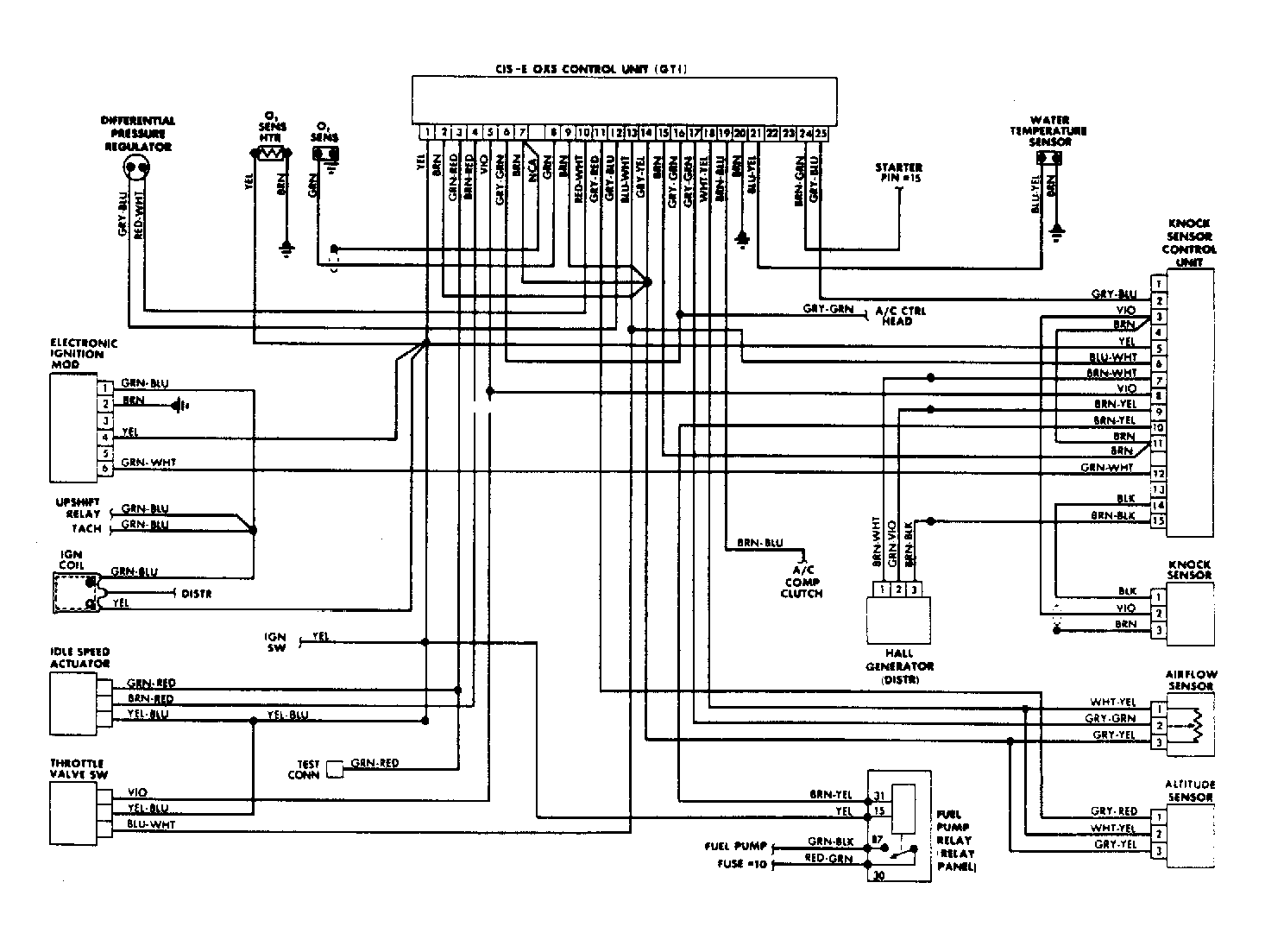

Fig 4: CIS-E Wiring Diagram (Jetta GLI)

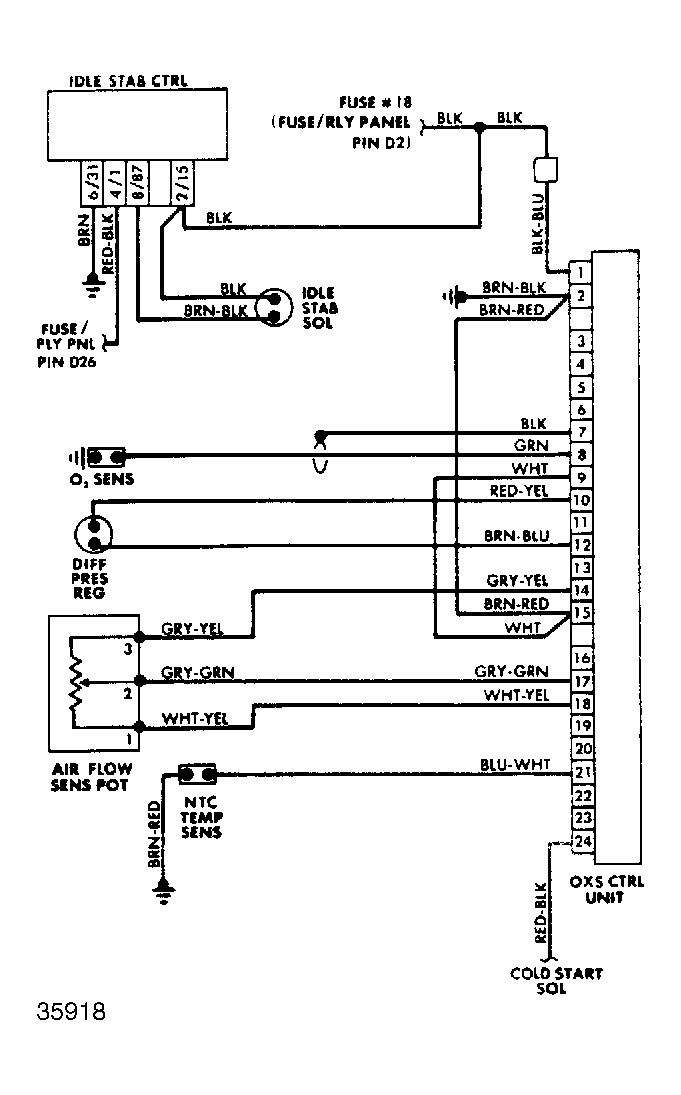

Fig 5: CIS-E Wiring Diagram (Scirocco - 16-Valve)

Fig 6: CIS-E Wiring Diagram (Quantum - 4-Cylinder)

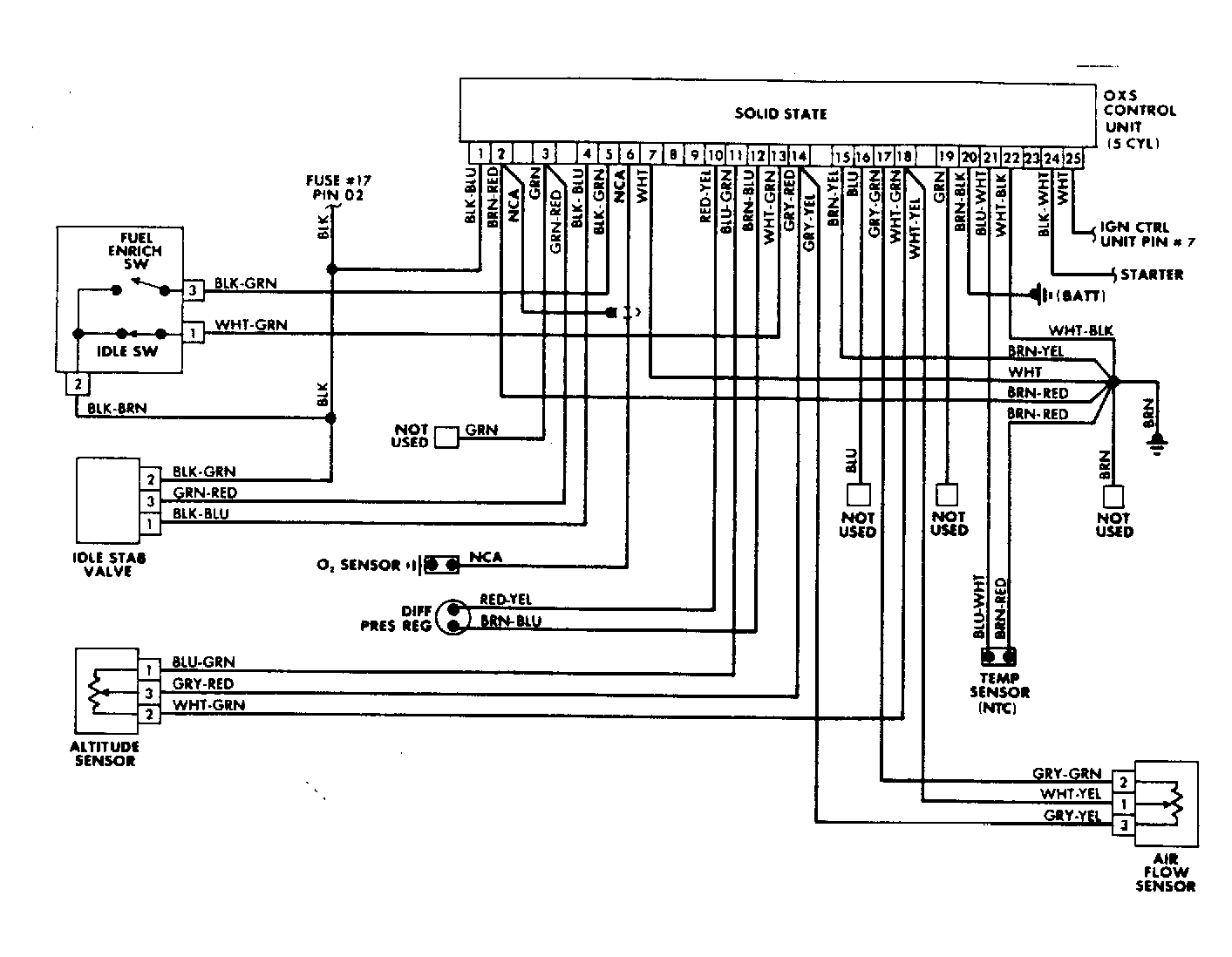

Fig 7: CIS-E Wiring Diagram (Quantum - 5-Cylinder)
