Fuel Injection System - BOSCH Cis
›
Wiring Diagrams
Wiring Diagrams

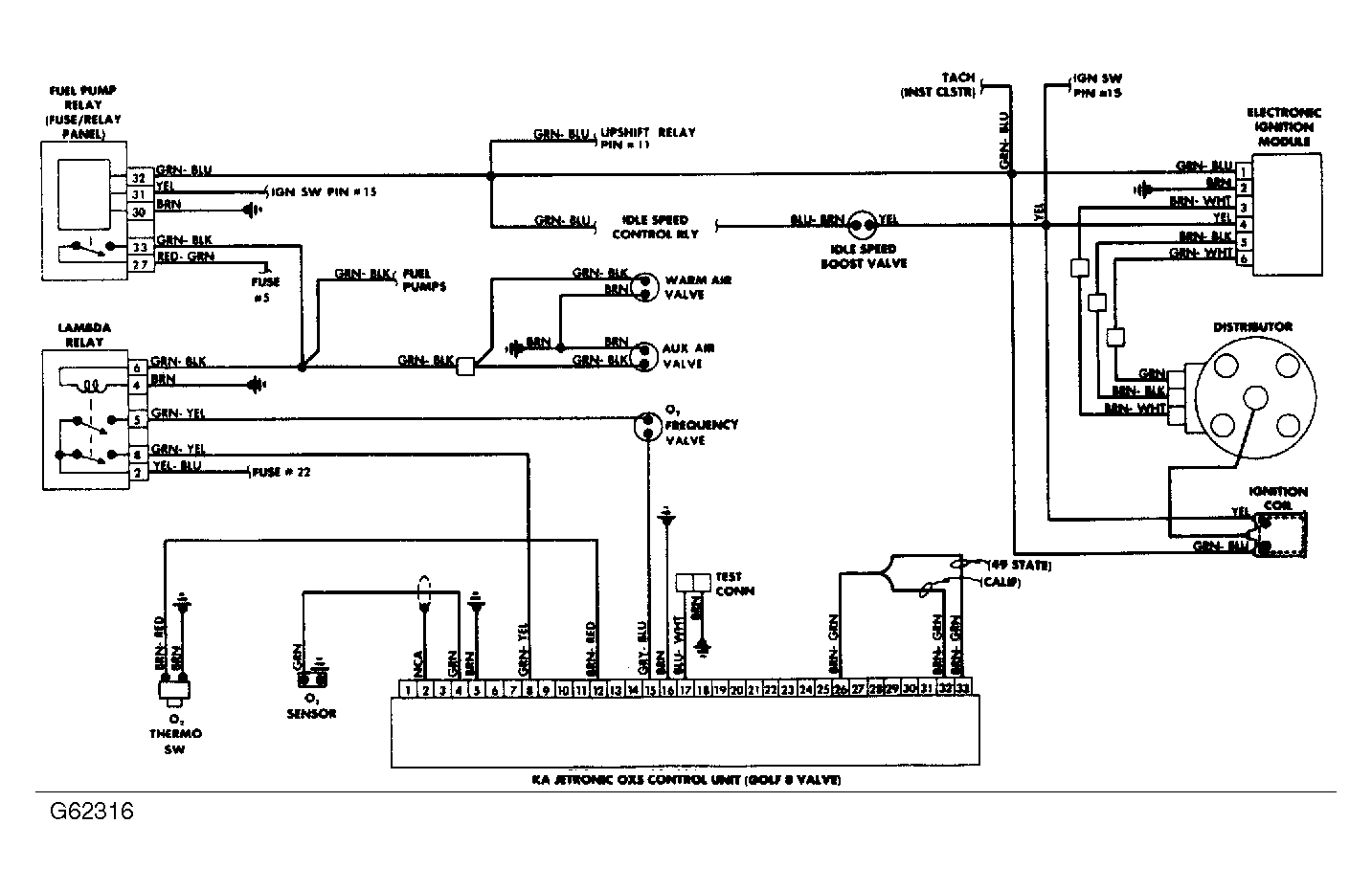

Fig 1: CIS (Lambda) Wiring Diagram for Volkswagen Cabriolet

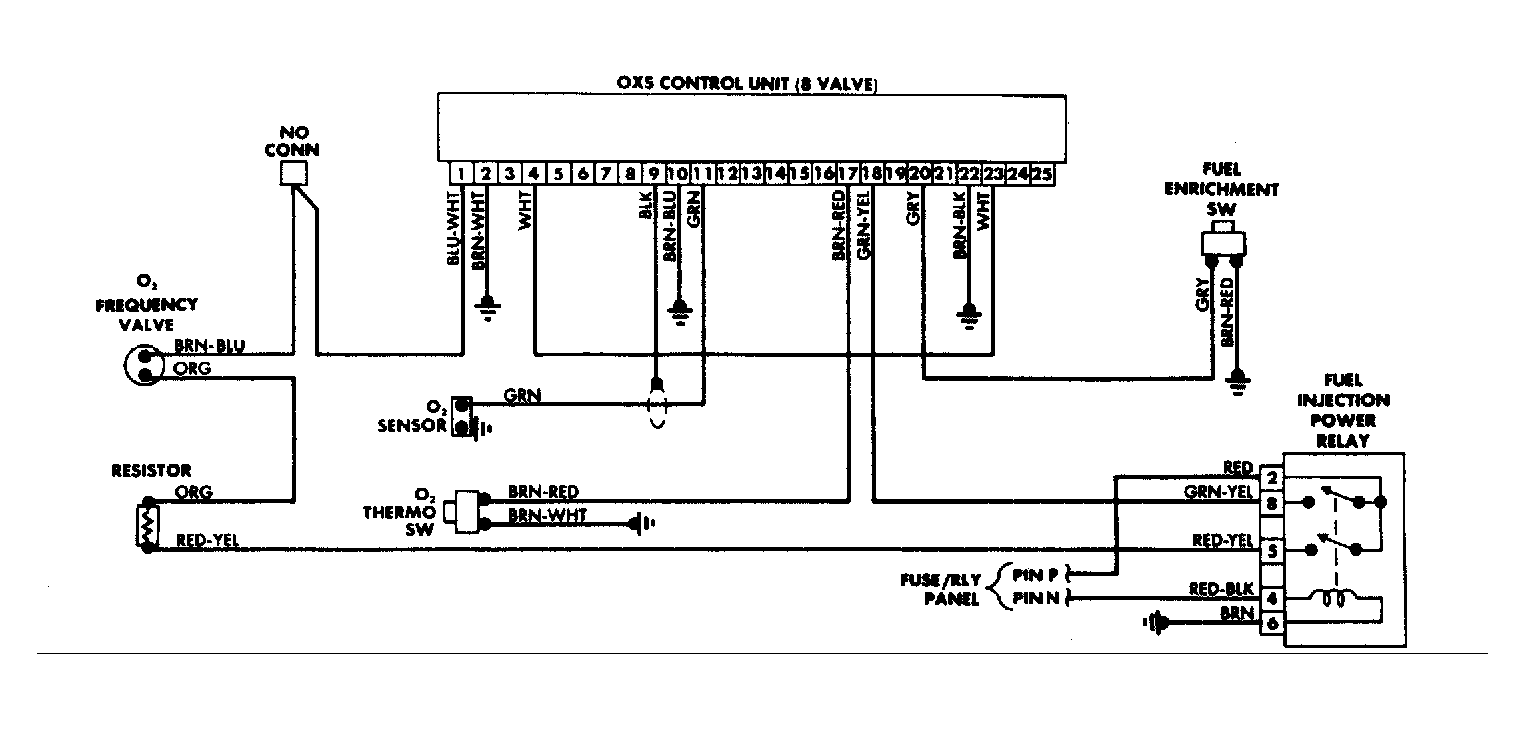

Fig 2: CIS (Lambda) Wiring Diagram for Volkswagen Golf

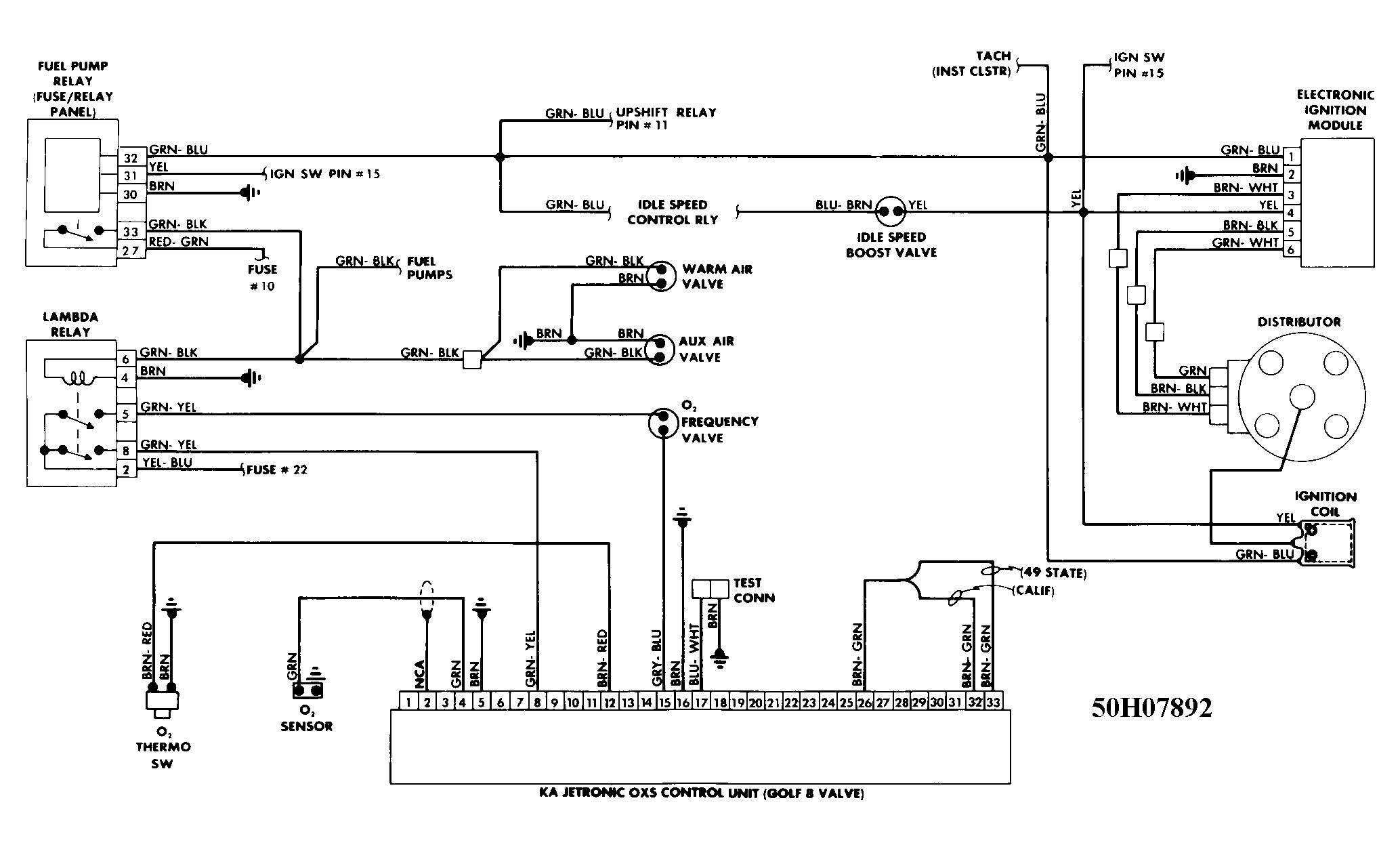

Fig 3: CIS (Lambda) Wiring Diagram for Volkswagen Jetta
