BOSCH AFC System
›
Wiring Diagrams
Wiring Diagrams

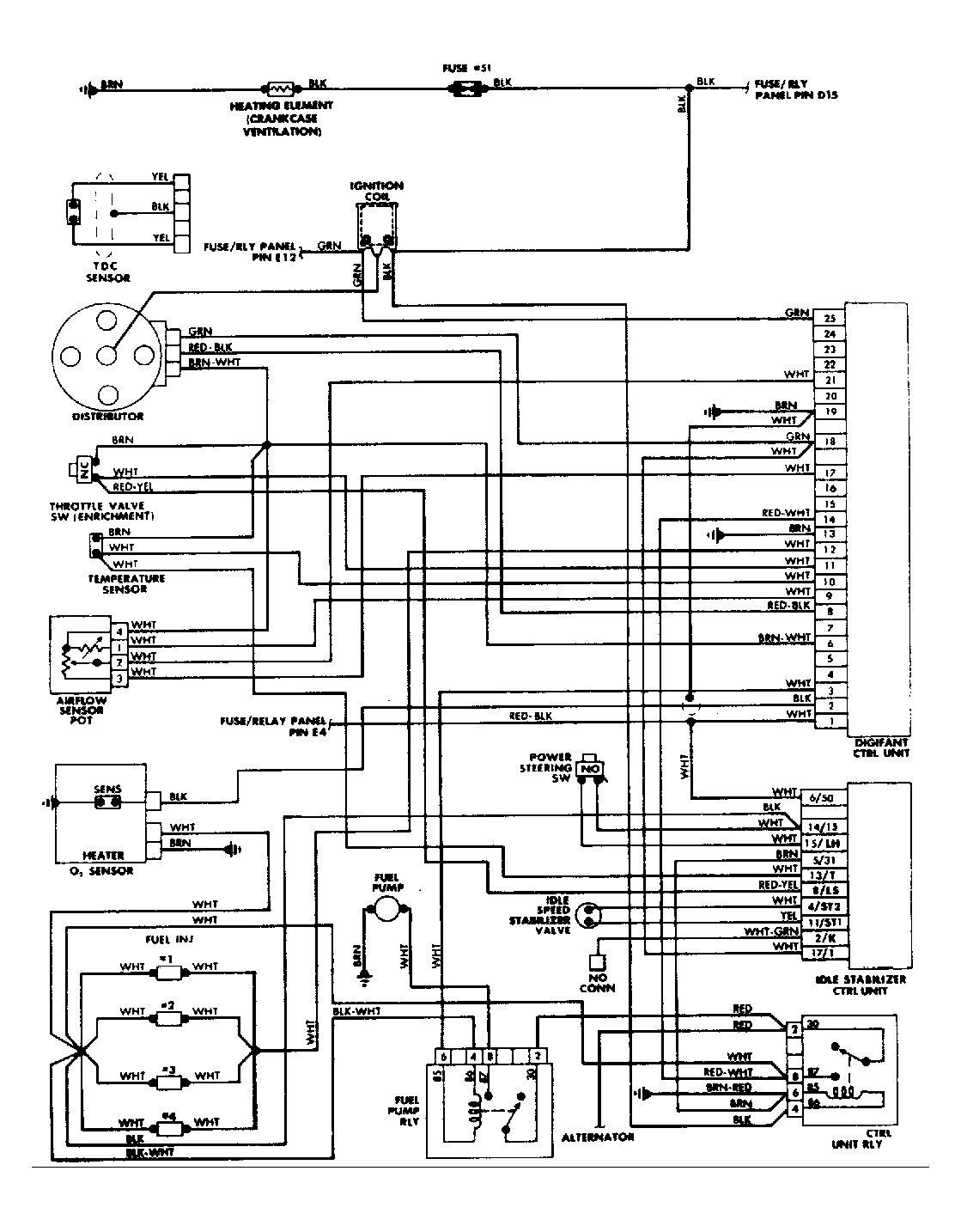

Fig 1: Bosch AFC Digifant Fuel Injection Wiring Diagram
