Heater Booster System
Heater Booster System

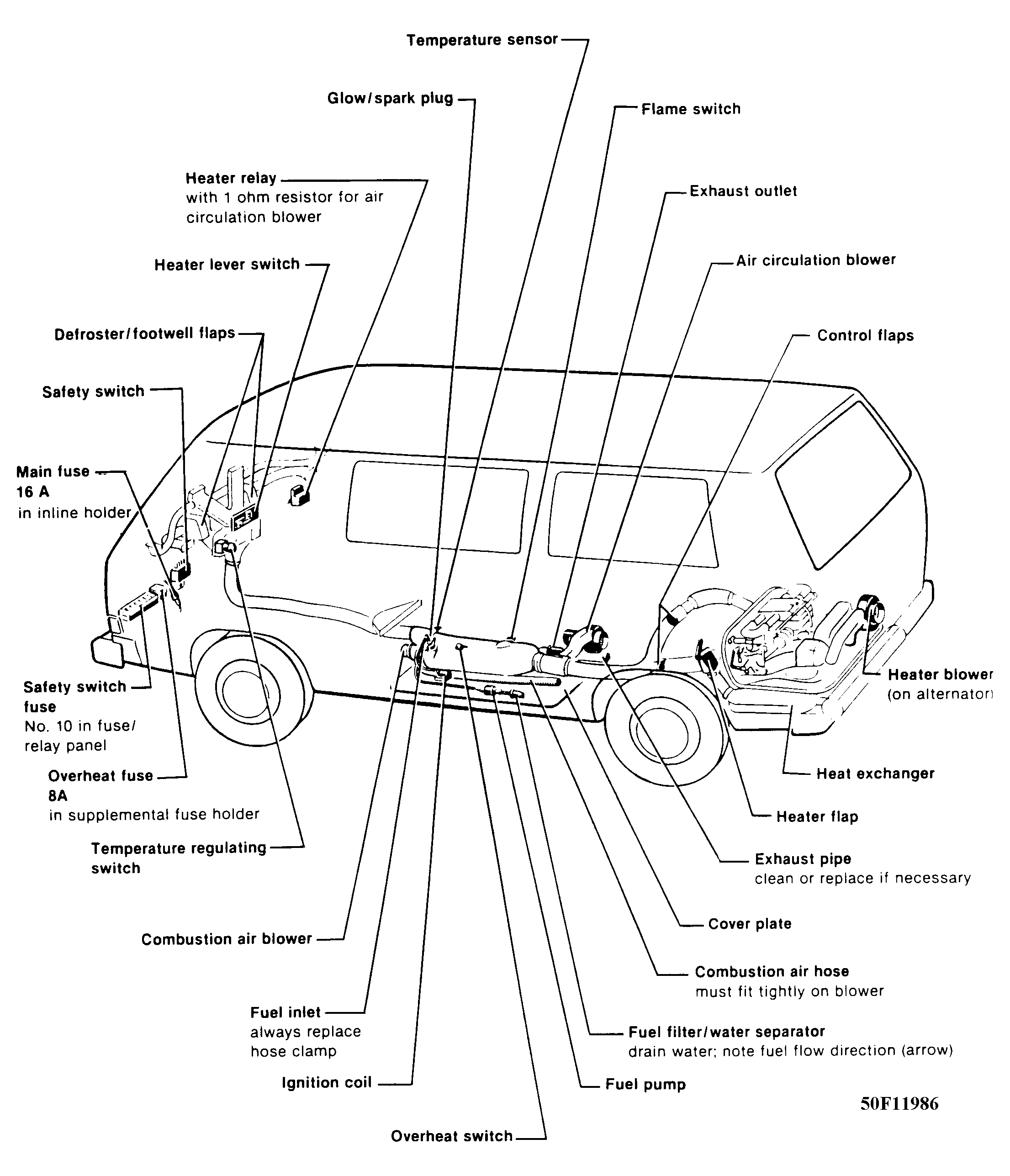

Fig 1: Heater-Booster System 1 of 2 (Diesel)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

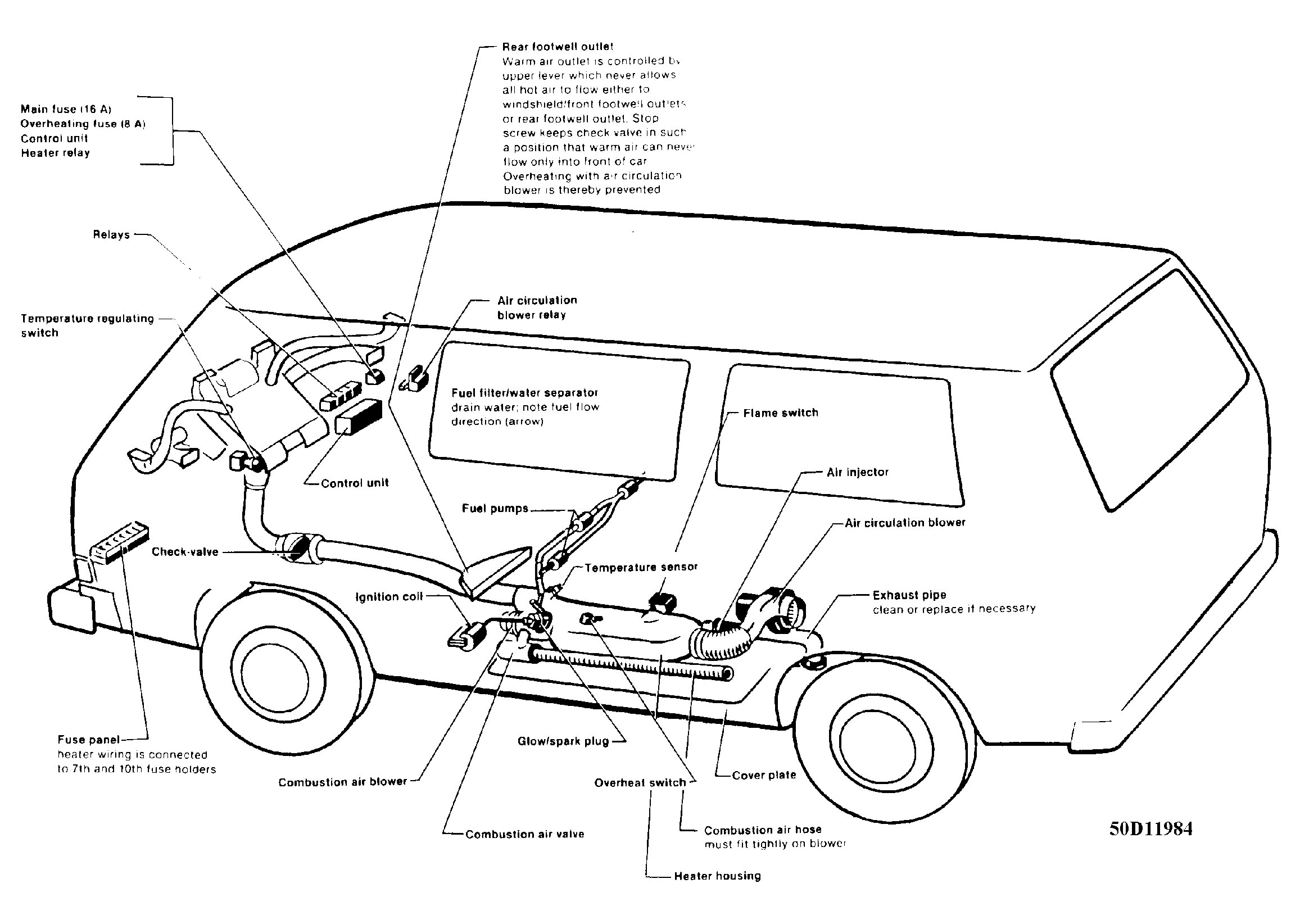

Fig 2: Heater-Booster System 2 of 2 (Diesel)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

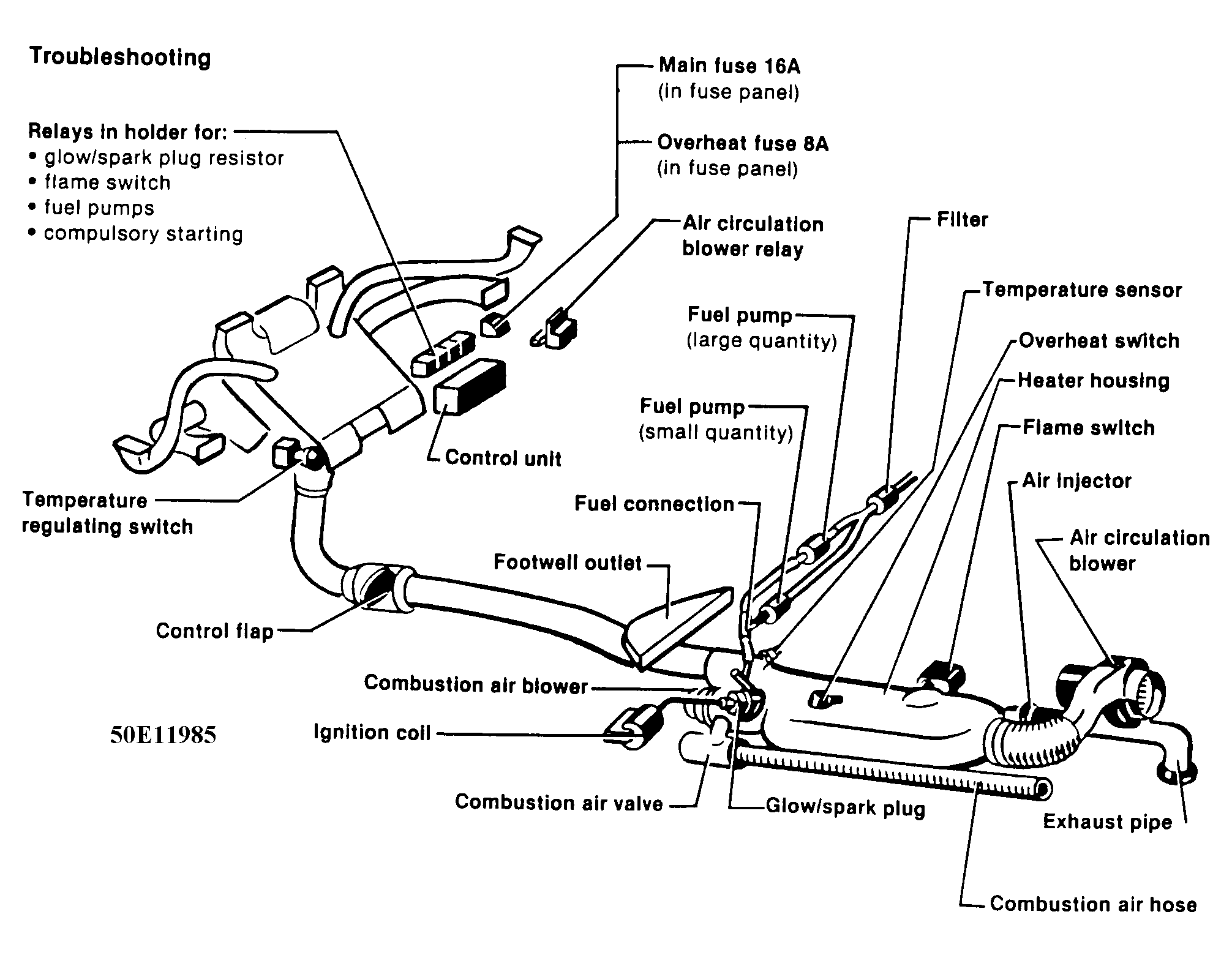

Fig 3: Heater Booster System (Gasoline - Air-Cooled)
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
