Wiring Diagrams

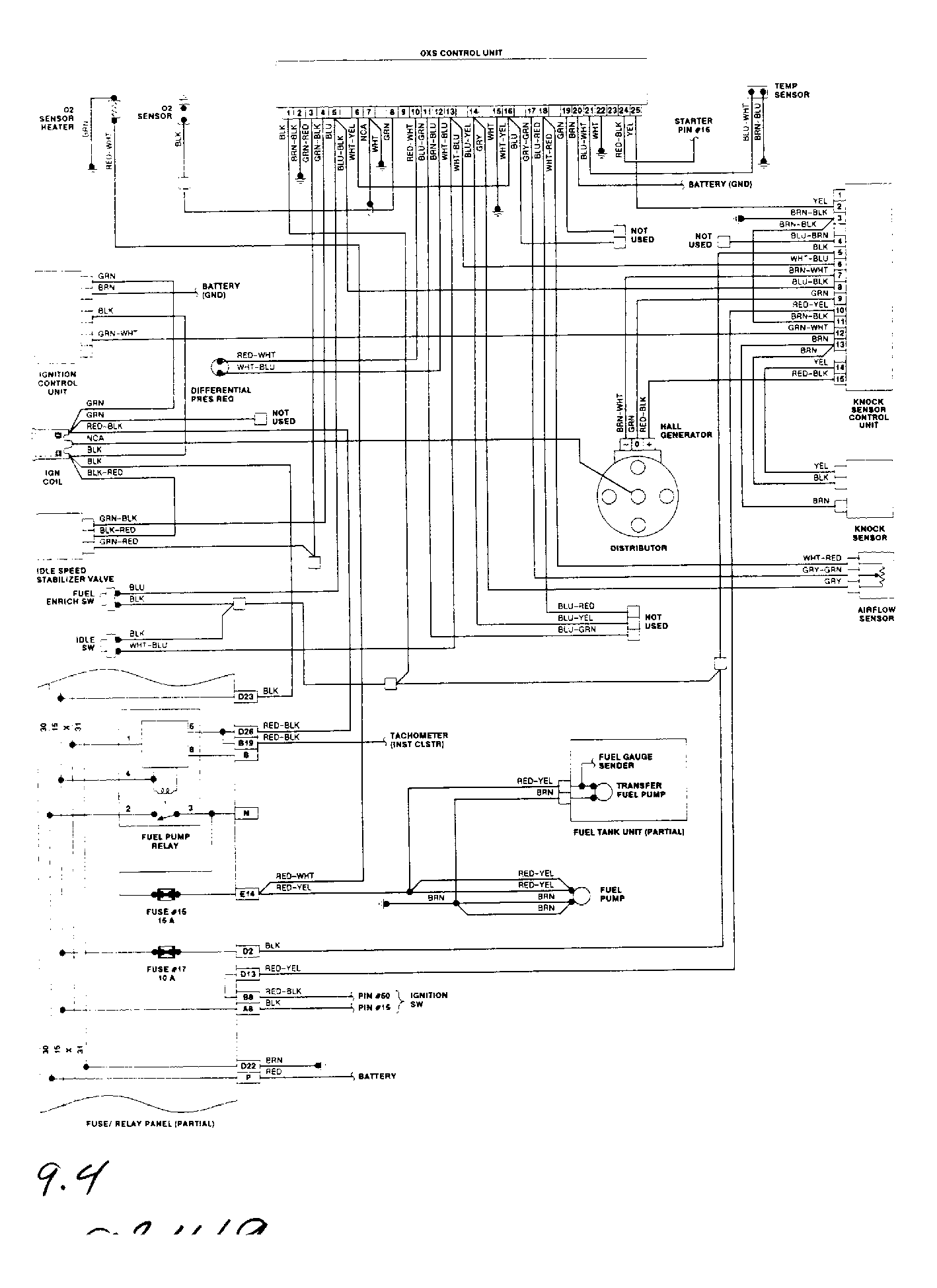

Fig 1: CIS-E Wiring Diagram (Cabriolet)

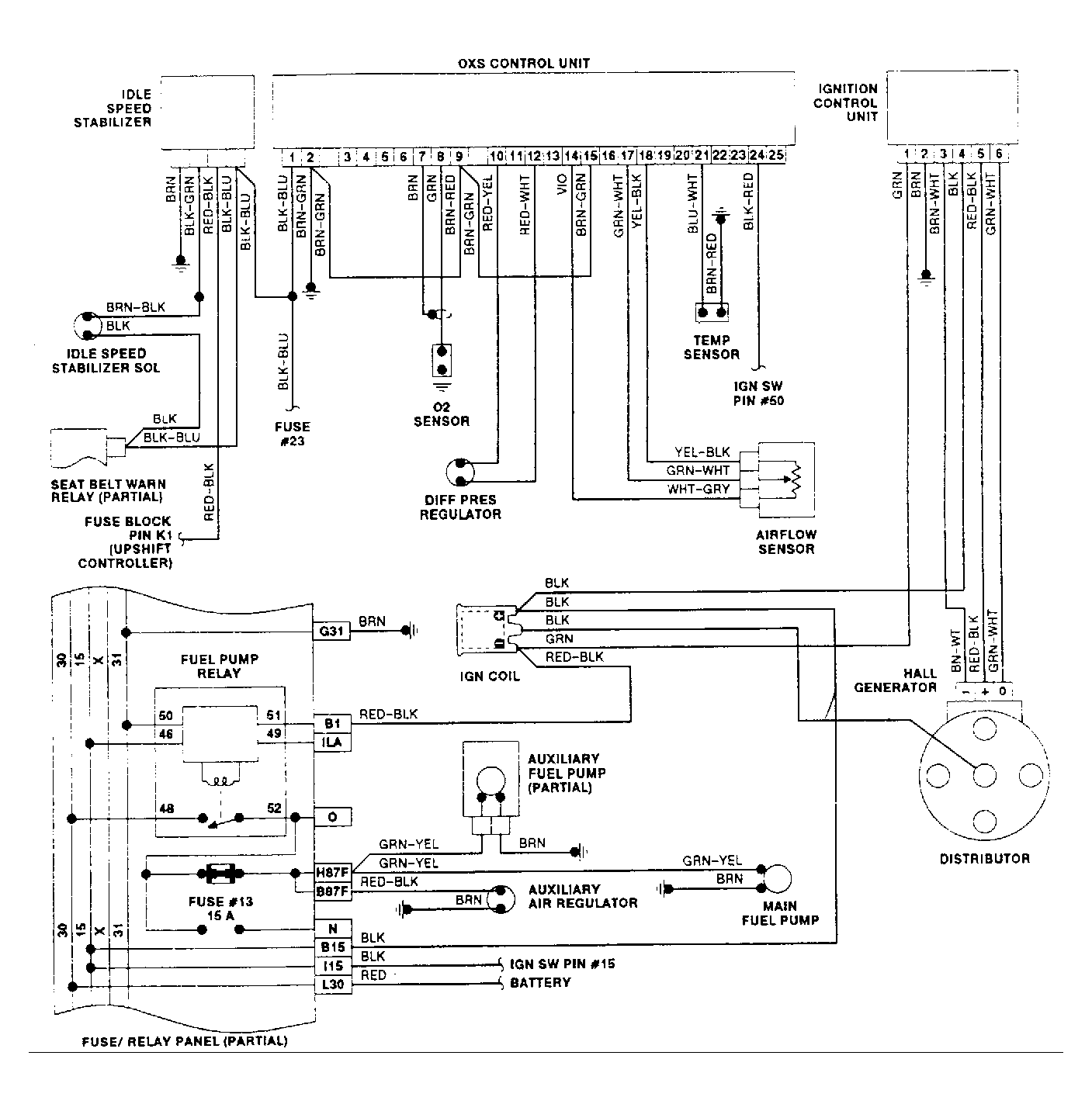

Fig 2: CIS-E Wiring Diagram (Fox)

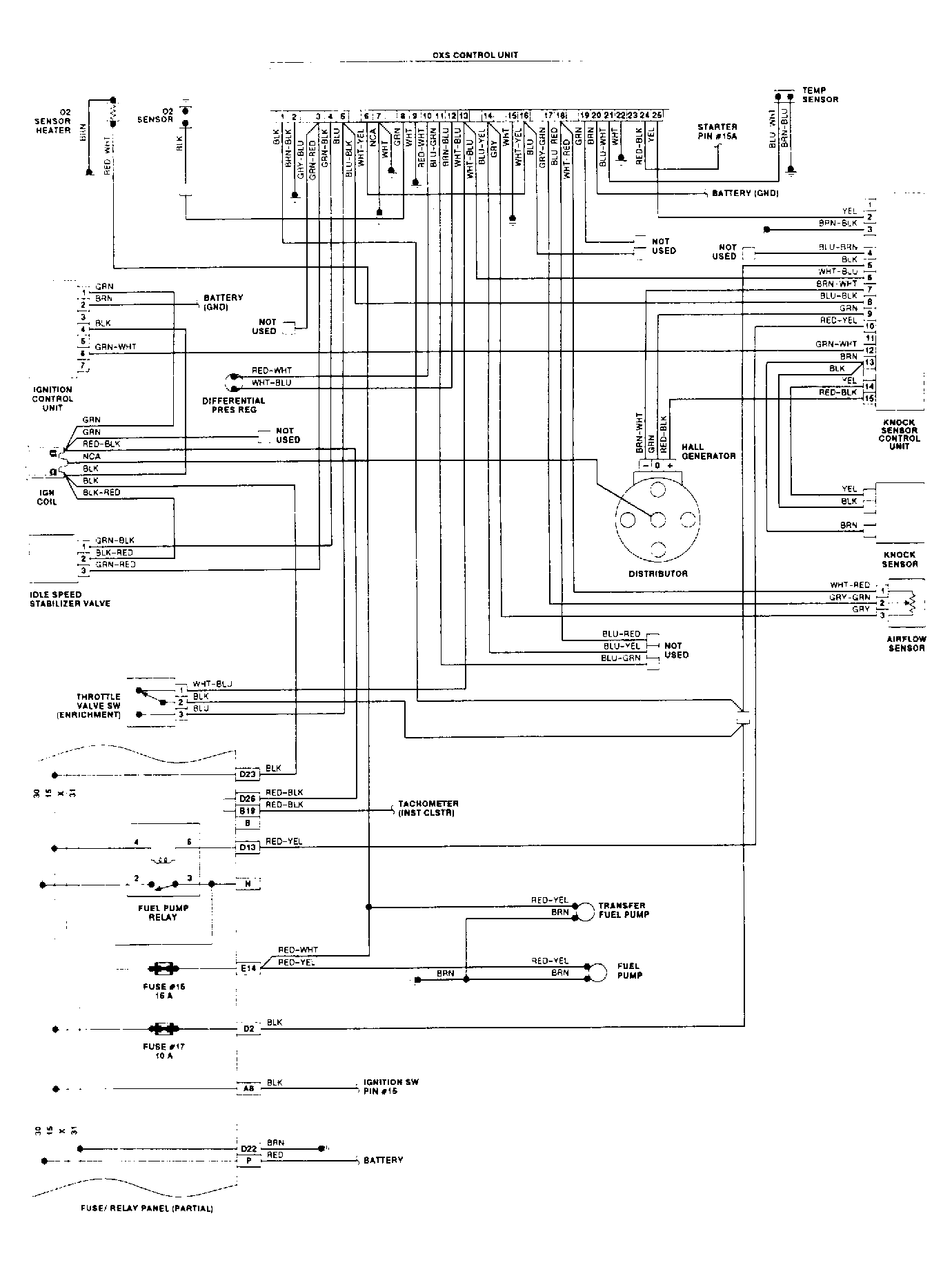

Fig 3: CIS-E Wiring Diagram (Golf GTI - 16-Valve)

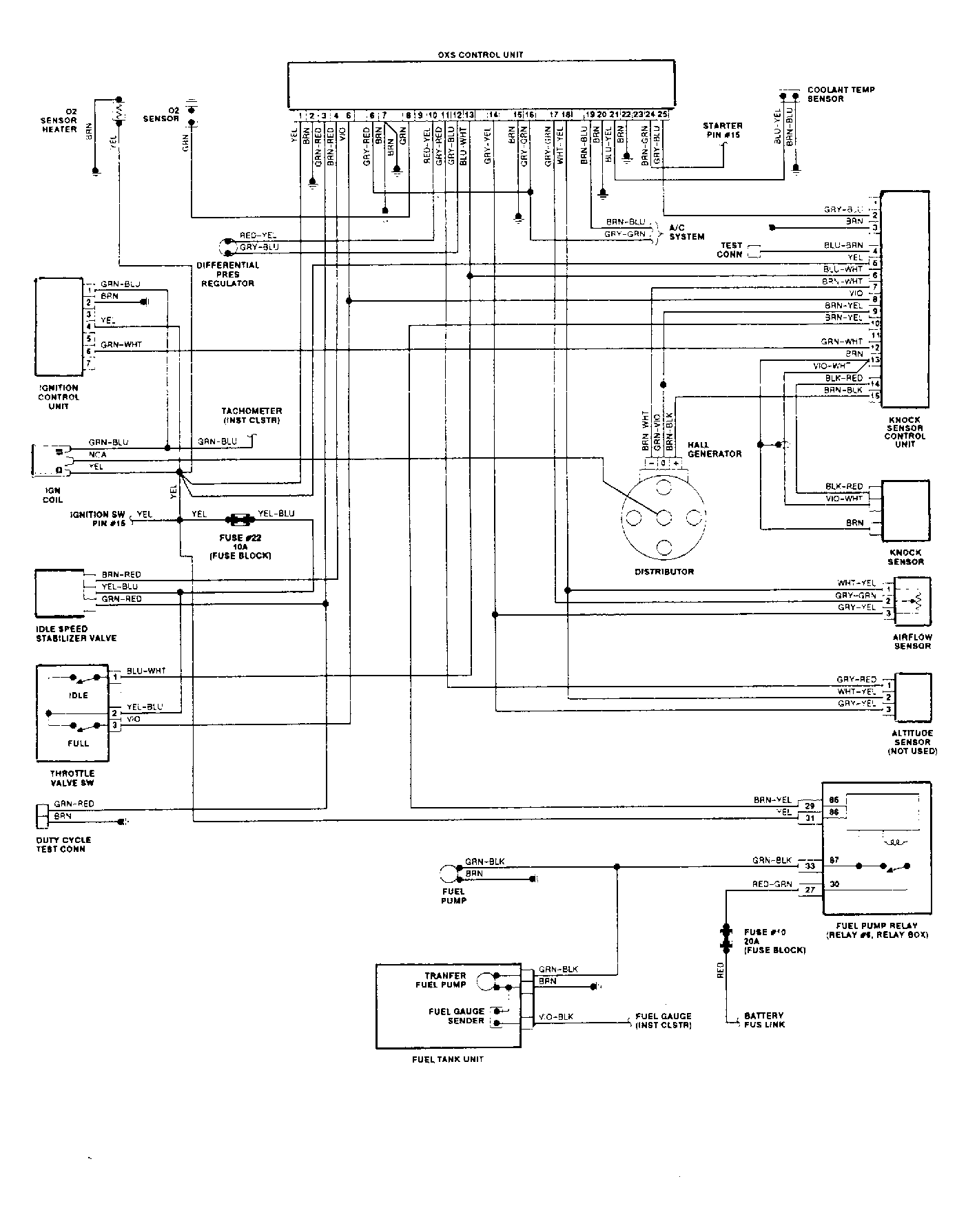

Fig 4: CIS-E Wiring Diagram (Jetta GLI - 16-Valve)

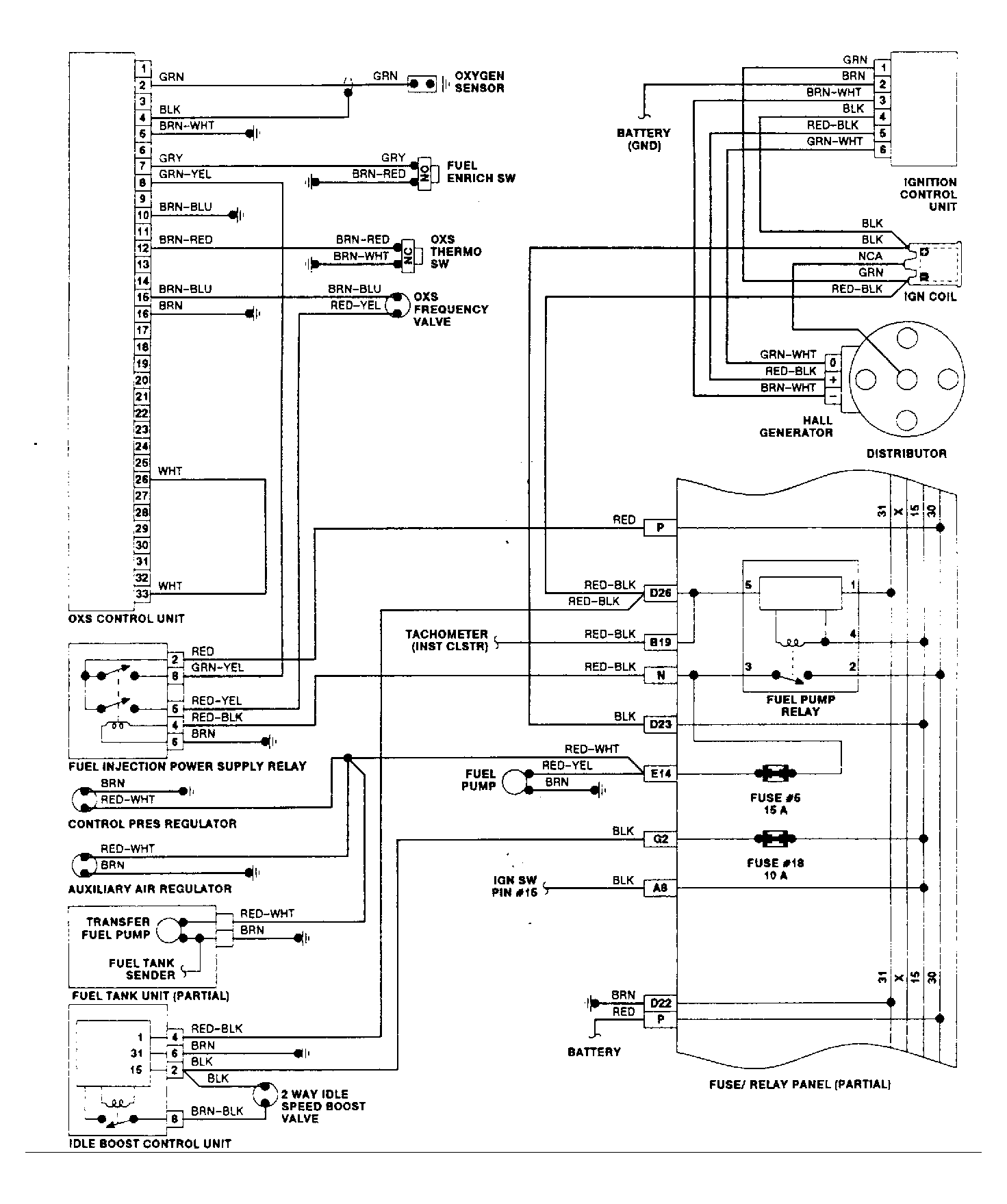

Fig 5: CIS-E Wiring Diagram (Scirocco - (16-Valve)

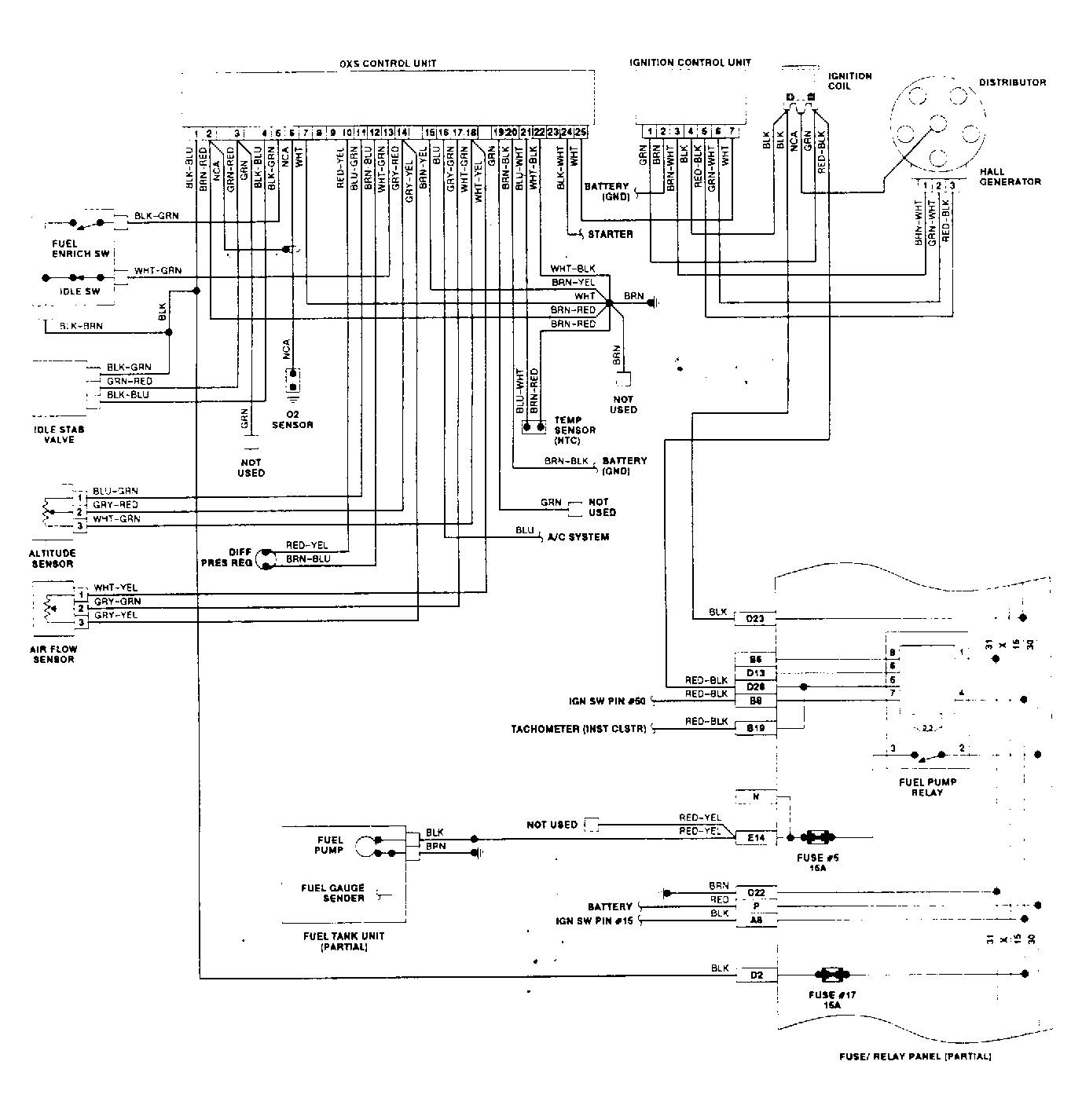

Fig 6: CIS-E Wiring Diagram (Quantum & Quantum Syncro)
