Input Devices: Notes

All vehicles are equipped with different combinations of input devices. Not all devices are used on all models. To determine the input usage on a specific model, see WIRING DIAGRAMS article. The available input signals are limited to the following 2 sensors.

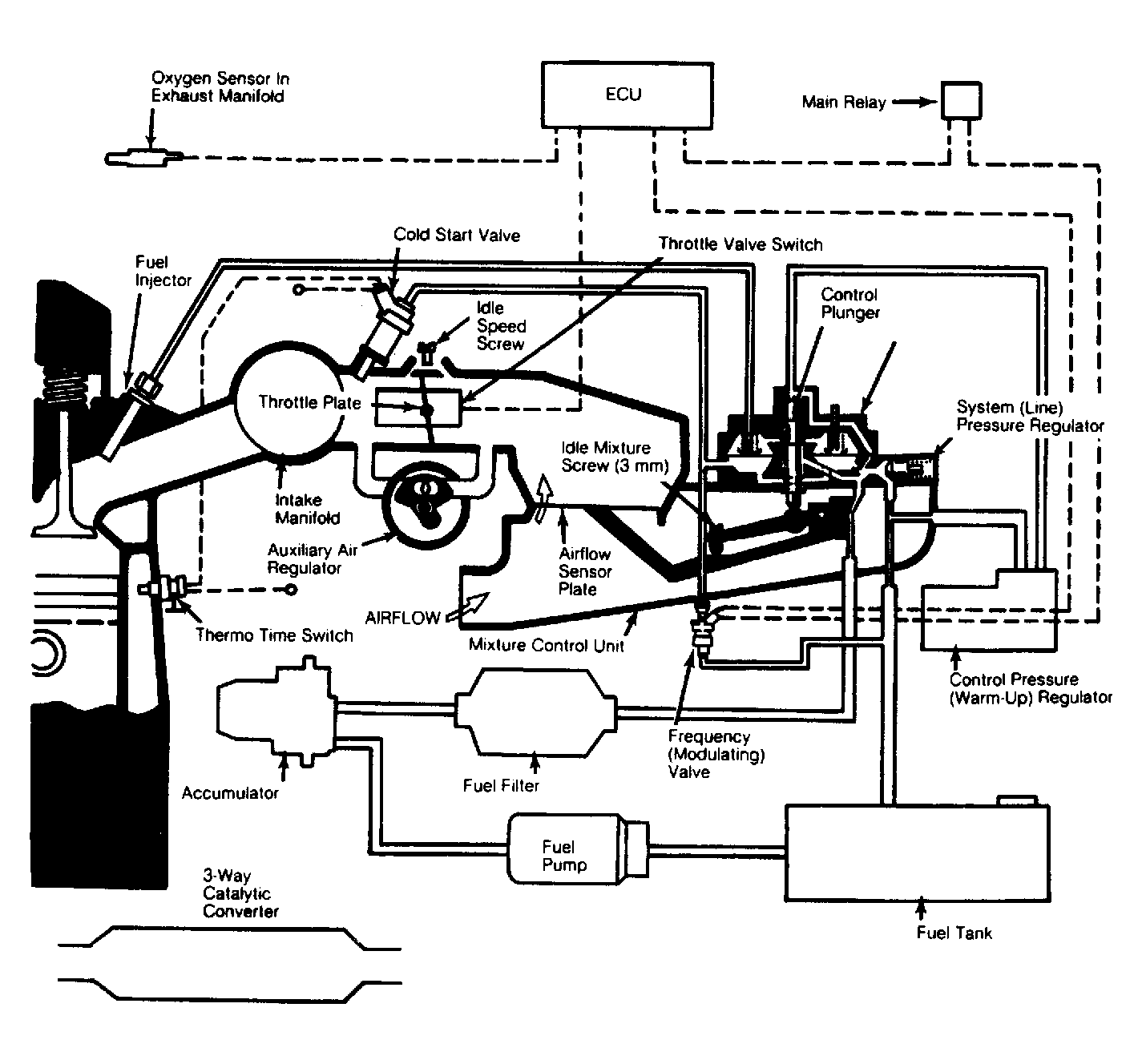

Fig 1: Bosch CIS Lambda Fuel Injection System Diagram

Courtesy of VOLKSWAGEN UNITED STATES, INC.
