Vacuum Check

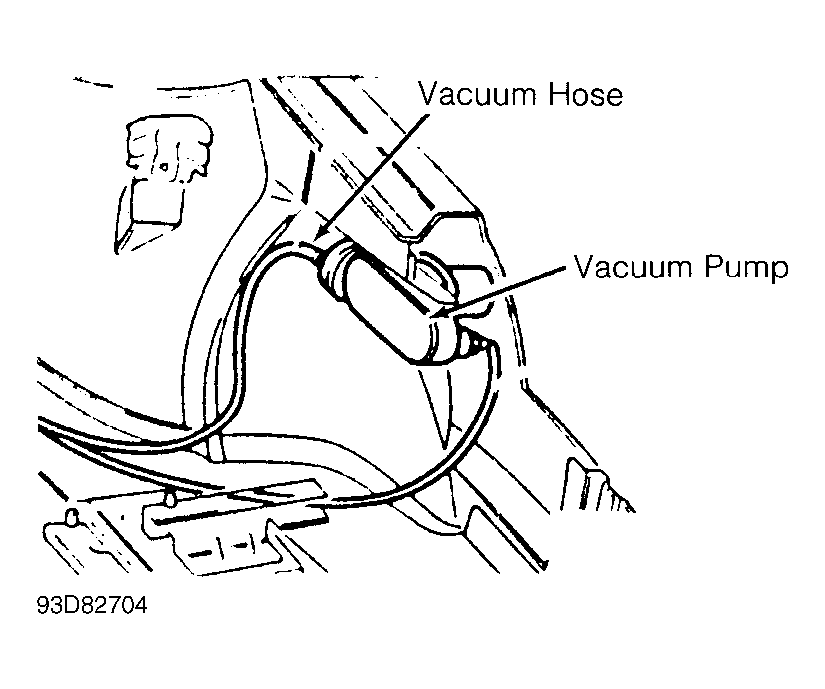

Locate vacuum pump. See Figure or Figure . Remove vacuum line from vacuum pump. Push vacuum actuator diaphragm inward. Apply brake pedal by hand until pressure is felt. Release brake pedal. If diaphragm moves, repair or replace as necessary.
