Control Units

CONTROL UNITS LOCATION

Component	Location
Digifant Control Unit	Under right side of dash, behind glove box.

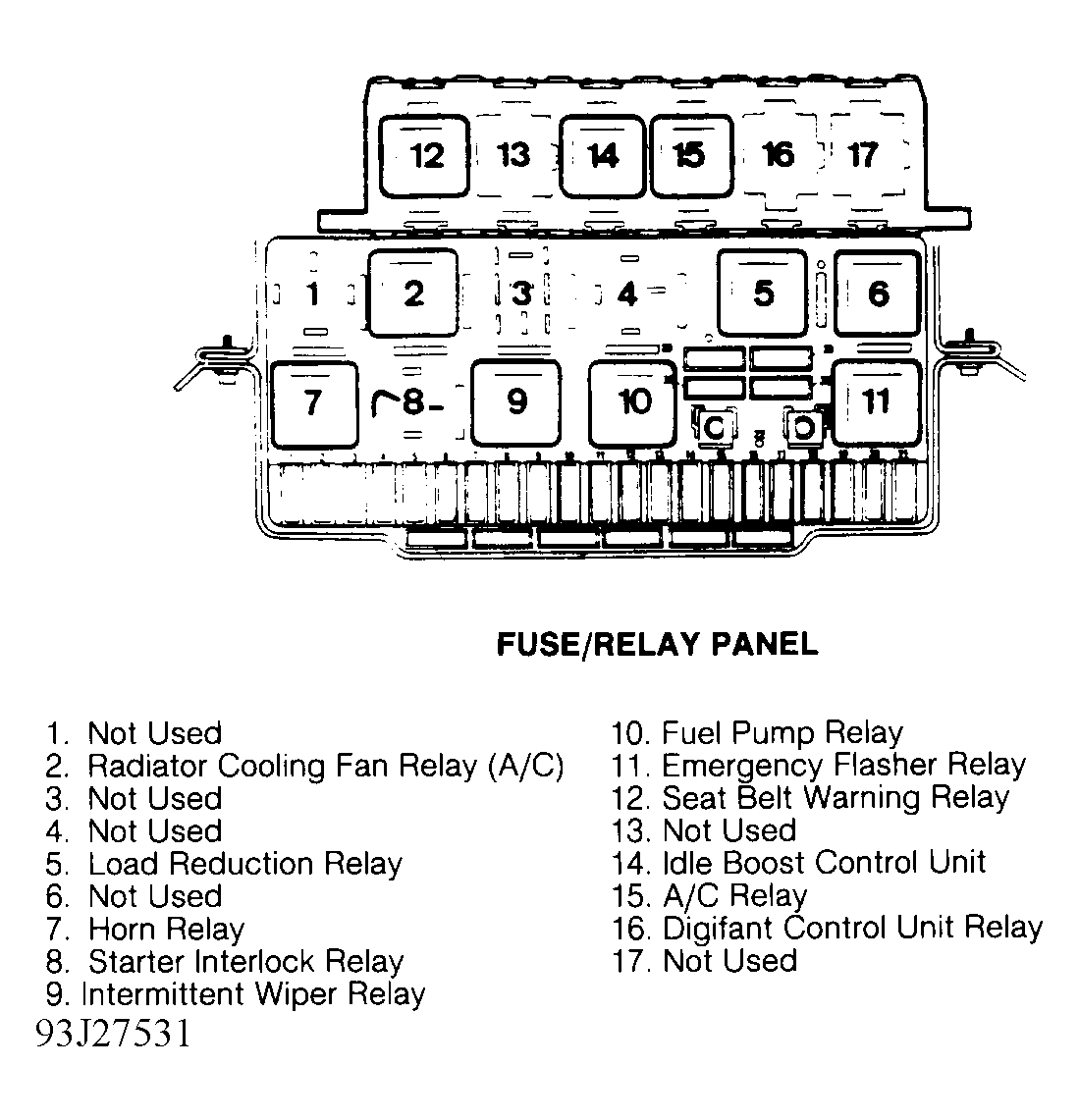

Idle Boost Control Unit	On fuse/relay panel. See Figure .
Transistorized Ignition Control Unit	Under dash, to right of glove box. See Figure .
