Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| ABS Pump & Valve Fuse (Jetta 2.0L) | On fuse/relay panel. |

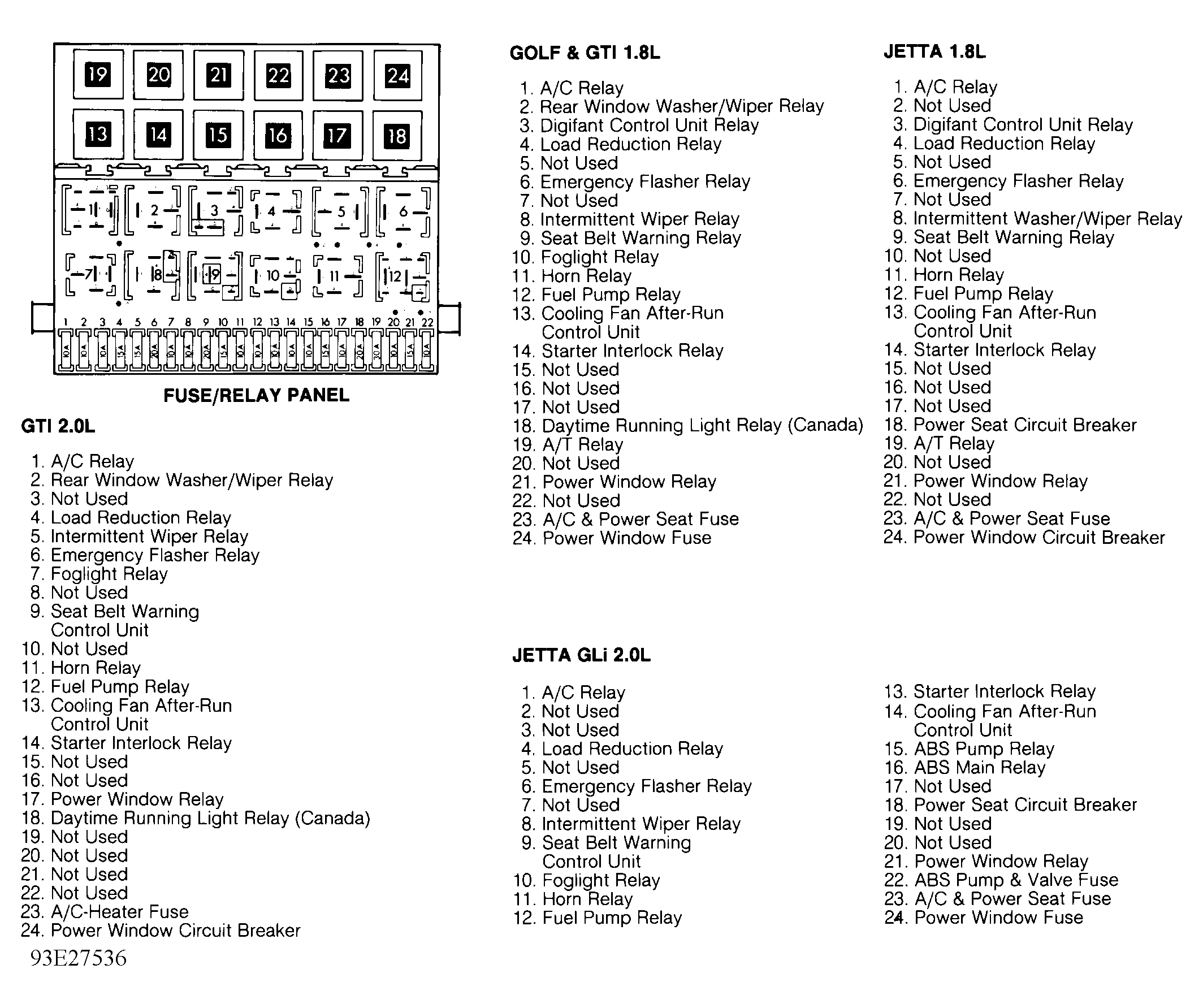

| A/C-Heater Fuse (GTI 2.0L) | On fuse/relay panel. See Figure . |
| A/C & Power Seat Fuse (Exept GTI 2.0L) | On fuse/relay panel. See Figure . |
| Fuse/Relay Panel | Under left side of dash. See Figure . |
| Power Seat Circuit Breaker (Jetta) | On fuse/relay panel. See Figure . |
| Power Window Circuit Breaker (GTI 2.0L & Jetta 1.8L) | On fuse/relay panel. See Figure . |
| Power Window Fuse (Golf, GTI 1.8L & Jetta 2.0L) | On fuse/relay panel. See Figure . |
