Removal & Installation (EuroVan)

1. Distributor removal procedure is not available from manufacturer. To install distributor, ensure cylinder No. 1 is at TDC of compression stroke. See Fig 1 .
2. Align mark on camshaft sprocket with mark on rear toothed belt guard. Turn rotor so that it points to cylinder No. 1 mark on distributor housing. Insert distributor into engine. Check ignition timing.

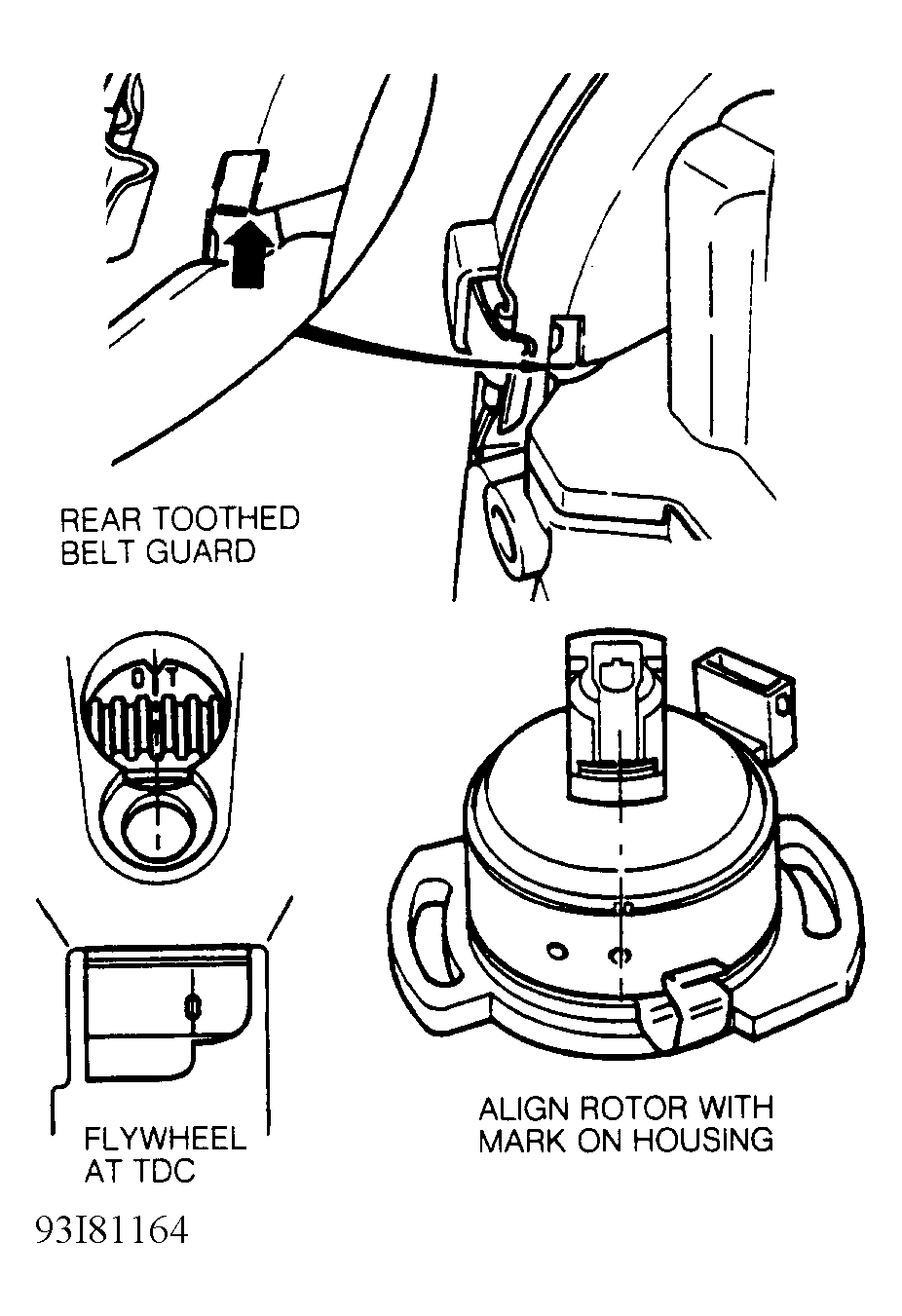

Fig 1: Distributor Installation (EuroVan)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
