Steering Column: Notes

NOTE: Refer to illustration for exploded view of steering column. See Fig 1 .

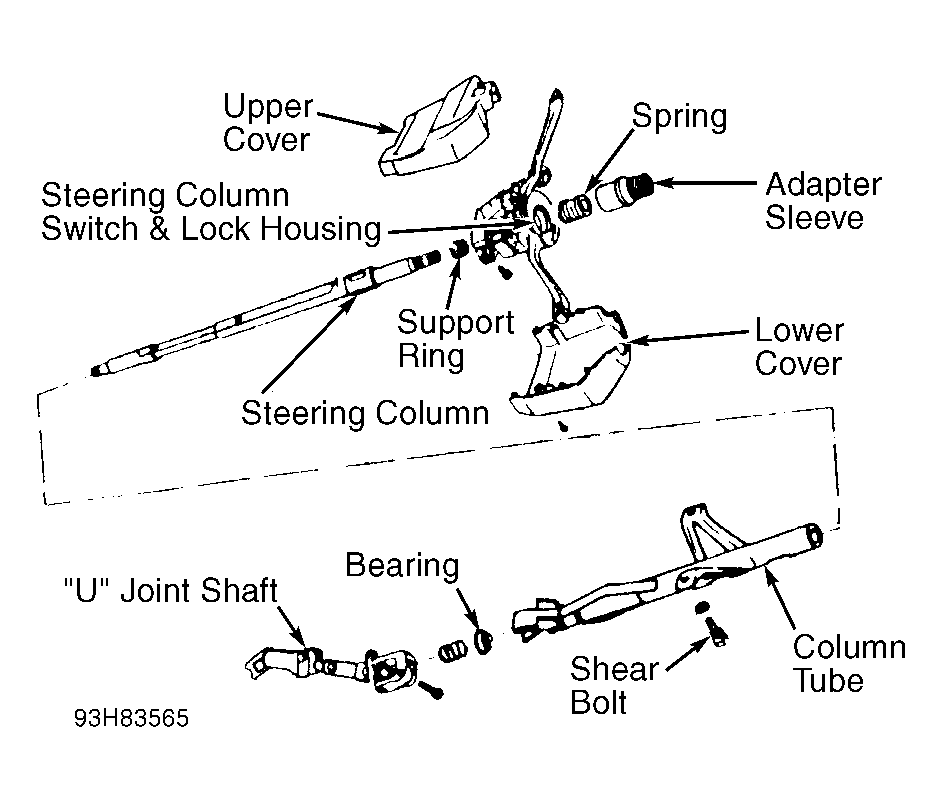

Fig 1: Exploded View Of Steering Column
G93H83565Courtesy of VOLKSWAGEN UNITED STATES, INC.
