Alternator & Regulator: Overhaul

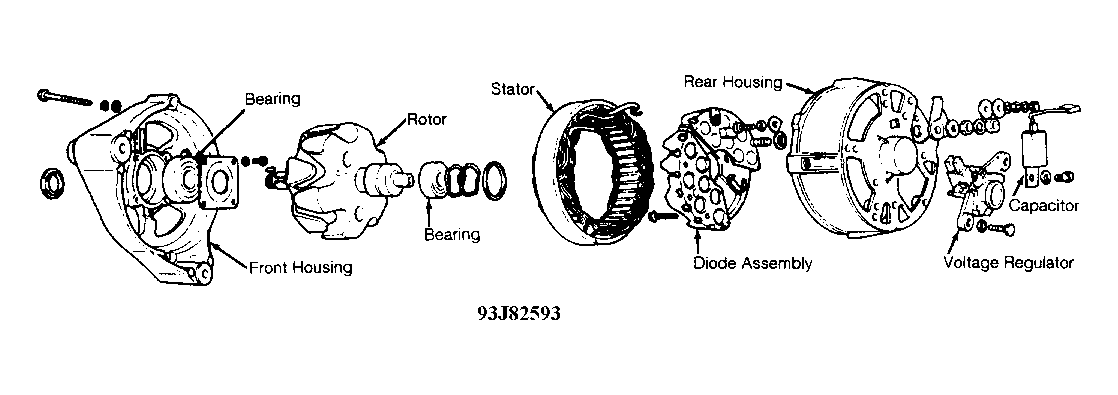

Fig 1: Exploded View Of Bosch Alternator (Corrado SLC)
G93J82593Courtesy of VOLKSWAGEN UNITED STATES, INC.
