Calculating Thrust Angle

NOTE: VW also refers to thrust angle as direction of travel. See Fig 1 .

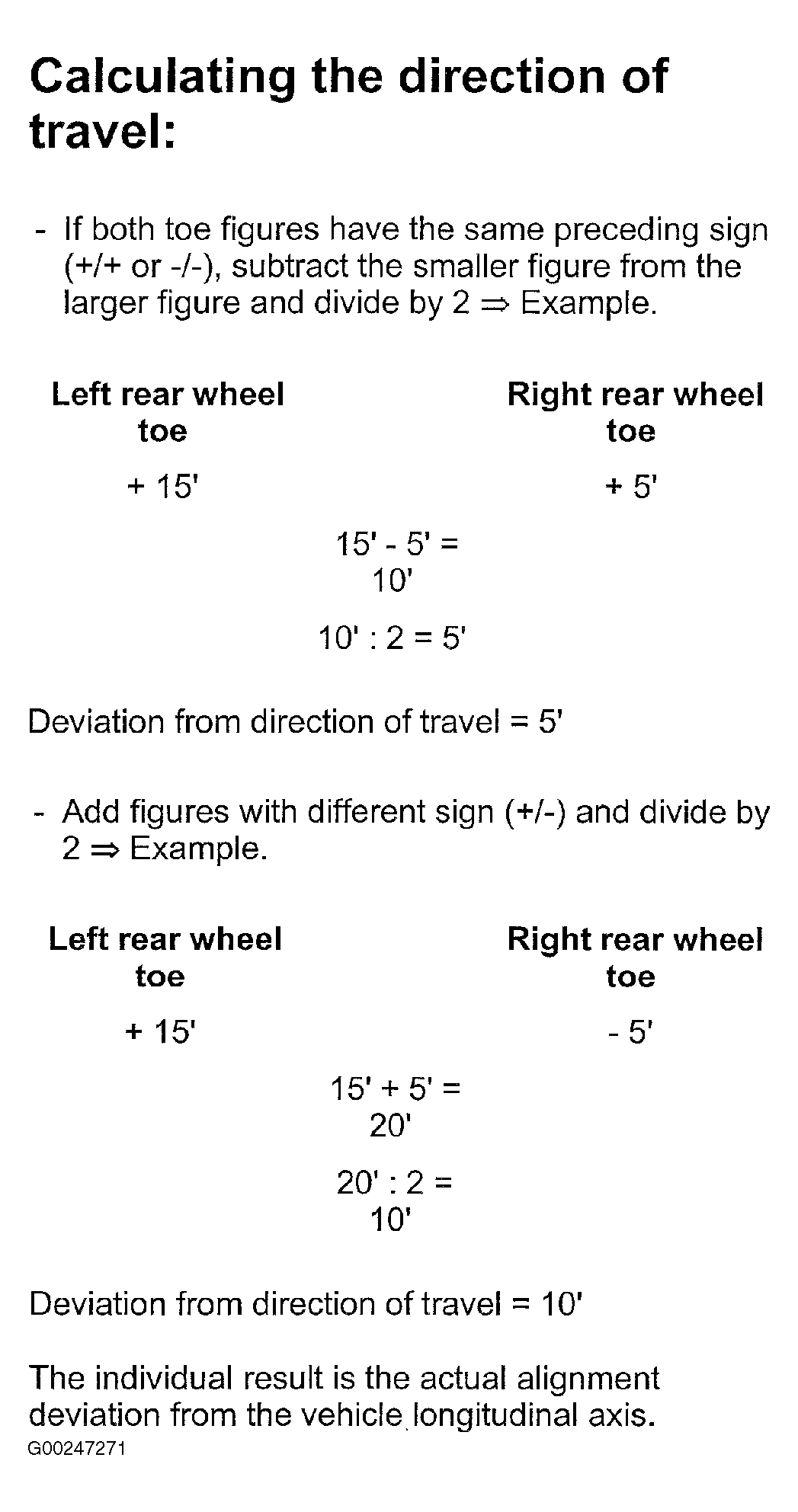

Fig 1: Calculating Thrust Angle
G00247271Courtesy of VOLKSWAGEN UNITED STATES, INC.
