Camber Adjustment: Front

  1. To adjust front camber, install Camber Adjustment Tool (3270). Loosen lower strut mounting bolt.
  2. Adjust camber by turning spindle to specified setting.
  3. Tighten strut-to-wheel spindle mounting bolt. See TORQUE SPECIFICATIONS  . Recheck camber setting. Repeat adjustment, if necessary.

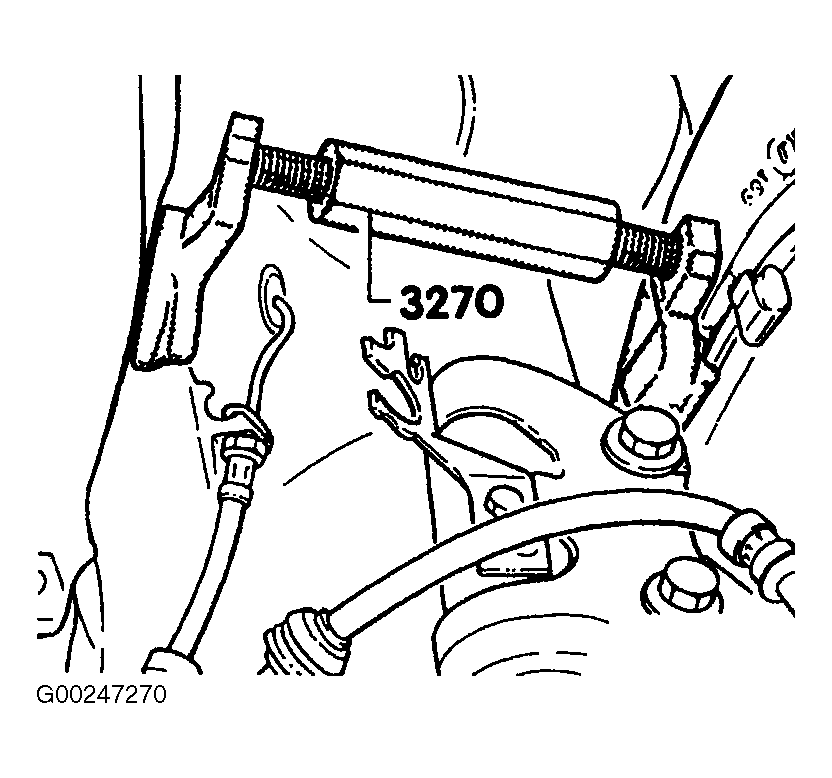

Fig 1: Installing Camber Adjustment Tool (3270)
G00247270Courtesy of VOLKSWAGEN UNITED STATES, INC.
