Special Tools And Equipment

VW 309 Holding plate
VW 353 Transmission support
VW 385/17 End measuring plate
VW 387 Universal dial gauge bracket
VW 402 Thrust plate
VW 407 Press tool
VW 421 Tube
VW 432 Press piece
VW 433 Press tool
VW 441 Base plate
VW 456 A Gear carrier support
VW 457 Support rails
VW 459/1 Installing and removing tool
VW 472/1 Thrust piece
VW 521 Ring gear adjusting device
2006 A Thrust ring
2007 Thrust pad
3296 Tube
VAG 1331 Torque wrench. See Figure .
Kukko 21/7 Inner puller (1). See Figure .
Kukko 22/2 Support (4). See Figure .

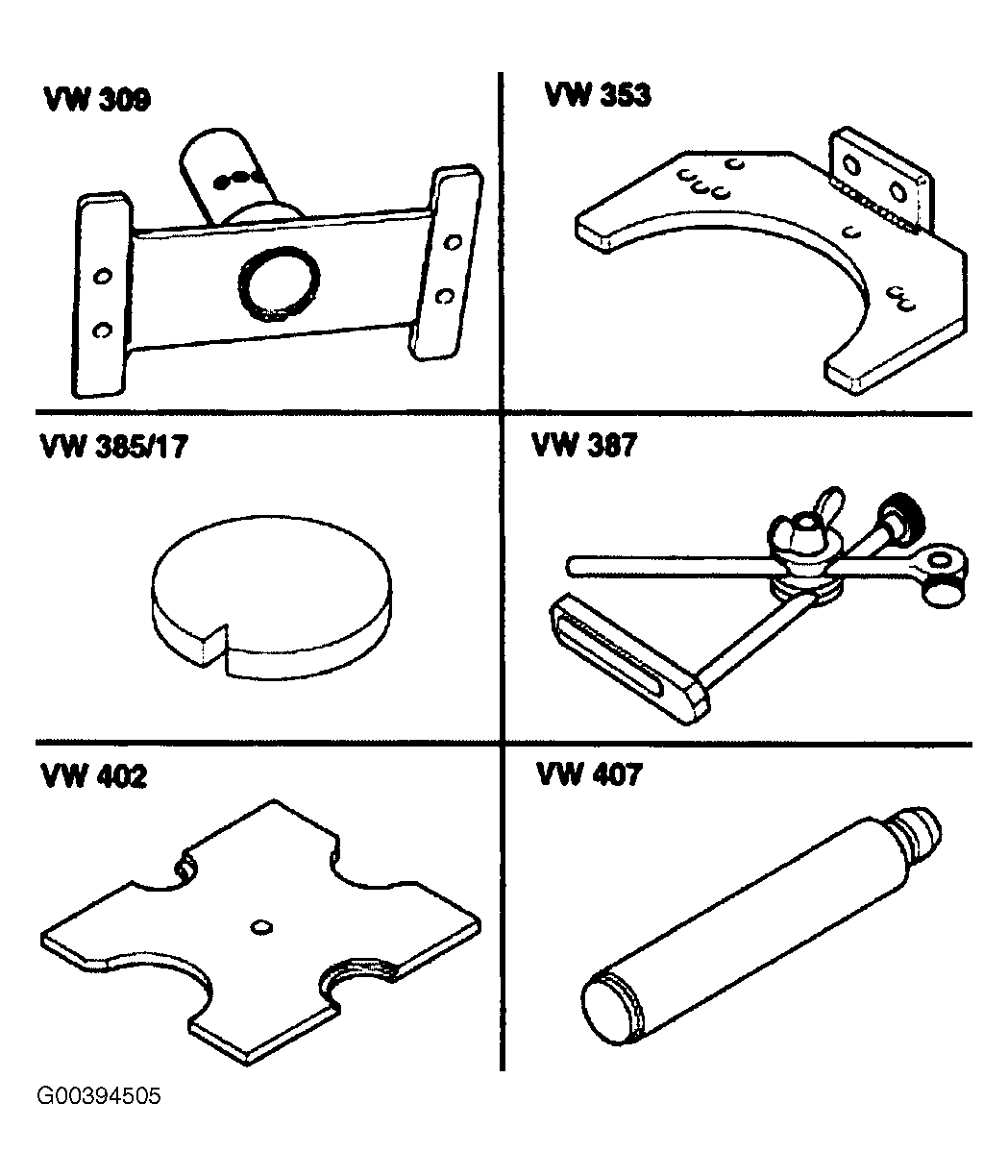

Fig 1: Identifying Differential Adjusting Special Tools (1 Of 3)

G00394505

Courtesy of VOLKSWAGEN UNITED STATES, INC.

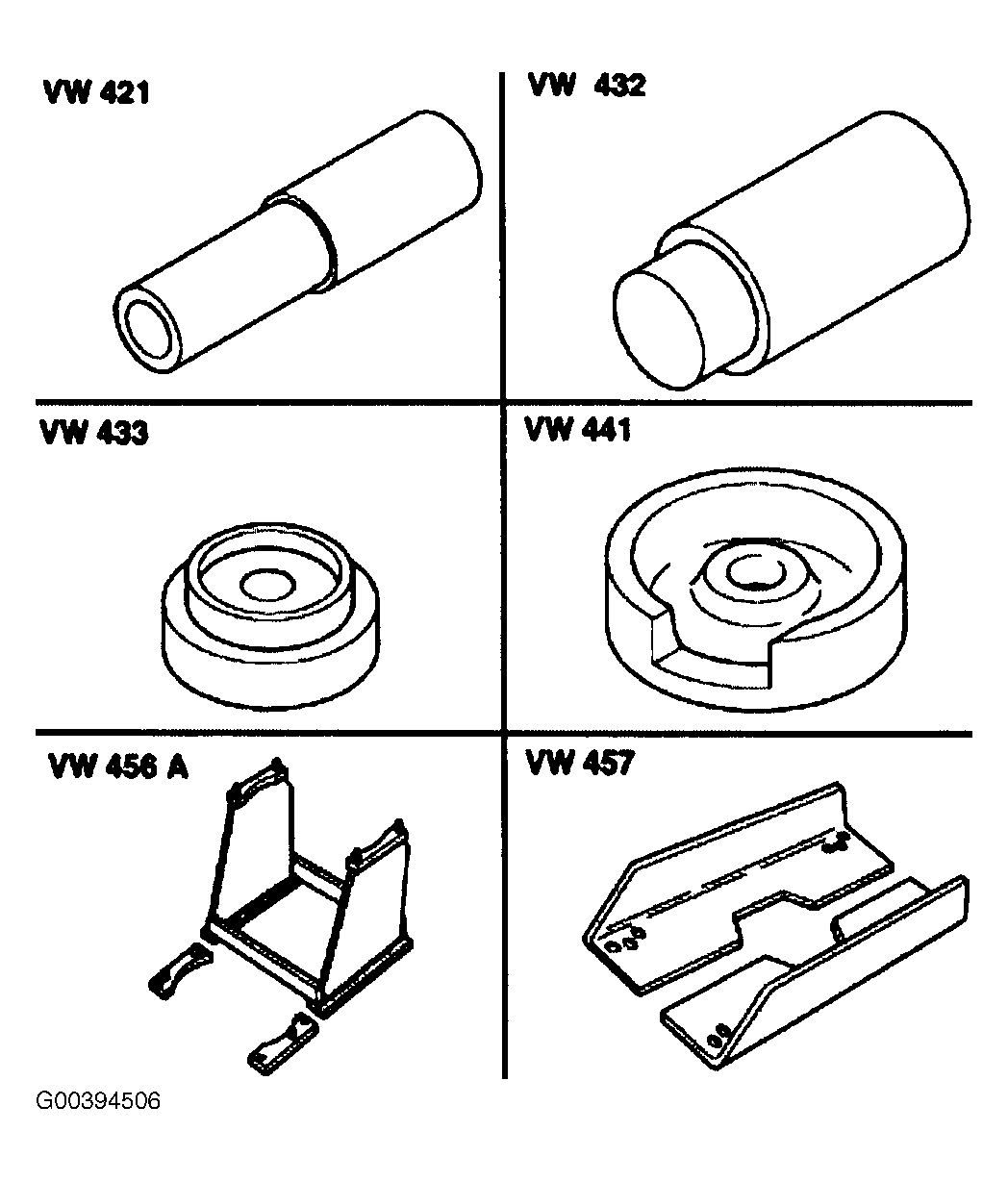

Fig 2: Identifying Differential Adjusting Special Tools (2 Of 3)

G00394506

Courtesy of VOLKSWAGEN UNITED STATES, INC.

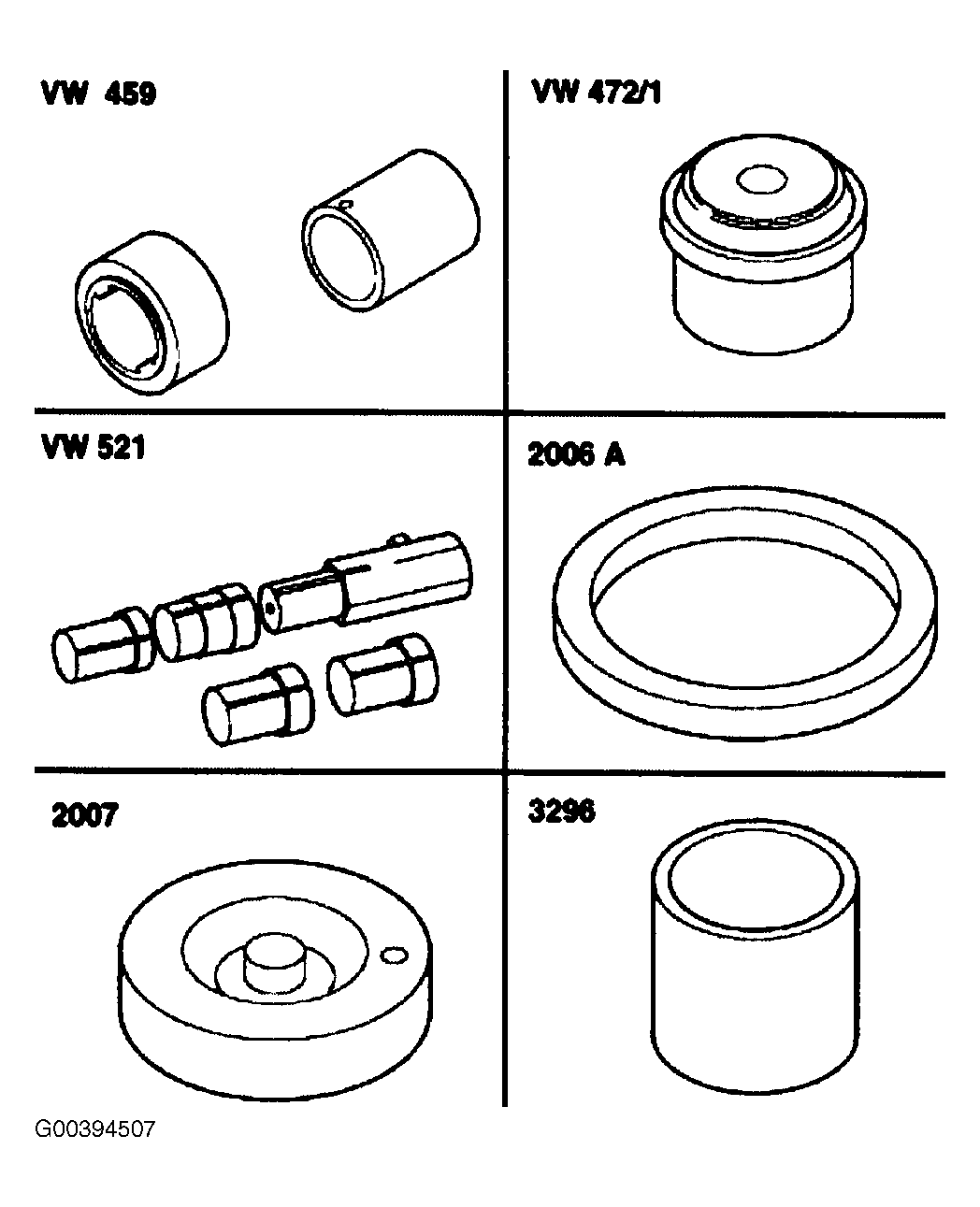

Fig 3: Identifying Differential Adjusting Special Tools (3 Of 3)

G00394507

Courtesy of VOLKSWAGEN UNITED STATES, INC.
