Component Locations

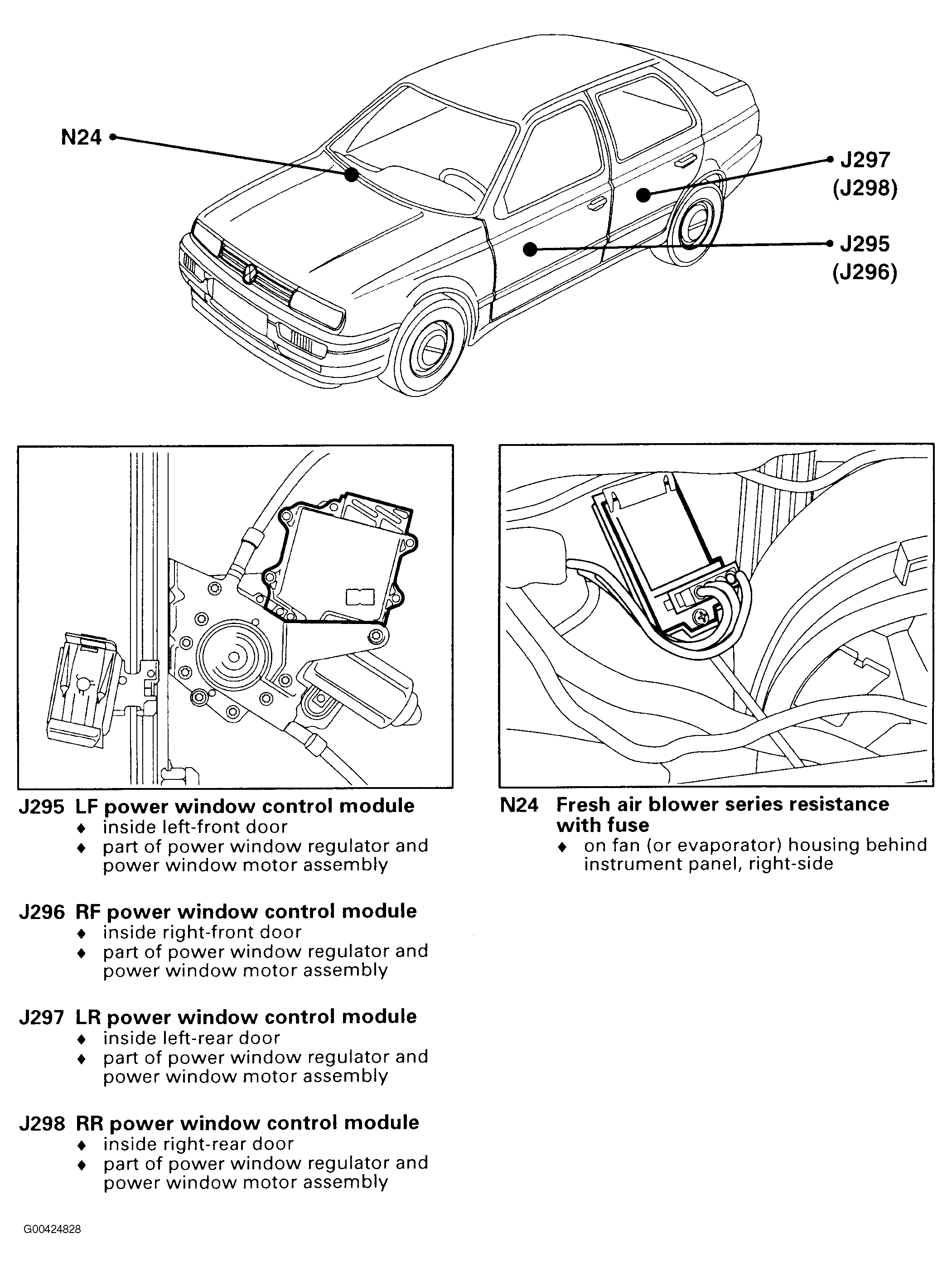

Fig 1: Locating J295-J298 & N24
G00424828Courtesy of VOLKSWAGEN UNITED STATES, INC.

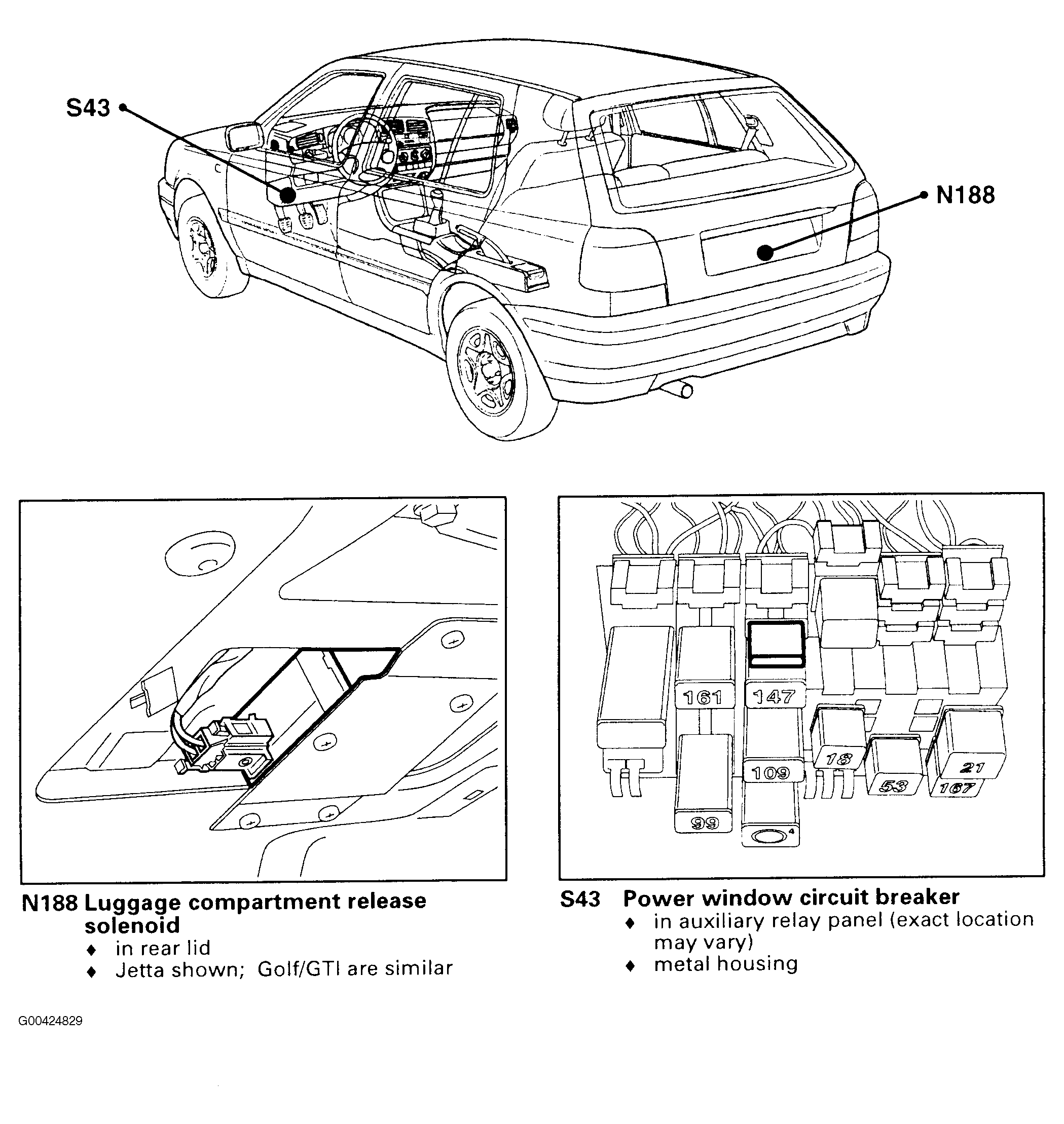

Fig 2: Locating N188 & S43
G00424829Courtesy of VOLKSWAGEN UNITED STATES, INC.
