Thrust Angle

For calculation of thrust angle, see Fig 1 .

NOTE: VW refers to thrust angle as direction of rotation.

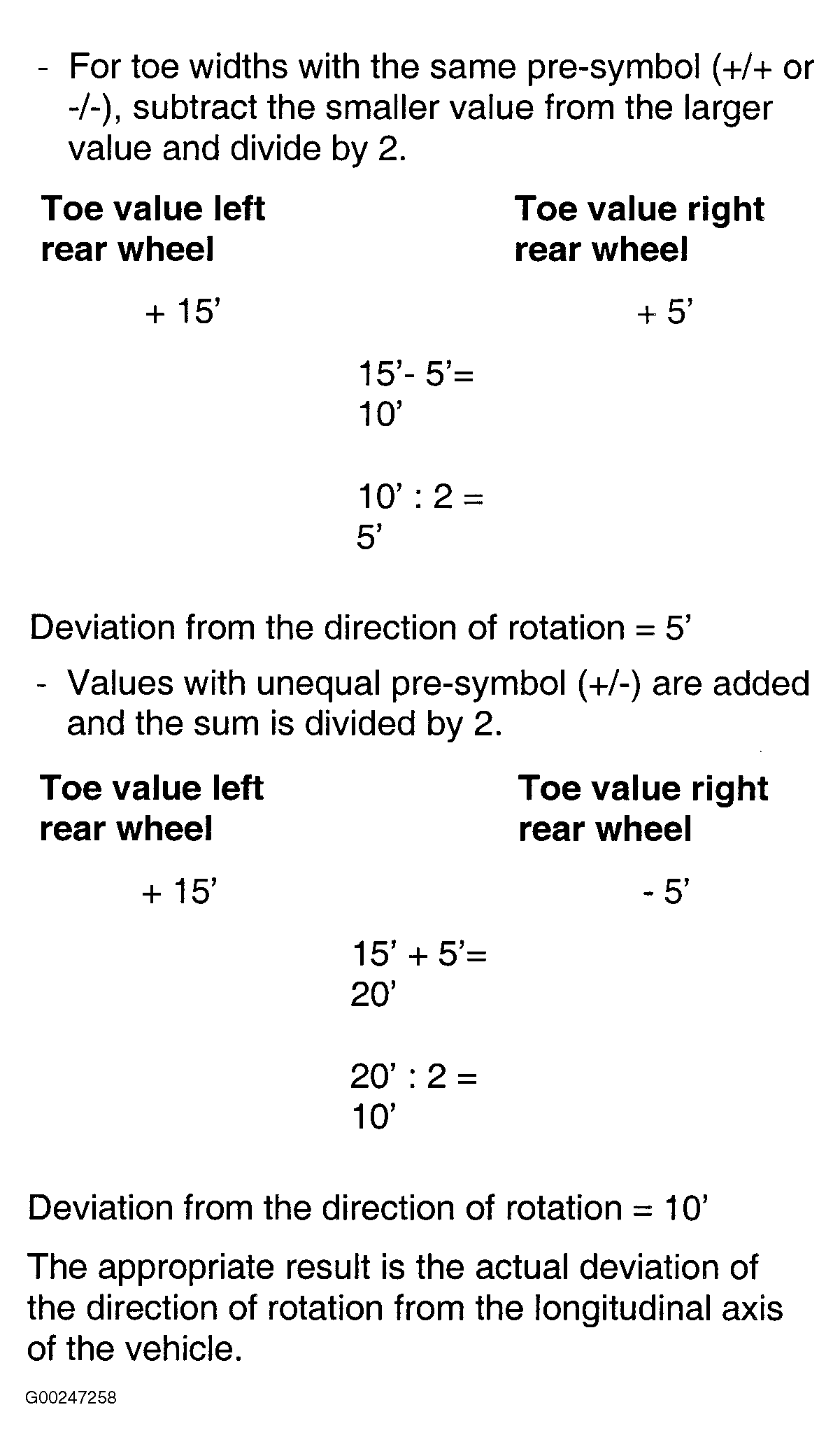

Fig 1: Calculating Thrust Angle (Direction Of Rotation)

G00247258

Courtesy of VOLKSWAGEN UNITED STATES, INC.
