Locations Of Electrical/Electronic Components
›
Notes
Locations Of Electrical/Electronic Components: Notes

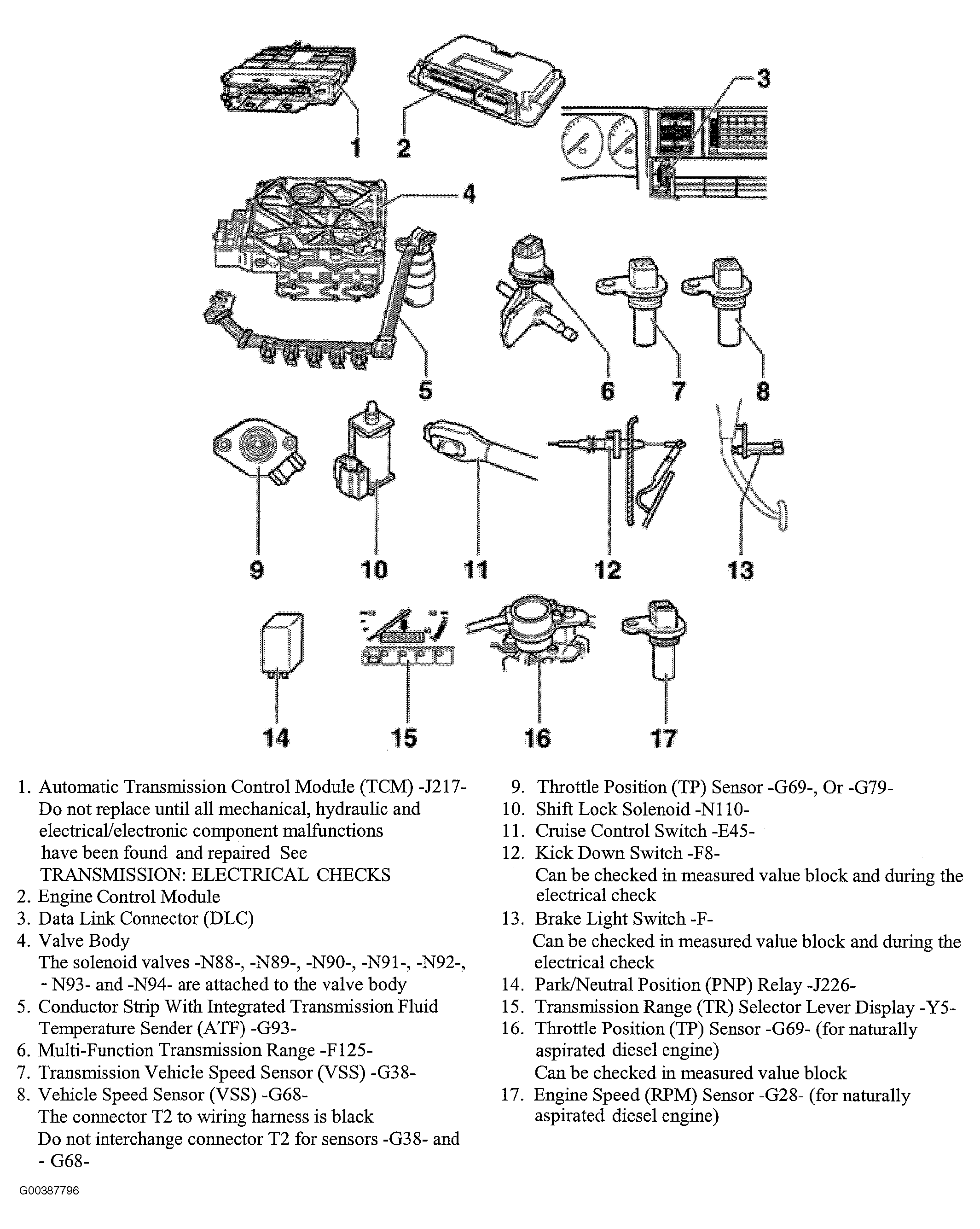

Fig 1: Locations Of Electrical/Electronic Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
