Final Drive, Repair Overview

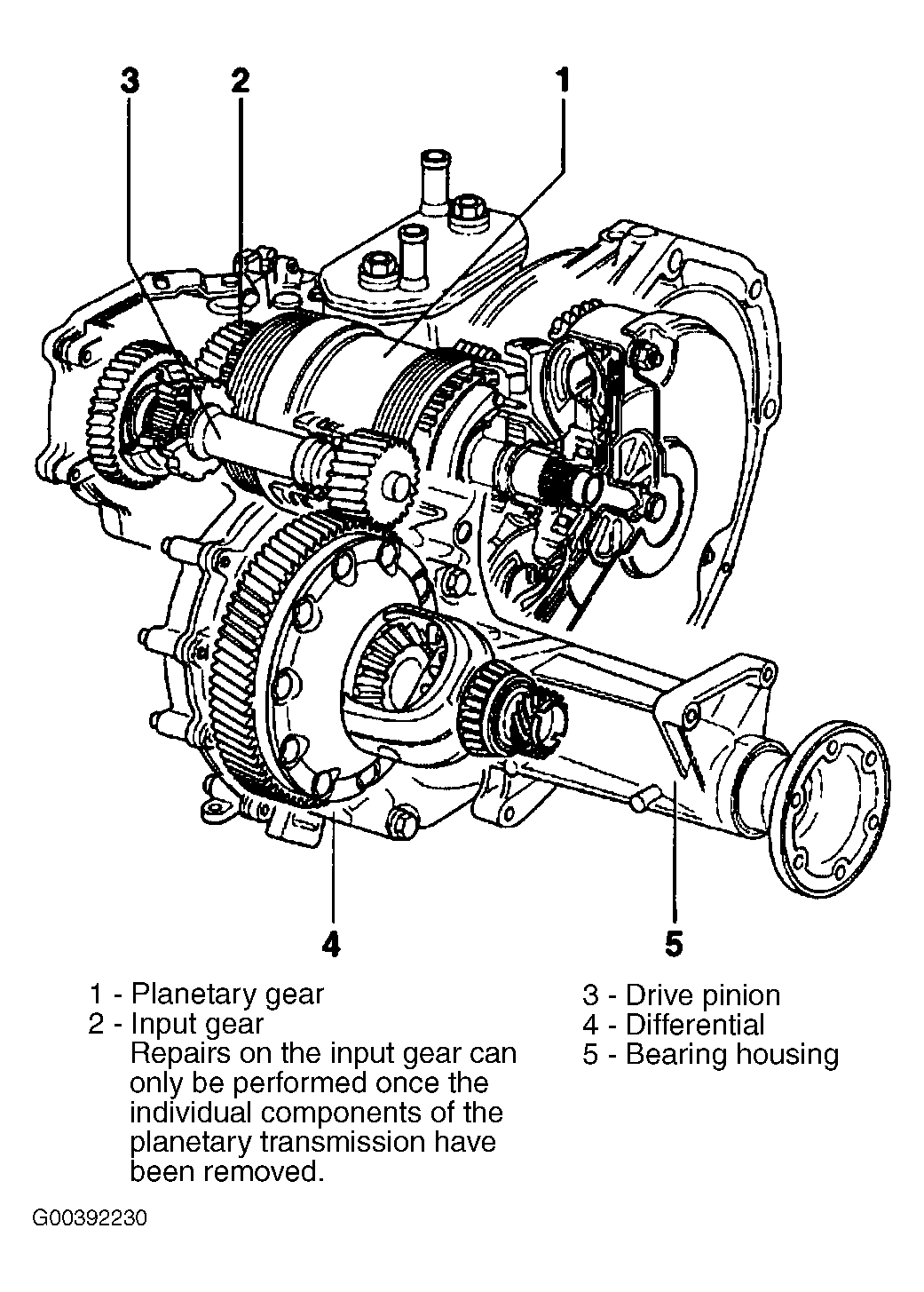

Fig 1: Overview Of Final Drive Disassembly & Assembly
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
