Ignition Key Withdrawal Lock

Check ignition key withdrawal lock. See Fig 1 and Fig 2 .

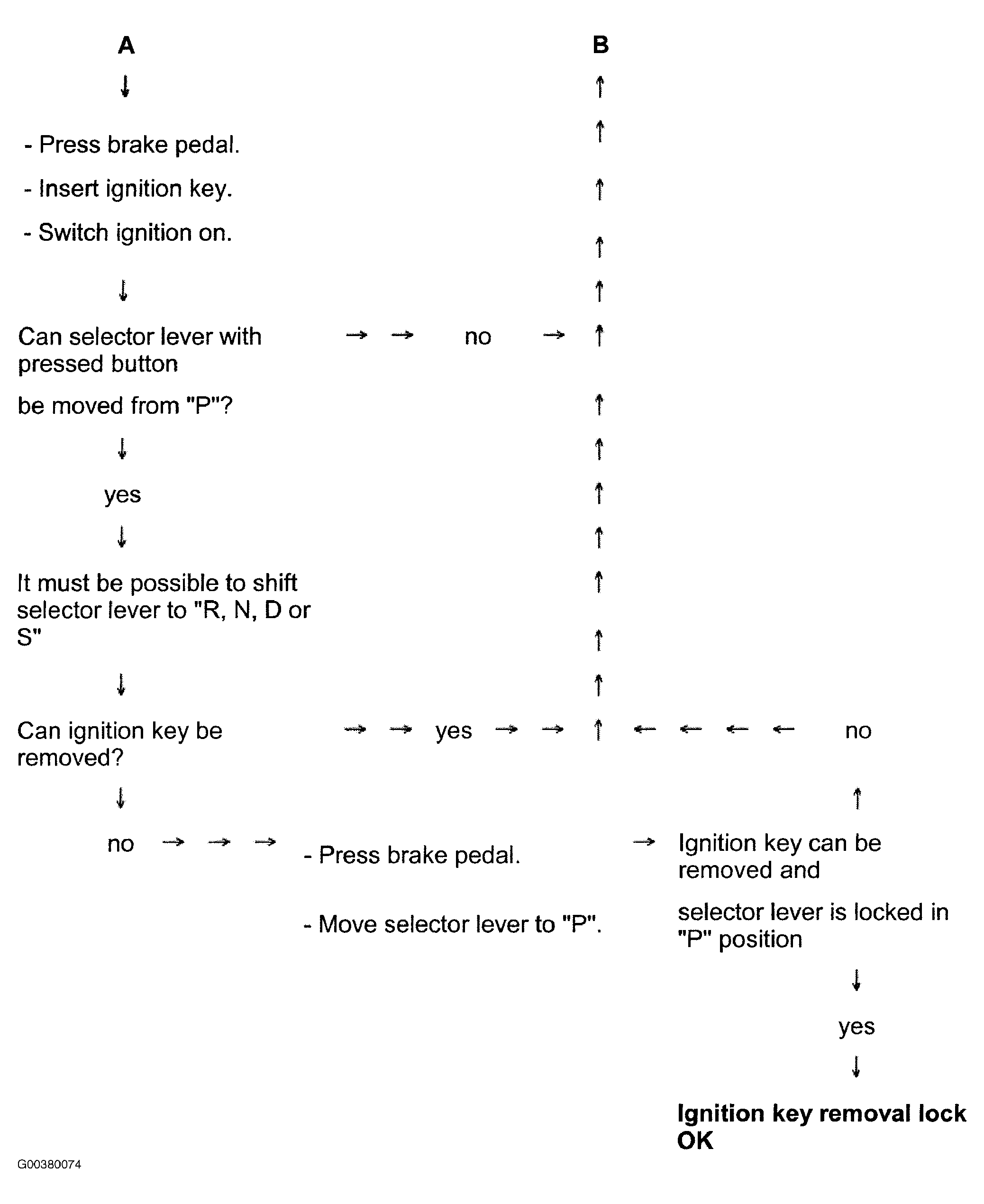

Fig 1: Checking Key Removal Lock Function (1 Of 2)

Courtesy of AUDI OF AMERICA, INC.

Fig 2: Checking Key Removal Lock Function (2 Of 2)

Courtesy of AUDI OF AMERICA, INC.
