Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

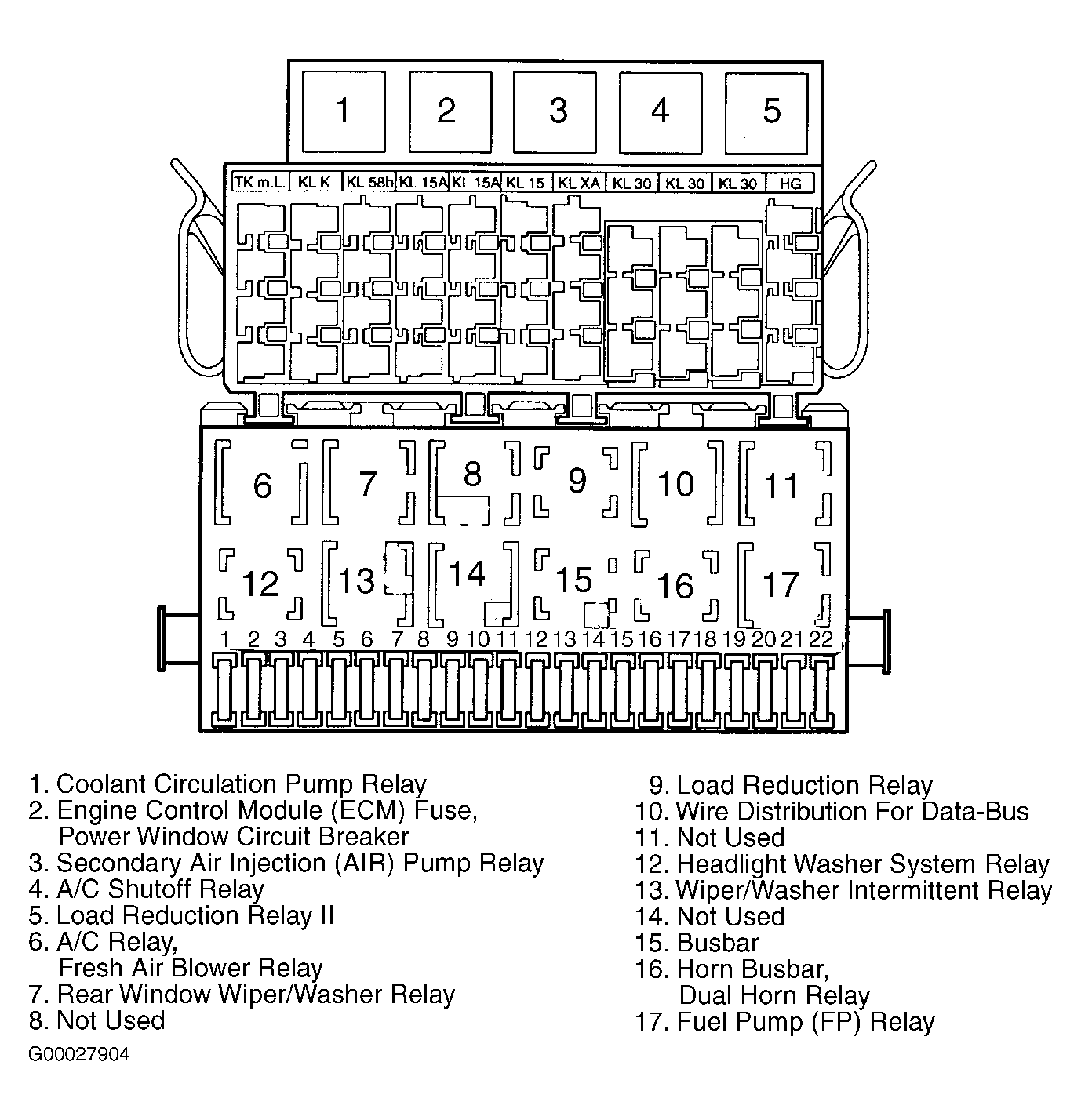

Fig 1: Fuse/Relay Panel

Courtesy of VOLKSWAGEN UNITED STATES, INC.
