Ignition/Glow Plug System
›
Ignition, servicing
›
Safety precautions
›
Vehicles with engine code AWD
Vehicles with engine code AWD
Disconnect all 4-pin connectors -2- from the ignition coils -1-.

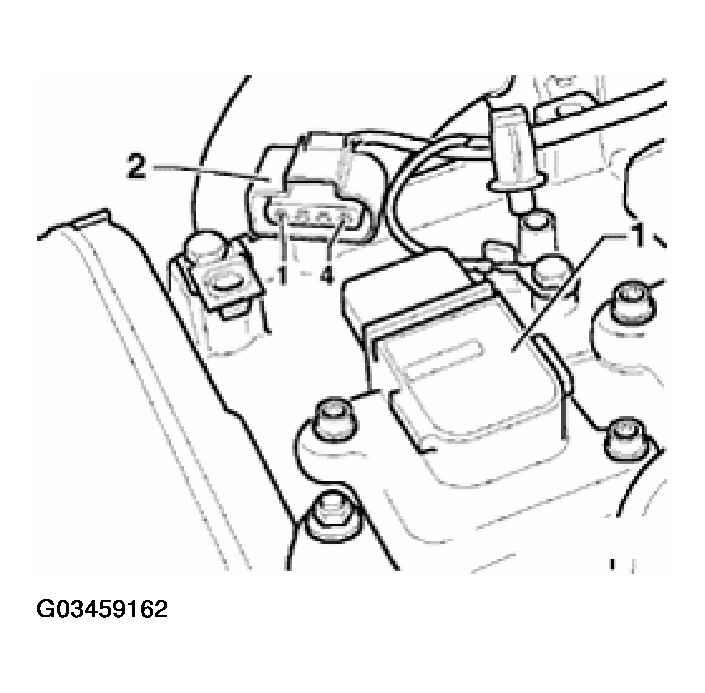

Fig 1: Disconnecting All 4-Pin Connectors From The Ignition Coils (Engine Code AWD)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Courtesy of VOLKSWAGEN OF AMERICA, INC.
