Vehicles with engine code AWP, AWW

• Disconnect all 4 -pin connectors -2- from the ignition coils -1-.

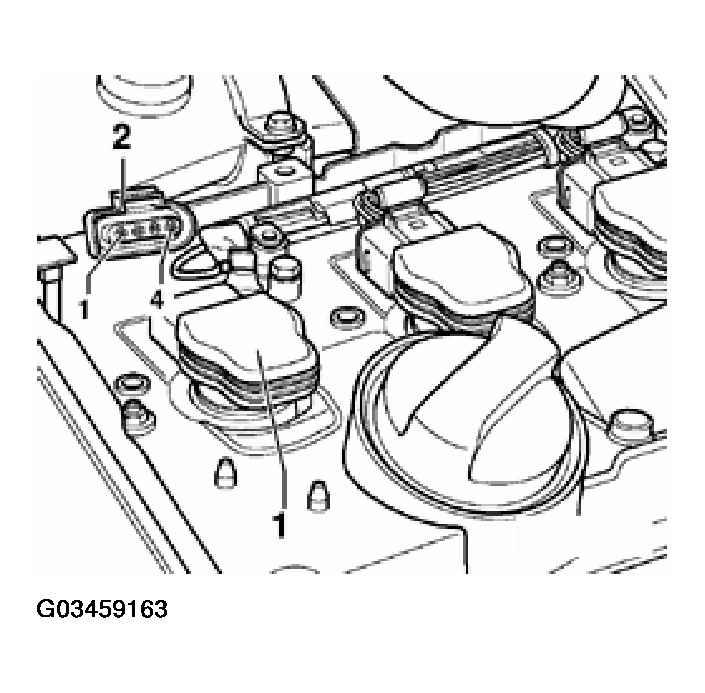

  Fig 1: Disconnecting All 4-Pin Connectors From The Ignition Coils (Engine Code AWP, AWW)

  Courtesy of VOLKSWAGEN OF AMERICA, INC.

  Continuation for all vehicles

• Remove fuse 32

NOTE: By removing fuse 32, voltage supply to the fuel injectors is interrupted.

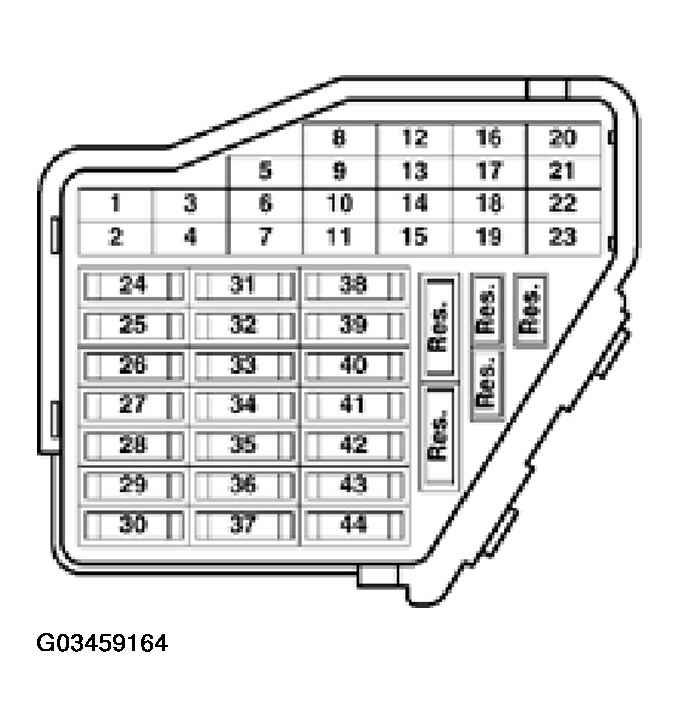

Fig 2: Identifying Fuse Block

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: Fuse block is located behind access panel at far left end of dash.
